Adafruit Perma-Proto Small Tin

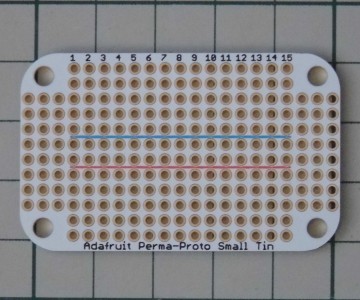

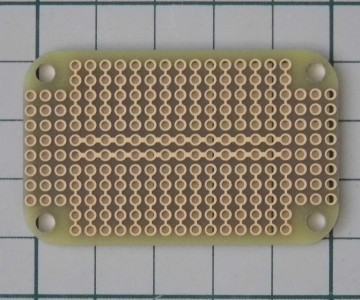

As supplied: 1

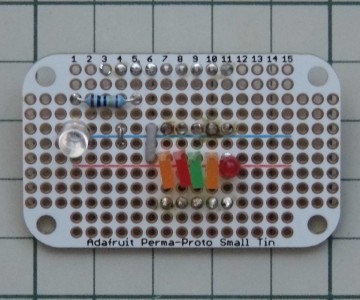

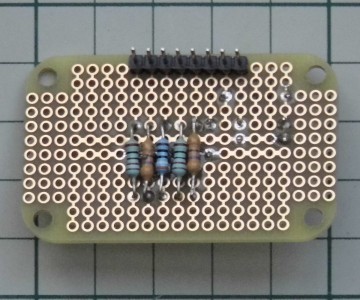

GLCD-SPI interface LED Test Board

Schematic:


As built:

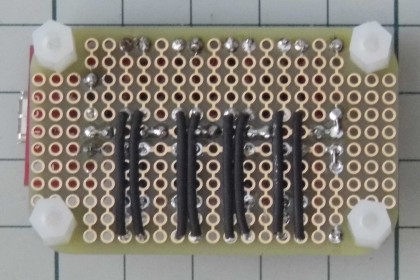

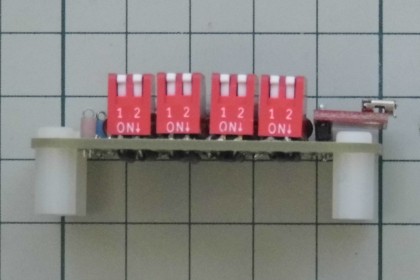

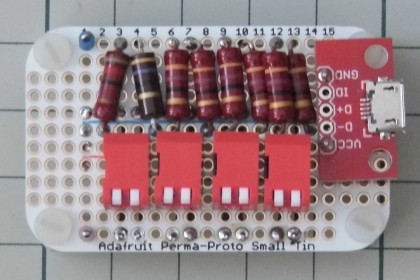

Compact (micro-)USB Power Supply Test Board

(Based upon this USB PSU/Hub Power Loading Test Kit)




Switches "On"

Calculated Ω

Measured Ω

mA @ 5V

1xxxxxxx

82.0

82.8

0.060

12xxxxxx

29.9

32.1

0.161

123xxxxx

18.3

18.7

0.267

1234xxxx

13.2

13.5

0.370

12345xxx

10.3

10.6

0.472

123456xx

8.4

8.7

0.575

1234567x

7.2

7.4

0.676

12345678

6.2

6.4

0.781

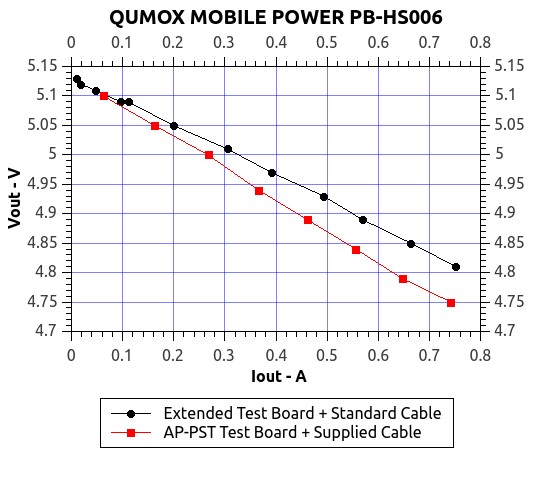

Cross-check using a Mobile Power Bank

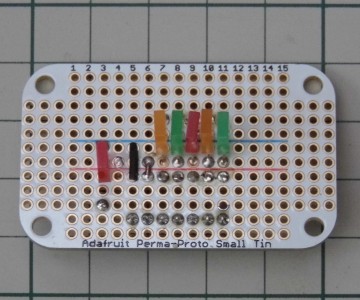

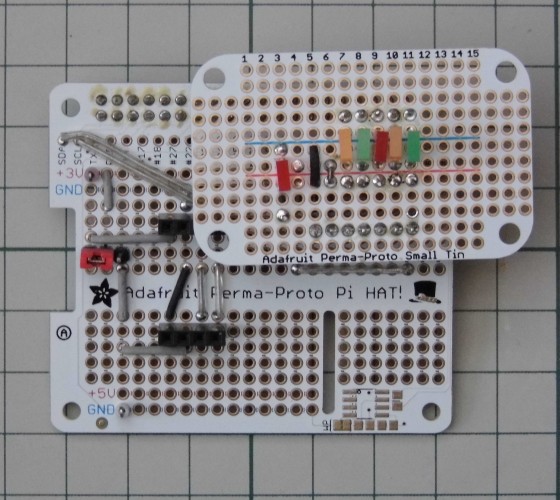

OLED-SPI interface LED Test Board

Schematic:

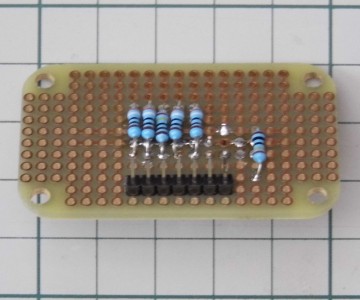

As built:





  1. Pack of three (1)
