Adafruit RasPi PermaProto Full #1

Adafruit designed board purchased from phenoptix in the U.K.

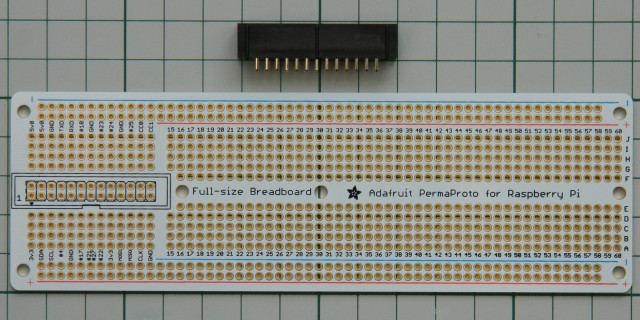

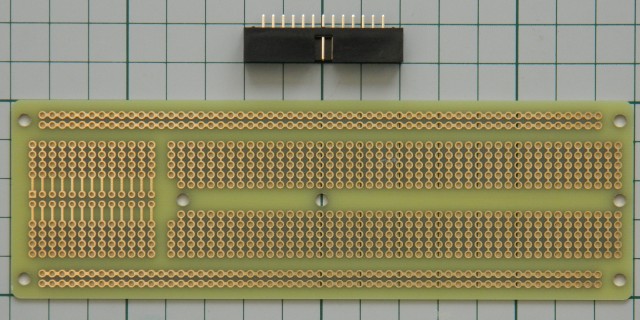

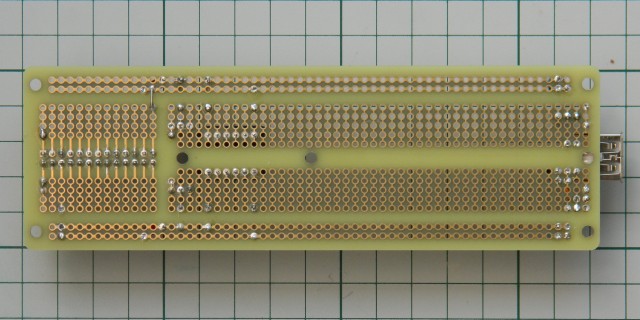

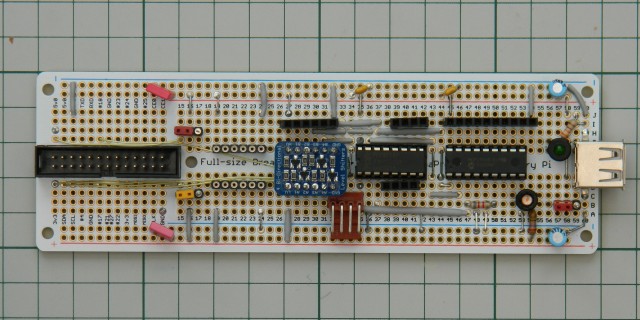

Connector & Board "As supplied" (Ribbon cable to 'Pi not shown)

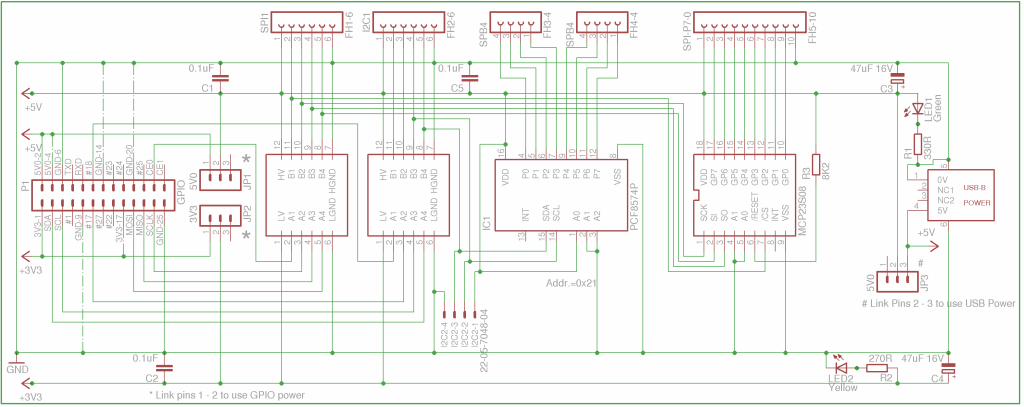

Demonstration/Test Circuit

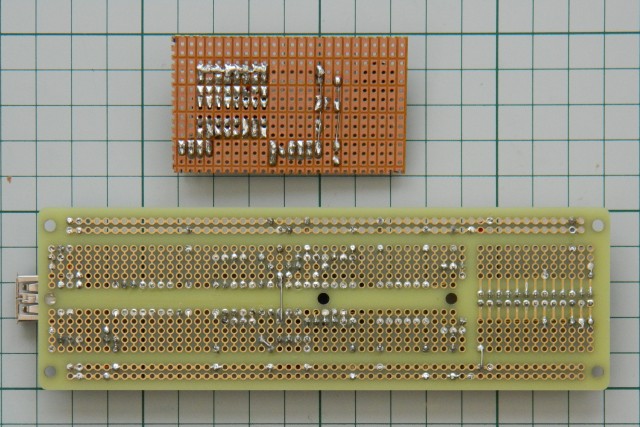

Build "Phase I"

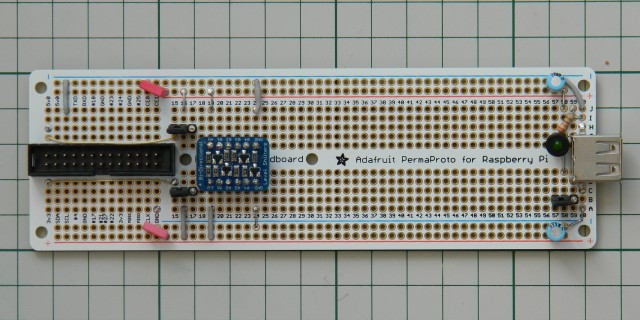

Build "Phase II"

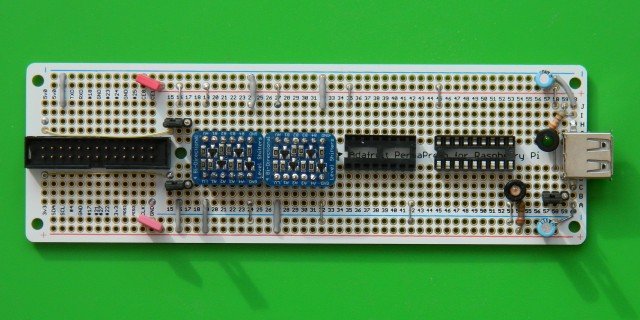

Build "Phase III"

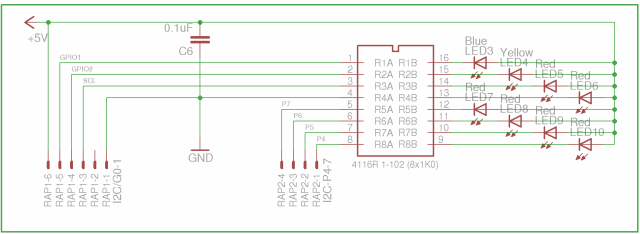

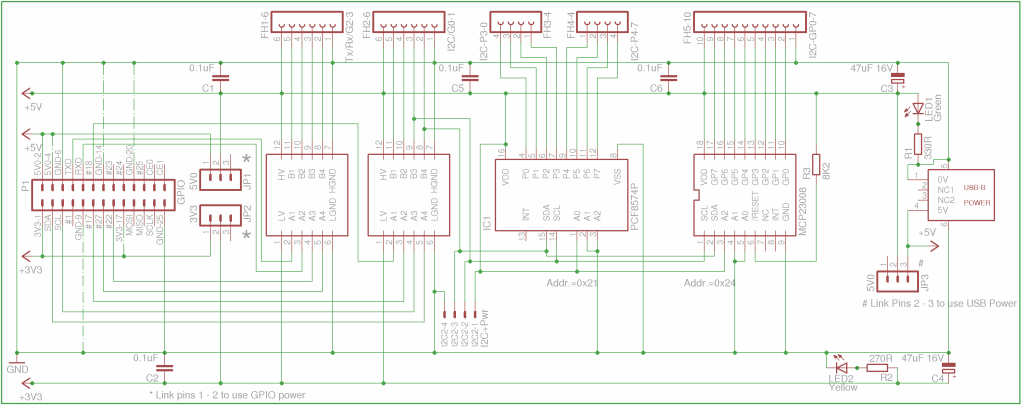

Revised Demonstration Circuit


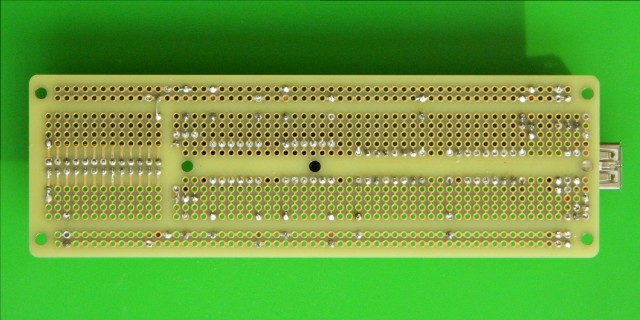

Build "Phase IV"

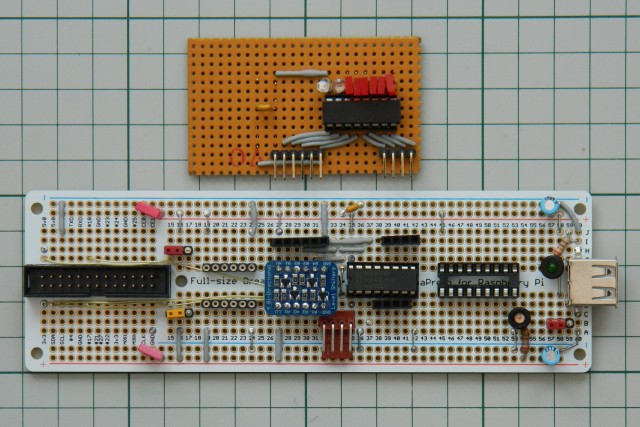

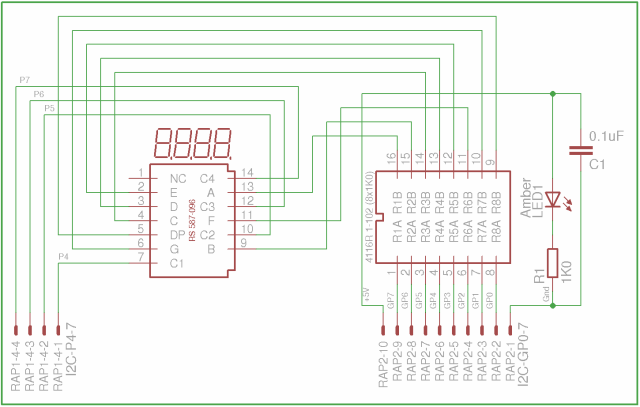

Software multiplexed, 4-Digit, 7-segment LED Display Test Circuit

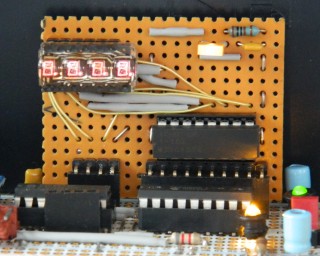

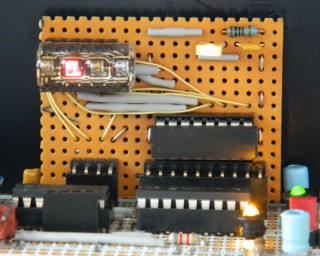

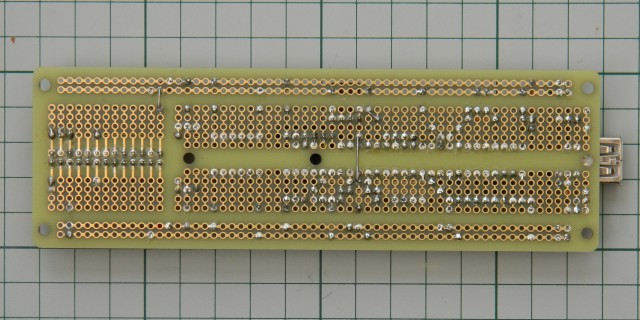

Simple, static "all segments + D.P." tests1

DSCN0876cs.jpg DSCN0877cs.jpg

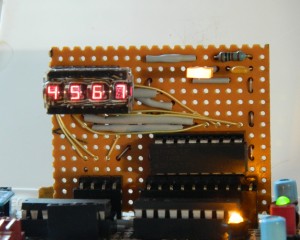

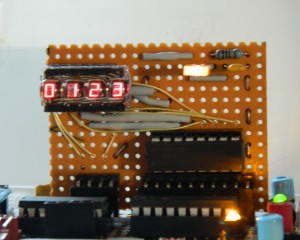

Multiplexed Hex Digits test1

DSCN0879cs.jpg DSCN0880cs.jpg DSCN0881cs.jpg DSCN0882cs.jpg
