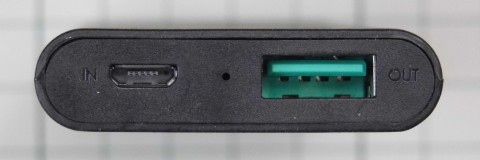

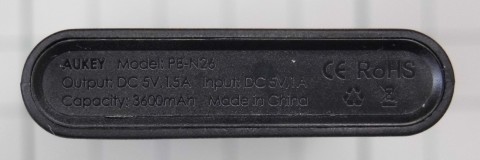

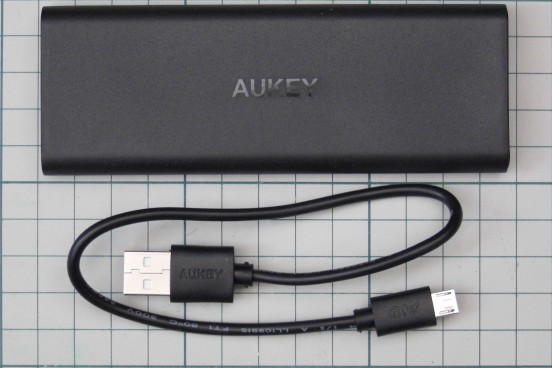

Aukey PB-N26 Powerbank

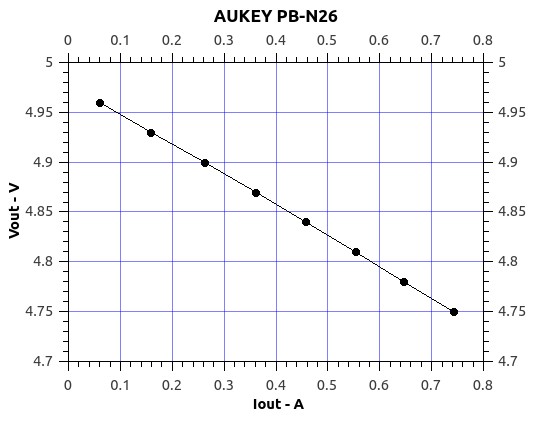

Current Loading Curve
(cf. those for USB Power Supplies etc.1)


Slope resistance: 0.31 Ω2, Vmax: 4.55 V3, Ibrownout: ~1.22 A4


  1. Using the Compact Test Board (1)

  2. Between 4th. & 8th. data points (2)

  3. Imax 1.5A (3)

  4. Vbrownout 4.6 V (4)


2018-06-16 20:20
