Aukey WD-N3 HDD Enclosure, Power Bank & WiFi Router Etc.

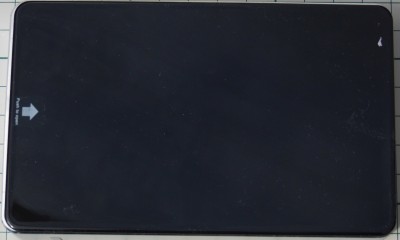

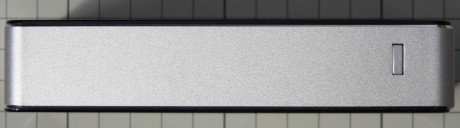

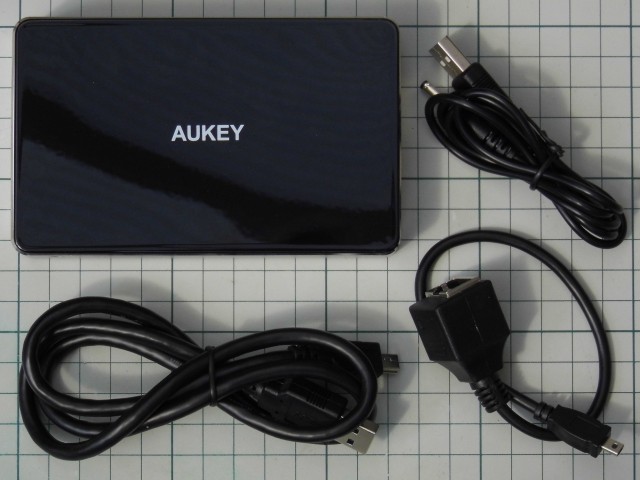

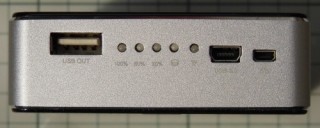

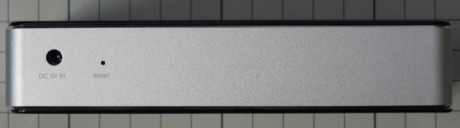

What's "In the Box"

(NB: SATA HDD is not included!)

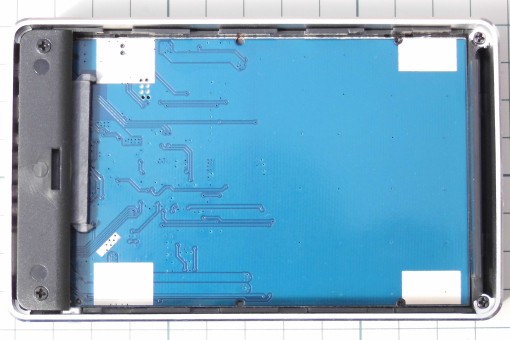

SATA enclosure ...

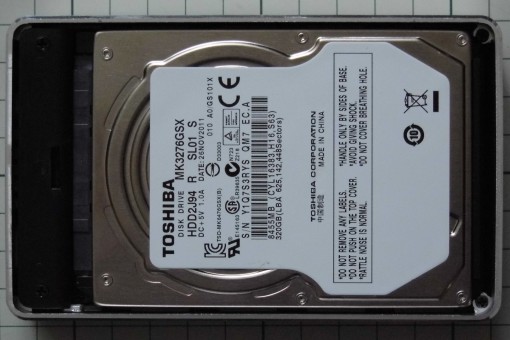

... with HDD fitted

Power Bank Performance

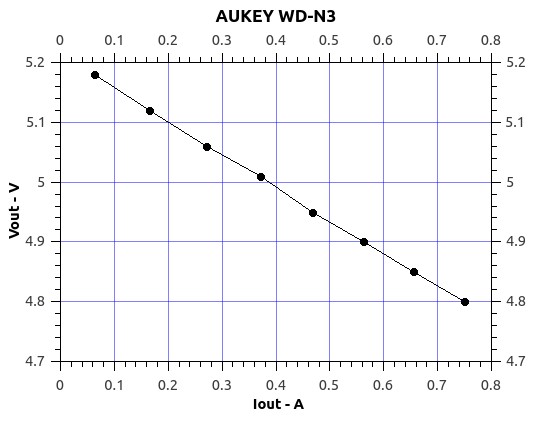

Current Loading Curves
(cf. those for USB Power Supplies etc.)



Slope resistance: 0.55 Ω1, Vmax: 4.7 V2, Ibrownout: ~1.12 A3

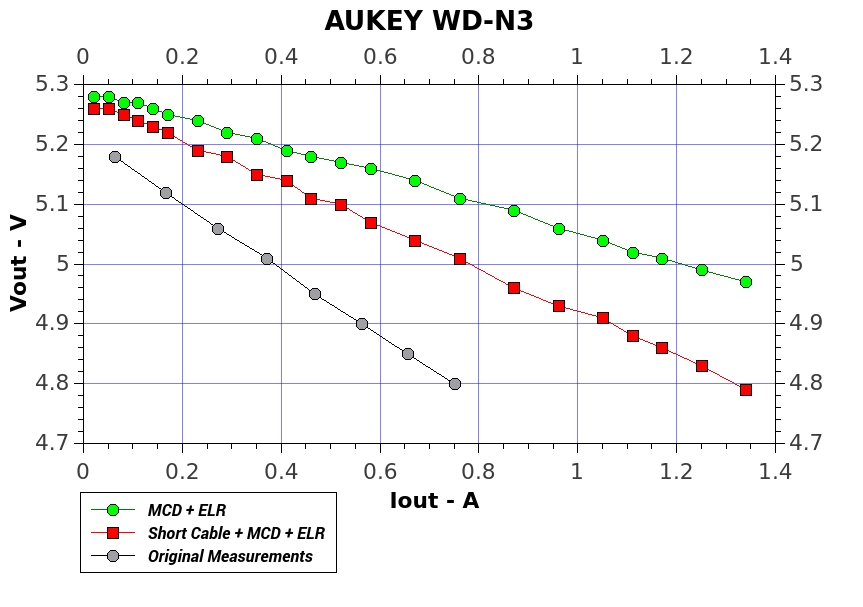

Further measurements, 2021

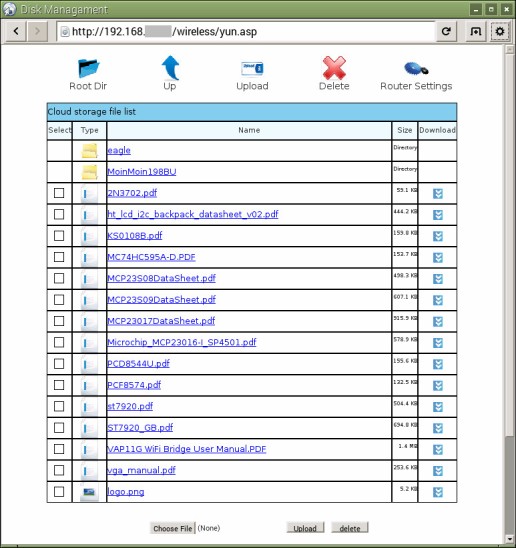

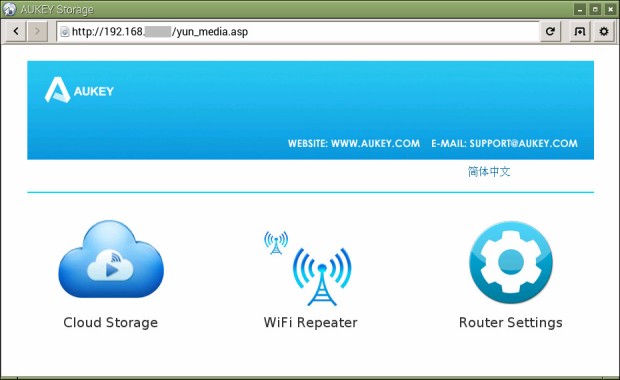

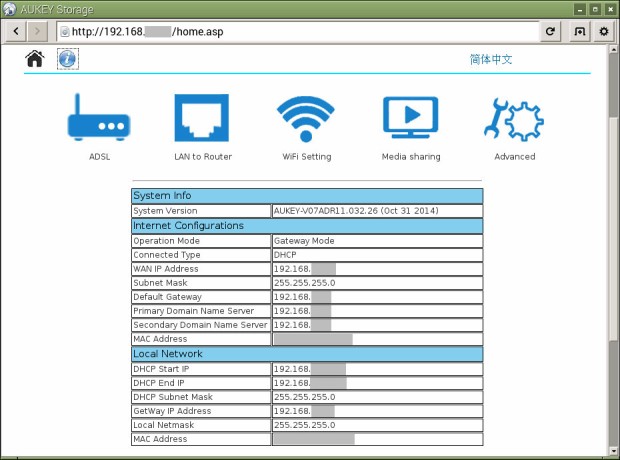

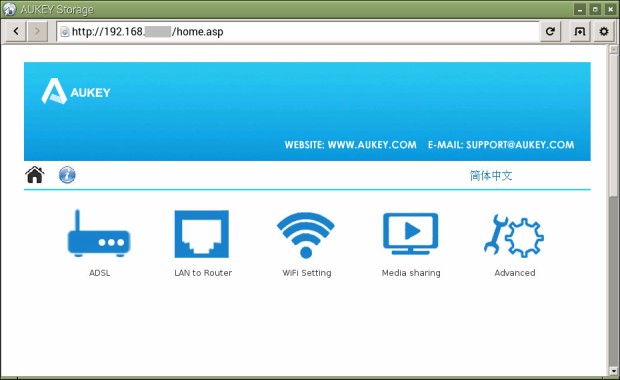

WiFi Connection, Router & Web Management Screenshots

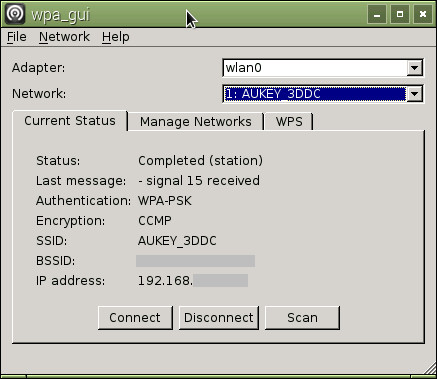

wpa_gui method on a Model B+ Pi + a Raspberry Pi WiFi Dongle

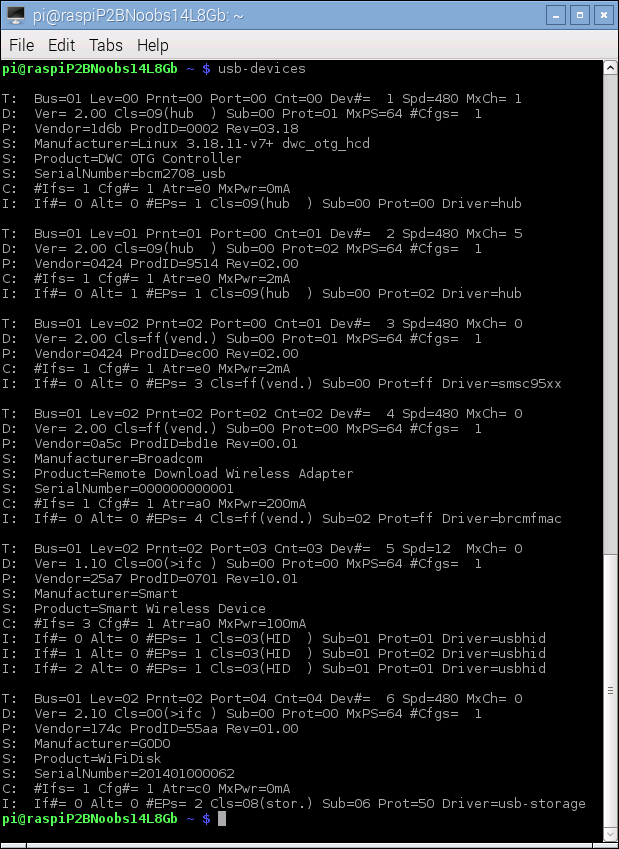

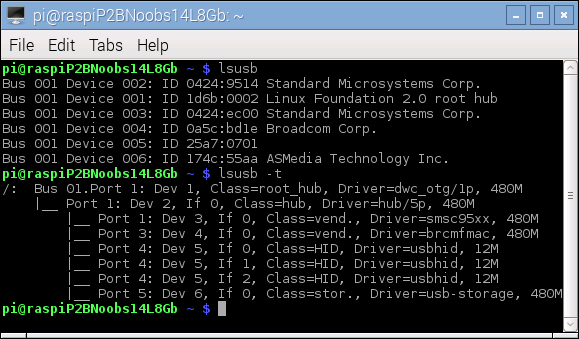

USB Connection (USB HDD)

(Connected to a Model P2B Pi + Raspberry Pi WiFi Dongle + Wireless Keyboard & Mouse)

cf. that w/o the HDD plugged in here

NB: that "MxPwr" is reported as 0mA, implying that the HDD enclosure may be using internal power



  1. Between 2nd. & 8th. data points (1)

  2. Imax 1000mA (2)

  3. Vbrownout 4.6 V (3)
