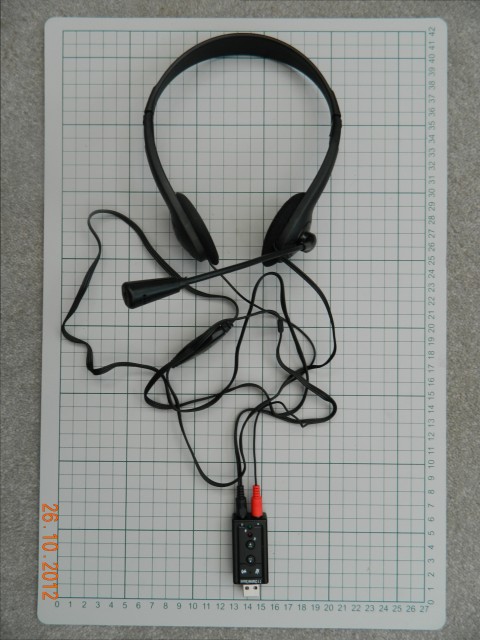

Daffodil USB Sound Adapter
(Model No.: US01)
Contents
-
Daffodil USB Sound Adapter
- Default Setup (BCM Audio only):
- After plugging in Daffodil USB (w/o rebooting):
- Various GUI Mixer screenshots:
- Enable USB Audio device to be "primary soundcard" ...
- ... And then reboot, resulting in this configuration:
- Audacity being used to record and playback a simple vocal test:
- Quick Re-test with a P400 & Raspberry PIOS "Buster"
|
Default Setup (BCM Audio only):
trevor@raspberrypi ~ $ ls -laF /dev/snd/by-path total 0 drwxr-xr-x 2 root root 60 Sep 10 22:30 ./ drwxr-xr-x 3 root root 140 Sep 10 22:30 ../ lrwxrwxrwx 1 root root 12 Sep 10 22:30 platform-bcm2835_AUD0.0 -> ../controlC0
ie. the on-board BCM audio is the first, and only, sound card at /dev/snd/controlC0.
User is a member of the audio group:
trevor@raspberrypi ~ $ id uid=1001(trevor) gid=1002(trevor) groups=1002(trevor),29(audio),100(users),1003(cruzer),1004(dtmicro),1006(maxell)
trevor@raspberrypi ~ $ aplay -L null Discard all samples (playback) or generate zero samples (capture) pulse PulseAudio Sound Server sysdefault:CARD=ALSA bcm2835 ALSA, bcm2835 ALSA Default Audio Device
User is not a member of the audio group:
woody@raspberrypi ~ $ id uid=1002(woody) gid=1005(woody) groups=1005(woody)
woody@raspberrypi ~ $ aplay -L null Discard all samples (playback) or generate zero samples (capture) pulse PulseAudio Sound Server
After plugging in Daffodil USB (w/o rebooting):
trevor@raspberrypi ~ $ ls -laF /dev/snd/by-path total 0 drwxr-xr-x 2 root root 80 Sep 12 12:23 ./ drwxr-xr-x 4 root root 220 Sep 12 12:23 ../ lrwxrwxrwx 1 root root 12 Sep 12 12:23 platform-bcm2708_usb-usb-0:1.2:1.0 -> ../controlC1 lrwxrwxrwx 1 root root 12 Sep 12 10:40 platform-bcm2835_AUD0.0 -> ../controlC0 trevor@raspberrypi ~ $ ls -laF /dev/snd/by-id total 0 drwxr-xr-x 2 root root 60 Sep 12 12:23 ./ drwxr-xr-x 4 root root 220 Sep 12 12:23 ../ lrwxrwxrwx 1 root root 12 Sep 12 12:23 usb-0d8c_C-Media_USB_Headphone_Set-00 -> ../controlC1
ie. the Daffodil device has appeared as a "C-Media_USB_Headphone_Set" sound card at /dev/snd/controlC1.
trevor@raspberrypi ~ $ aplay -L null Discard all samples (playback) or generate zero samples (capture) pulse PulseAudio Sound Server sysdefault:CARD=ALSA bcm2835 ALSA, bcm2835 ALSA Default Audio Device sysdefault:CARD=Set C-Media USB Headphone Set, USB Audio Default Audio Device front:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio Front speakers surround40:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 4.0 Surround output to Front and Rear speakers surround41:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 4.1 Surround output to Front, Rear and Subwoofer speakers surround50:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 5.0 Surround output to Front, Center and Rear speakers surround51:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 5.1 Surround output to Front, Center, Rear and Subwoofer speakers surround71:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 7.1 Surround output to Front, Center, Side, Rear and Woofer speakers iec958:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio IEC958 (S/PDIF) Digital Audio Output
Simple test:
trevor@raspberrypi ~ $ aplay /usr/share/sounds/alsa/Front_Center.wav -D sysdefault:CARD=Set Playing WAVE '/usr/share/sounds/alsa/Front_Center.wav' : Signed 16 bit Little Endian, Rate 48000 Hz, Mono

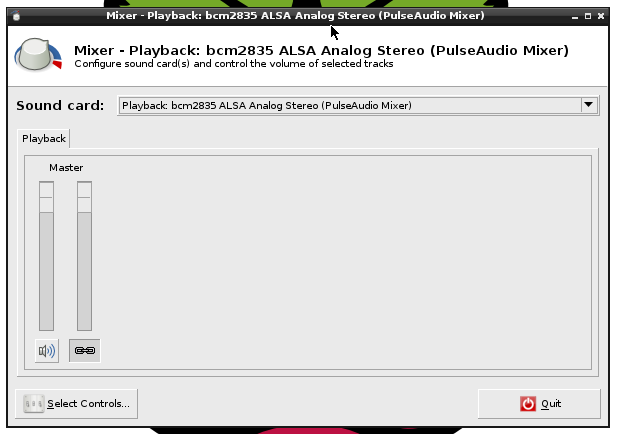

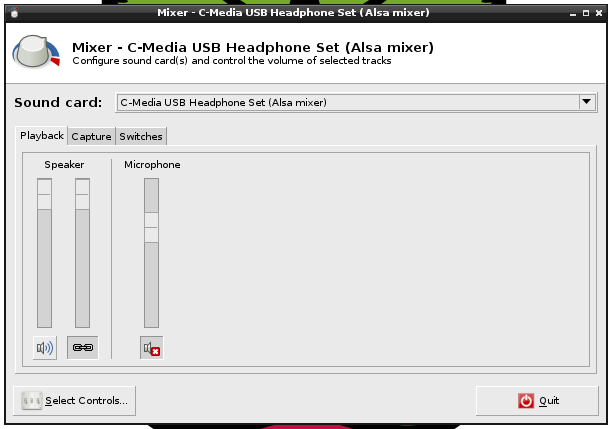

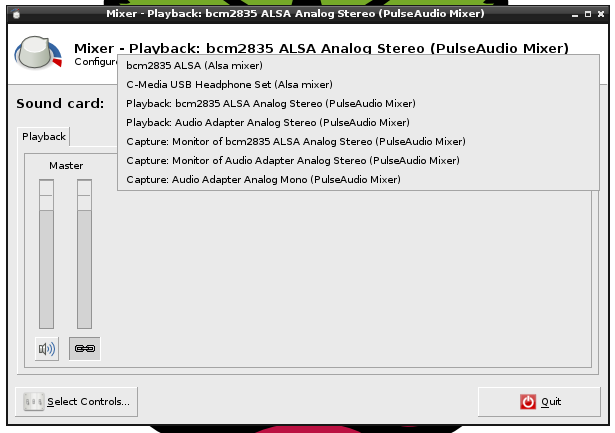

Various GUI Mixer screenshots:
|
|
|
Enable USB Audio device to be "primary soundcard" ...
trevor@raspberrypi ~ $ cat /etc/modprobe.d/alsa-base.conf # autoloader aliases install sound-slot-0 /sbin/modprobe snd-card-0 install sound-slot-1 /sbin/modprobe snd-card-1 install sound-slot-2 /sbin/modprobe snd-card-2 install sound-slot-3 /sbin/modprobe snd-card-3 install sound-slot-4 /sbin/modprobe snd-card-4 install sound-slot-5 /sbin/modprobe snd-card-5 install sound-slot-6 /sbin/modprobe snd-card-6 install sound-slot-7 /sbin/modprobe snd-card-7 # Cause optional modules to be loaded above generic modules install snd /sbin/modprobe --ignore-install snd && { /sbin/modprobe --quiet snd-ioctl32 ; /sbin/modprobe --quiet snd-seq ; } install snd-rawmidi /sbin/modprobe --ignore-install snd-rawmidi && { /sbin/modprobe --quiet snd-seq-midi ; : ; } install snd-emu10k1 /sbin/modprobe --ignore-install snd-emu10k1 && { /sbin/modprobe --quiet snd-emu10k1-synth ; : ; } # Prevent abnormal drivers from grabbing index 0 options bt87x index=-2 options cx88_alsa index=-2 options snd-atiixp-modem index=-2 options snd-intel8x0m index=-2 options snd-via82xx-modem index=-2 # Keep snd-pcsp from beeing loaded as first soundcard options snd-pcsp index=-2 # Keep snd-usb-audio from beeing loaded as first soundcard # options snd-usb-audio index=-2
... ie. comment out last line (as per http://elinux.org/RPi_VerifiedPeripherals#USB_Sound_Cards) ...
... And then reboot, resulting in this configuration:
trevor@raspberrypi ~ $ ls -laF /dev/snd/by-path total 0 drwxr-xr-x 2 root root 80 Sep 12 12:52 ./ drwxr-xr-x 4 root root 220 Sep 12 12:52 ../ lrwxrwxrwx 1 root root 12 Jan 1 1970 platform-bcm2708_usb-usb-0:1.2:1.0 -> ../controlC0 lrwxrwxrwx 1 root root 12 Sep 12 12:52 platform-bcm2835_AUD0.0 -> ../controlC1 trevor@raspberrypi ~ $ ls -laF /dev/snd/by-id total 0 drwxr-xr-x 2 root root 60 Jan 1 1970 ./ drwxr-xr-x 4 root root 220 Sep 12 12:52 ../ lrwxrwxrwx 1 root root 12 Jan 1 1970 usb-0d8c_C-Media_USB_Headphone_Set-00 -> ../controlC0
trevor@raspberrypi ~ $ aplay -L null Discard all samples (playback) or generate zero samples (capture) pulse PulseAudio Sound Server sysdefault:CARD=Set C-Media USB Headphone Set, USB Audio Default Audio Device front:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio Front speakers surround40:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 4.0 Surround output to Front and Rear speakers surround41:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 4.1 Surround output to Front, Rear and Subwoofer speakers surround50:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 5.0 Surround output to Front, Center and Rear speakers surround51:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 5.1 Surround output to Front, Center, Rear and Subwoofer speakers surround71:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio 7.1 Surround output to Front, Center, Side, Rear and Woofer speakers iec958:CARD=Set,DEV=0 C-Media USB Headphone Set, USB Audio IEC958 (S/PDIF) Digital Audio Output sysdefault:CARD=ALSA bcm2835 ALSA, bcm2835 ALSA Default Audio Device
... and a simpler test:
trevor@raspberrypi ~ $ aplay /usr/share/sounds/alsa/Front_Left.wav -D sysdefault Playing WAVE '/usr/share/sounds/alsa/Front_Left.wav' : Signed 16 bit Little Endian, Rate 48000 Hz, Mono

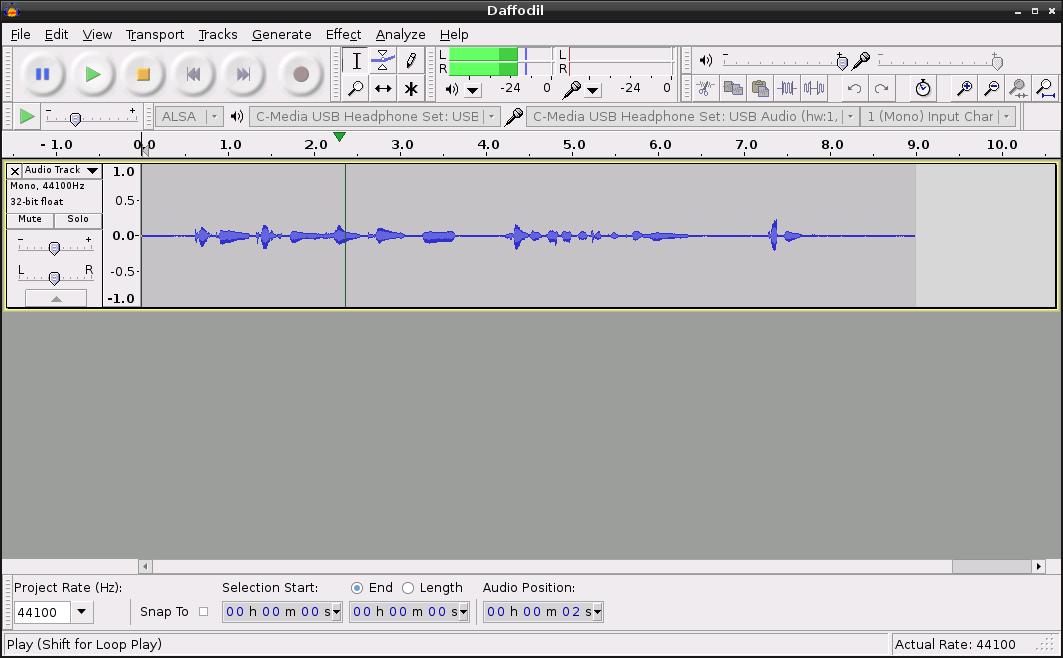

Audacity being used to record and playback a simple vocal test:
|

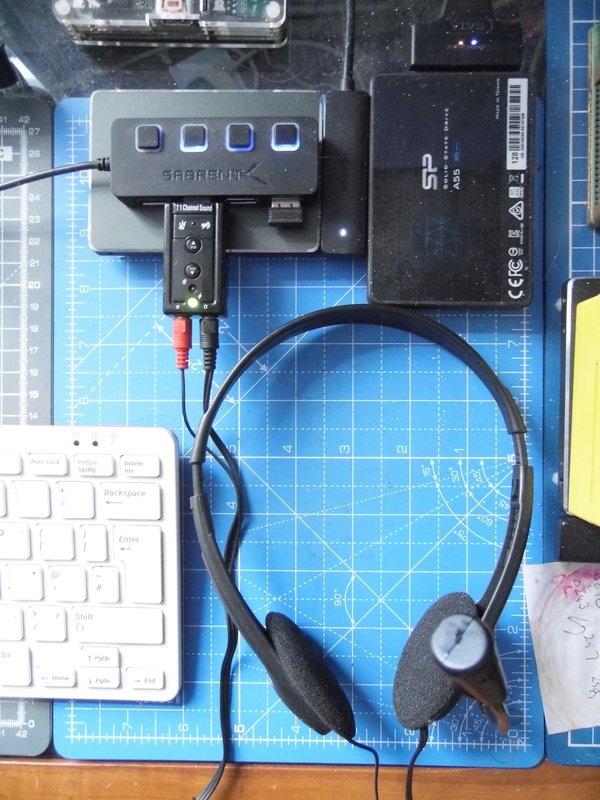

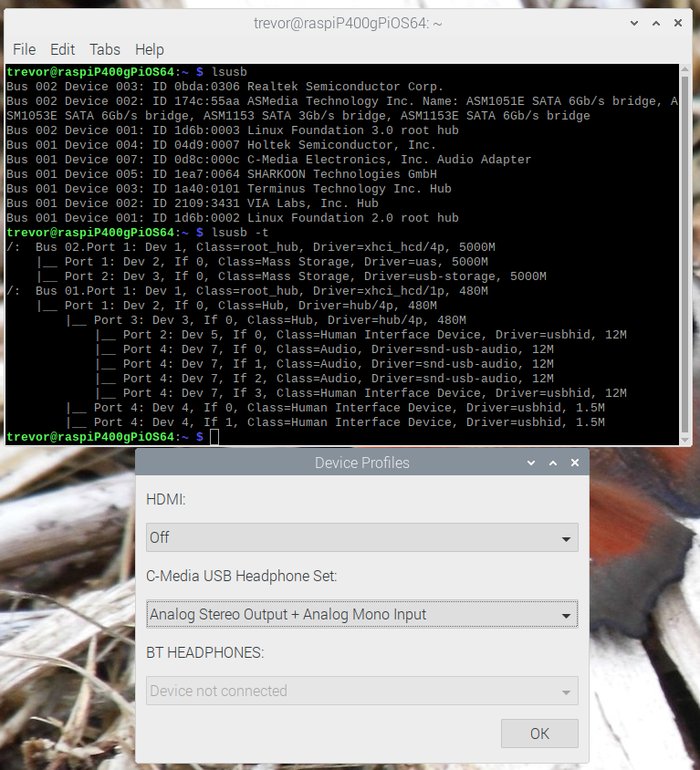

Quick Re-test with a P400 & Raspberry PIOS "Buster"
|
|
