Generic Portable Power Bank

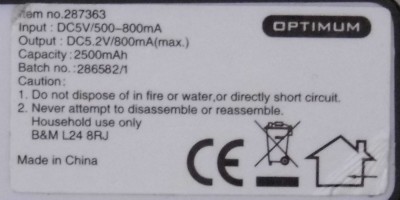

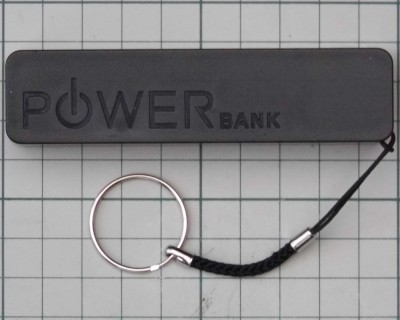

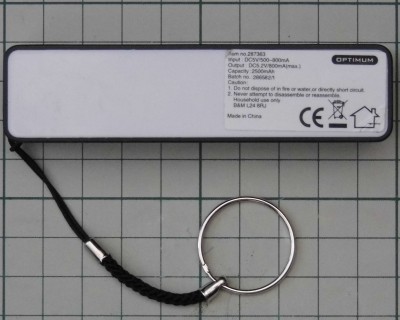

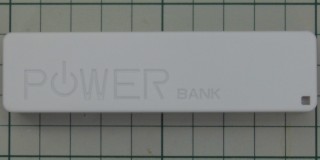

Original, "Branded" Device

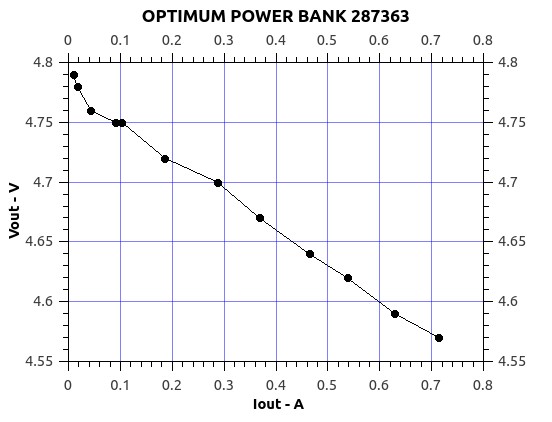

Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.29 Ω1, Vmax: 4.55 V2, Ibrownout: ~0.61 A3

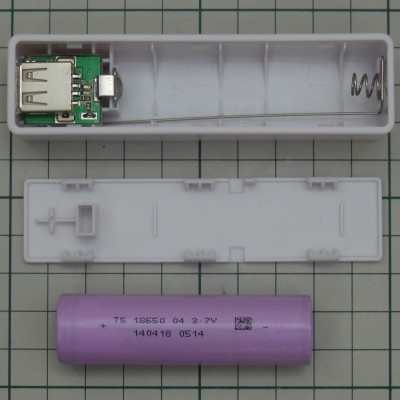

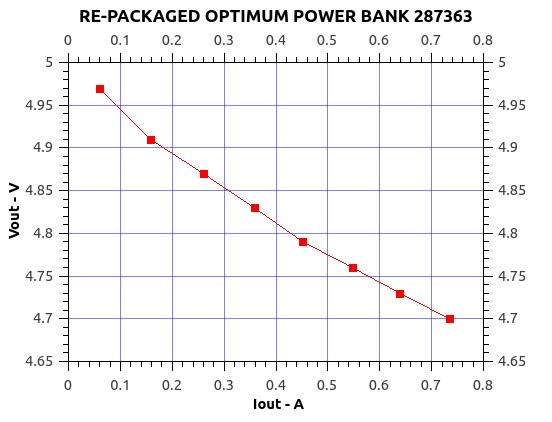

Re-packaged (battery from) Original Device



Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.32 Ω4, Vmax: 4.68 V2, Ibrownout: ~1.05 A3

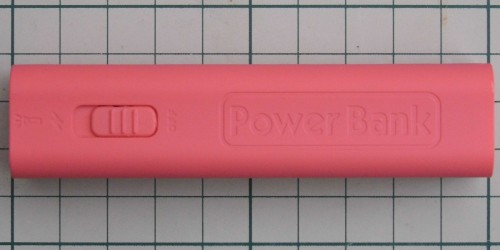

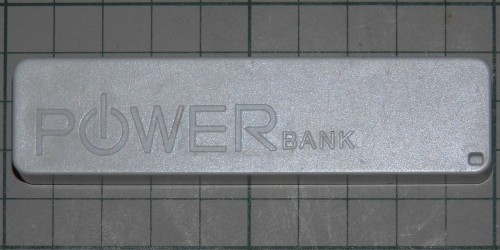

Similar, "Unbranded" Device



Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.31 Ω5, Vmax: 4.8 V2, Ibrownout: ~1.43 A3

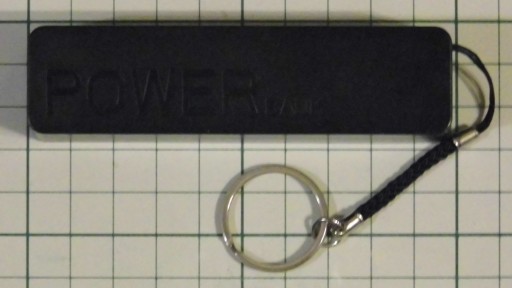

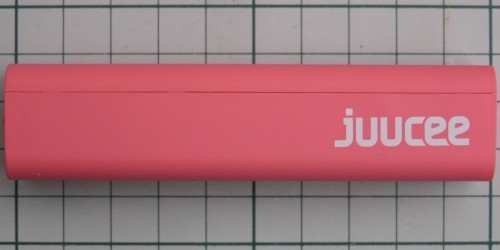

Similar, "Juucee" Device

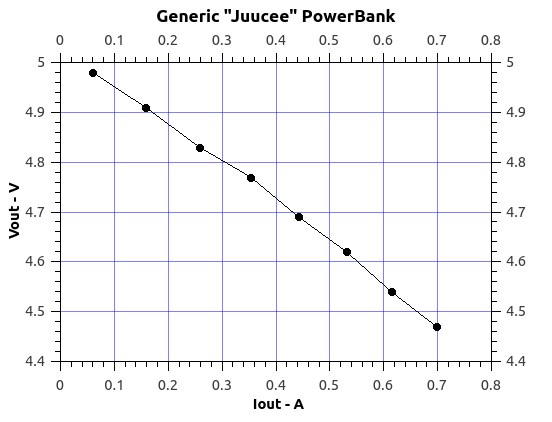

Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.86 Ω4, Vmax: 4.3 V6, Ibrownout: ~0.55 A3

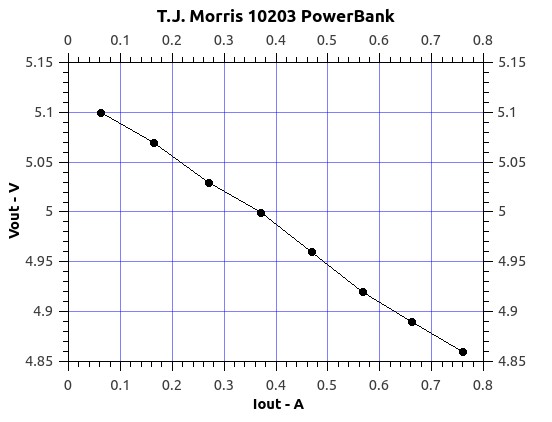

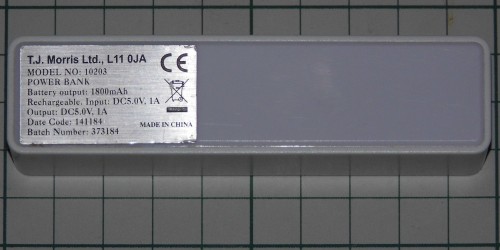

Similar, T.J. Morris model 10203



Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.31 Ω7, Vmax: 4.8 V8, Ibrownout: ~1.6 A3

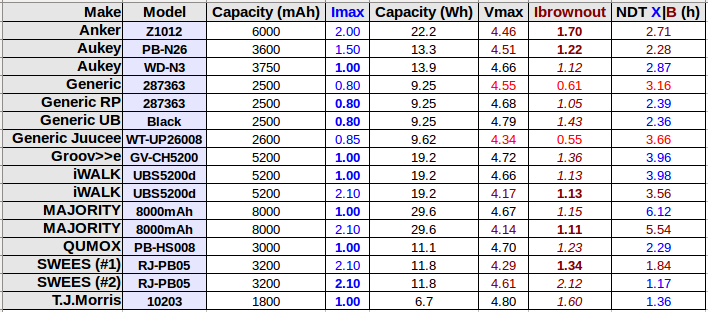

Summary of Power Bank Capacities and Nominal Discharge Times



  1. Between 4th. & 12th. data points (1)

  2. Imax 800mA (2 3 4)

  3. Vbrownout 4.6 V (5 6 7 8 9)

  4. Between 5th. & 8th. data points (10 11)

  5. Between 4th. & 8th. data points (12)

  6. Imax 850mA (13)

  7. Between 6th. & 8th. data points (14)

  8. Imax 1000mA (15)
