GPIO Level Shifter Modules



P1010387rtlcs.JPG P1010389rcs.JPGI2C-LVL-SHFTR.jpg
E

P1010530rcs.JPG P1010531rcs.JPGGen4WLvlShftr.jpg
F

P1040025rcs.JPG 8wBiDirLvlShftr.jpg
G

P1040295rcs.JPG Slim8wLvlShftr.jpg
H

I

P1050793lcs.JPG P1050794lrcs.JPG
J

Type

Key

Footprint1

On-board 3V3 reg.

I2C "Safe"

Example Applications

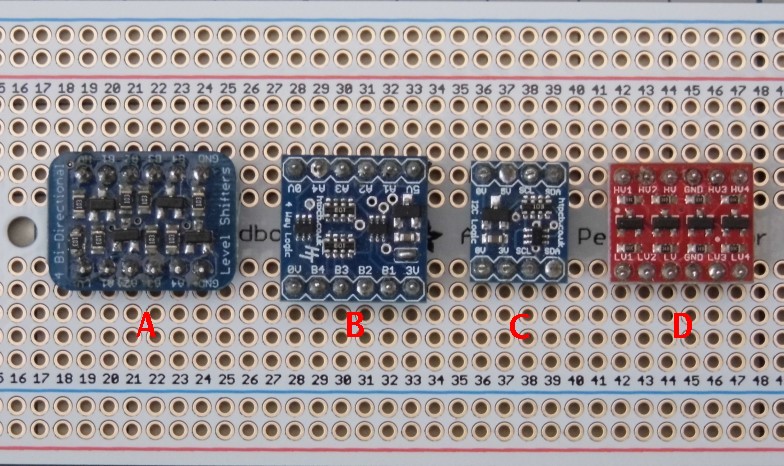

adafruit 757

A

8 x 5



Adafruit RasPi Perma Proto Full #1
Adafruit RasPi Perma Proto Full #2 (Serial-to-Parallel GLCD)
Adafruit RasPi Perma Proto Full #3 (I2C to 4-bit or 8-bit Parallel LCD Interface)
Hobbytronics GPIO Breakout Board v2.1 (SPI or GPIO based 4-bit Parallel LCD Interfaces)
Humble Pi #1 (LED Matrix)
Humble Pi #2 (LCD & Serial)
Humble Pi #3 (SPI GLCD , I2C & Serial)

Hobbytronics LOGIC4 V2

B

6 x 6



Adafruit RasPi Perma Proto Full #2 (Serial-to-Parallel GLCD)
Adafruit RasPi Perma Proto Full #4 (Serial GLCD & 4-Digit LED Interfaces)
Hobbytronics GPIO Breakout Board v2.1 (SPI or GPIO based 4-bit Parallel LCD Interfaces)
SIL Breakout Header #2 (SPI to 8-bit Parallel LCD Interface)

Hobbytronics LOGIC2

C

4 x 5



Adafruit RasPi Perma Proto Full #3 (I2C to 4-bit or 8-bit Parallel LCD Interface)
Hobbytronics GPIO Breakout Board v2.1 (I2C and Low-voltage SPI Interfaces)
Humble Pi #3 (SPI GLCD , I2C & Serial)
SIL Breakout Header #1
NULSOM RPi Proto-breadboard PCB (Half-size)

Sparkfun BOB-12009

D

6 x 5


?

Adafruit RasPi Perma Proto Full #4 (Serial GLCD & 4-Digit LED Interfaces)
Hobbytronics GPIO Breakout Board v2.1 (SPI or GPIO based 4-bit Parallel LCD Interfaces)
SIL Breakout Header #2 (SPI to 8-bit Parallel LCD Interface)

Generic I2C Level Shifter

E

4 x 6



Nulsom RPI Proto Breadboard Pcb - Level-shifted I2C Support

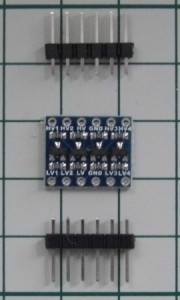

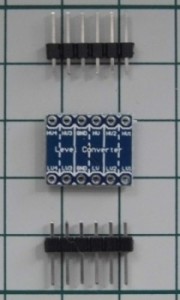

Generic 4-way Level Shifter2

F

6 x 5


?

Nulsom RPI Proto Breadboard Pcb - Level-shifted SPI Support

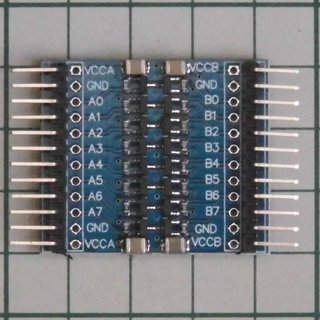

Generic 8-way Level Shifter

G

12 x 15


?

Qifei 8-way Level Shifter

H

12 x 5


checkmark.png3

Winwill Diy Proto Hat Shield (Level Shifted I2C and LCD 0802 14w Interface)

Generic Slim 8-way Level Shifter4

I

12 x 5


checkmark.png3

Winwill Diy Proto Hat Shield (Level Shifted I2C and LCD 0802 14w Interface)

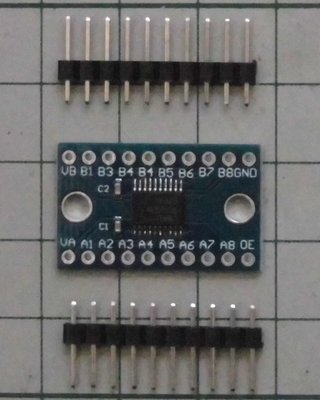

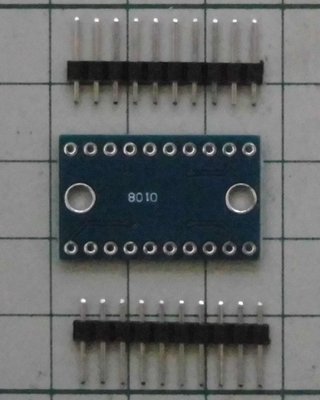

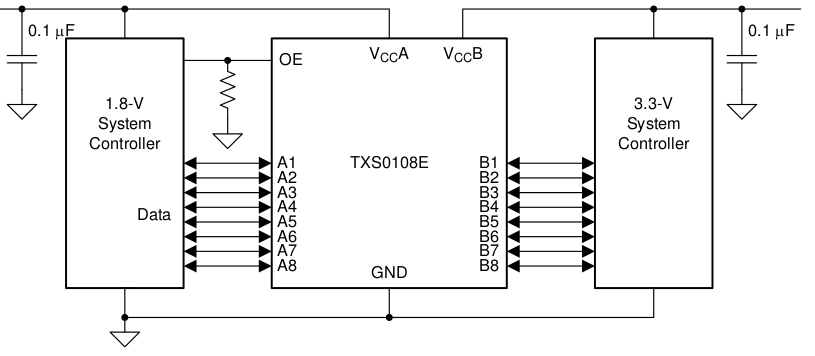

TXB0108E-based 8-way Level Shifter

J




  1. Including PCB overlap etc. (1)

  2. Clone of "D"? (2)

  3. Tested, not specified (3 4)

  4. Clone of "H"? (5)
