groov>>e Portable Power Charger

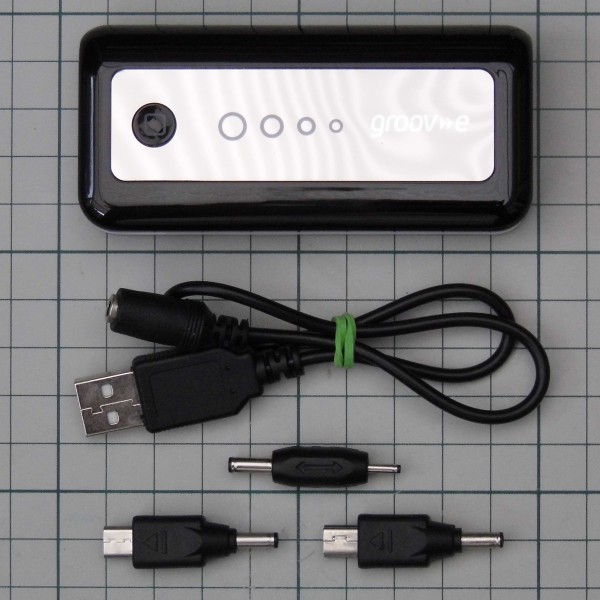

What's "in the box" ...

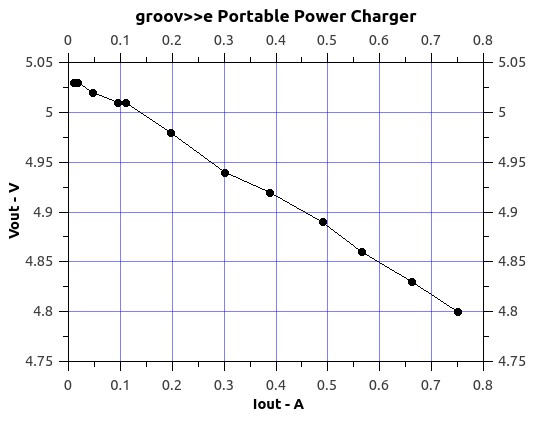

Current Loading Curve
(cf. those for USB Power Supplies etc.)


Slope resistance: 0.33 Ω1, Vmax: 4.72 V2, Ibrownout: >1.0 A3

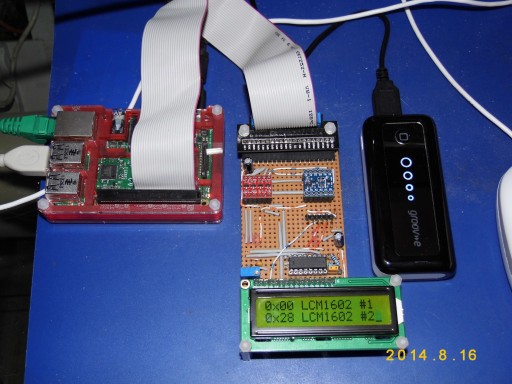

First, quick test ...



NB. B+ power LED (circled, left)
"steady and bright",
PPC LEDs (circled, right)
showing full-charge.

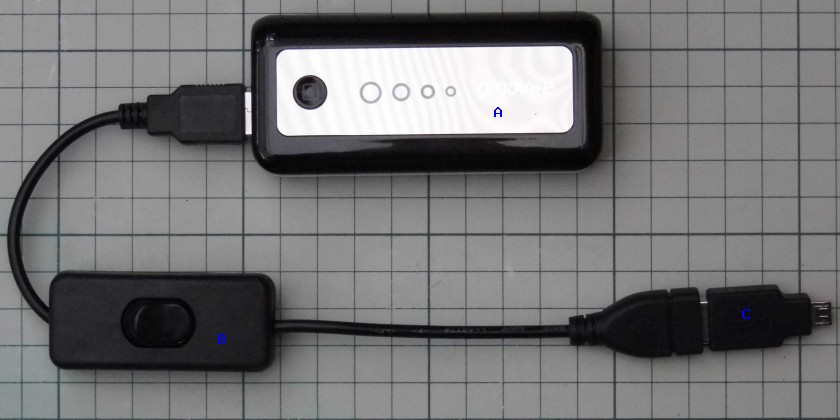

Improved connectivity and control ...


  1. groov>>e P.P.C.4

  2. Adafruit USB Cable with Switch5

  3. ModMyPi Raspberry Pi Power Port Micro USB Adapter6
