HDMI 3-Port Switcher

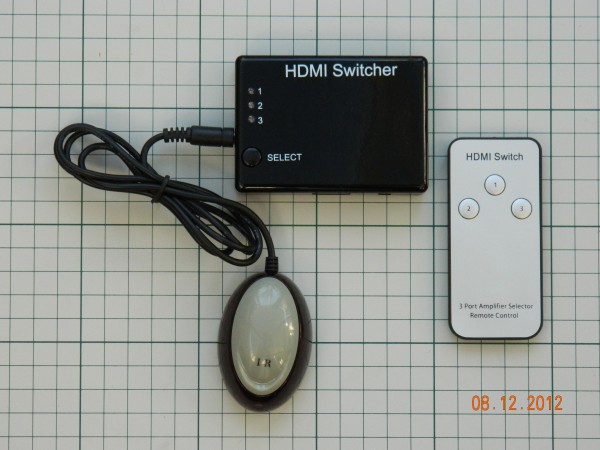

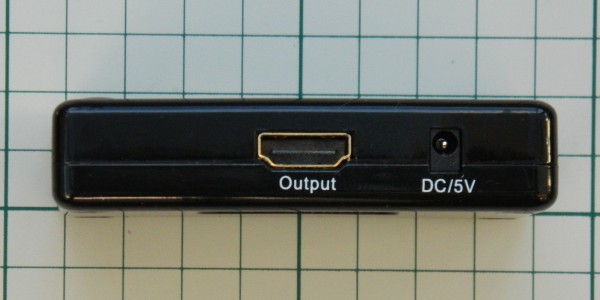

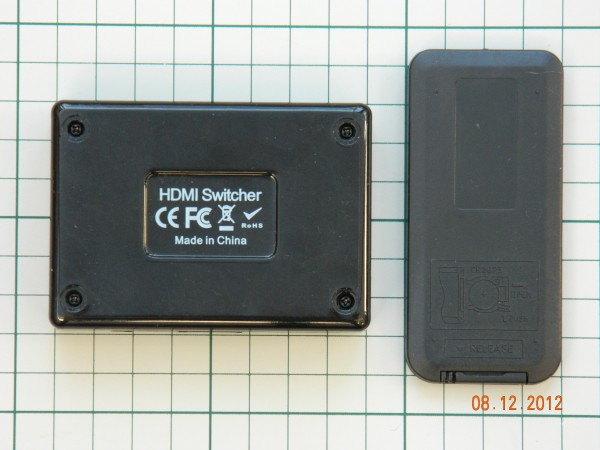

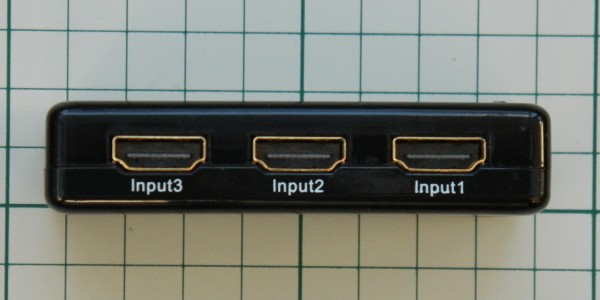

Close-up Pictures

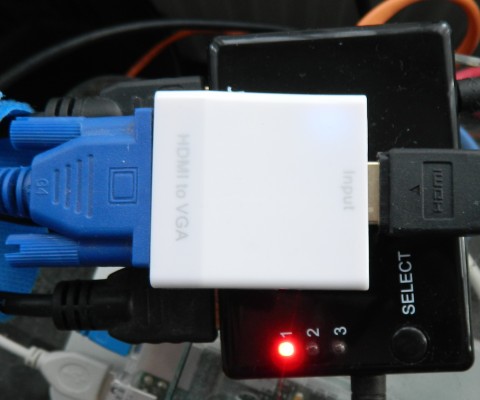

Can also be used with, and power, an HDMI to VGA converter

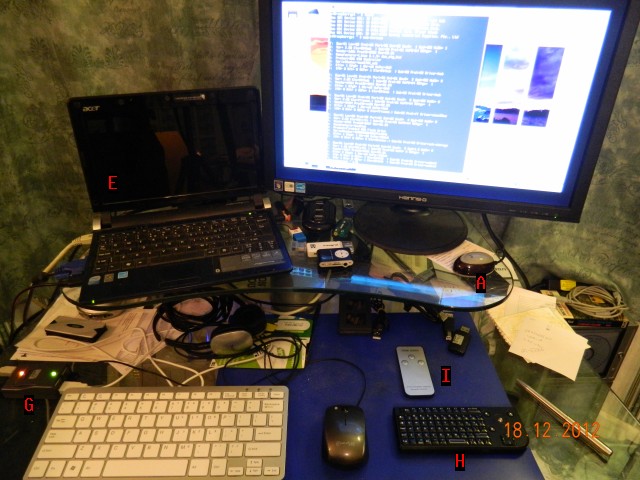

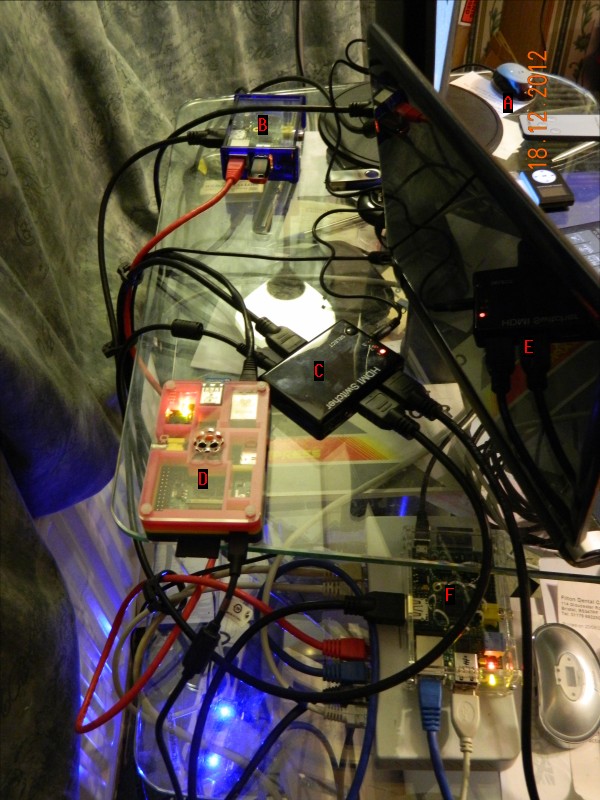

In use within a multiple display setup ...


Key:
A Infra-Red Sensor for HDMI switch
B raspired (Powered by FX 1000mA PSU)
C Main HDMI switch unit (Powered by a Sony Ericsson 850mA PSU1)
D "Headless" raspiblack (Powered by a Sony Ericsson 850mA PSU)
E Dual-bootable, Acer Netbook running Ubuntu Linux (or Windows XP)
F raspiblue (Powered by FX 1000mA PSU)
G Gembird USB 2.0 Switching Hub (Indirectly powered by the notepad and raspiblue)
H Wireless Mini Keyboard and Trackball (connected to raspired)
I Infra-Red Remote Control for HDMI switch

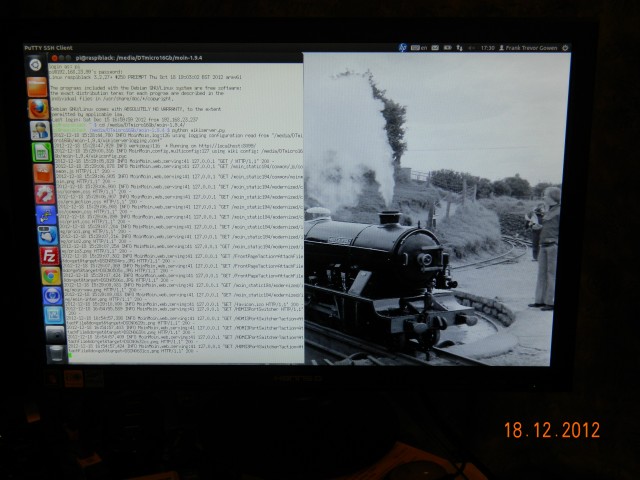

Monitor in VGA mode showing notepad screen including PuTTY login to raspiblack

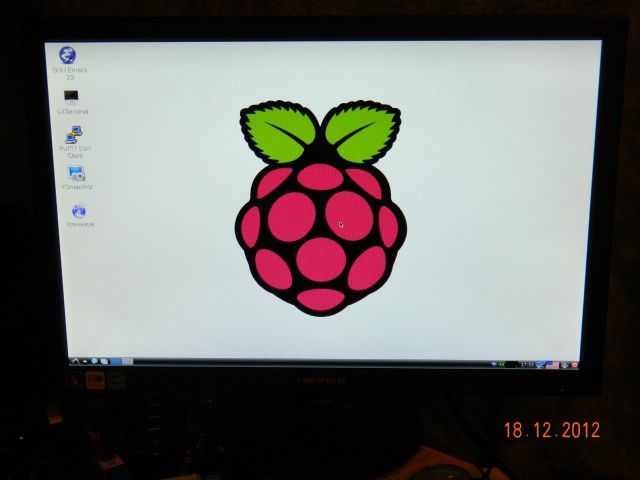

Monitor in DVI mode, HDMI switch channel 1, displaying Raspbian Wheezy running on raspiblue

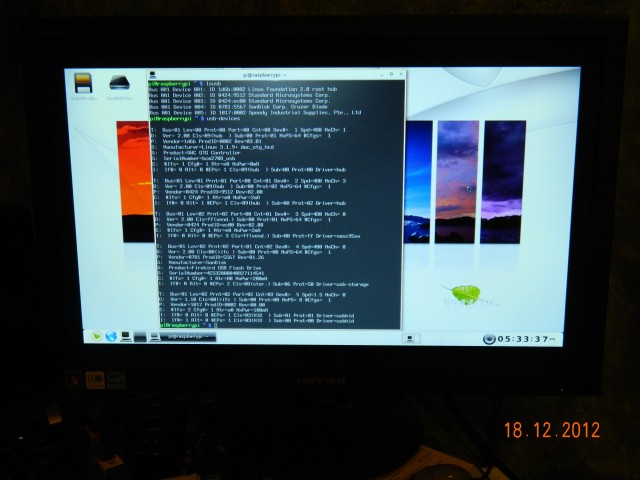

Monitor in DVI mode, HDMI switch channel 2, displaying Bodhi Linux running on raspired. (Note: hostname renaming not implemented)


  1. Subsequently powered by an Optimum 268971 PSU (1)
