HDMI to VGA + Audio Converter

(Model HV1080EP)

Resolution: 480P/720P/1080i/1080P (Automatic)

Top: HDMI Input
Bottom:VGA Output

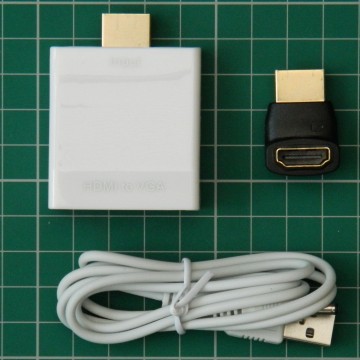

Supplied with RA HDMI Adapter & USB-DC Power Lead

Audio Out

DC 5V In

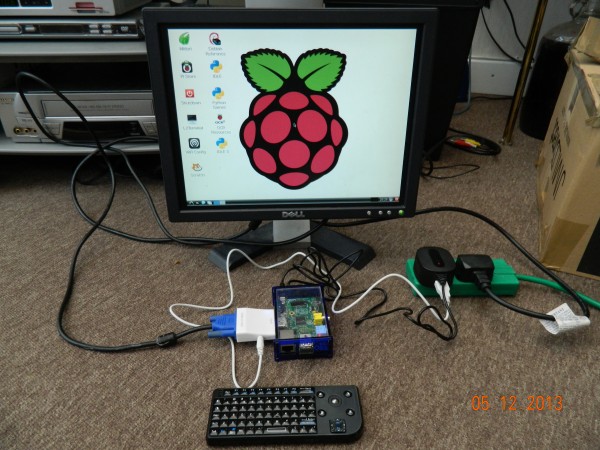

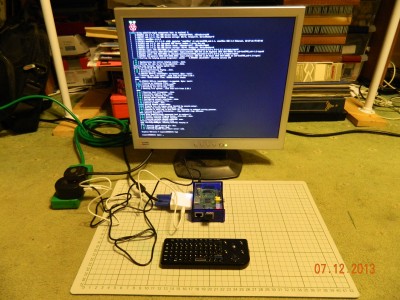

Quick test1 set-up with an old Dell 15" VGA Monitor2
Pi (raspired) and Converter powered by a Dual-output PSU
Wireless Mini-keyboard self-powered

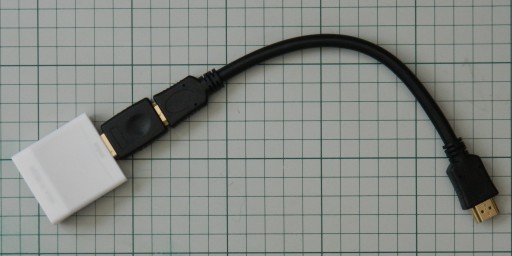

Some Pi cases may require the use of a short HDMI cable + adapter

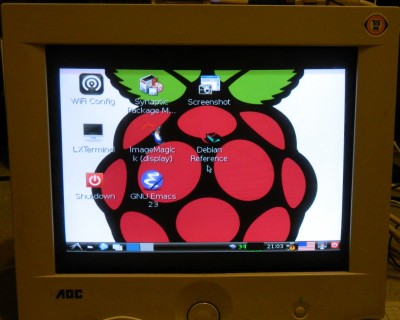

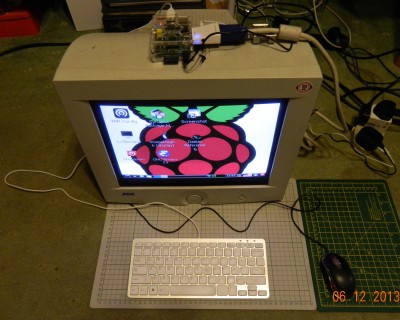

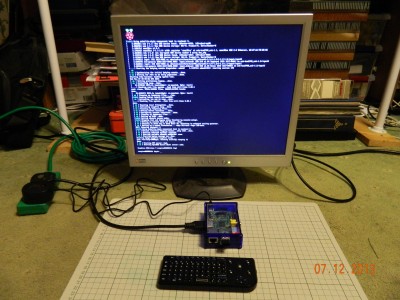

Second Test1 3 with an older AOC 17" VGA CRT Monitor>>



Pi (raspiblue) and Converter powered by a Dual-output PSU

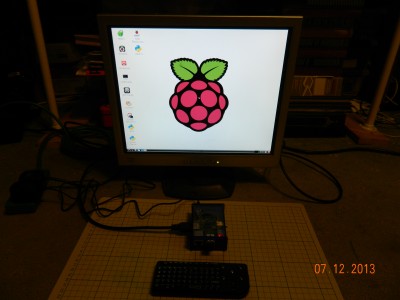

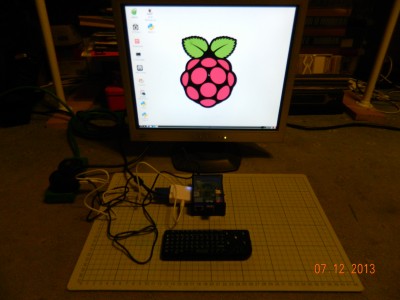

Third Test1 with a newer AMW 17" DVI/VGA LCD Monitor4
HDMI/DVI Mode5

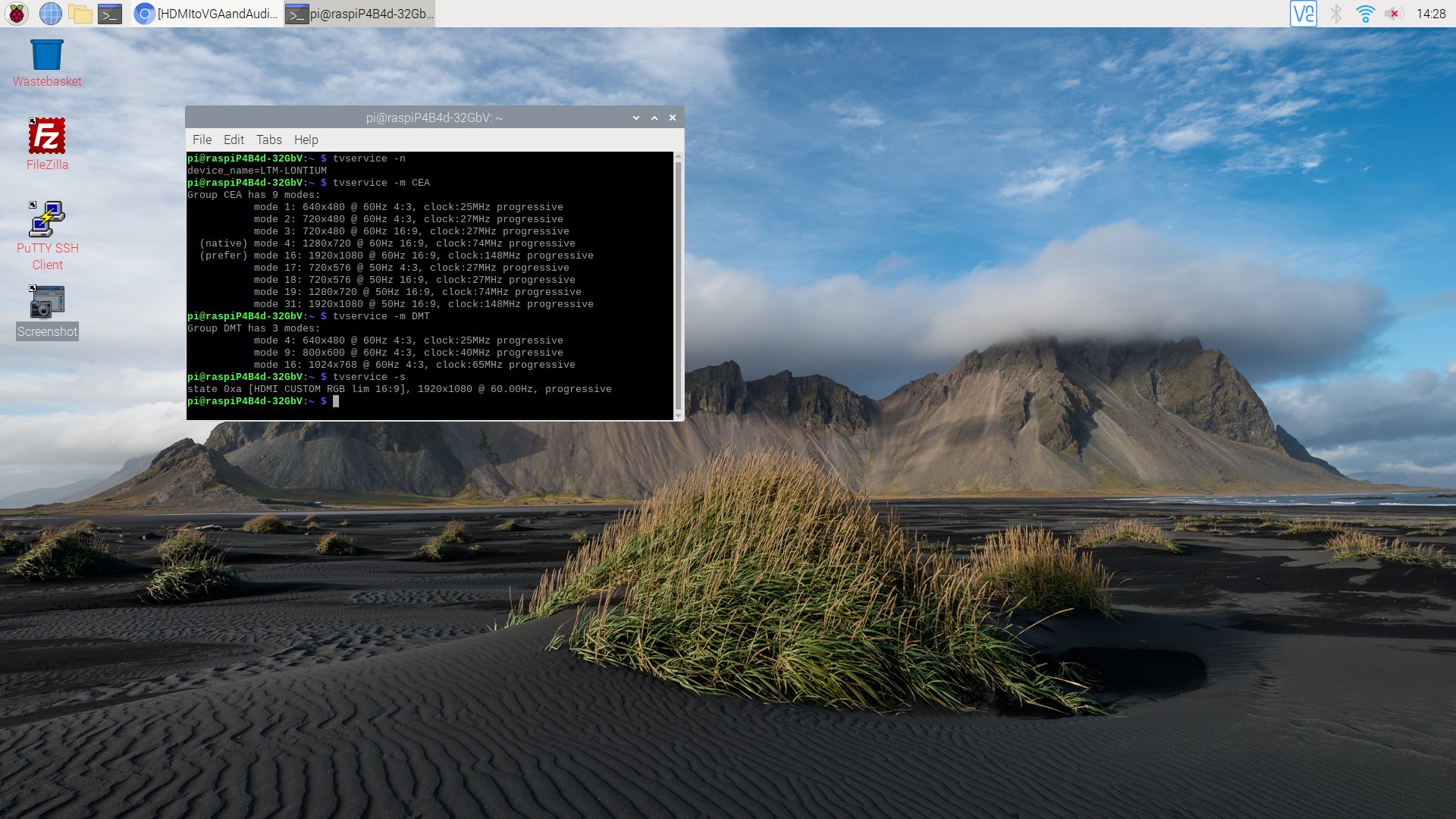

VGA Mode



Pi (raspired) and Converter powered by a Dual-output PSU
Wireless Mini-keyboard self-powered

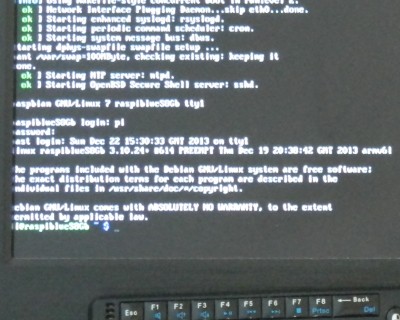

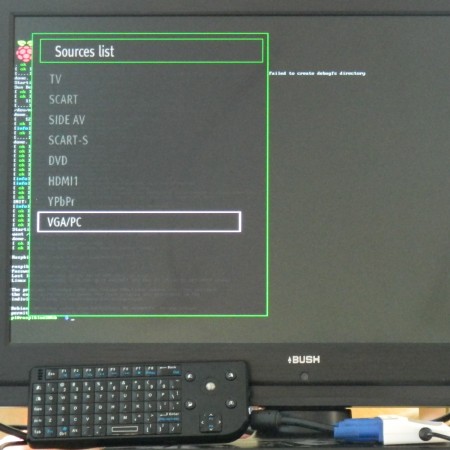

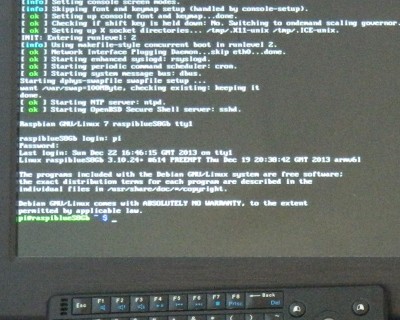

Fourth Test1 with a BUSH 19" TV/DVD Combi6

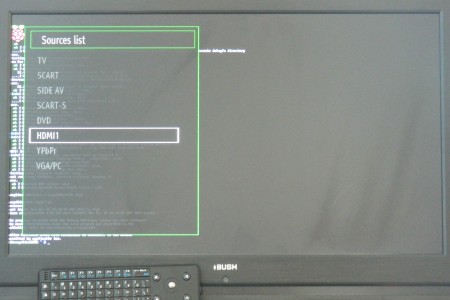

HDMI Mode5



VGA Mode



Pi (raspiblue) and Converter powered by a "Kit" TCB Dual-output PSU
Wireless Mini-keyboard self-powered


  1. Video Only (1 2 3 4)

  2. Also used when testing the converter with NOOBS v1.3.3 (5)

  3. VGA mode enabled in config.txt (6)

  4. Model M179D (7)

  5. Converter not in use (8 9)

  6. Model LED19982DVDHD (10)
