HDMI to VGA and Audio Converter #2

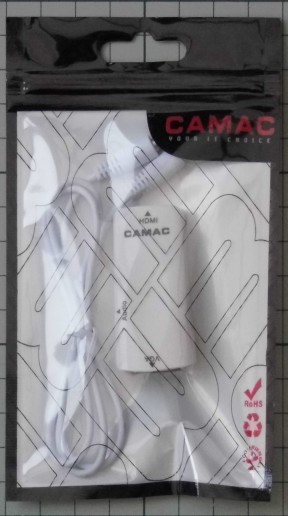

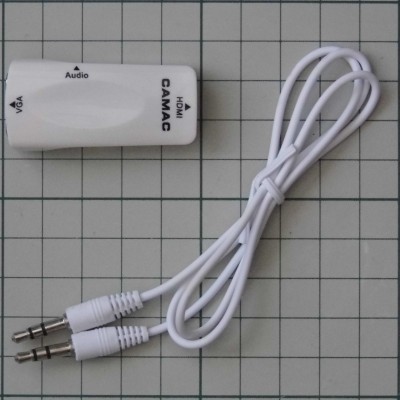

As Supplied:

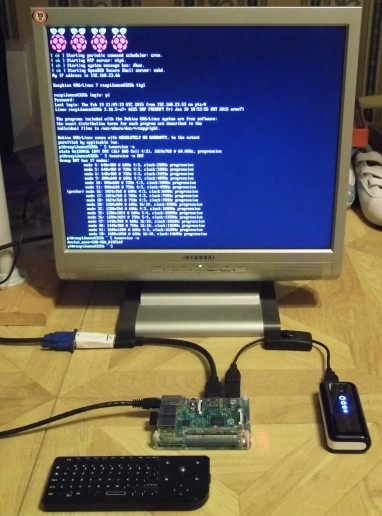

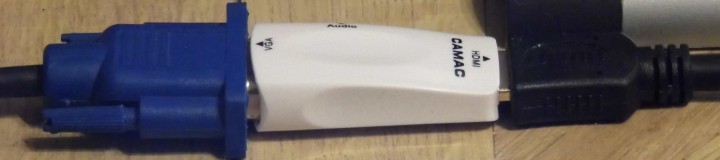

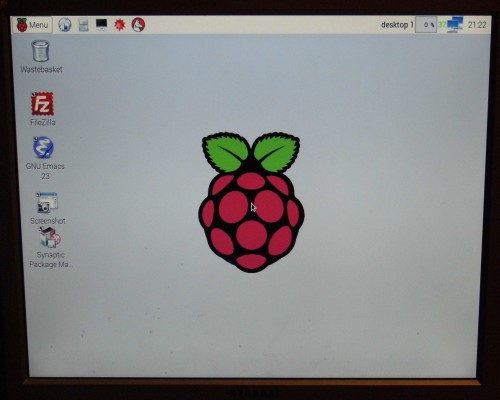

Early Test with P2B "JamesA":

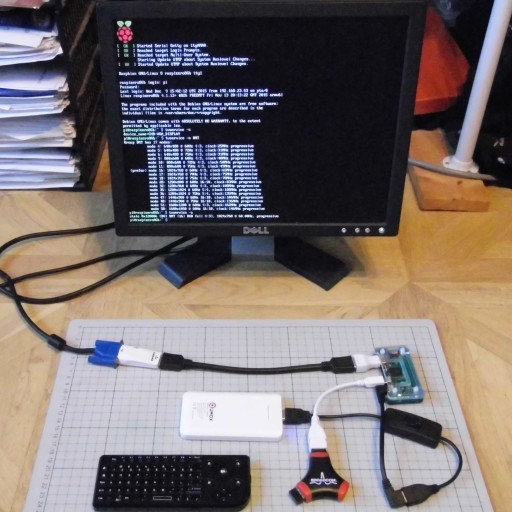

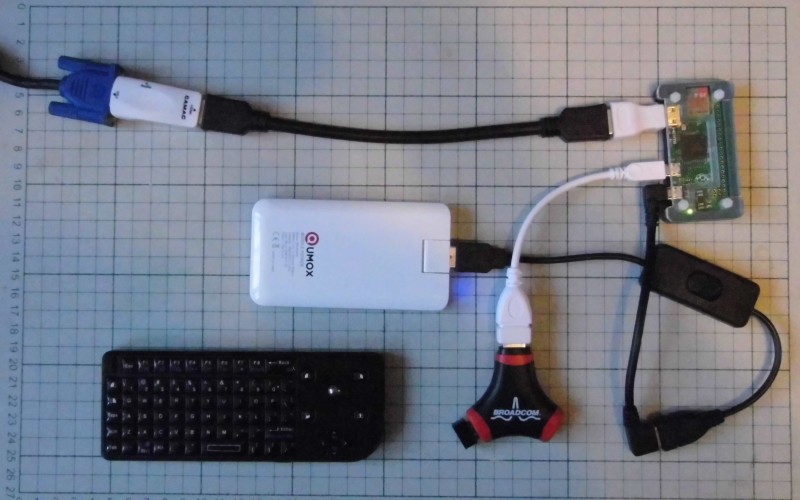

Later Test with a Pi Zero:

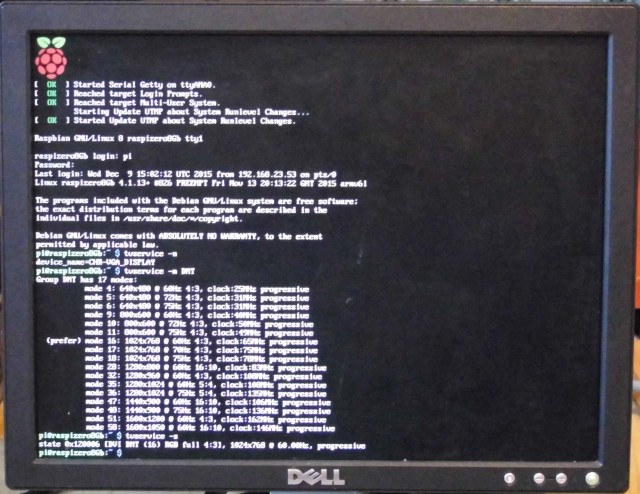

tvservice outputs

pi@raspizero8Gb ~ $ tvservice -n
device_name=CHR-VGA_DISPLAY

NB:The DELL monitor's name is not reported but, presumably, that of the device itself.

pi@raspizero8Gb ~ $ tvservice -s
state 0x120006 [DVI DMT (16) RGB full 4:3], 1024x768 @ 60.00Hz, progressive

pi@raspizero8Gb ~ $ tvservice -m DMT
Group DMT has 17 modes:
           mode 4: 640x480 @ 60Hz 4:3, clock:25MHz progressive
           mode 5: 640x480 @ 72Hz 4:3, clock:31MHz progressive
           mode 6: 640x480 @ 75Hz 4:3, clock:31MHz progressive
           mode 9: 800x600 @ 60Hz 4:3, clock:40MHz progressive
           mode 10: 800x600 @ 72Hz 4:3, clock:50MHz progressive
           mode 11: 800x600 @ 75Hz 4:3, clock:49MHz progressive
  (prefer) mode 16: 1024x768 @ 60Hz 4:3, clock:65MHz progressive
           mode 17: 1024x768 @ 70Hz 4:3, clock:75MHz progressive
           mode 18: 1024x768 @ 75Hz 4:3, clock:78MHz progressive
           mode 28: 1280x800 @ 60Hz 16:10, clock:83MHz progressive
           mode 32: 1280x960 @ 60Hz 4:3, clock:108MHz progressive
           mode 35: 1280x1024 @ 60Hz 5:4, clock:108MHz progressive
           mode 36: 1280x1024 @ 75Hz 5:4, clock:135MHz progressive
           mode 47: 1440x900 @ 60Hz 16:10, clock:106MHz progressive
           mode 48: 1440x900 @ 75Hz 16:10, clock:136MHz progressive
           mode 51: 1600x1200 @ 60Hz 4:3, clock:162MHz progressive
           mode 58: 1680x1050 @ 60Hz 16:10, clock:146MHz progressive
