IR Remote Control / Keyboard and lirc

Installing & Setting-up lirc

Mainly followed this guide (http://alexba.in/blog/2013/01/06/setting-up-lirc-on-the-raspberrypi/) with some changes since I'm using different GPIO ports as part of a Humble Pi demonstration/test.

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install lirc
sudo apt-get install lirc-x setserial ir-keytable

# /etc/modules: kernel modules to load at boot time.
#
# This file contains the names of kernel modules that should be loaded
# at boot time, one per line. Lines beginning with "#" are ignored.
# Parameters can be specified after the module name.

snd-bcm2835
i2c-dev
lirc_dev
lirc_rpi gpio_in_pin=23 gpio_out_pin=24

# /etc/lirc/hardware.conf
#
# Arguments which will be used when launching lircd
#LIRCD_ARGS=""
LIRCD_ARGS="--uinput"

#Don't start lircmd even if there seems to be a good config file
#START_LIRCMD=false

#Don't start irexec, even if a good config file seems to exist.
#START_IREXEC=false

#Try to load appropriate kernel modules
LOAD_MODULES=true

# Run "lircd --driver=help" for a list of supported drivers.
#DRIVER="UNCONFIGURED"
DRIVER="default"
# usually /dev/lirc0 is the correct setting for systems using udev
#DEVICE=""
#MODULES=""
DEVICE="/dev/lirc0"
MODULES="lirc_rpi"

# Default configuration files for your hardware if any
LIRCD_CONF=""
LIRCMD_CONF=""

Former "on digital DTV" remote control, >10 years old



lircd_On1_Keypad_Mode.conf

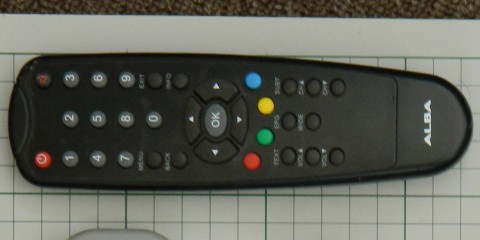

ALBA STB8H


lircd_ALBA_STB8H.conf

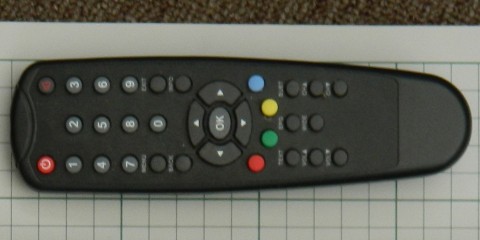

Unbranded STB101


lircd_STB101.conf

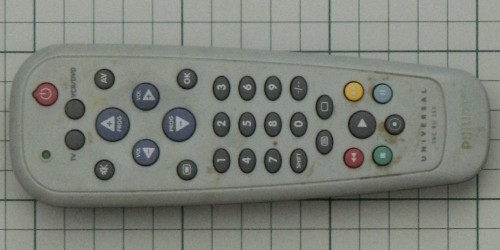

PHILIPS Universal SBC RU 252


lircd_PHILIPS_SBC_RU_252_TV.conf
