Model "B+" Raspberry Pi

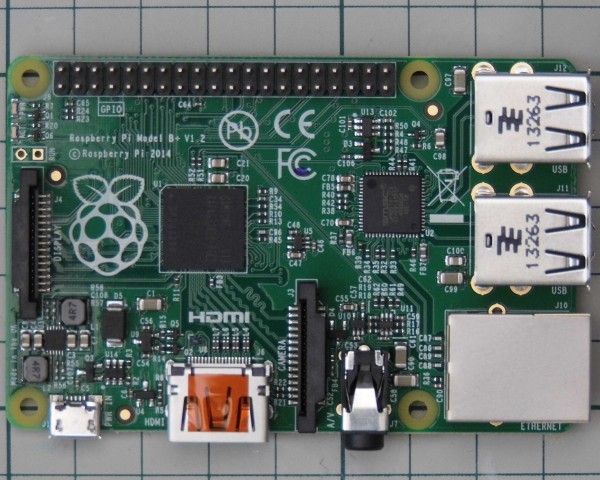

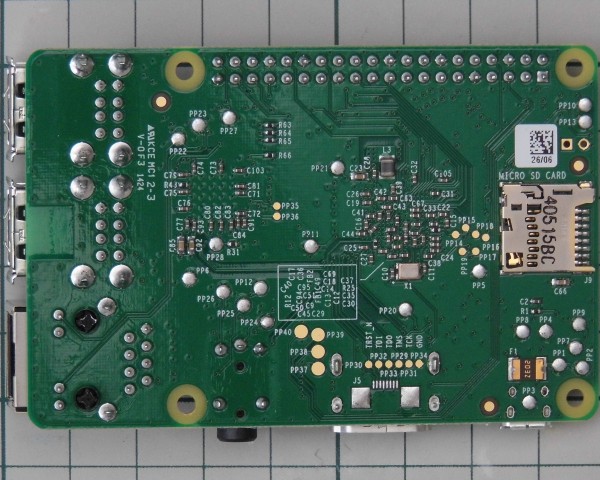

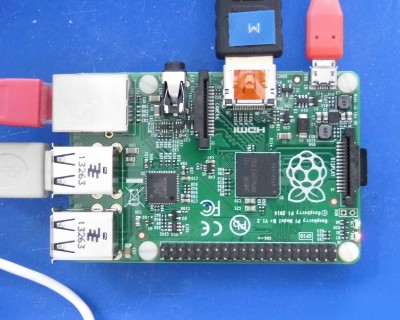

Just "Out of the Box"




First Tests

Quick test of NOOBS 1.3.9

(As reported in the forum at http://www.raspberrypi.org/forums/viewtopic.php?f=63&t=81847&p=579568#p579568)

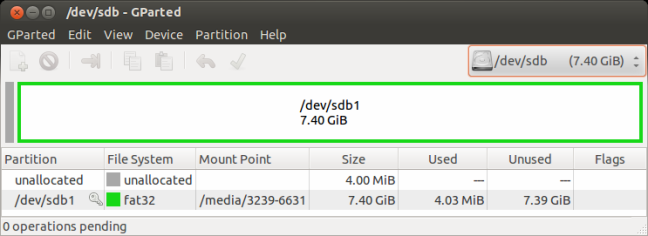

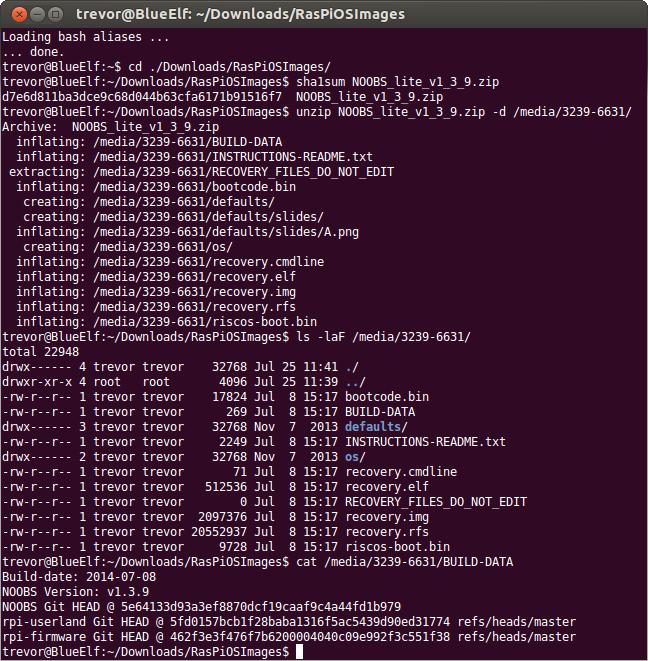

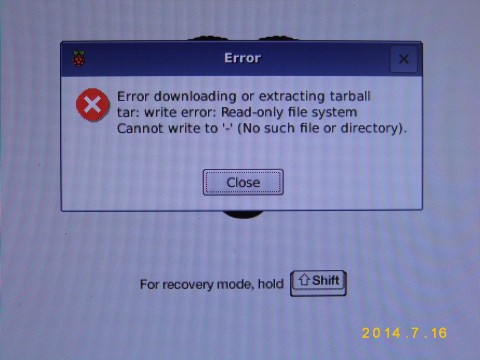

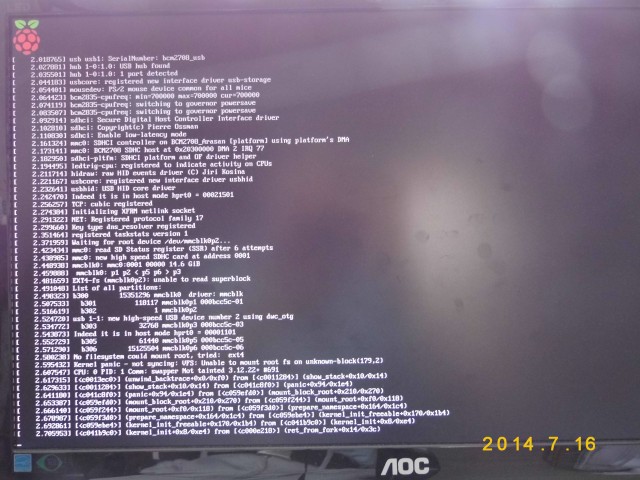

Samsung micro-SDHC card (re-)formatted with GParted, the NOOBS lite zip file (1.3.9) was downloaded and unzipped directly to said card in an external USB micro-USB card reader/writer. When the Pi was first booted intially all seemed O.K., but subsequently an error occurred whilst Raspbian was being downloaded & installed (as shown above). Powering down and then re-powering the Pi led to a successful install on the second attempt suggesting that the error was due to a "network glitch".

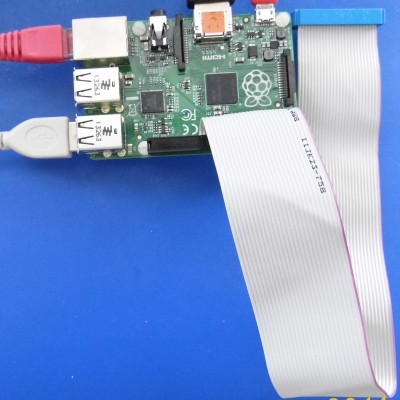

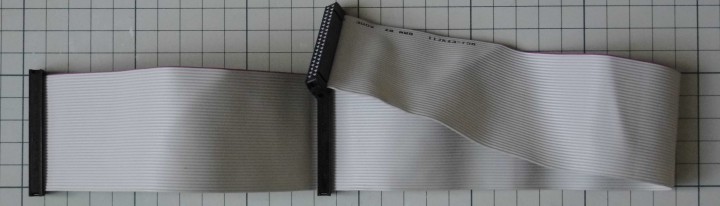

Hacking an old 3.5" HDD cable to make a 40-pin to 26-pin cable


Longest part of the original cable sliced away from the second connector to leave behind a 40w-to-40w short cable then ...

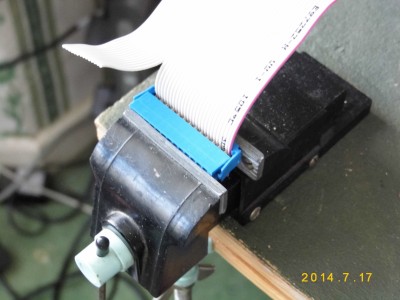

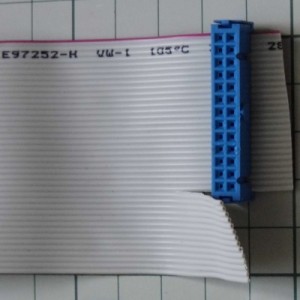

... the sliced end slit and split to clamp on a 26w IDC connector, finally ...

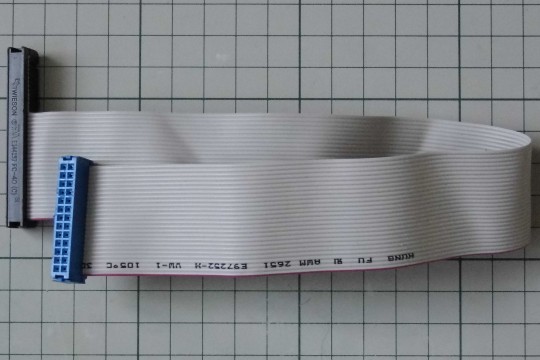

... the excess "14w" ribbon was sliced away from the 40w connector.

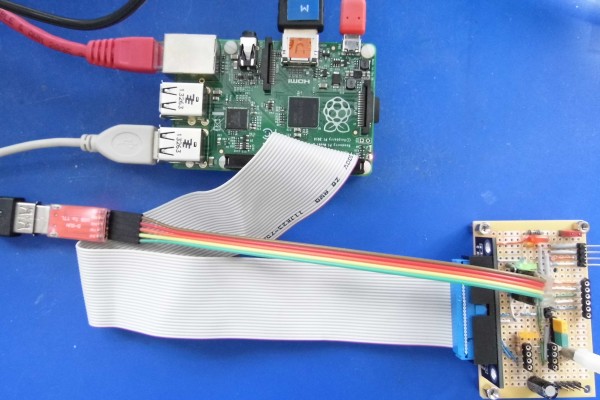

Testing the above cable

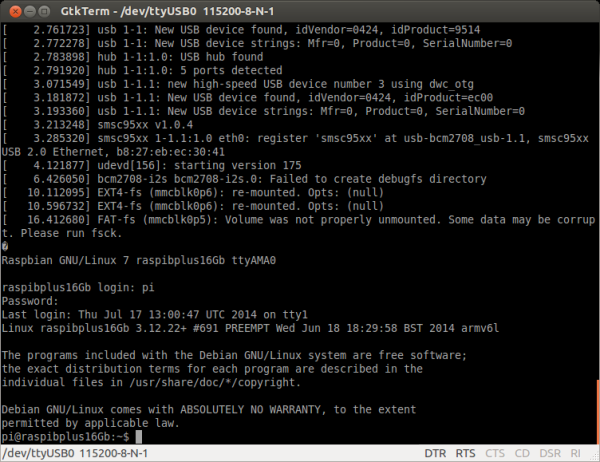

An existing "breakout board assembly" was used to form a basic test of the Pi's serial connection.

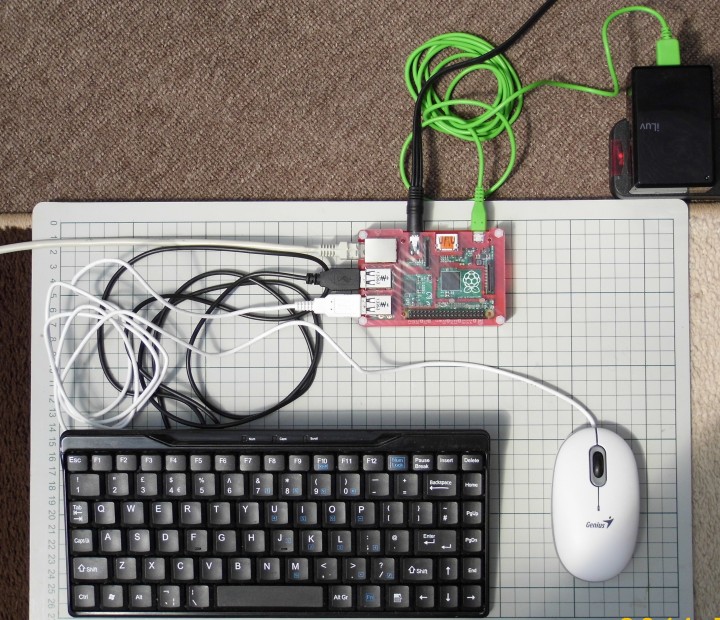

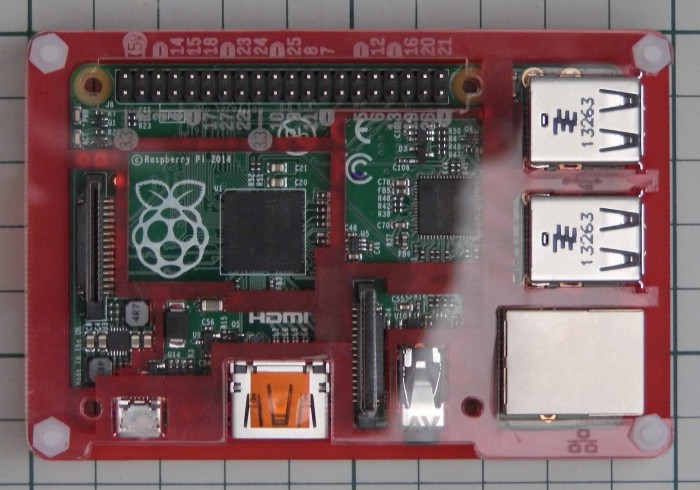

Now Mounted ...

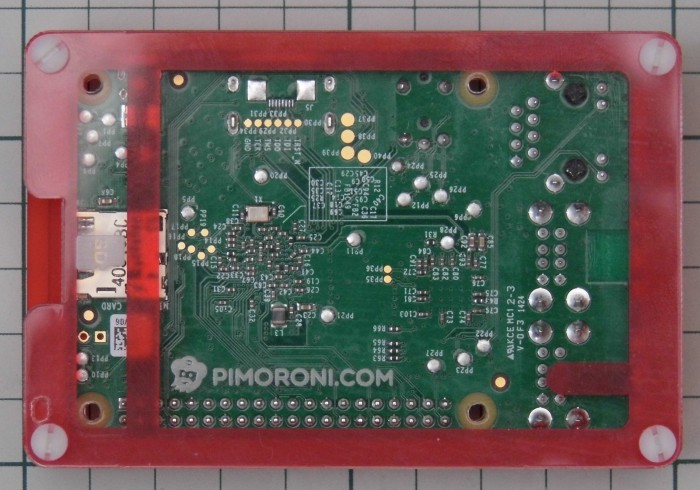

... in a Pibow Coupé case.

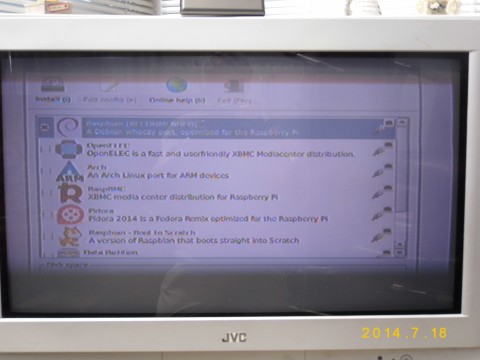

Second Test of NOOBS 1.3.9 (Composite Video)

... Composite Video via an old, JVC/Sony camcorder cable 1

NB:Although now using a wired keyboard, as in a previous test of NOOBS 1.3.2,
there was some delay before a keypress of '3' (PAL) was detected

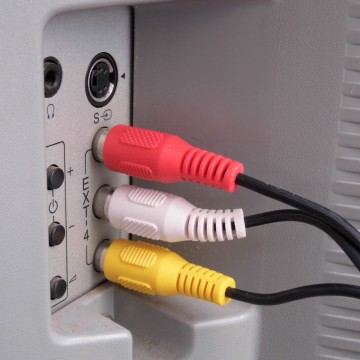

NB: Red cable plugged into Yellow socket and vice-versa

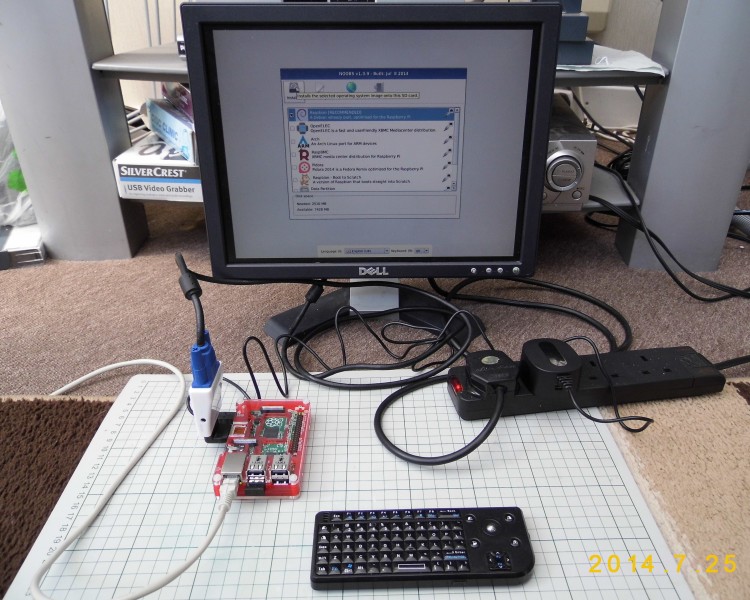

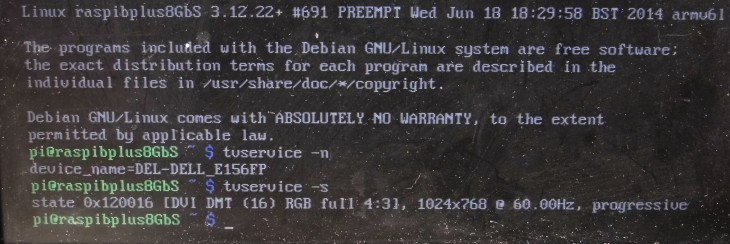

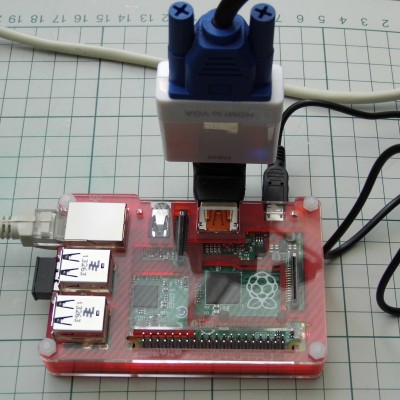

Third Test of NOOBS 1.3.9 (VGA)

(Using this HDMI to VGA converter and a new micro-SDHC card (Q))

NB:uSDHC card has not been re-formatted by GParted


NB:Whilst the same mini-keyboard and Dual-output PSU is used as
before, the HDMI to VGA converter can now be powered via the "B+".
Also note that a Right-angled HDMI adapter was needed to give
clearance from the micro-USB power plug.


Updating an old Raspbian Image for use on the B+

(uSDHC card +adapter initially in raspigrey with an Asix-based USB to LAN Adapter)

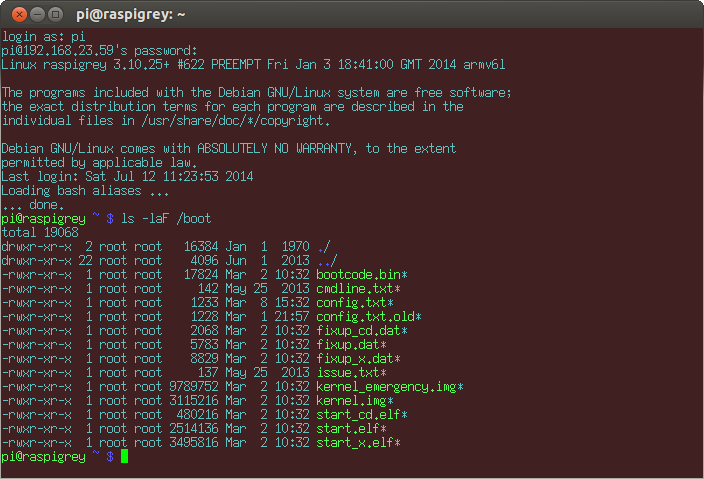

Situation before running sudo apt-get update and sudo apt-get upgrade

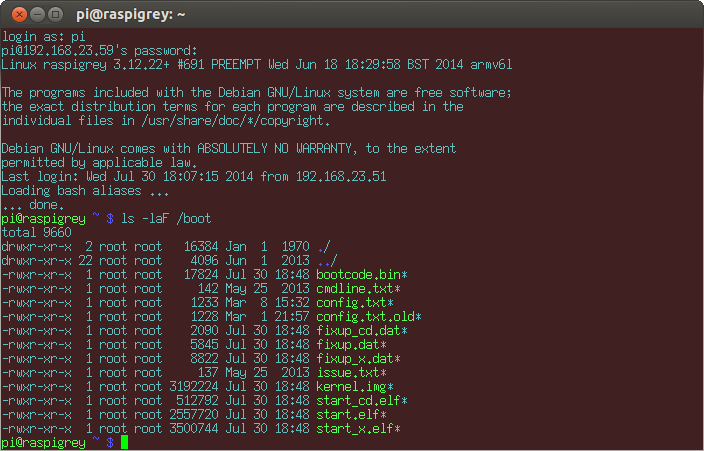

Result of running sudo apt-get update and sudo apt-get upgrade

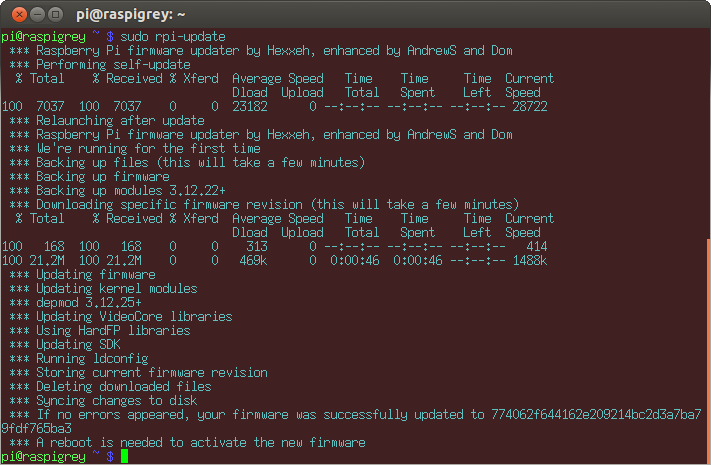

Now running sudo rpi-update

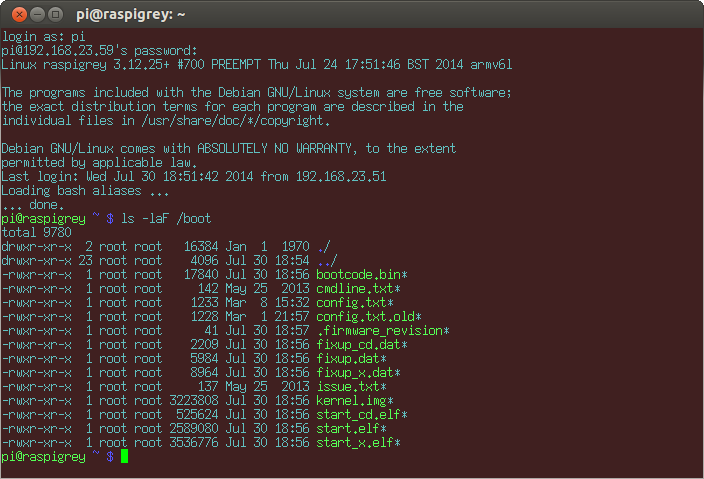

Result of running sudo rpi-update

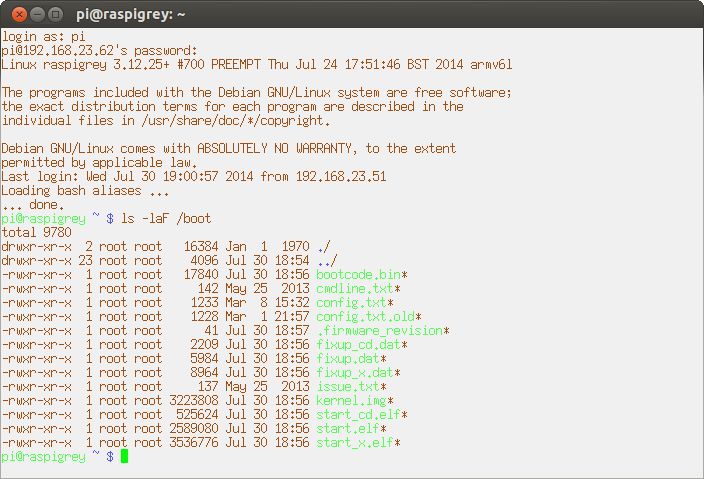

uSDHC card only moved into B+ (Hostname does not change but IP address does)

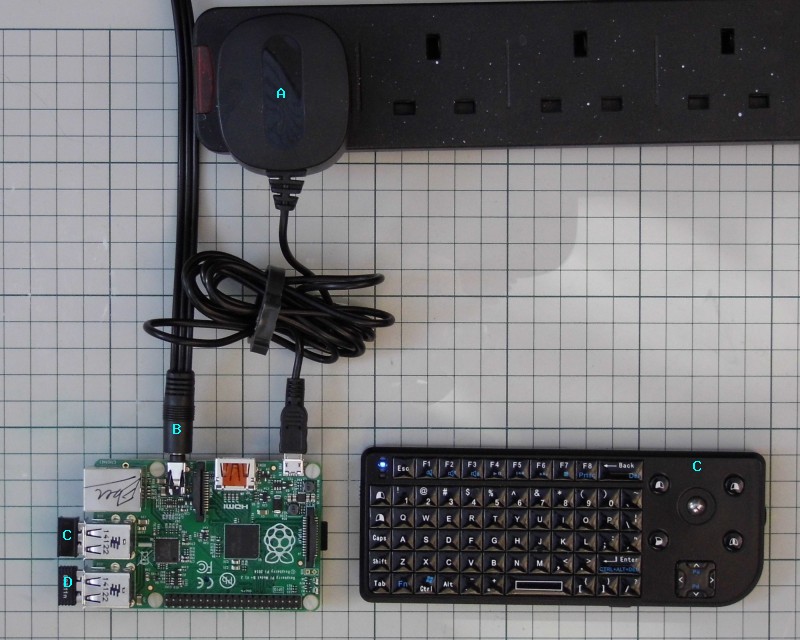

Fresh Creation & Install of a current Raspbian Image

(Composite Video, via an old, JVC/Sony camcorder cable 1)


  1. FX Factory TR9202 Dual Charger

  2. Previously used camcorder video cable

  3. Wireless Mini-keyboard and associated "dongle"

  4. WiFi "nano-dongle"



  1. Red and Yellow plugs swapped (1 2)
