NOOBS v1.3.2 installation Process Snapshots


This page shows the full process using Linux tools to prepare the SDHC card and transfer the NOOBS files etc. It is an updated version of that for NOOBS v1.2.1. Snapshots of XP methods of SDHC Card Preparation, common to all versions of NOOBS, can be found on the XP-based NOOBS v1.2.1 installation preparation page. Similar snapshots of "direct installation" of a Raspbian Wheezy image (*.img file) can be found in the Raspbian Wheezy IMaGe file Installation page. Following an update (of mainly the accompanying O.S. images) a few snapshots of NOOBS v1.3.3 installation are here1.

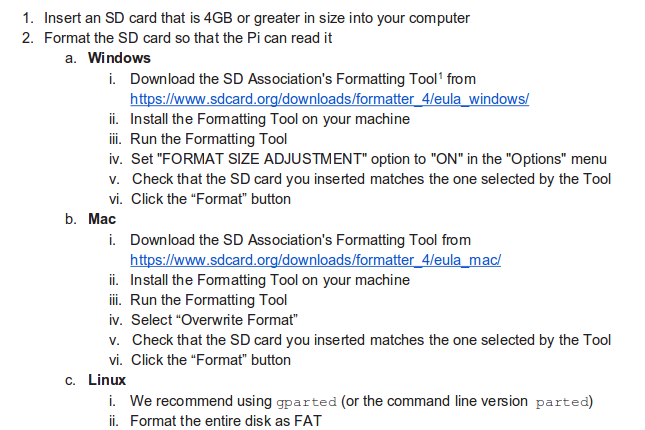

SDHC Card Preparation

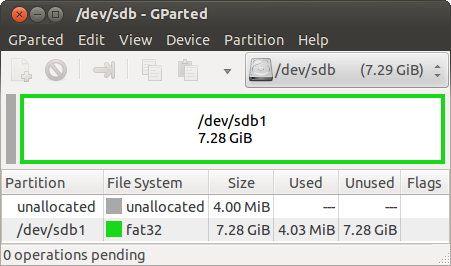

As purchased, before re-formatting with GParted

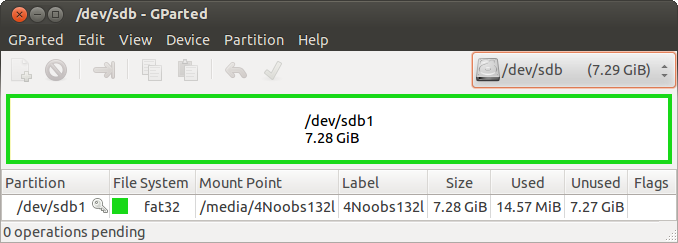

After re-formatting with GParted for NOOBS

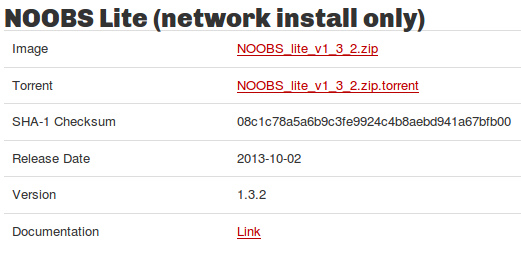

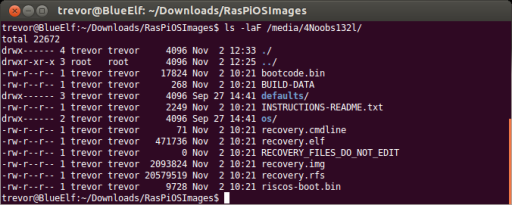

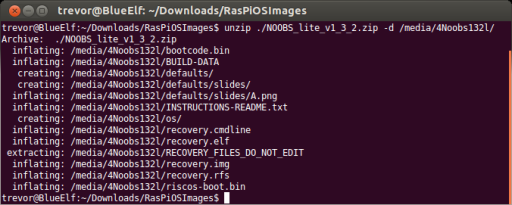

Downloading, Unzipping and Extracting/Copying Files

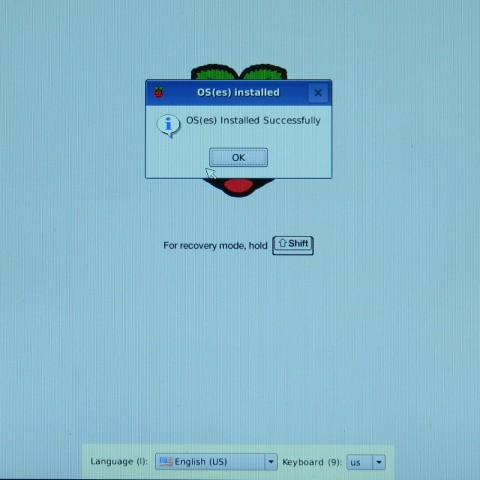

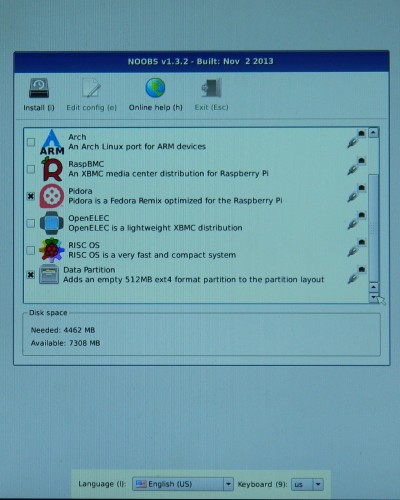

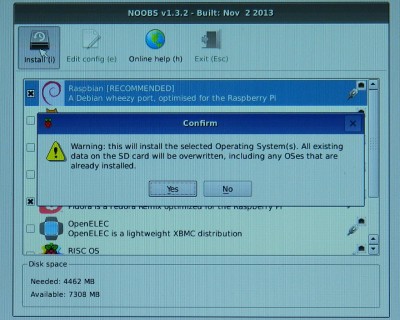

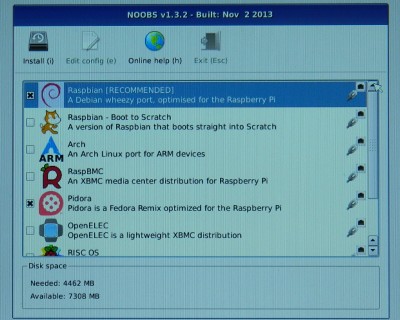

Monitor Photographs of Install in progress

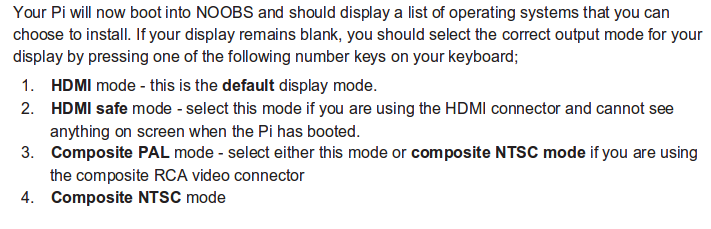

The photographs shown here are for an HDMI monitor. Whilst NOOBS 1.3.2 can be installed using composite video (via the yellow RCA socket) connected to the AV or SCART (via an adapter) inputs of an older TV this is a "little tricky" hence screenshots for that method are shown here.

NB:US Keyboard & Lang. Selected to match this
Wireless Mini-keyboard & Trackball

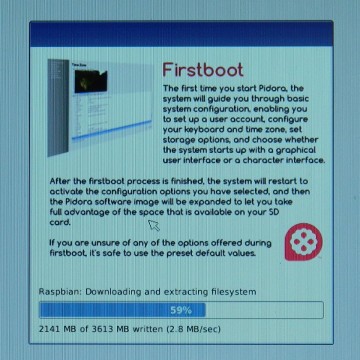

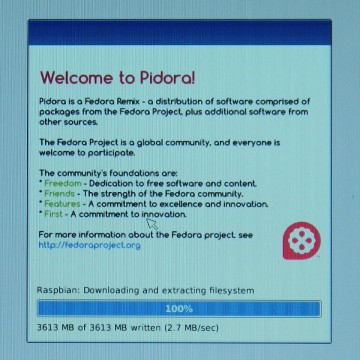

NB:Although Raspbian is now being downloaded, NOOBS lite

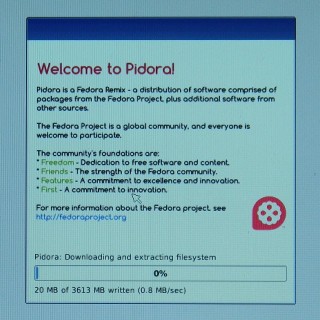

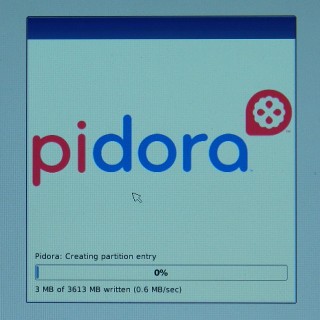

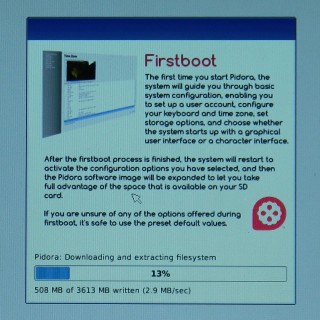

only uses the Pidora slideshow ie. that for the "first O.S."

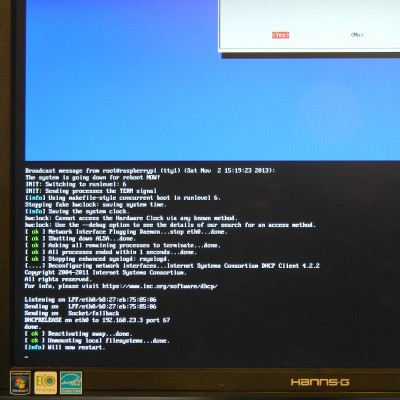

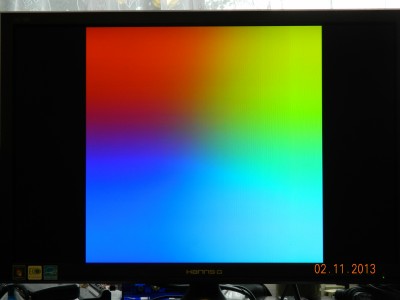

On re-boot you may see this "RGB Splashscreen"

Monitor Photographs of Raspbian's raspi-config tool

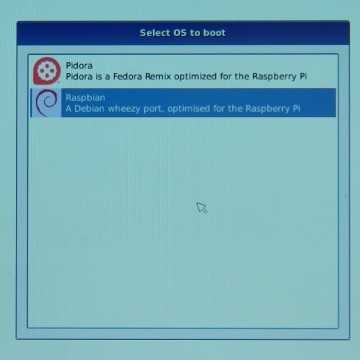

Boot into Raspbian selected

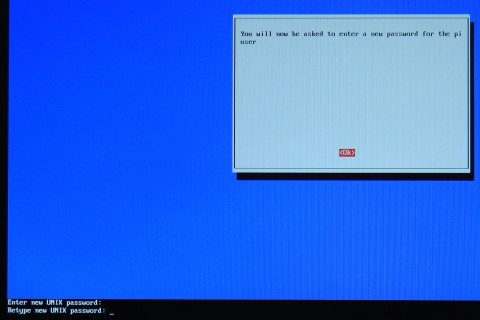

Passwords are never displayed

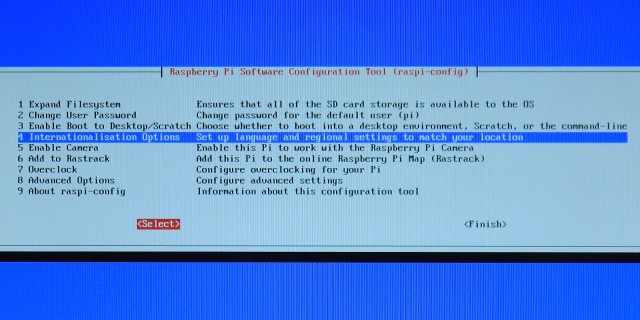

Main menu of raspi-config

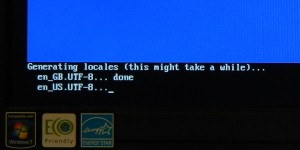

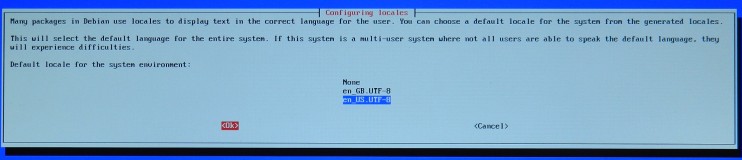

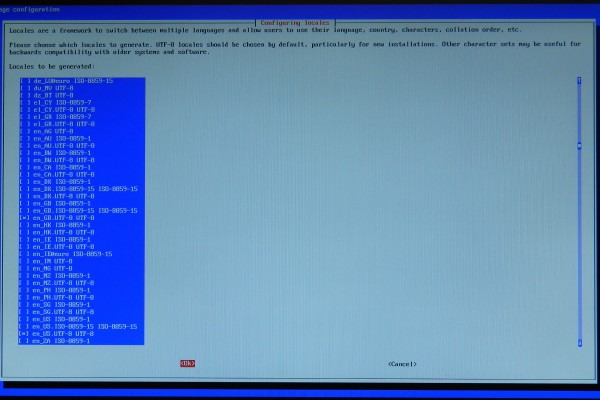

Setup and generate UK English locales too (Since that's where I am)

When finished with raspi-config re-boot...

...and you may see this "RGB Splashscreen"

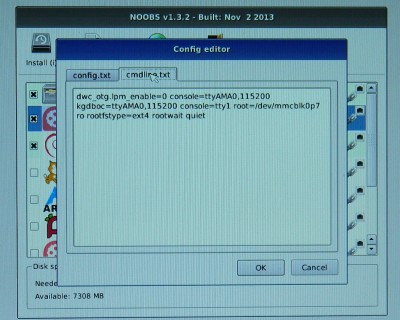

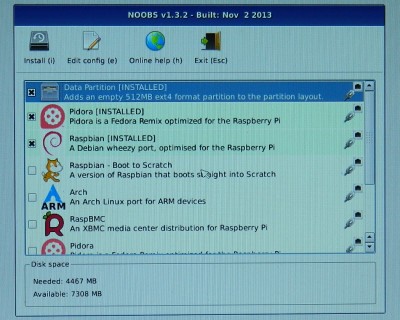

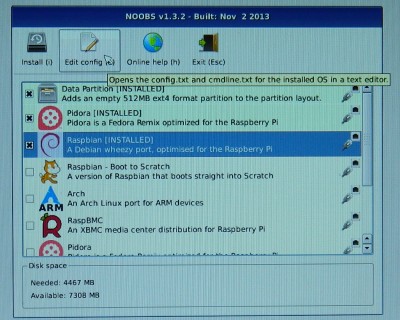

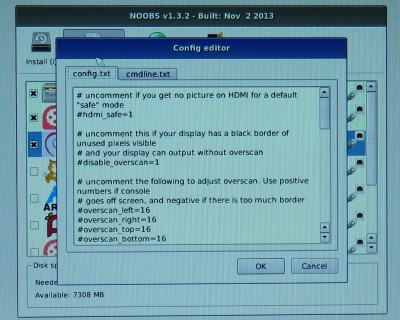

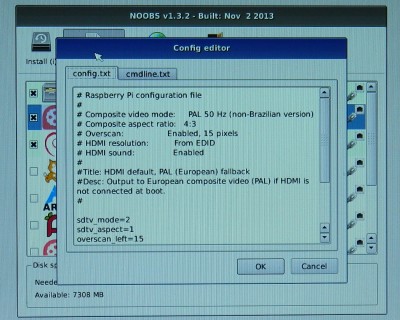

Monitor Photographs of NOOBS Recovery & Editing Tools

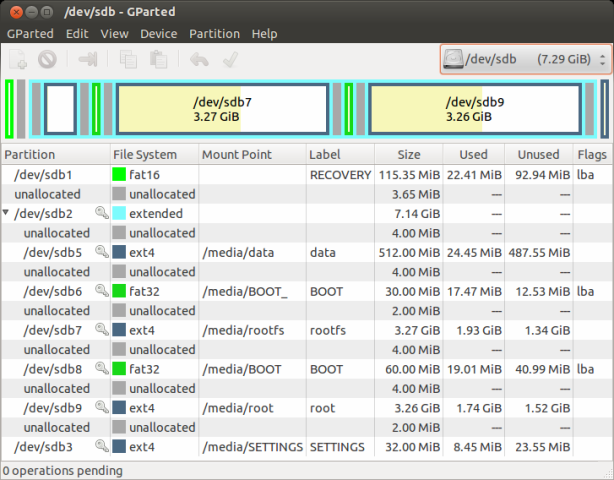

GParted view of the Partition Layout Post-install

(SDHC card now in an integral card-reader plugged into my Ubuntu Netbook)
