NULSOM RPi Proto-breadboard PCB (Full Size)

(NS-RPB-P-01)



Initial Assembly Etc.

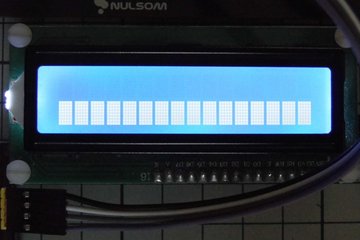

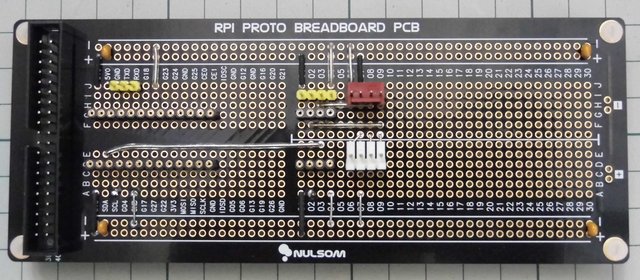

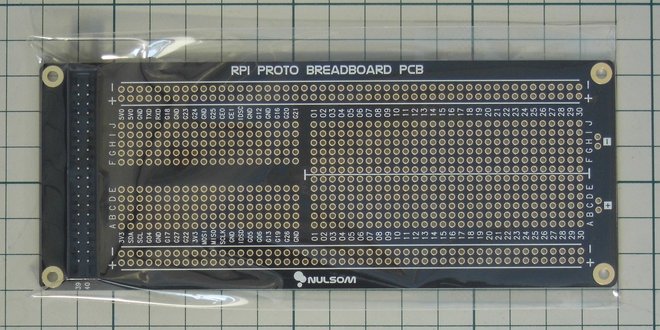

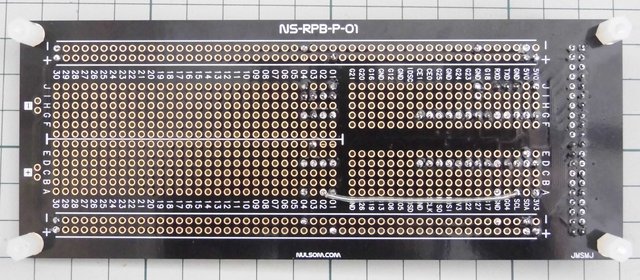

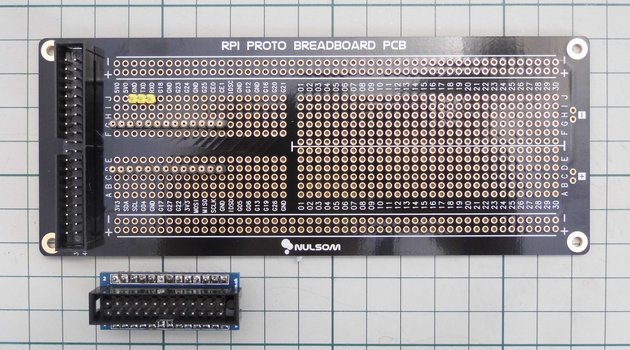

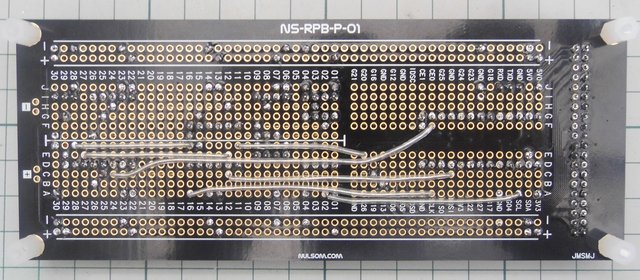

As Supplied:

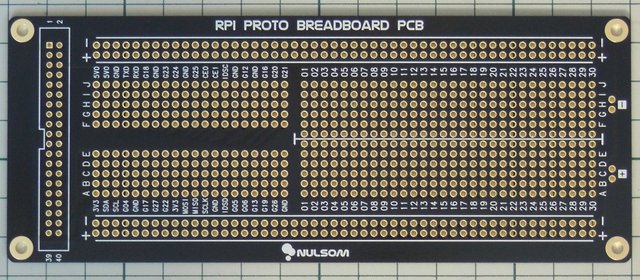

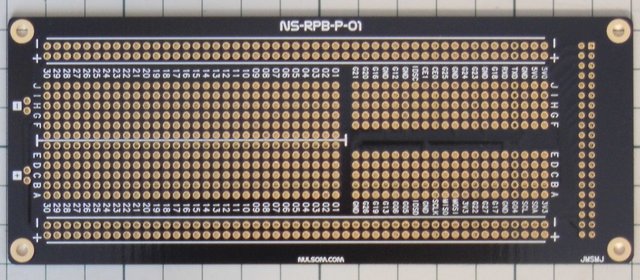

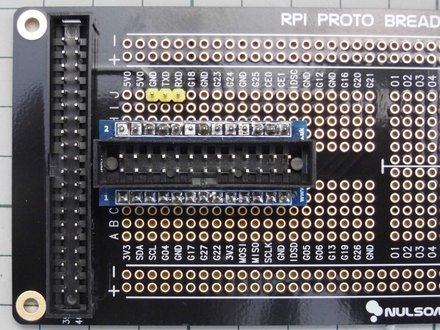

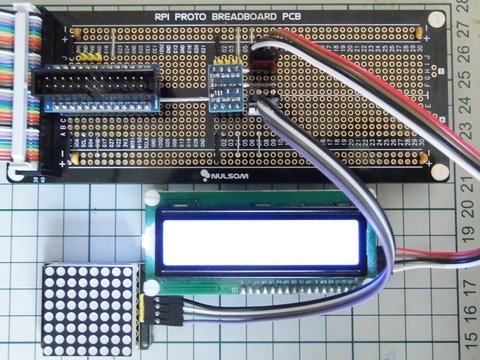

Connectors/Adapter1 Fitted for 3.3V Serial Link & 26w GPIO Modules:

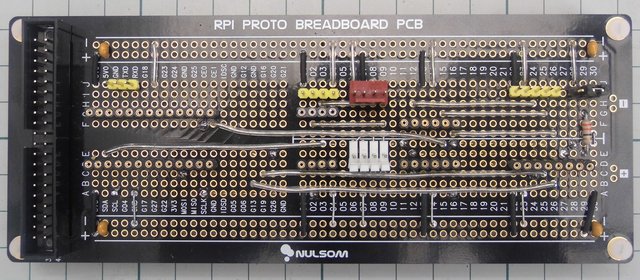

Re-visiting Old, Pre-B+ Pi (26w GPIO Con.) Circuit Boards Etc.

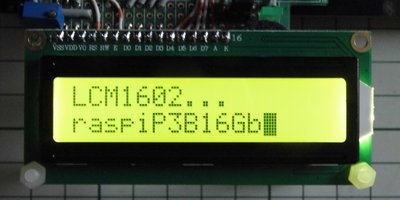

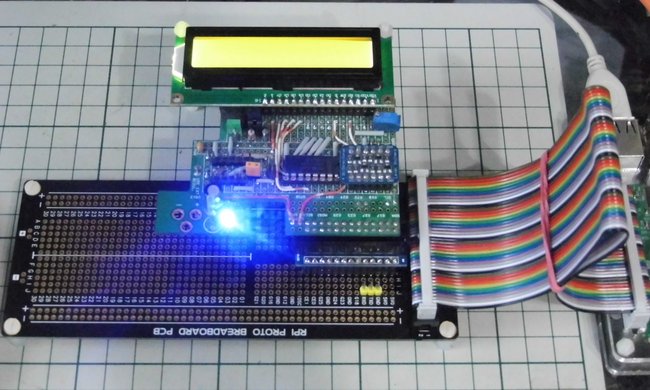

Humble Pi #1

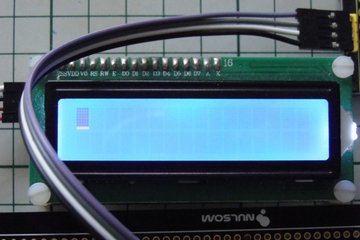

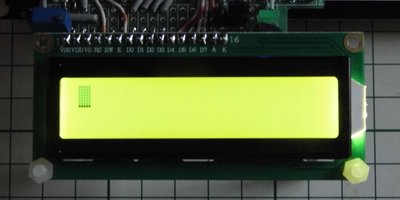

Humble Pi #1 revisited:

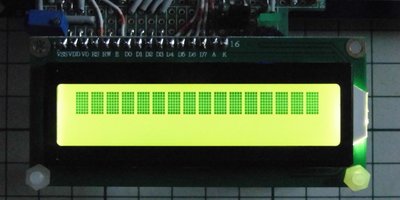

Humble Pi #2

Humble Pi #2 revisited:

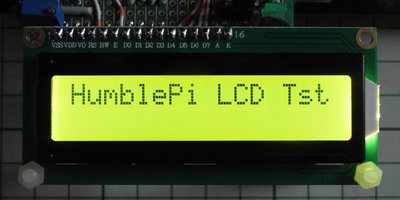

Humble Pi #3

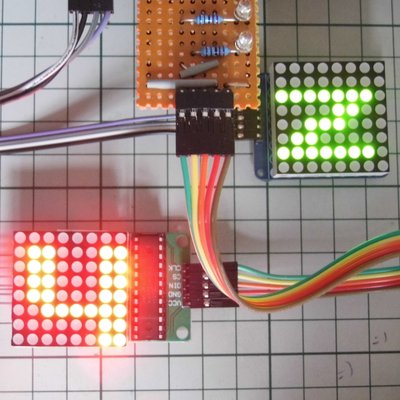

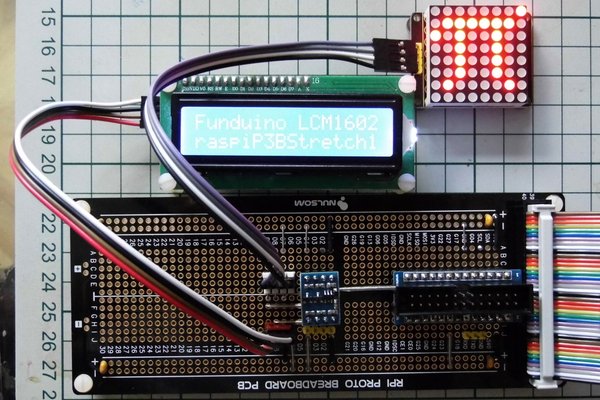

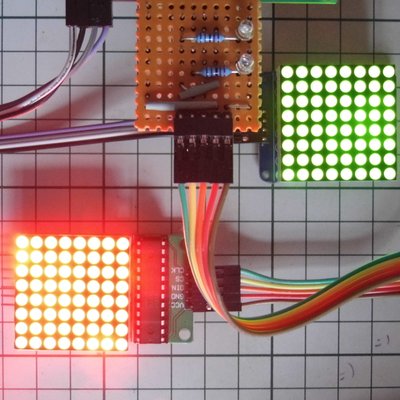

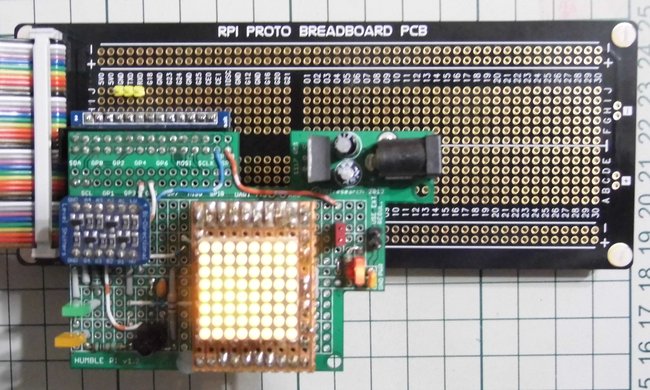

Humble Pi #3 & Spi-driven Serial 8x8 LED Matrix Module2 revisited:

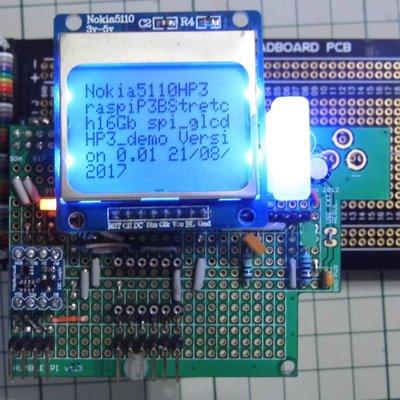

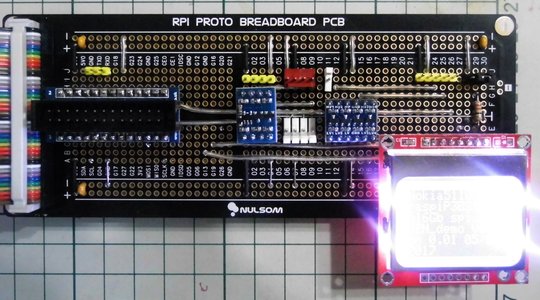

Nokia GLCD Display

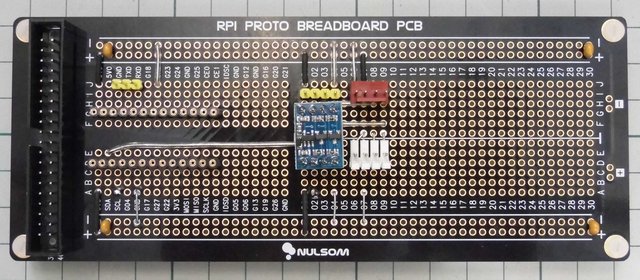

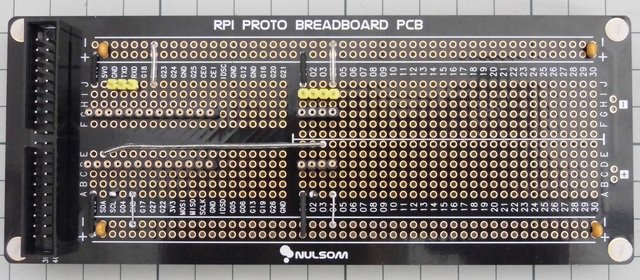

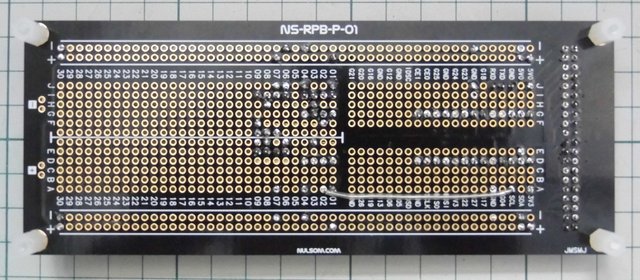

Further Assembly Etc.

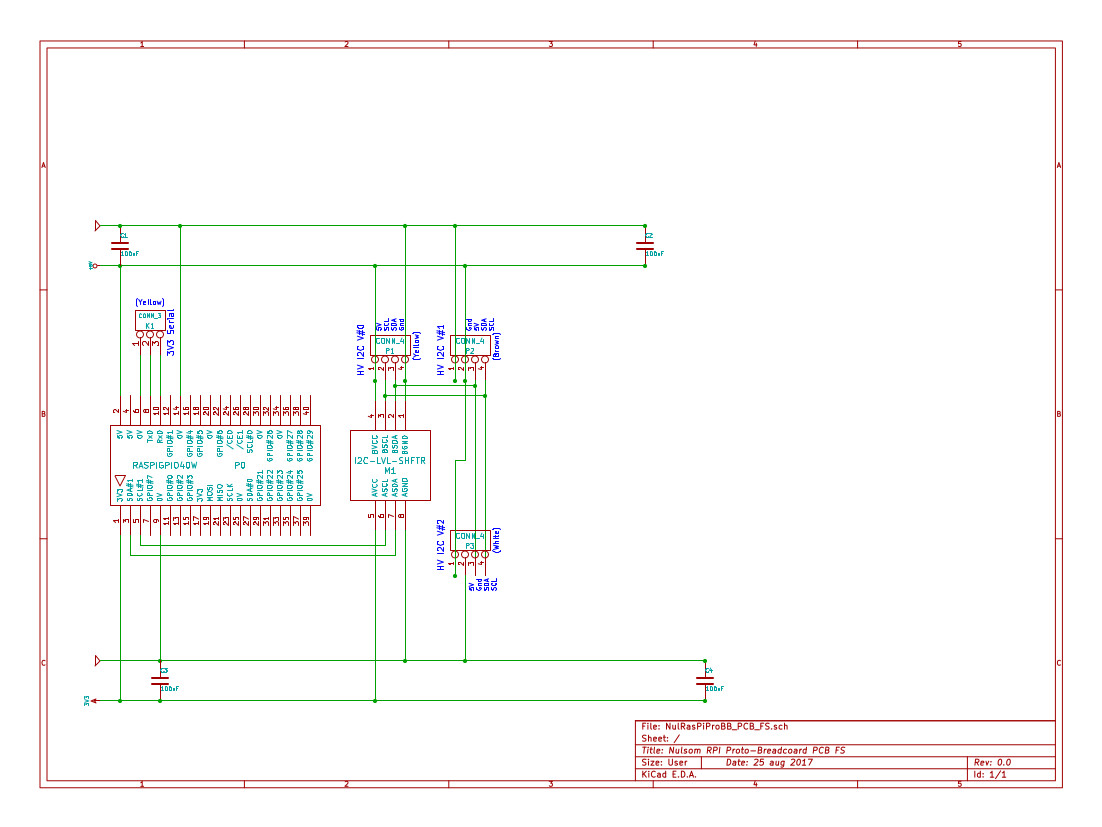

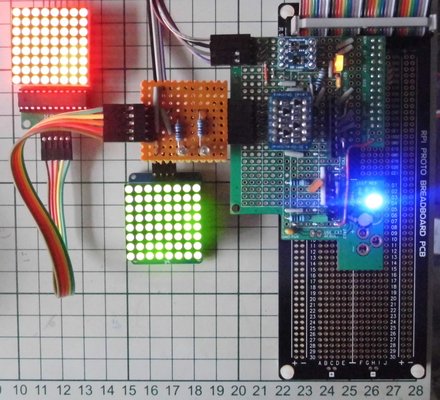

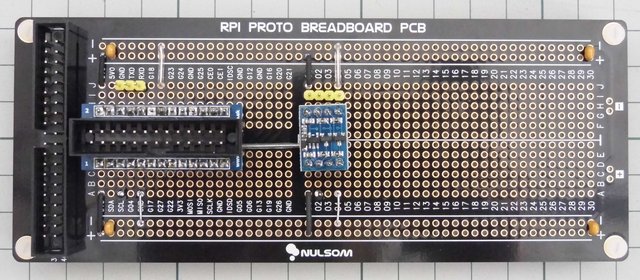

2nd. Stage Schematic - Level-Shifted I2C Interface Support Added








Quick Tests:

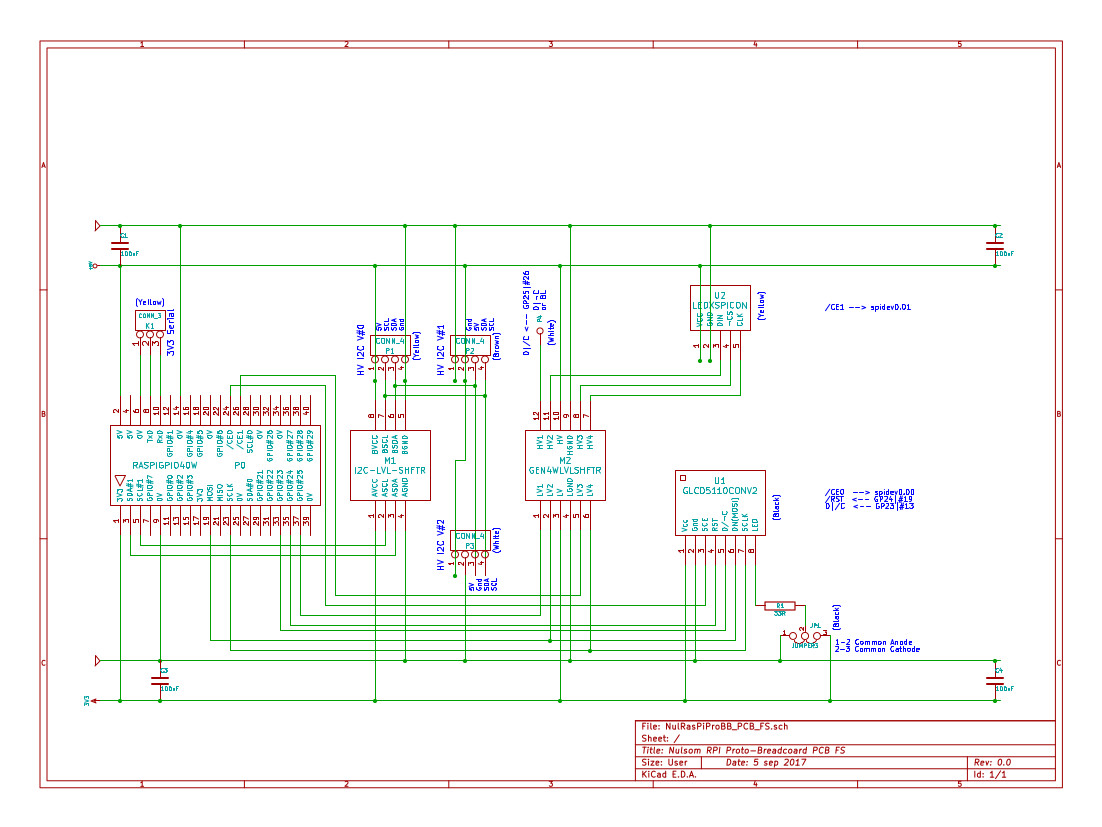

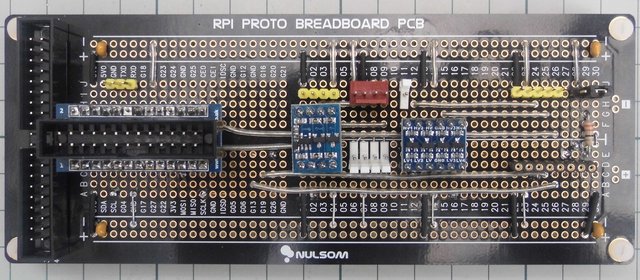

Final Schematic - Low-voltage & Level-Shifted SPI Interface Support Added








spi_glcdV2N_demo.c

pi@raspiP3Bplus18:~/i2c_spi_chips-0.0 $ ./src/spi_glcdV2N_demo
spi_glcdV2N_demo.c Version 0.01 {Exp}, [31/03/2018], (c) F_Trevor_Gowen
                <--| Package i2c_spi_chips_0.0 |-->
Usage spi_glcdV2N_demo  [Options]
Options: -a arg_filename[.arg],
         -xpm xpm_filename[.xpm] (for 48x84 rotated graphic),
         -E   {Echo command-line arguments},
         -IG  {Initialise gpio's & Gpio readall},
         -CH  {Clear and return Home},
         -inverse {INVERSE display},
         -normal  {NORMAL display - default},
         -RI  {Reset & Initialise display},
         -SCn {Set Contrast level n, 0<=n<=8},
         -WFT {Write direct Font data Test},
         -WGT {Write Graphics image data Test},
         -WMT {Write Message Test},
         -Q  {Quiet - default},
         -V  {Verbose},
         -X  {eXecute demonstration}


  1. Header as also used here (1)

  2. Together with a similar I2C-driven Module (2)
