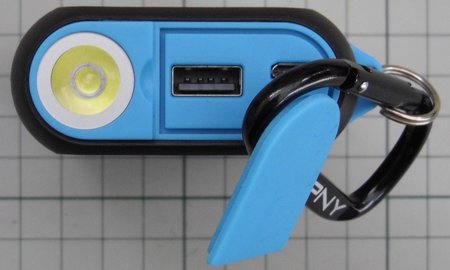

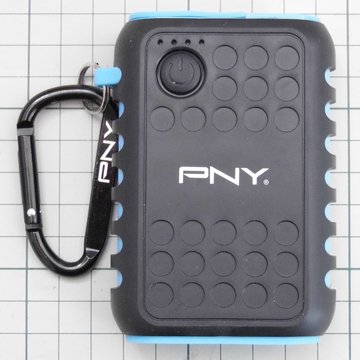

PNY Outdoor Charger 7800

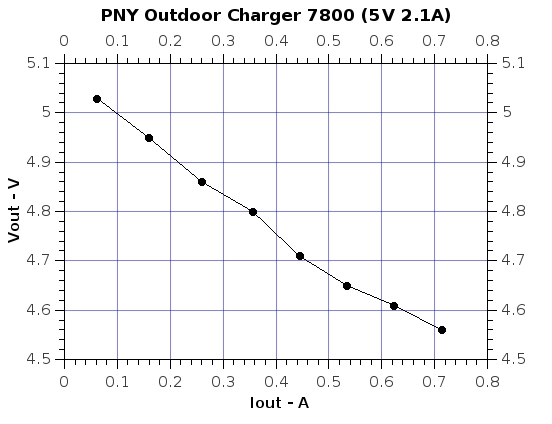

Current Loading Curve
(cf. those for USB Power Supplies etc.1)


Slope resistance: 0.56 Ω2, Vmax: ~3.8V3 4, Ibrownout: ~0.64A5


  1. Using the Compact Test Board (1)

  2. Between 5th. & 8th. data points (2)

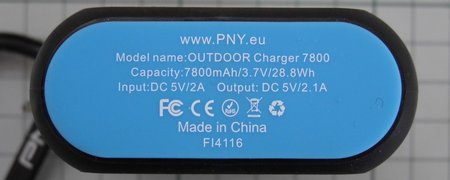

  3. Imax 2.1A (3)

  4. Minimum LiPo Charging Voltage? (4)

  5. Vbrownout 4.6 V (5)


2018-06-16 20:26
