"Quad-pad Board" Based 0802(14w) to 1602(16w) LCD Adapters

Display to Interface Adapter

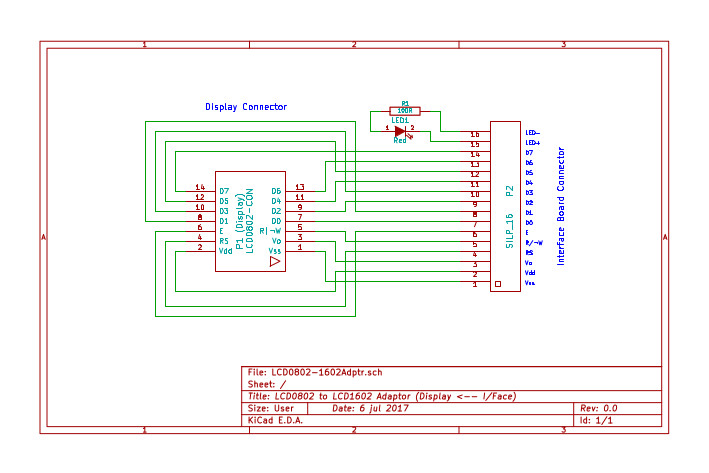

Schematic:

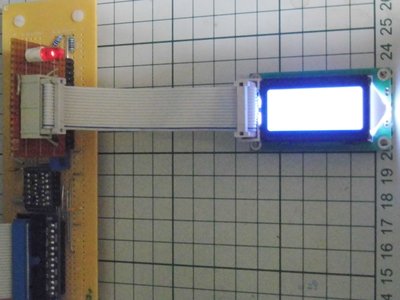

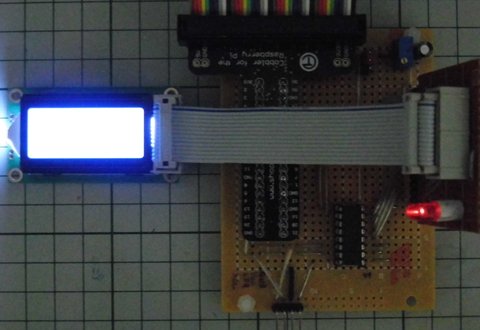

Build Snapshots:

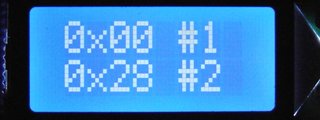

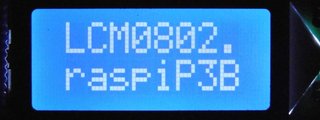

First Test: 1

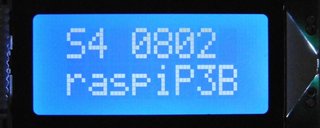

Second Test: 2



Interface to Display Adapter

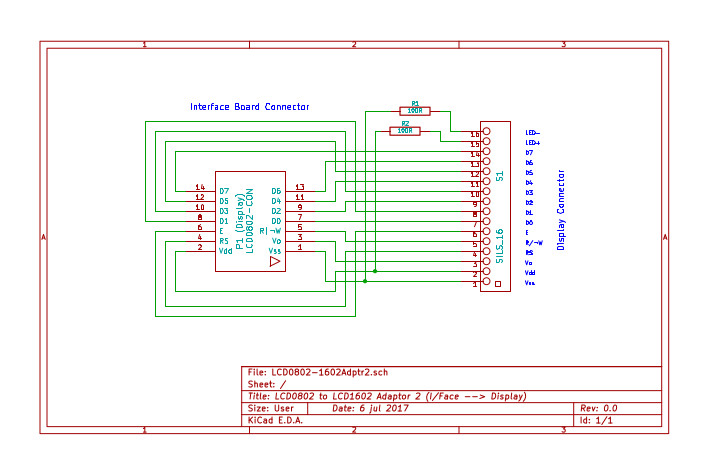

Schematic:




2018-06-16 20:29
