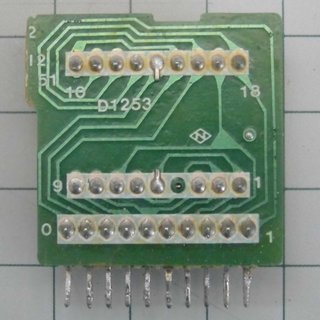

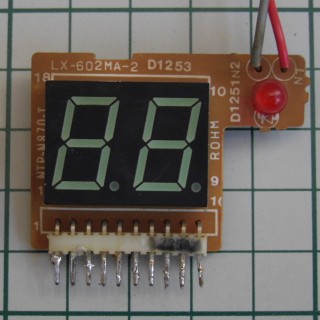

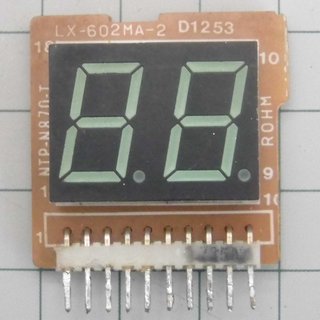

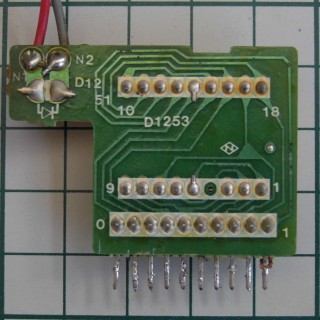

Recycled 2-Digit LED Display




IE:Is a "Common Anode" Display

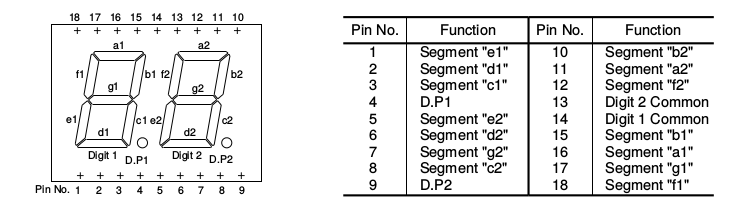

NB:Display Pin#4 (D.P1) is not connected
