(HV SPI OLED Interface + Serial Port)

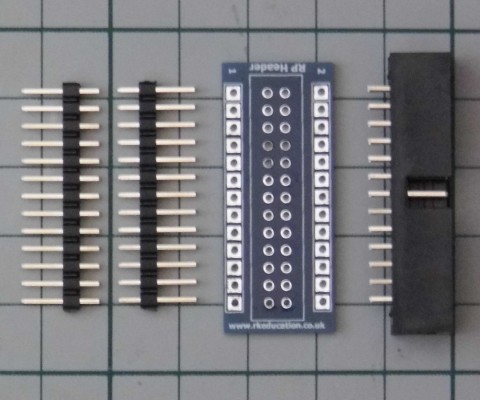

Breakout Board Components

As supplied:

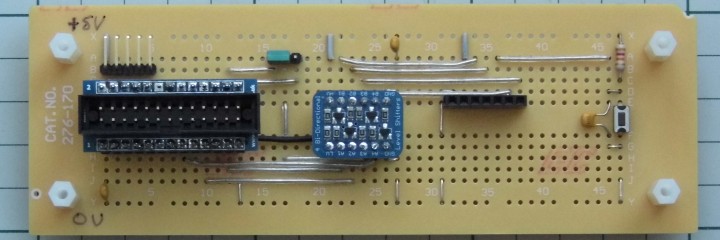

Assembled1

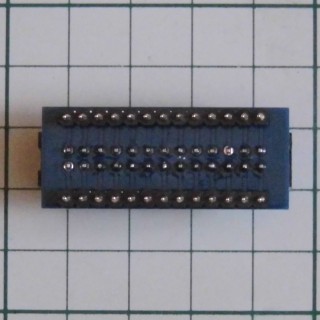

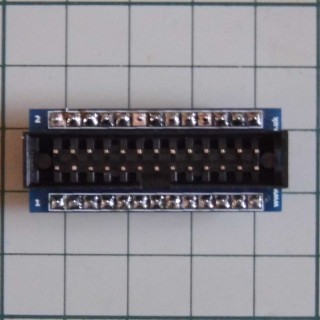

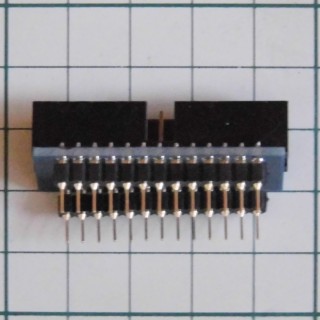

P1020159cs.JPG P1020161cs.JPG P1020163rcs.JPG

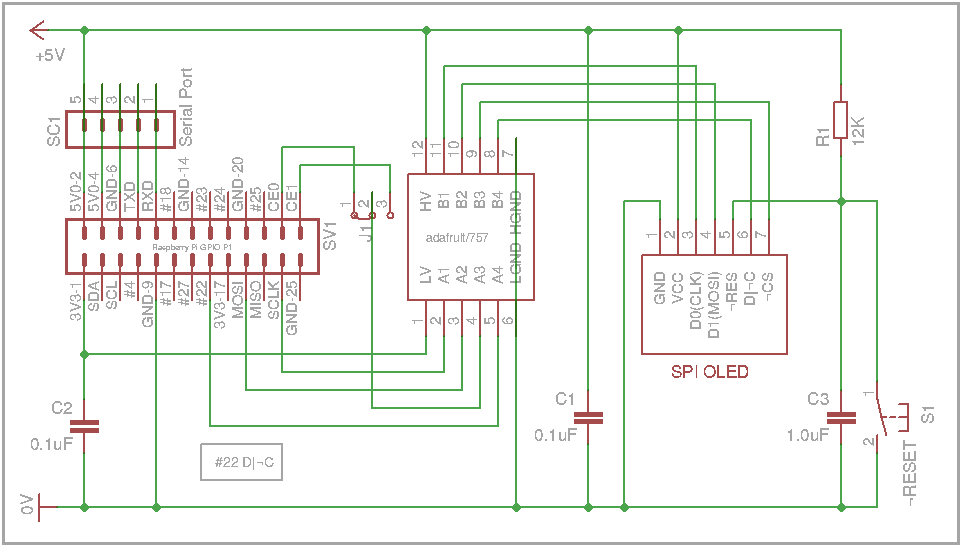

Schematic

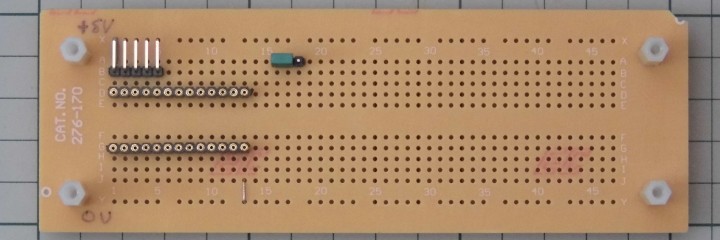

Build Snapshots

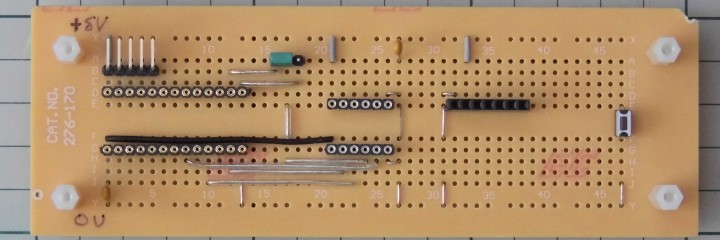

  1. Using alternative pin headers (1)
