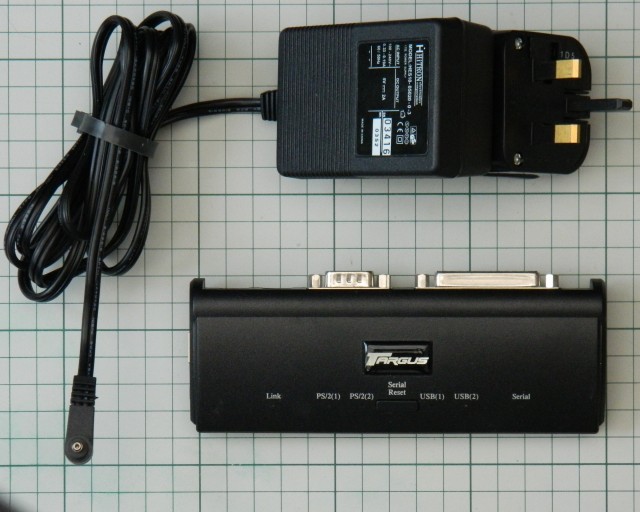

Targus Mobile Port Replicator

(Model PA070 - uses an unusual -5V 2A PSU)




Appears as four USB 1.1 devices:

lsusb

usb-devices
"MxPwr"

ID 04cc:1122

ST-Ericsson Hub

100 mA

ID 0711:0240

Magic Control Technology Corp. PS/2 to USB Converter

100 mA

ID 0711:0230

Magic Control Technology Corp. MCT-232 Serial Port

100 mA

ID 0711:0300

Magic Control Technology Corp. BAY-3U1S1P Parallel Port

98 mA

lsusb -t

pi@raspiredNOOBS131 ~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=hub, Driver=hub/3p, 480M
        |__ Port 1: Dev 3, If 0, Class=vend., Driver=smsc95xx, 480M
        |__ Port 2: Dev 4, If 0, Class=HID, Driver=usbhid, 1.5M
        |__ Port 2: Dev 4, If 1, Class=HID, Driver=usbhid, 1.5M
        |__ Port 3: Dev 5, If 0, Class=hub, Driver=hub/5p, 12M
            |__ Port 3: Dev 6, If 0, Class=HID, Driver=usbhid, 12M
            |__ Port 3: Dev 6, If 1, Class=HID, Driver=usbhid, 12M
            |__ Port 4: Dev 7, If 0, Class=vend., Driver=mct_u232, 12M
            |__ Port 5: Dev 8, If 0, Class=print, Driver=usblp, 12M

Keyboard PS/2 port known to work with these keyboards:

Mouse PS/2 port known to work with these mice:

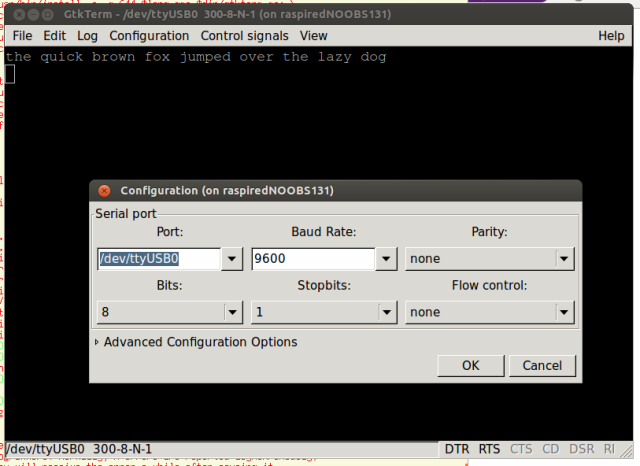

Serial Port Testing

First GtkTerm needed to be downloaded from https://fedorahosted.org/gtkterm/, built, and then installed (including some dependencies):

sudo apt-get install libvte-dev intltool build-essential libgtk2.0-dev
gunzip gtkterm-0.99.7-rc1.tar.gz
tar -vxf gtkterm-0.99.7-rc1.tar
cd gtkterm-0.99.7-rc1/
./configure
make
sudo make install

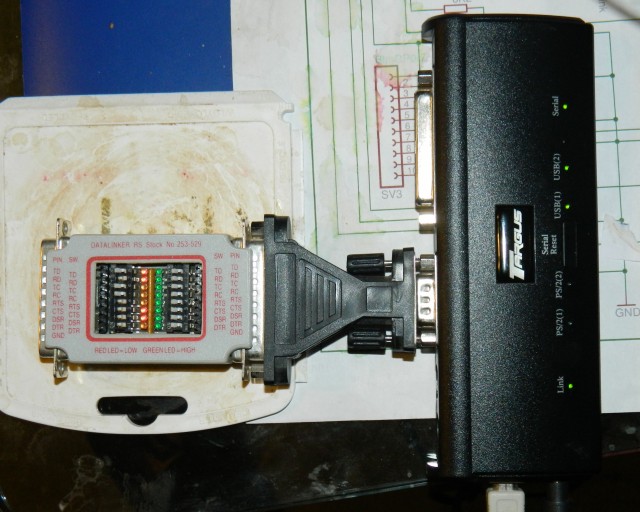

Quick test using an old R.S. "DATALINKER" dongle in "loopback" mode:
