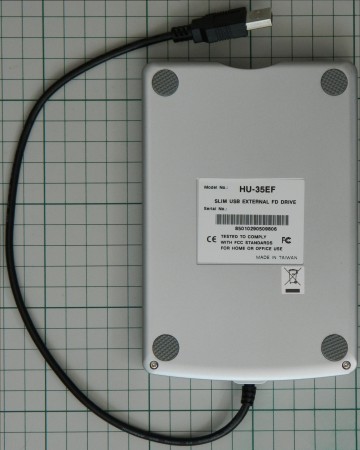

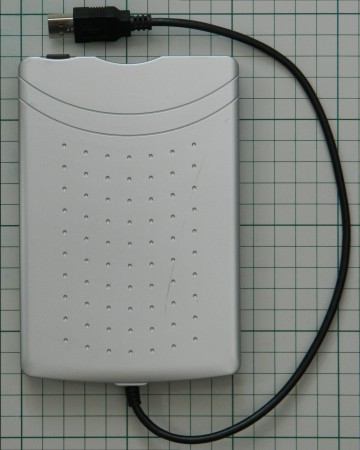

USB Floppy Drive
(Model HU-35EF)
|
|

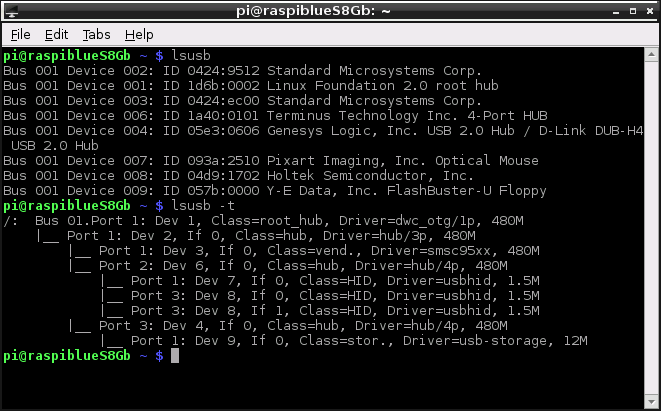

Preliminary checks with ''lsusb'' & ''usb-devices'' showed that the device had a "MxPwr" requirement of 500mA, suggesting that a powered hub may be needed. This proved to be the case and the following setup was used:
"B2" Pi raspiblue
Dual-ouput PSU - FX Factory TR9202
Keyboard and Mouse via a Gembird USB2 Switching Hub (Effectively powered by both the Pi and an Acer netbook)
Powered Hub - Targus 4-Port Hub powered via USB cable "H" from the second output of the FX Factory PSU
USB Floppy connected to, and powered by the Targus Hub
|
|
|
|
