USB to LAN (Ethernet) Adapters


Pictures


















P1030420rcs.JPG P1030419rcs.JPG

ID's, Power & Drivers

Model

lsusb info.:

usb-devices "MxPwr"

Driver

"A"/"A+"/"Zero"

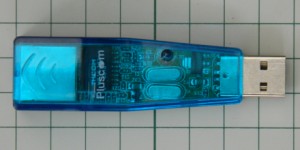

Pluscom U1EC (Blue, Un-shielded)

ID 0a46:9000

Davicom Semiconductor, Inc. DM9000E Fast Ethernet Adapter

144mA

dm9601


Generic JP108 (Blue, Shielded) c.2010

ID 0fe6:9700

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter

120mA

dm9601

checkmark.png 1

Generic KY-RS9600 (Purple, Shielded)

ID 0fe6:8101

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter

120mA

dm9601

checkmark.png 1

Generic JP1082 (Blue, Shielded) 2013 #1

ID 0fe6:9700

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter

120mA

dm9601

checkmark.png 1

Generic JP1082 (Blue, Shielded) 2013 #2

ID 0fe6:9700

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter

120mA

dm9601

checkmark.png 1

PowerSynch Tech. LAN adapter & Hub

ID 0fe6:9700
ID 1a40:0101

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter
Terminus Technology Inc. 4-Port HUB

120mA
100mA

dm9601
hub

checkmark.png 1 2

Pluscom U2E-ADM85153

ID 07a6:8515

ADMtek, Inc. AN8515 Ethernet

224mA

pegasus

checkmark.png 4

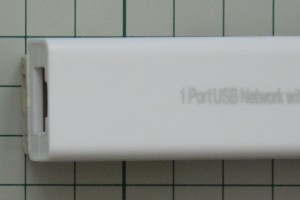

NEWlink NLUSB2-ETH

ID 0b95:7720

ASIX Electronics Corp. AX88772

250mA

asix


niceEshop VK-QF9700 (Clear, Shielded)

ID 0fe6:9700

Kontron (Industrial Computer Source / ICS Advent) DM9601 Fast Ethernet Adapter

120mA

dm9601

checkmark.png 1 2 5

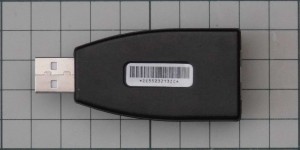

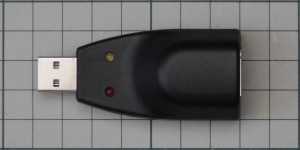

"Buyincoins" Generic (Black, Shielded)6

ID 0b95:772b

ASIX Electronics Corp.

200mA

asix

checkmark.png 7 5

"Akord" (Asix) KY-AX88772BLF8

ID 0b95:772b

ASIX Electronics Corp.

200mA

asix

checkmark.png 7

Generic 5-Pin Micro USB To RJ45 LAN Ethernet Network Adapter for Tablet PC, Model VK-88772A9

ID 0b95:772a

ASIX Electronics Corp. AX88772A Fast Ethernet

250mA

asix

checkmark.png 5

"Smays" USB2.0 Ethernet Adapter (Chipset RTL8152)10

ID 0bda:8152

Realtek Semiconductor Corp.

100mA

r8152

checkmark.png 5

"Freegene" FG-8114 LAN adapter & Hub

ID 0b95:772a
ID 05e3:0610

ASIX Electronics Corp. AX88772A Fast Ethernet
Genesys Logic, Inc. 4-port hub

0mA
100mA

asix
hub

checkmark.png 5

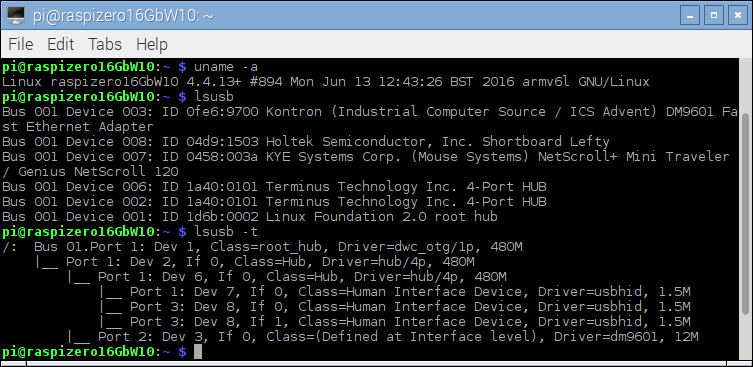

Trees (lsusb -t) for Working Devices

"A" or "A+"

Pluscom U1EC

pi@raspigrey ~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=hub, Driver=hub/4p, 480M
        |__ Port 1: Dev 3, If 0, Class=>ifc, Driver=dm9601, 12M

Pluscom U2E-ADM8515

pi@raspigrey ~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=hub, Driver=hub/4p, 480M
        |__ Port 1: Dev 4, If 0, Class=vend., Driver=pegasus, 480M

pi@raspigrey ~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=hub, Driver=hub/4p, 480M
        |__ Port 4: Dev 3, If 0, Class=vend., Driver=asix, 480M

"Buyincoins" Generic (Black, Shielded)

(Plugged directly into the Model 'A' Pi)

pi@raspigrey:~$ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=vend., Driver=asix, 480M

"Akord" (Asix) KY-AX88772BLF

(Plugged directly into the Model 'A+' Pi)

pi@raspiaplus8Gb ~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=vend., Driver=asix, 480M

"Zero"

Generic (Asix) Model Model VK-88772A

pi@raspiZero8Gb-2:~$ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Vendor Specific Class, Driver=asix, 480M

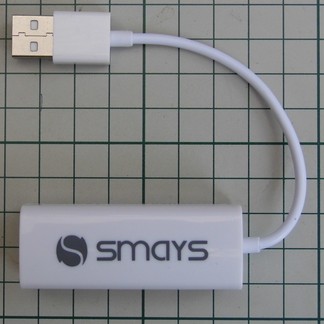

"Smays" USB2.0 Ethernet Adapter (Chipset RTL8152)

pi@raspizero16GbW10:~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Vendor Specific Class, Driver=r8152, 480M

"Freegene" FG-8114 LAN adapter & Hub

(Hub port connected to a switching hub and then a keyboard and mouse)

pi@raspizero1v316Gb:~ $ lsusb -t
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 2: Dev 28, If 0, Class=Hub, Driver=hub/4p, 480M
            |__ Port 1: Dev 29, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
            |__ Port 3: Dev 30, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
            |__ Port 3: Dev 30, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 3, If 0, Class=Vendor Specific Class, Driver=asix, 480M

Early working, ASIX-based, dongle

"Buyincoins" Generic (Black, Shielded) Dongle & a Model "A" Raspberry Pi


Example of a partially working device after "lock-up"

KY-RS9600 partially working1 with a Model "A" Raspberry Pi

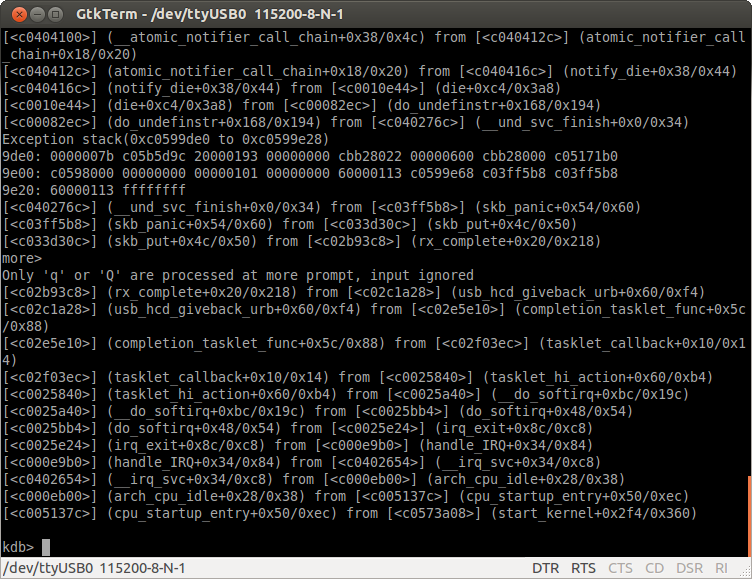

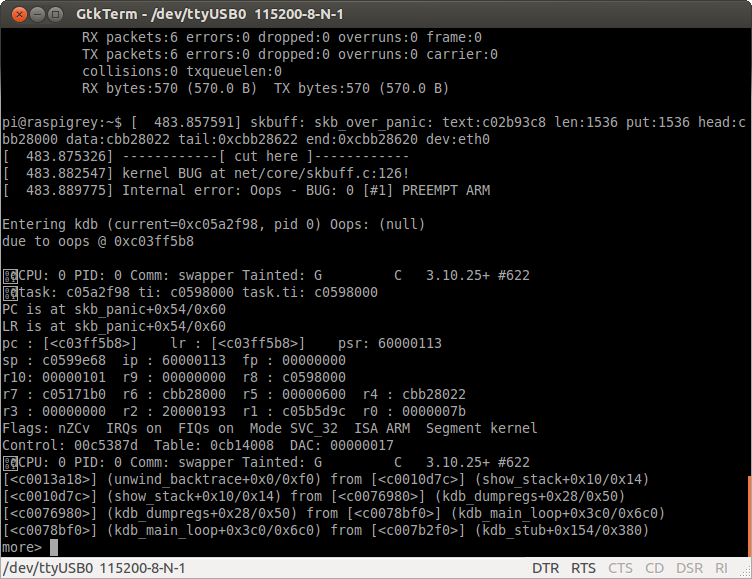

Serial Console Kernel Debug messages (dm9601 driver issues)

(Using the newest, VK-QF9700, adapter and a DSUN USB to TTL Serial adapter)




Improved OTG "module" in Raspbian Jessie* solves dm9601 driver issues

(*Originally installed as a test of the Windows 10 uSDHC card creation process)

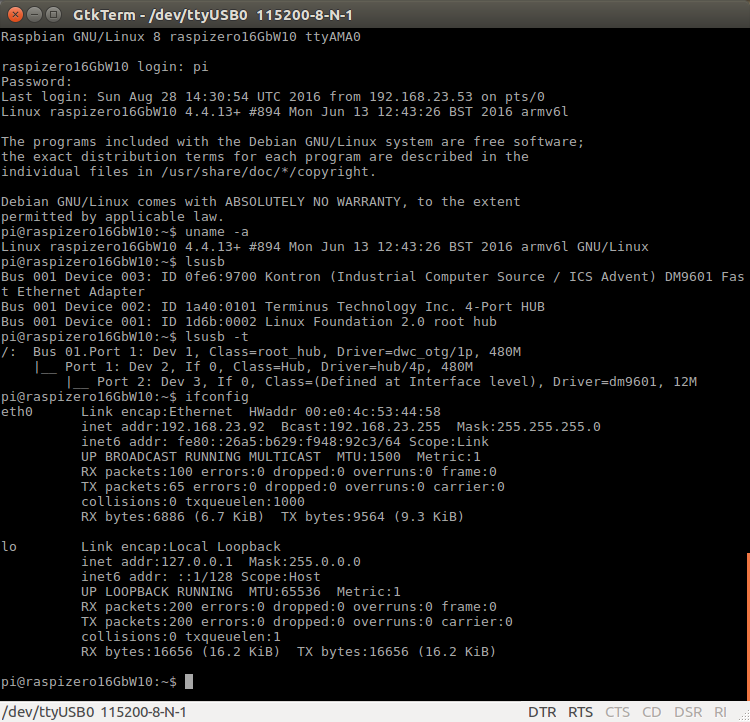

Testing with the PowerSynch Tech. LAN adapter and Hub

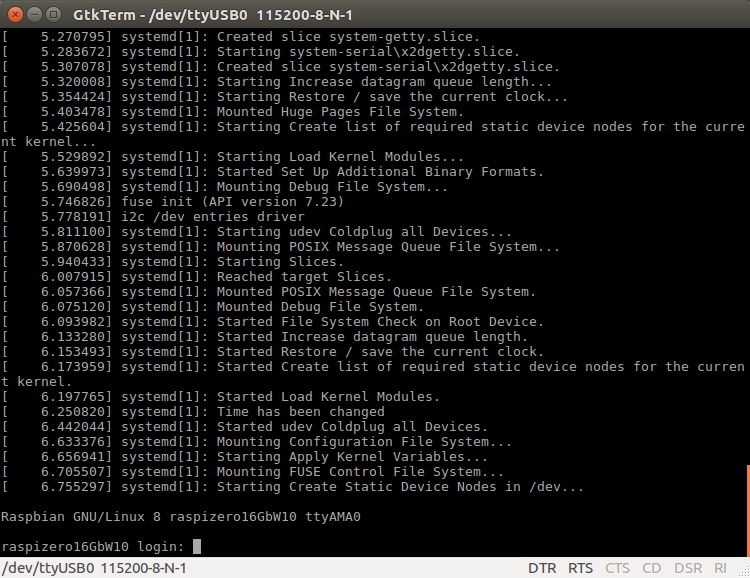

before re-booting ...

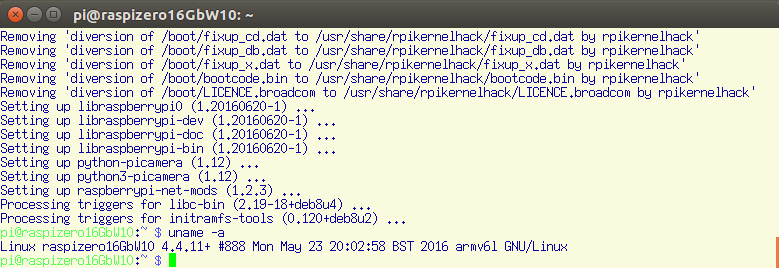

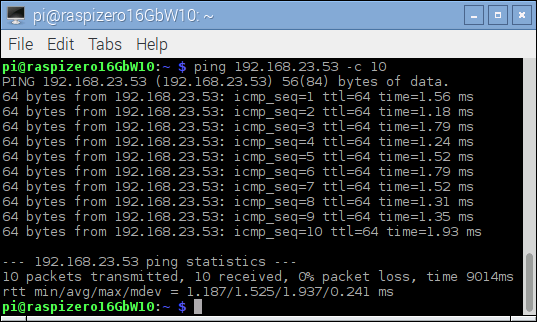

... after re-booting

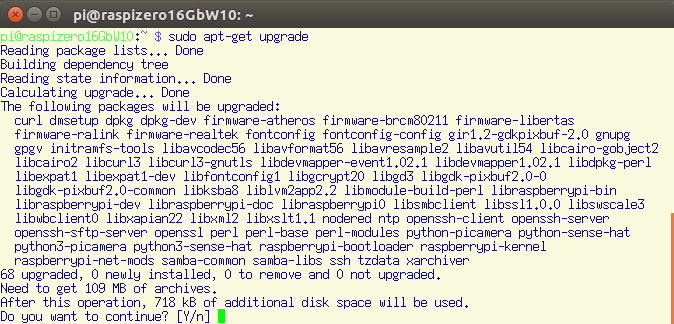

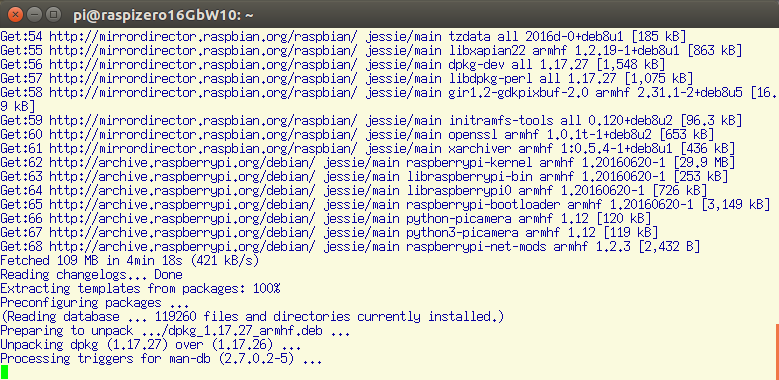

IE. an update and upgrade was successfully performed without system lock-up from a kernel panic.

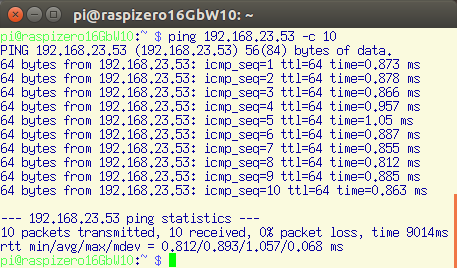

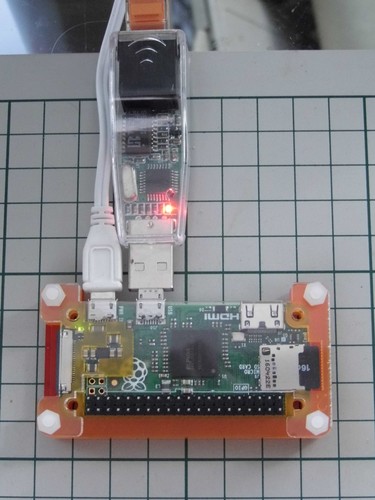

Headless Quick Test with the niceEshop VK-QF9700
