Various Displays & Display Backpacks

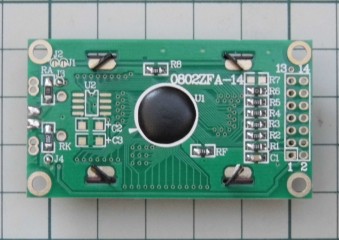

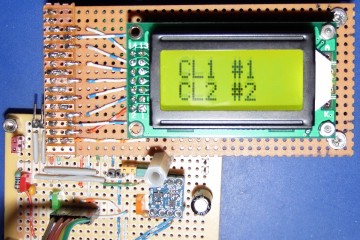

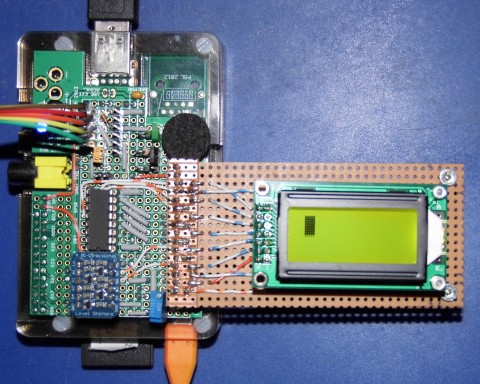

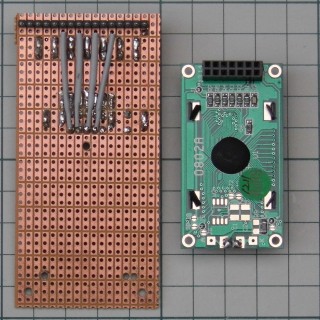

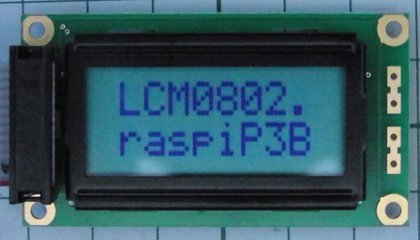

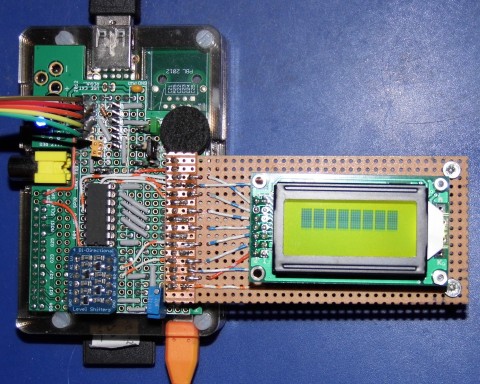

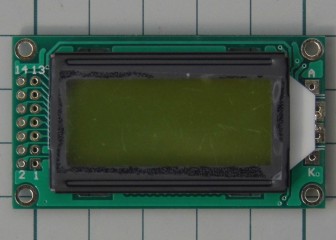

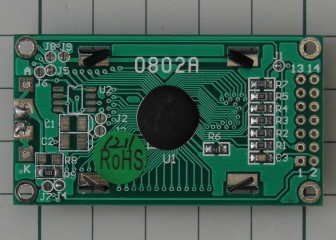

8x2 Character LCD (Yellow Backlight)

(NB: Backlight connected to Vss/Vdd so always on)



Adapter needed to match other display connectivity:

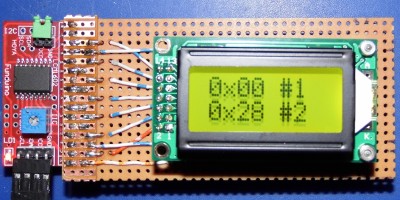

Testing with the Funduino I2C LCD Backpack1




Testing with the Humble Pi-based LCD & Serial interface2




Testing with the Hobbytronics LCD Backpack V2

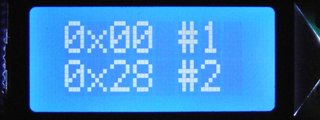

8x2 Character LCD (Blue Backlight)

(NB: Backlight connected to Vss/Vdd so always on. Uses the KS0066U controller I.C.)

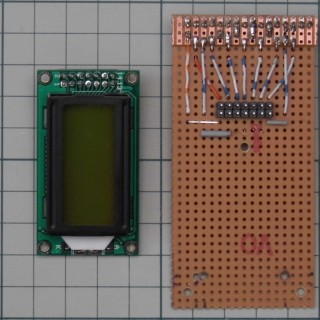

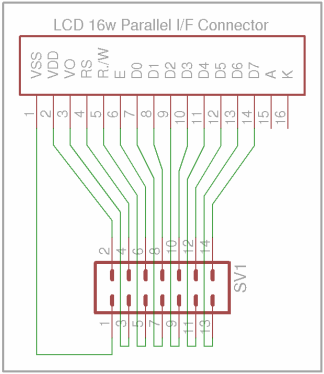

Eventual testing using this improved 14pin-to-16pin LCD Adapter:

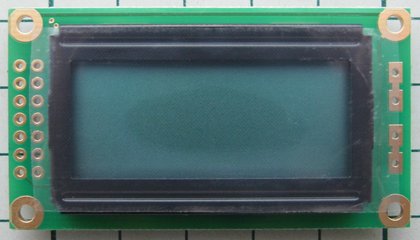

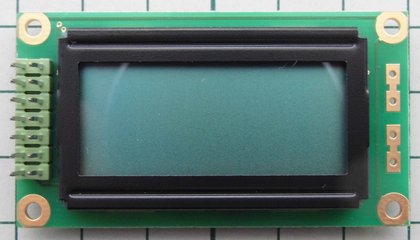

8x2 Character LCD (Reflective, No Backlight)

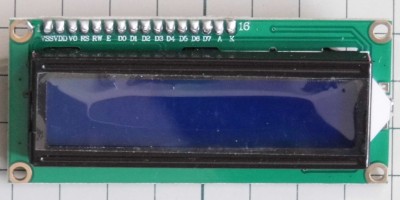

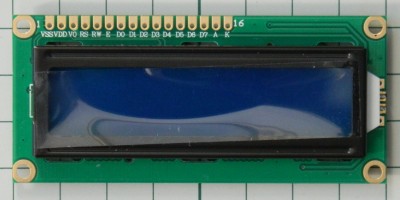

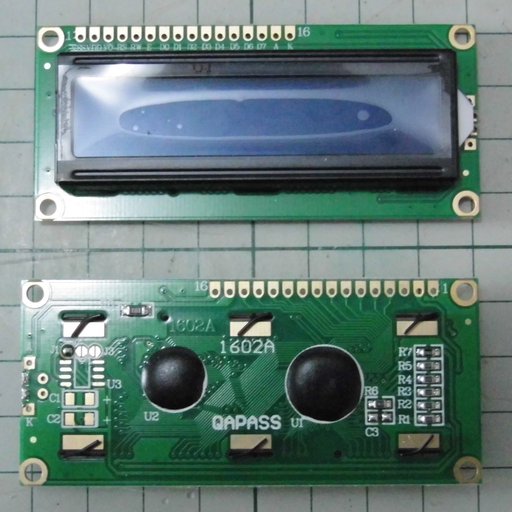

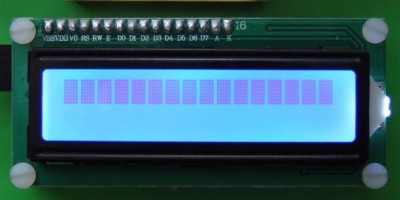

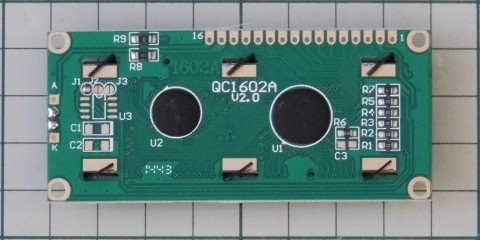

16x2 Character LCD (Blue Backlight)

First sample, purchased c.2014





Second sample, purchased December 2016

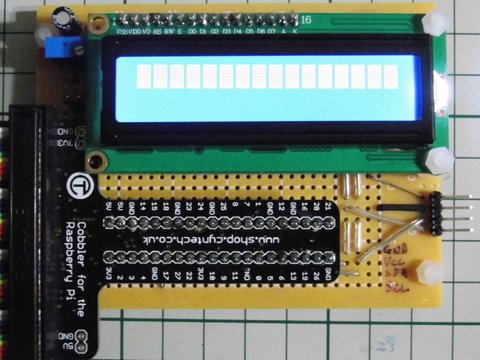

Testing with a Reduced Voltage (~4.4V) I2C LCD Display Interface Board



Two more samples, purchased February 2019

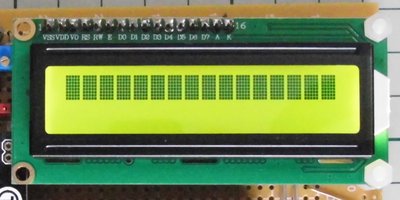

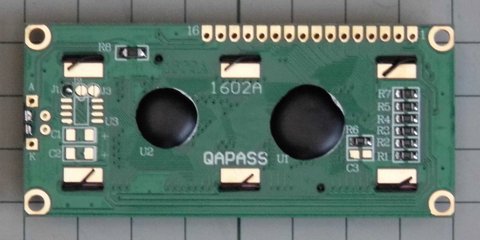

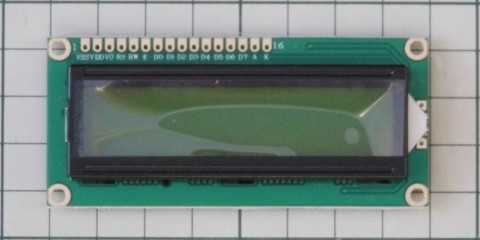

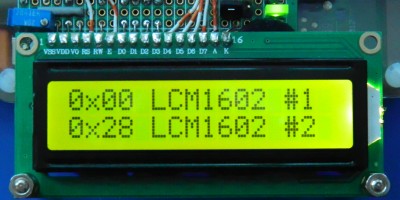

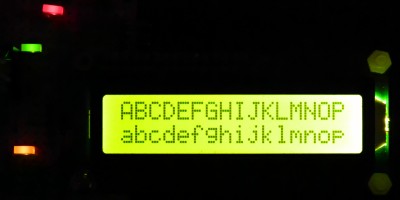

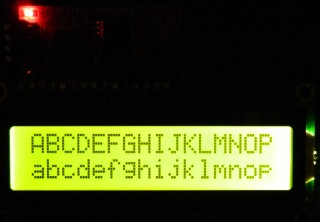

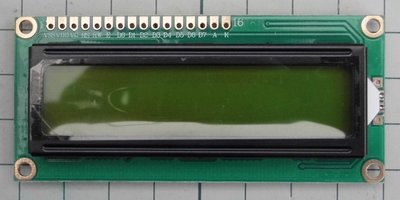

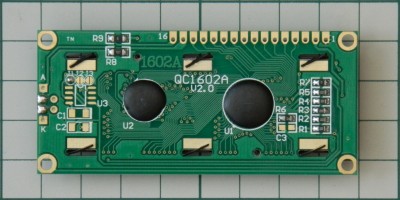

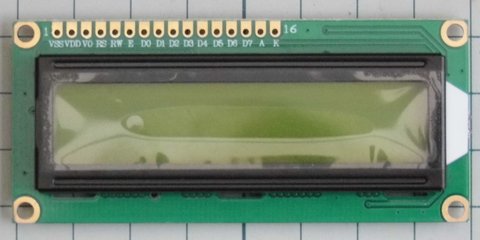

16x2 Character LCD (Yellow Backlight)

First sample, purchased March 20143







Second sample, purchased December 20144

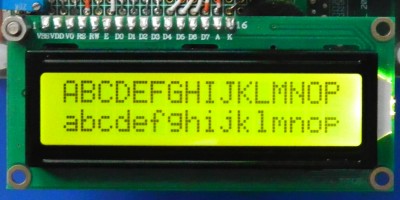

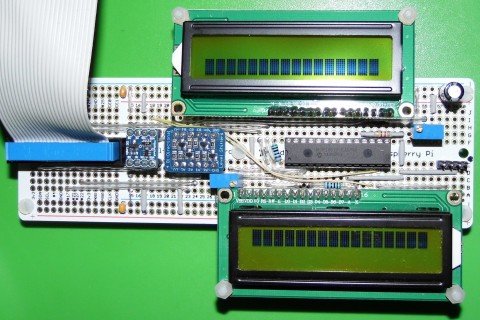

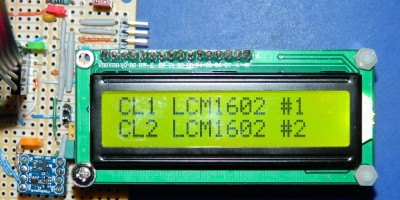

Both displays under test with the Dual LCD (8-bit/4-bit) Test Board:

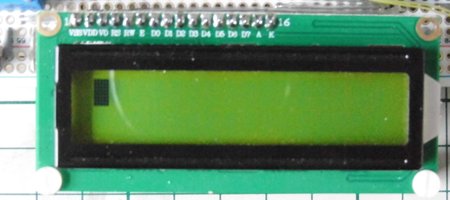

Uninitialised

After initialisation into 8-bit or 4-bit mode



Third sample, purchased December 2016 (uses the SPLC780D controller I.C.)



Uninitialised

Testing via a reduced voltage I2C interface

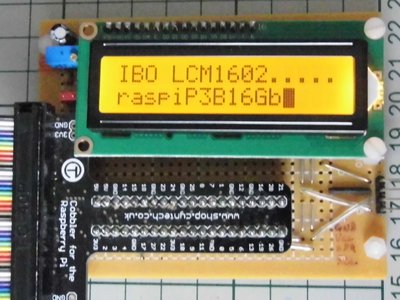

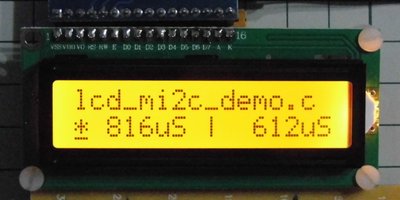

16x2 Character LCD (Orange Backlight)

("DIYnik" brand5)



First Quick Test:

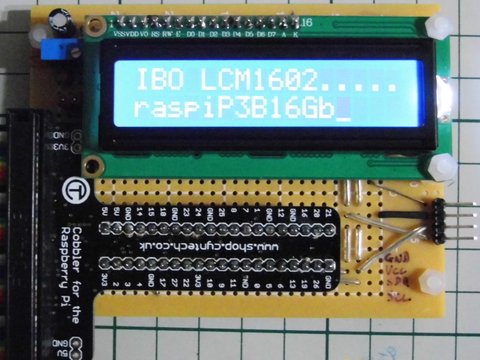

Using a "Reduced Voltage" (~4.4V) I2C to 4-bit interface:6



Second Test:

Backpack via "Reduced Voltage" (~4.4V) I2C to 4-bit interface:6

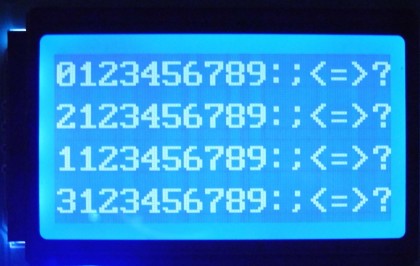

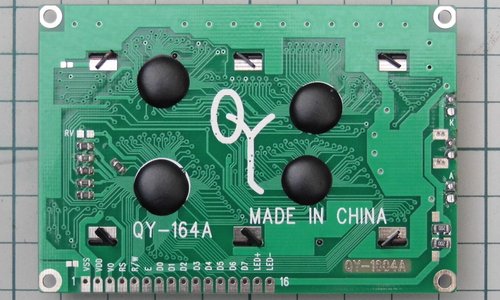

16x4 Character LCD (Blue Backlight)

("Waveshare" brand7, uses the KS0066 controller I.C.)



First Quick Tests:

Using a "Reduced Voltage" (~4.4V) I2C to 4-bit interface:6

Uninitialised display

Display failed to initialise correctly8

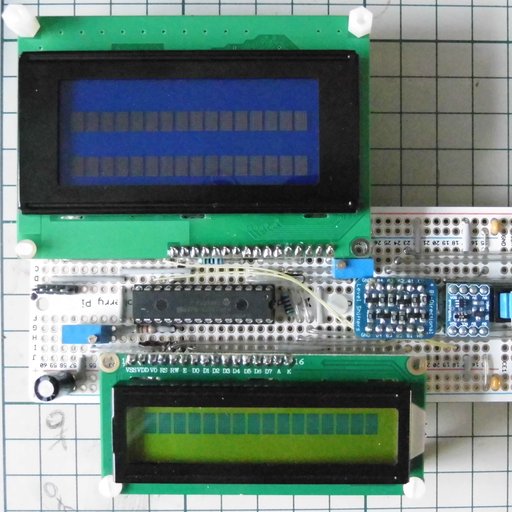

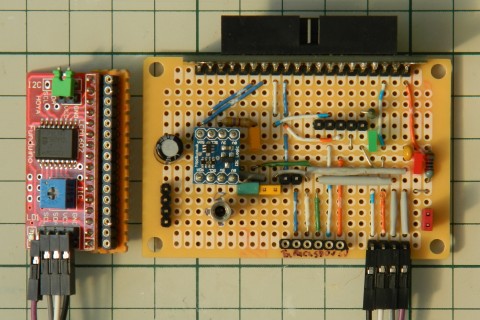

Using a level-shifted, 5V, I2C to 4-bit interface:9

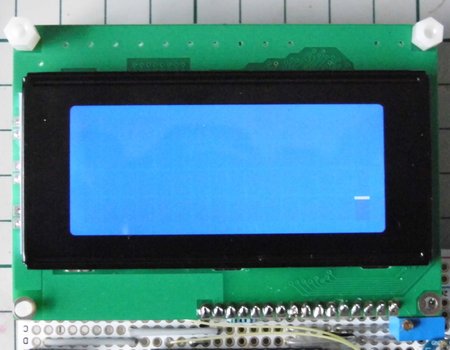

Uninitialised displays

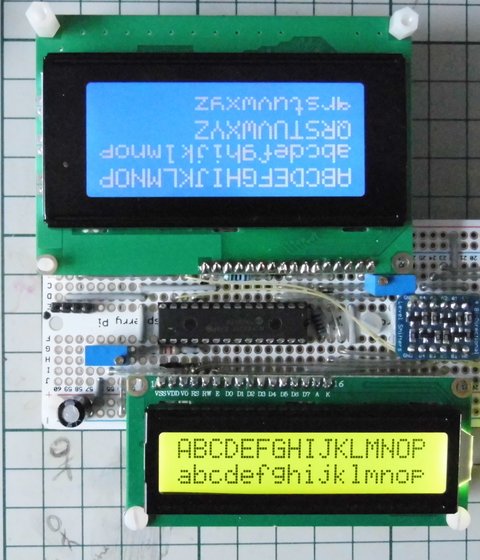

Both Displays Initialised Correctly

-WDT test option shows text "wrap-around" at column 17 (cf. 21 for a 2004 display)

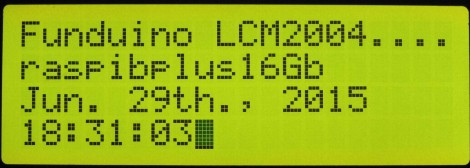

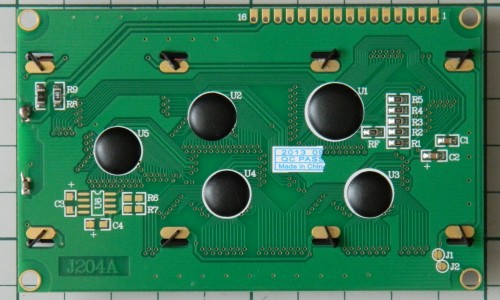

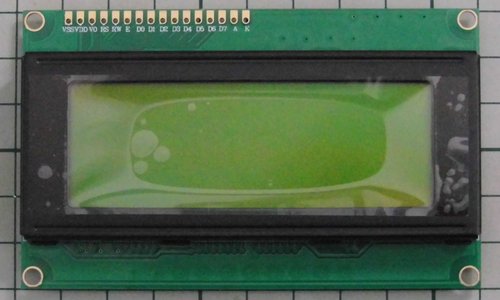

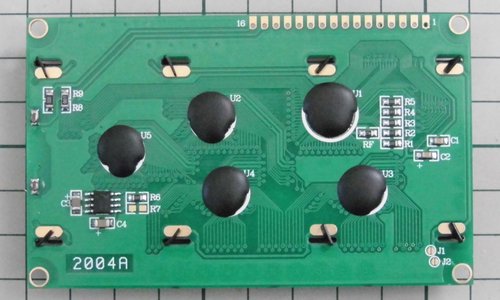

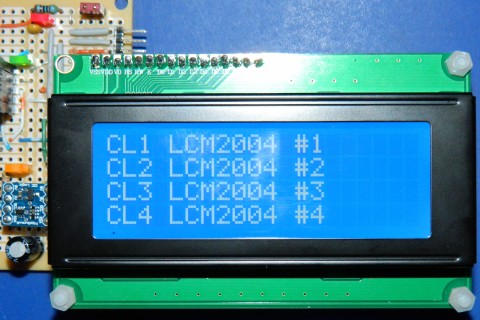

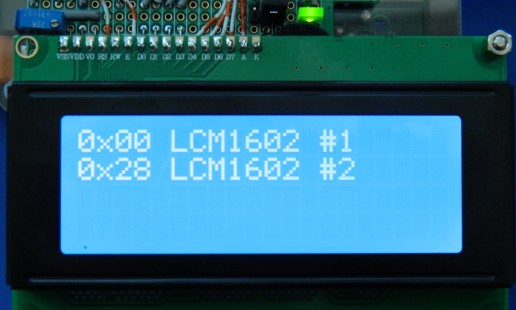

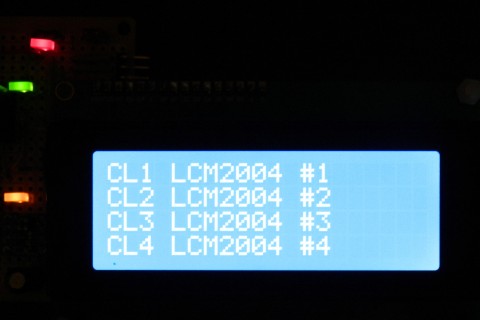

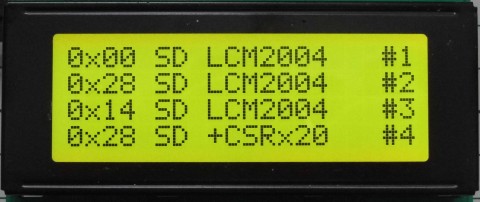

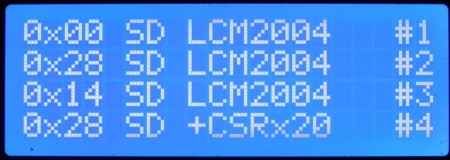

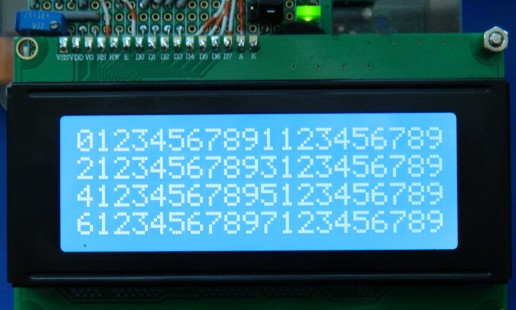

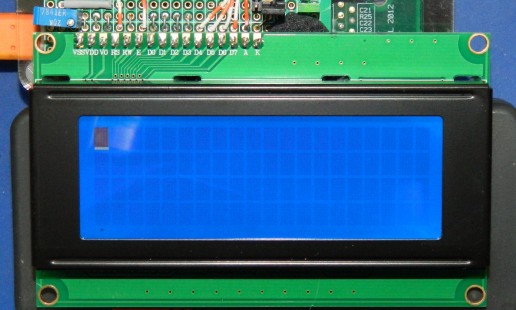

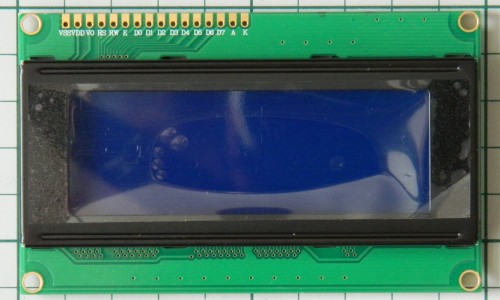

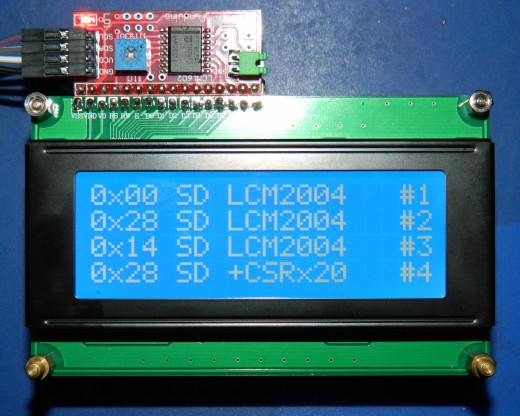

20x4 Character LCD (Blue Backlight)

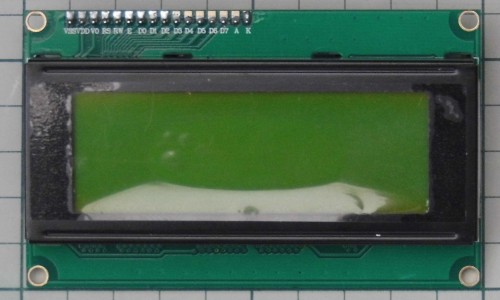

20x4 Character 3.3V LCD (Yellow Backlight)


NB:Extra components - Bottom Left

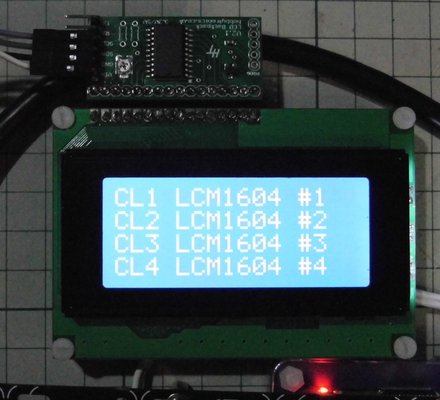

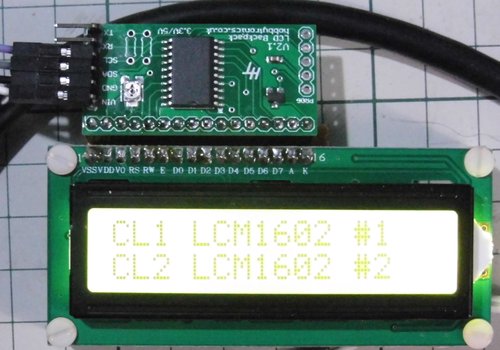

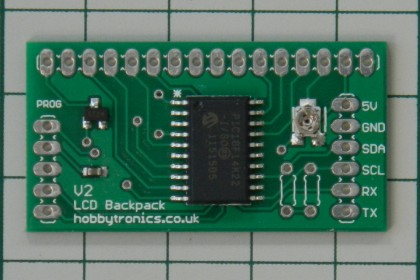

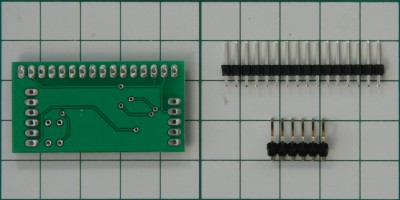

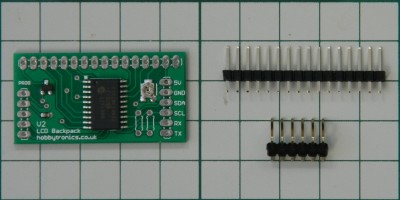

LCD Backpack V2

(I2CLCDBPV2, I2C and Serial Rx10)






An early demo. of a working Blue 16x2 LCD and Backpack is shown here



./src/lcd_hi2c_demo -WLT -X



./src/lcd_hi2c_demo -WDT -W -X 11



./src/lcd_hi2c_demo -2004 -WLT -X

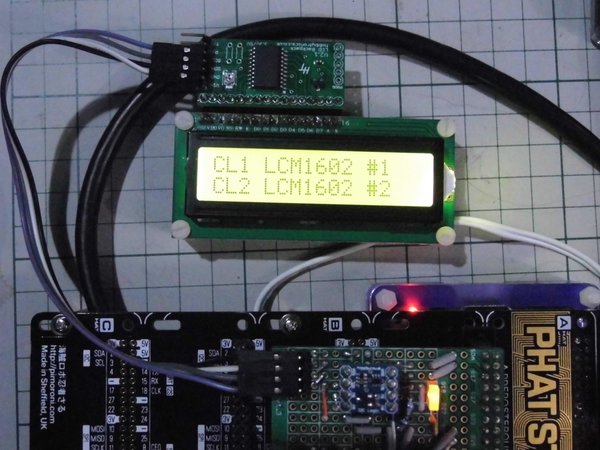

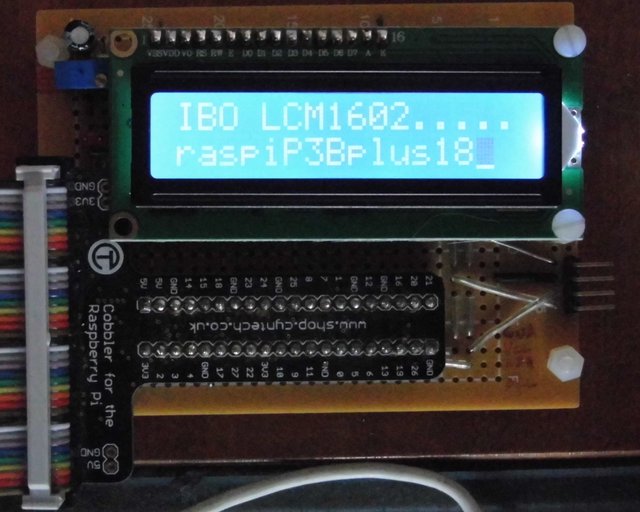

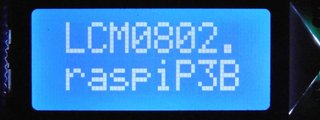

Further Tests with a new sample on a P3B+:

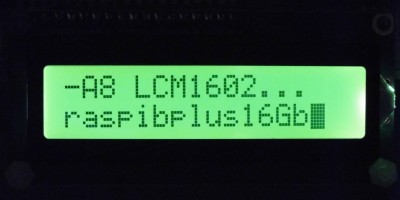

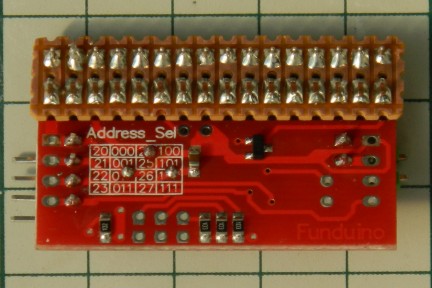

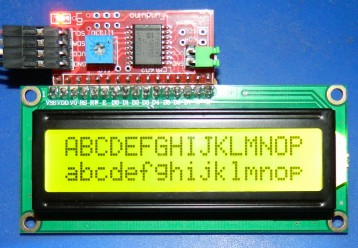

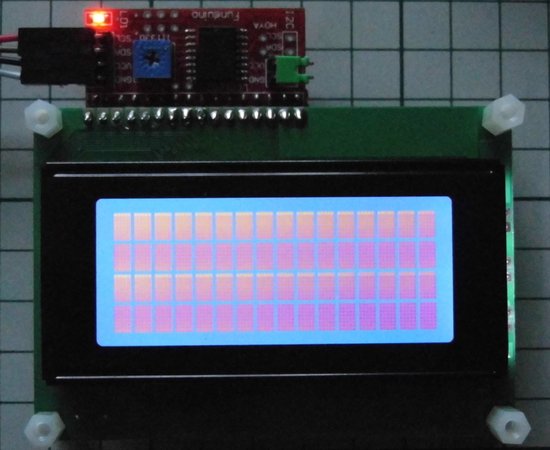

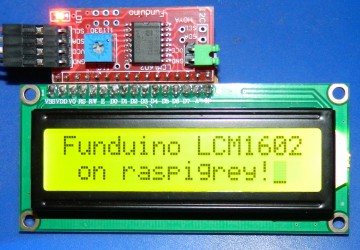

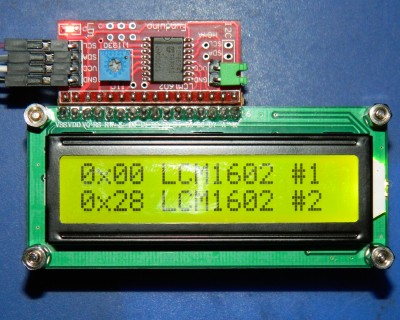

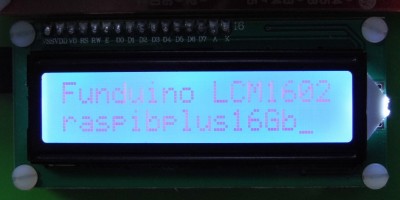

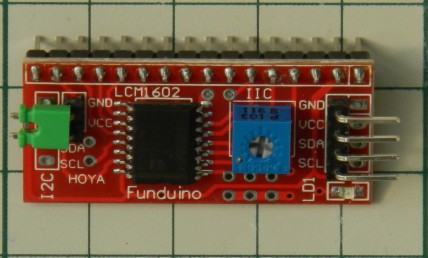

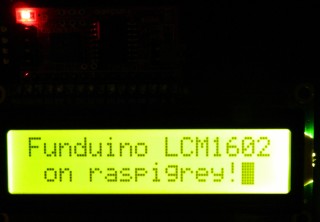

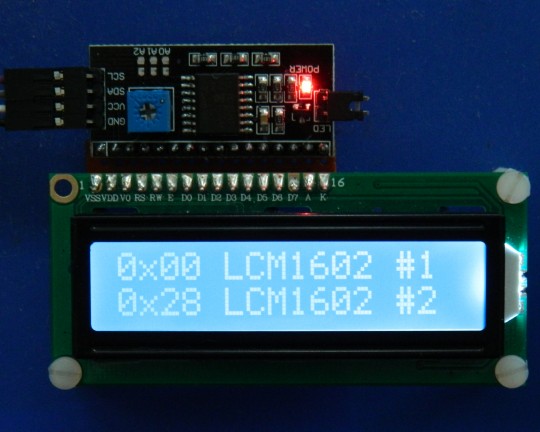

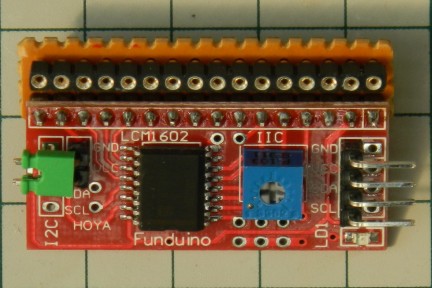

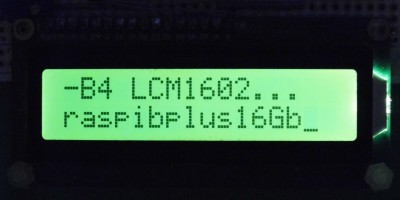

Funduino I2C LCD Backpack

(LCM1602 IIC I2C12 13)





PC8574T

LCD 1602

P0

RS

P1

RW

P2

E

P3

Backlight14

P4

D4

P5

D5

P6

D6

P7

D7

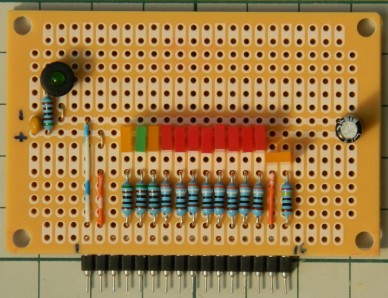

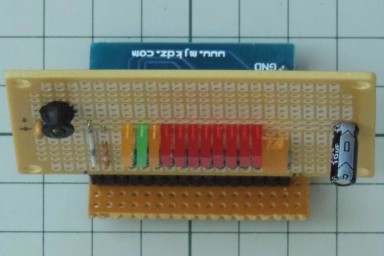

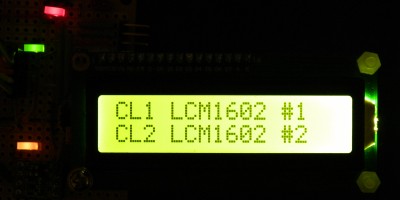

"Negative Logic" LED-based, Interface Test Board

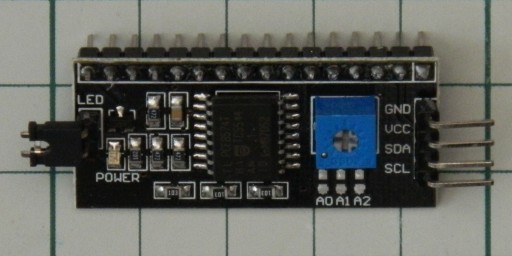

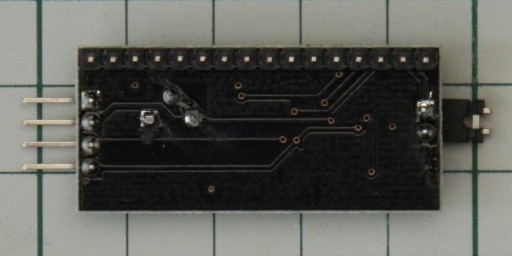

Generic (Black) I2C LCD Backpack

(Default I2C address 0x27)13)

PC8574T

LCD 1602

P0

RS

P1

RW

P2

E

P3

Backlight14

P4

D4

P5

D5

P6

D6

P7

D7

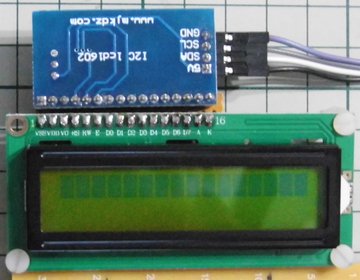

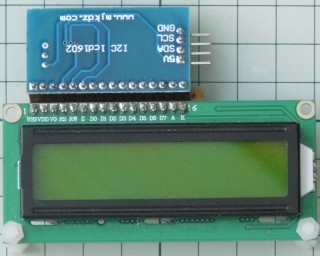

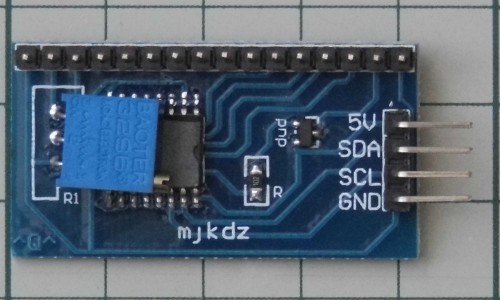

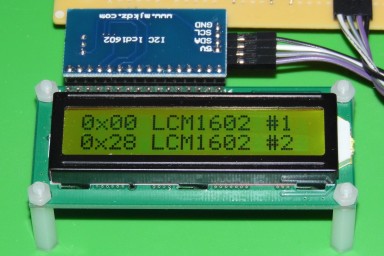

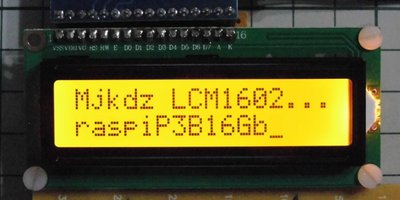

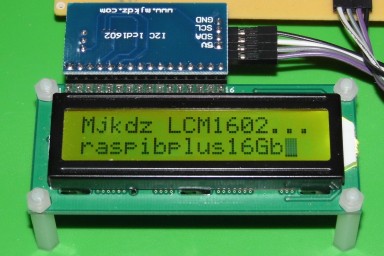

Mjkdz I2C LCD Backpack

(I2C lcd1602 module, fixed I2C address 0x20)13)

PC8574T

LCD 1602

P0

D4

P1

D5

P2

D6

P3

D7

P4

E

P5

RW

P6

RS

P7

Backlight15

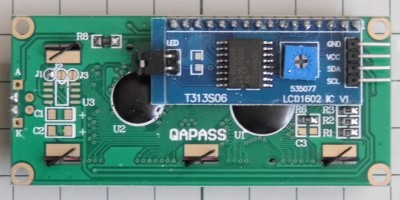

16x2 Character I2C LCD Display (Blue Backlight)

(T313S06 I2C module16 address 0x27)13)



On board PC8574T

Attached LCD 1602

P0

RS

P1

RW

P2

E

P3

Backlight17

P4

D4

P5

D5

P6

D6

P7

D7

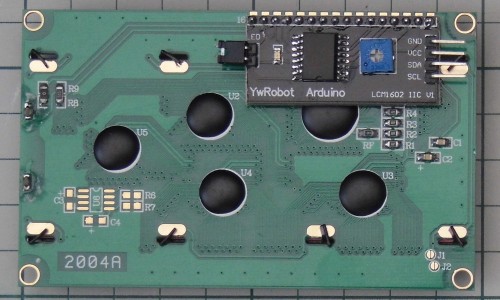

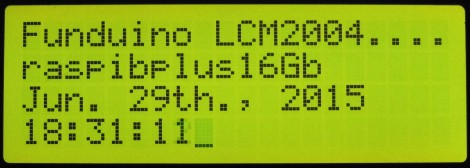

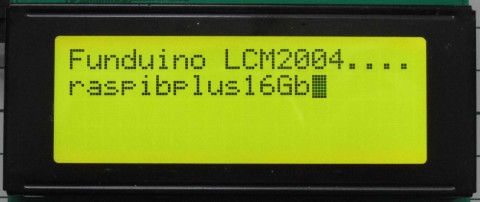

20x4 Character I2C LCD Display (Yellow Backlight)

(YwRobot I2C module18 address 0x27)13)



On board PC8574T

Attached LCD 2004A

P0

RS

P1

RW

P2

E

P3

Backlight17

P4

D4

P5

D5

P6

D6

P7

D7

Unitialised Display

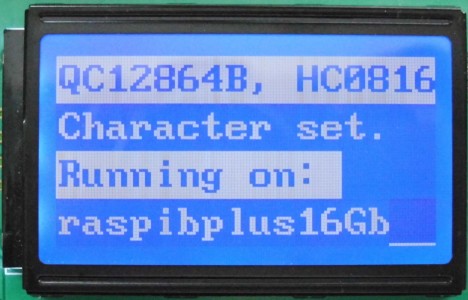

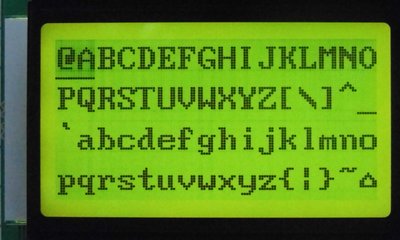

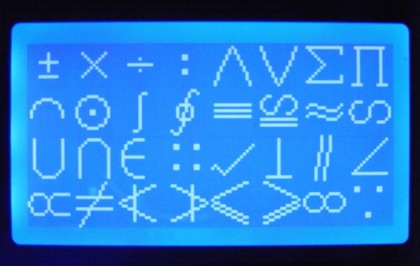

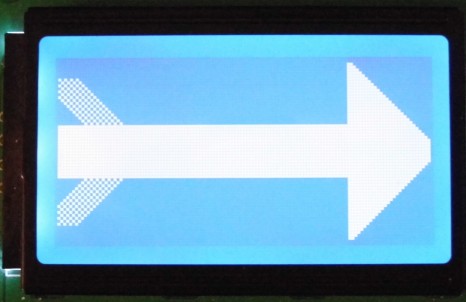

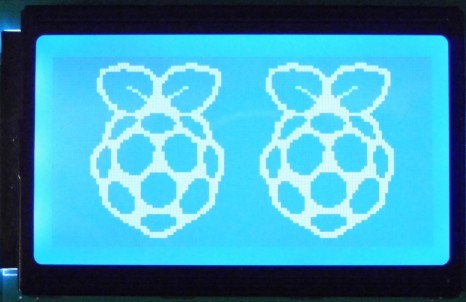

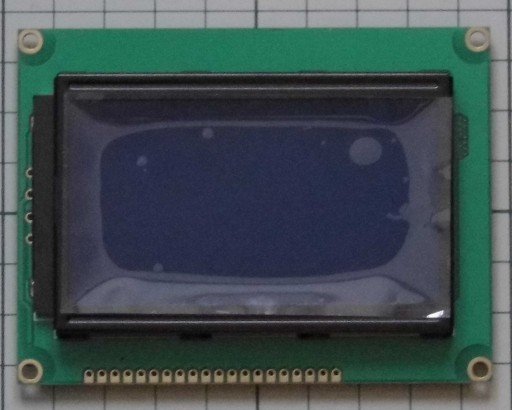

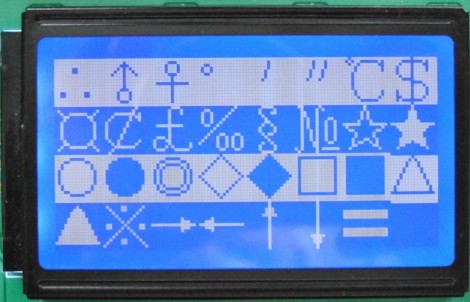

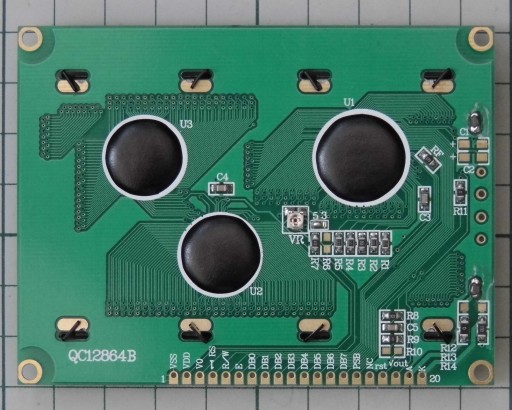

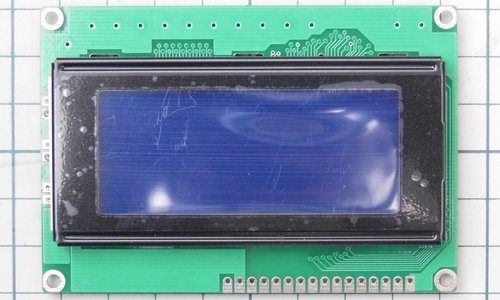

Generic 128x64 Pixels Graphic LCD (QC12864B/ST7920, Blue Backlight)

(With Serial/Parallel interface19)

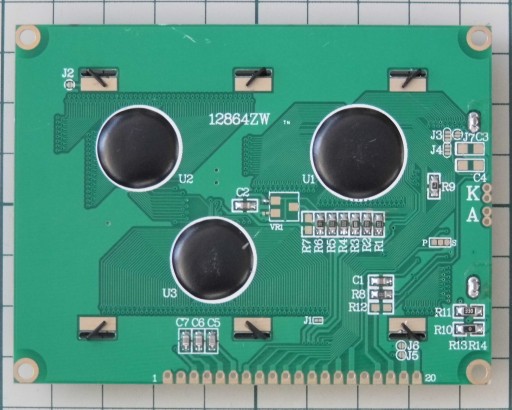

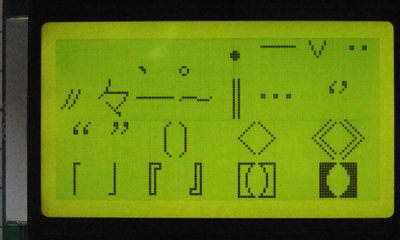

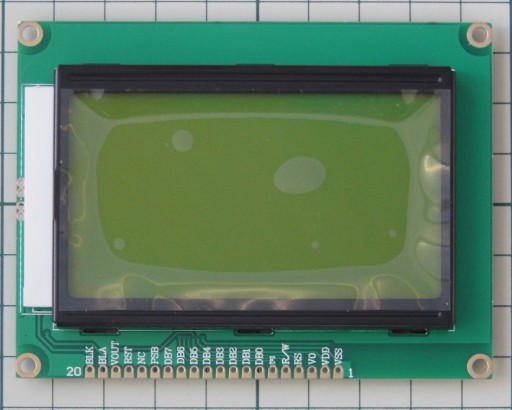

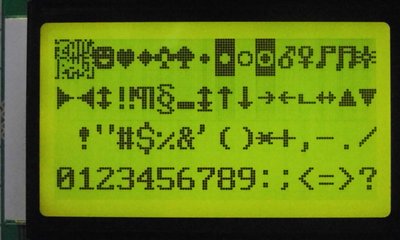

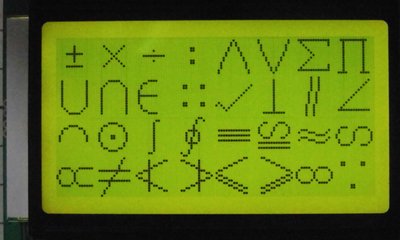

Generic 128x64 Pixels Graphic LCD (12864ZW/ST7920, Yellow Backlight)

(With Serial/Parallel interface20)

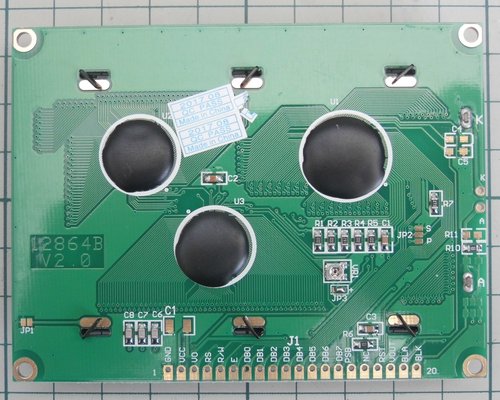

Generic 128x64 Pixels Graphic LCD (12864BV2.0/ST7920, Blue Backlight)

(With Serial/Parallel interface21)

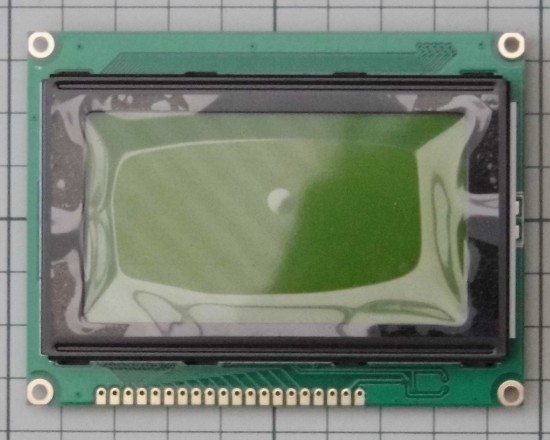

Generic 128x64 Pixels Graphic LCD (LCM12864C-1/KS0108B, Yellow Backlight)

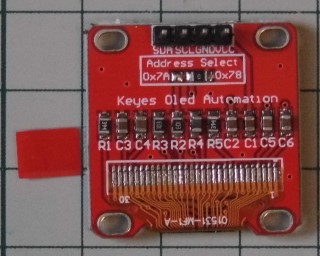

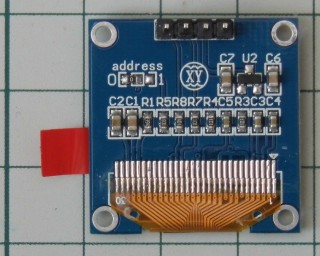

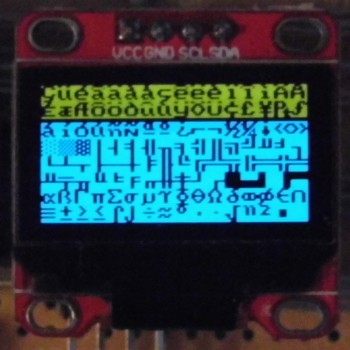

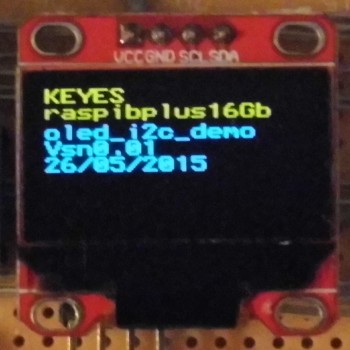

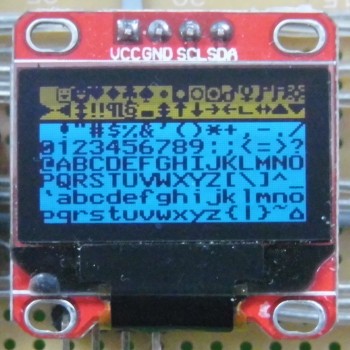

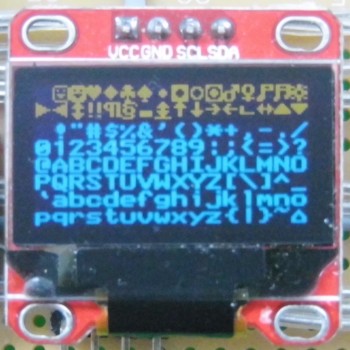

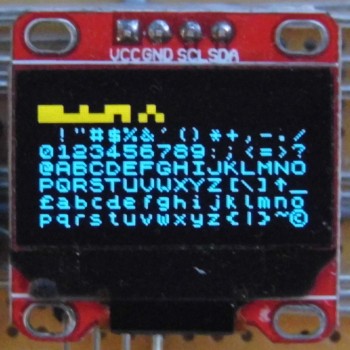

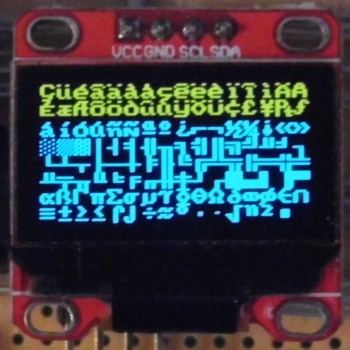

GAOHOU 0.96" 128x64 Pixels I2C OLED Display (SSD1306)

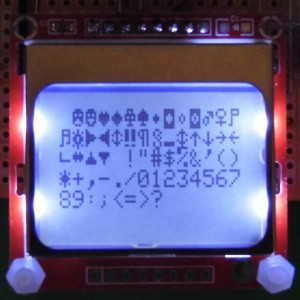

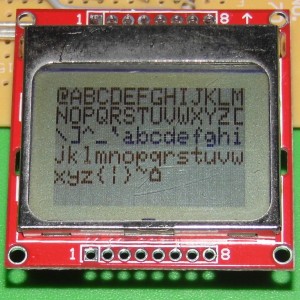

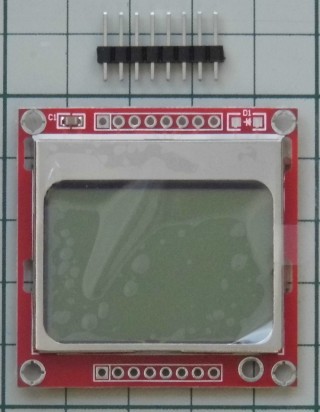

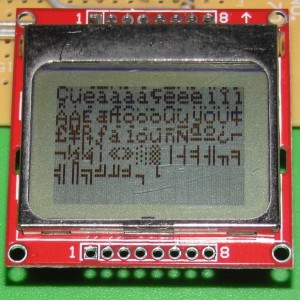

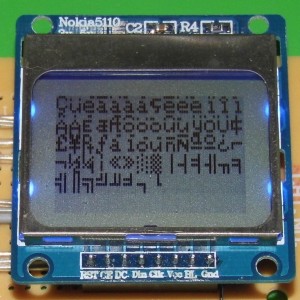

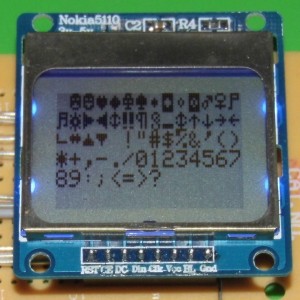

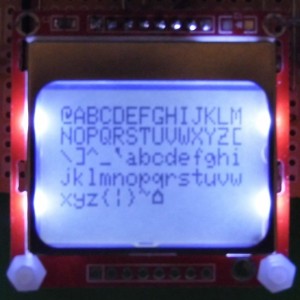

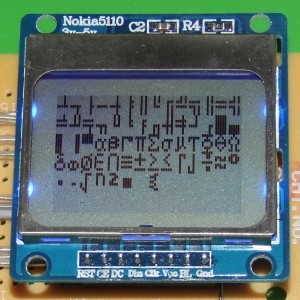

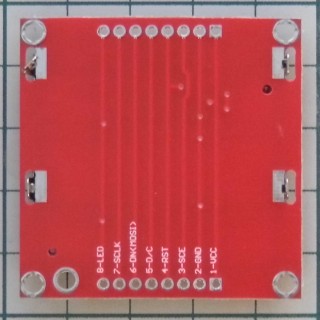

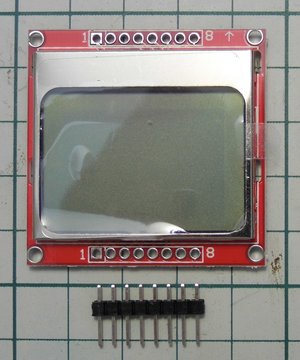

Nokia 5110 84x48 Pixels Graphic LCD

NB: Backlight is "Common Cathode".22







Generic, 84x48 Pixels Graphic LCD with White Backlight

NB: Backlight is "Common Anode".23







Generic, 84x48 Pixels Graphic LCD with White Backlight, Version 2

NB: Backlight is "Common Cathode".22







Generic, 84x48 Pixels Graphic LCD with White Backlight (June 2017)

NB: Backlight is "Common Anode".23

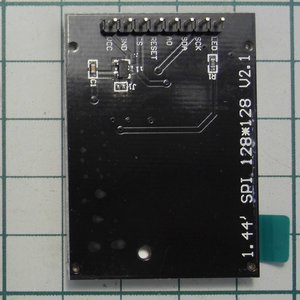

CNBTR SPI 128x128 1.44 inch Red Serial LCD Display Module

NB: Backlight is "Common Anode".23




SPI 128x160 Pixels Graphic TFT Module





  1. 4-bit // interface (1)

  2. 8-bit // interface (2)

  3. http://hobbycomponents.com/index.php/modu/modu-displays/1602-parallel-lcd-module-yellow-backlight.html (3)

  4. http://www.amazon.co.uk/gp/product/B00K67CMY4?psc=1&redirect=true&ref_=oh_aui_detailpage_o09_s00 (4)

  5. https://www.amazon.co.uk/gp/product/B06Y4KJPNR/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1 (5)

  6. Cyntech Cobbler for B+/A+ Pi's (6 7 8)

  7. https://www.amazon.co.uk/gp/product/B00KM6YOLS/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1 (9)

  8. Subsequently cured with revised 'E' strobe timings (10)

  9. Adafruit RasPi PermaProto Full #3, I2C to 4-bit or 8-bit Parallel LCD Interface (11)

  10. http://www.hobbytronics.co.uk/lcd/i2clcd-backpack-v2 (12)

  11. Display scrolls left as the characters "Q - Z" and "q - z" are entered, finally returning to the start (13)

  12. Default I2C address 0x27 (14)

  13. 4-bit Data Interface (15 16 17 18 19)

  14. via a transistor & external link (20 21)

  15. via a PNP transistor (22)

  16. T313S06 LCD1602 IIC V1 (23)

  17. via external link (24 25)

  18. YwRobot Arduino LCM1602 IIC V1 (26)

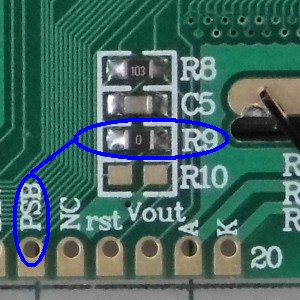

  19. "Hard-wired" in Parallel mode: P1000517csa.JPG (27)

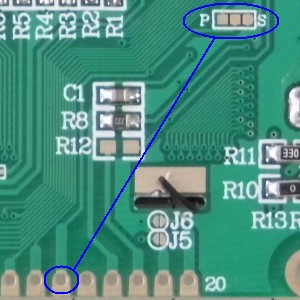

  20. Externally Selectable: P1010096cssa.jpg (28)

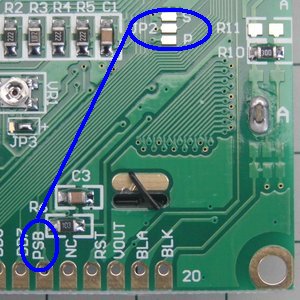

  21. Externally Selectable: P1050399rcsa.jpg (29)

  22. Connected to "Gnd" (30 31)

  23. Connected to "Vcc" (32 33 34)
