VGA and KVM Switches

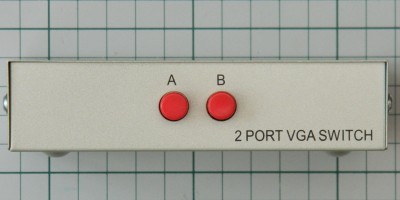

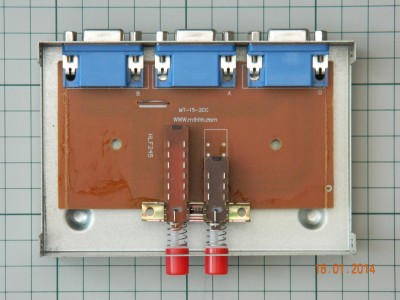

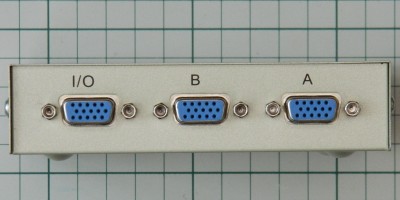

Basic VGA Switch

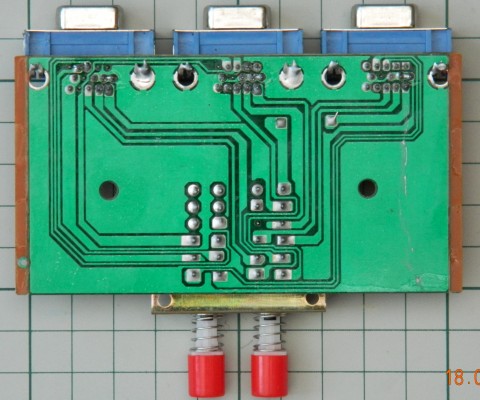

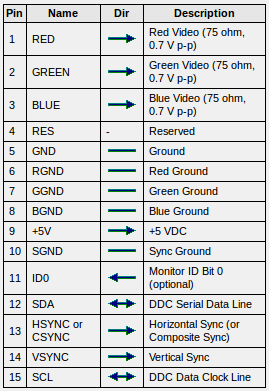

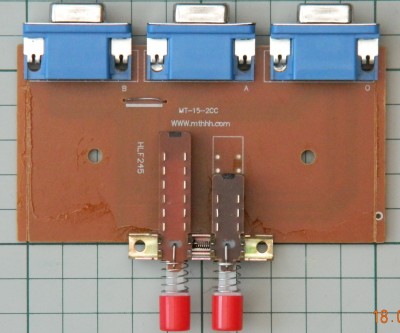

NB. Only ten pins are in use:
1,2,3,5,6,7,8,10,13,14
IE. DDC data is not available

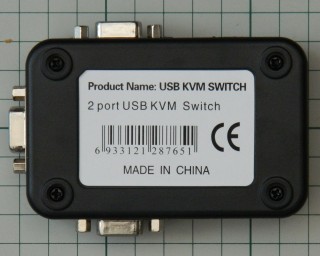

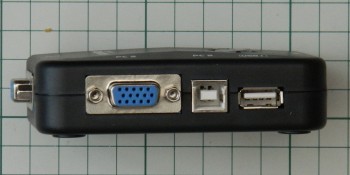

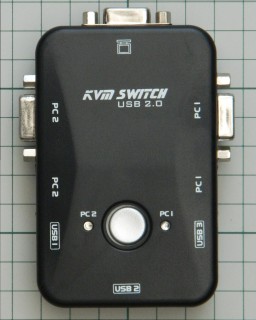

2-port USB KVM Switch

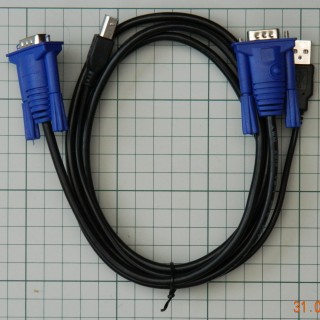

NB. Two of these cables supplied
