CUPS Printing within Raspbian Wheezy

(Starting with 2012-10-28-wheezy-raspbian.img and as performed upon raspired.)

First update and upgrade Wheezy via apt-get:



pi@raspired ~ $sudo apt-get update

pi@raspired ~ $apt-get update

...

...

pi@raspired ~ $sudo apt-get upgrade

pi@raspired ~ $apt-get upgrade

(This will take a few minutes)

At this point it's probably worth rebooting to ensure all upgrades are in force.

Although all the CUPS packages etc. can be installed via apt-get or aptitude, it's much easier to do so via aptitude's "GUI" equivalent synaptic, hence install that next:



pi@raspired ~ $sudo apt-get install synaptic

pi@raspired ~ $apt-get install synaptic

Now you should be able to find SynPackMan.png in the preferences menu.

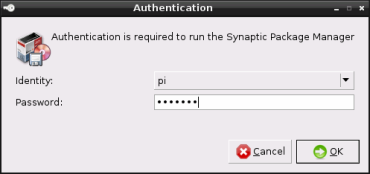

On running this you should see the following prompt:

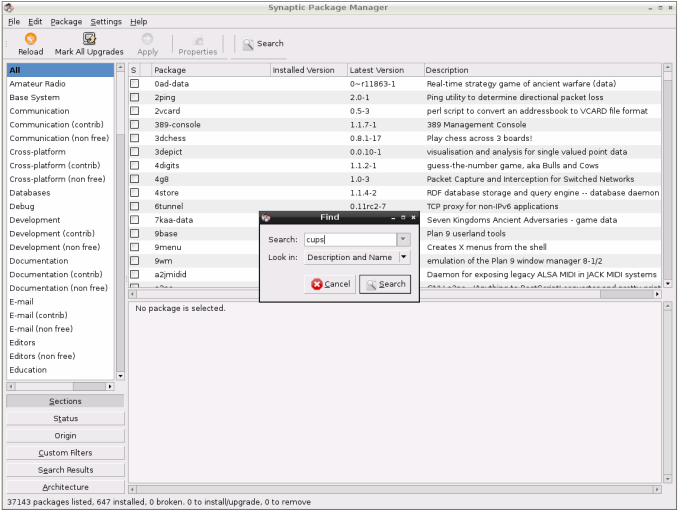

Your normal user (pi) password is required. Now use synaptics' Search function to find CUPS associated packages:


Mark the cups package and accept the additional changes ...

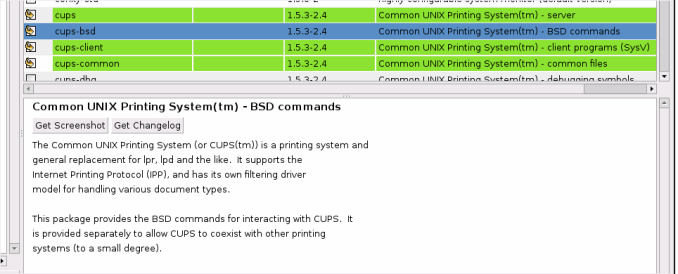

You may also wish to add the cups-bsd package ...

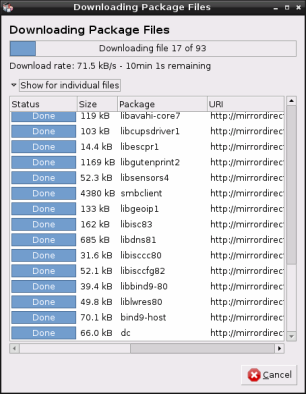

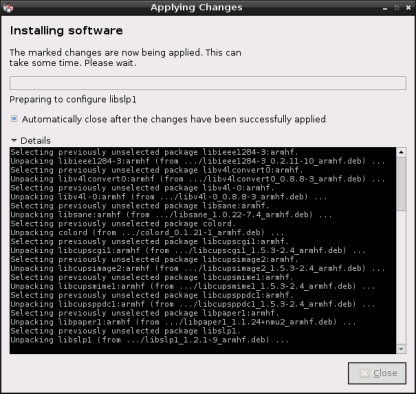

Downloading and package installation will take some time, so take a coffee break? ...

raspired_ss05s.png raspired_ss06s.png

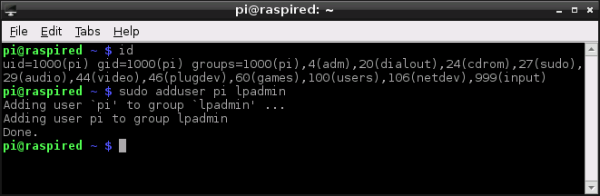

Add printer user(s) (pi) to the lpadmin group ...

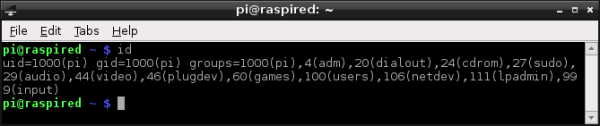

... and reboot for this to take effect ...

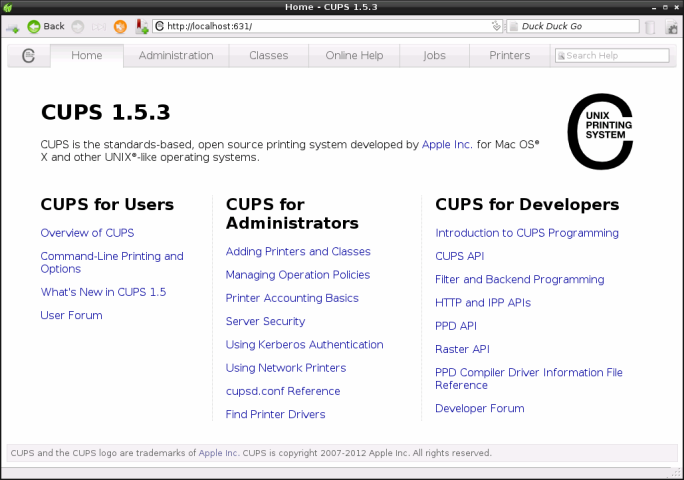

In principle, it should be possible to add or configure printers via the CUPS webtool ...

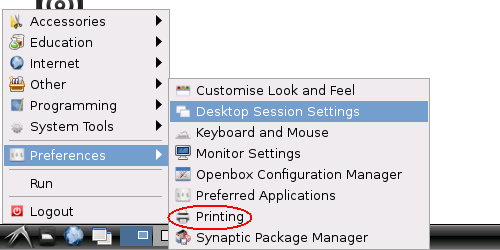

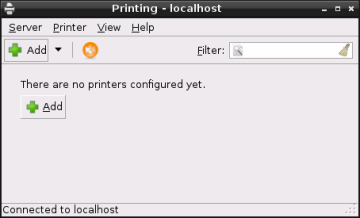

but printer (auto-)detection is easier if you also install the system-config-printer utilities ...

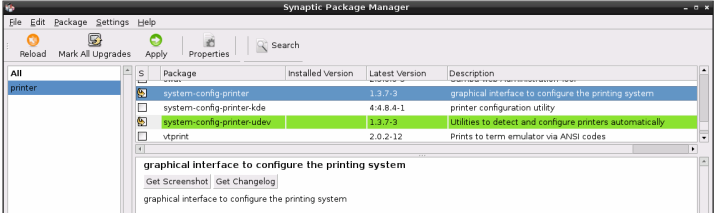

so use synaptics' Search function again to find "printer" associated packages, and then install those utilities:

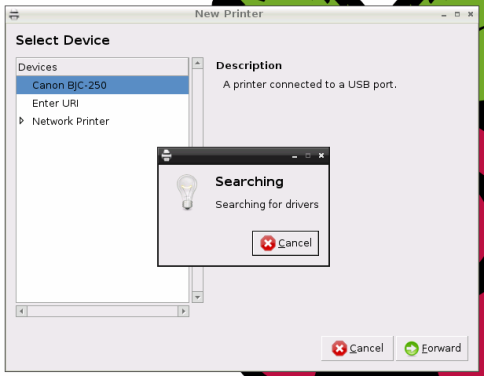

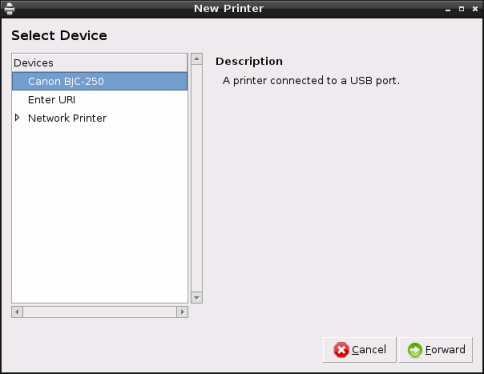

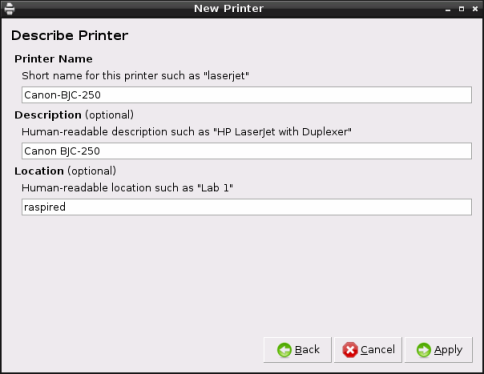

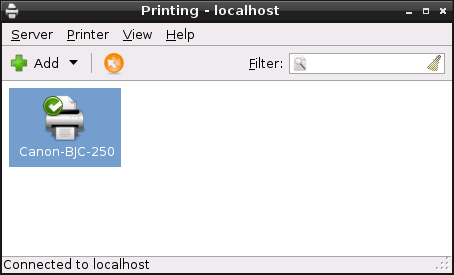

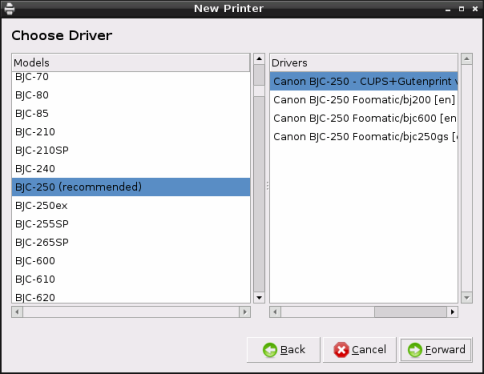

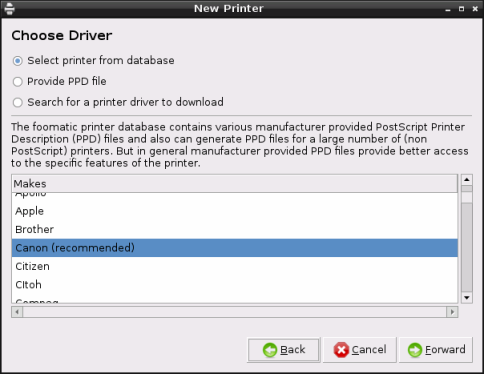

Printer detection and configuration will require entry of the user (pi) password several times ...

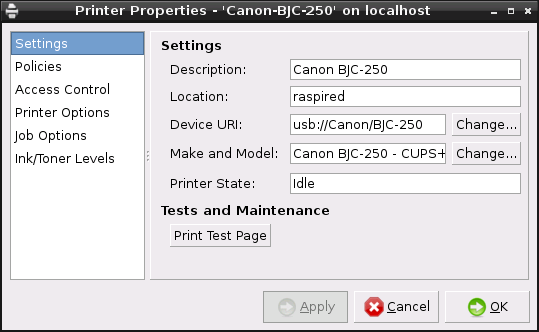

Finally, open the printer properties dialog to print a test page or adjust printer specific options etc.

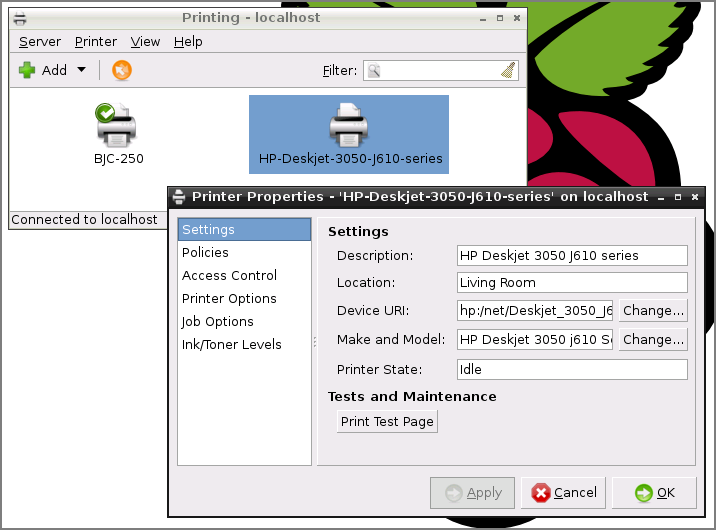

Whilst the above illustrates the configuration of a directly connected (USB/Parallel port) printer, CUPS also supports networked printers as shown below from raspiblue's setup: PrintingLocalHost2f.png
