Using/Installing a Seitec USB BAR

Home
---> Linux Mandrake
Linux		 --->

Larger Picture of Device

Add/Change the following lines (or equivalent) into /etc/fstab:
#/dev/sda4        /mnt/zip100.0  vfat    noauto,user,conv=binary,uid=505,gid=505,umask=007 0 0
/dev/sda1        /mnt/usbbar    vfat    noauto,user,conv=binary,uid=505,gid=505,umask=007 0 0
/dev/sdb4        /mnt/zip100.0  vfat    noauto,user,conv=binary,uid=505,gid=505,umask=007 0 0
(NB: The flash disk is usually, but not always, detected before the zip drive)

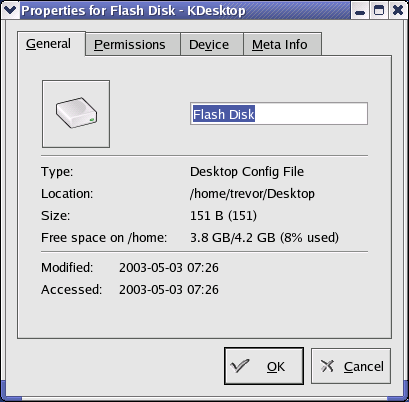

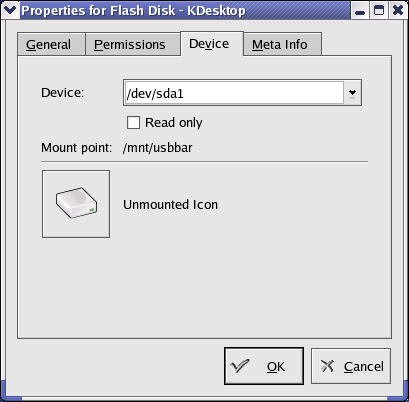

Create a KDE desktop icon/link with the following options:

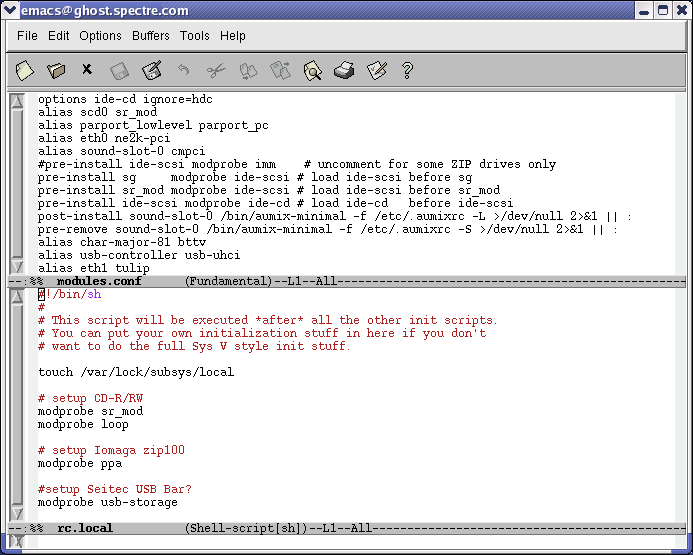

Change /etc/modules.conf and /etc/rc.d/rc.local to read something like that below:
(/etc/modules.conf also includes additions for CDR/RW usage)
/etc/modules.conf & rc.local

Information displayed by KDE:

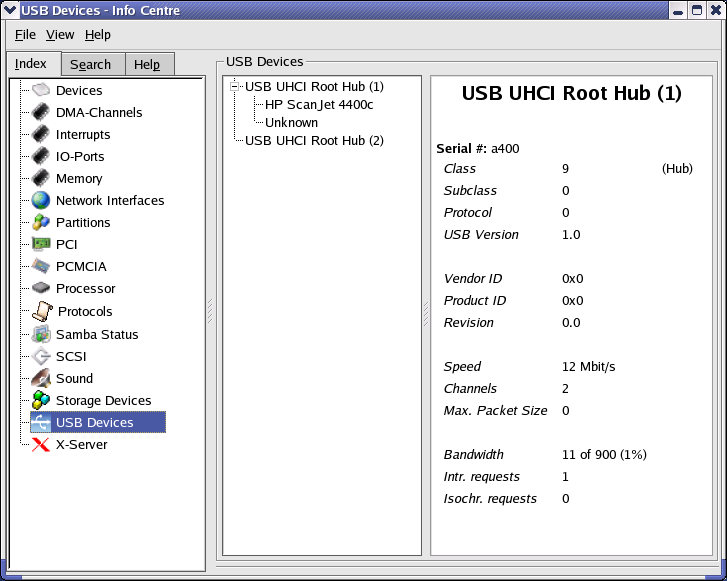

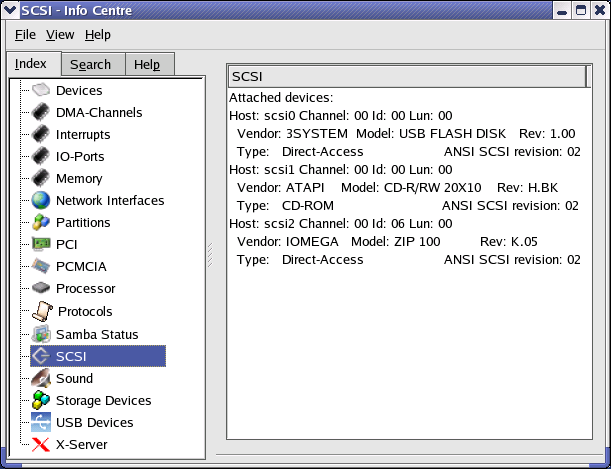

USB Info SCSI Info

Trevor-Tux Prepared by F.T. Gowen - Last modified: 13th. May, 2003
