Raspberry PiOS "Bookworm", Wayland and VNC "Pi to Pi"


Wayland Disabled on the P5 (Or Bookworm on a Pi with <1GB of memory)

RealVNC server and viewer behave as for "Bullseye" etc.

Normal mode

(Auto-)Logged In

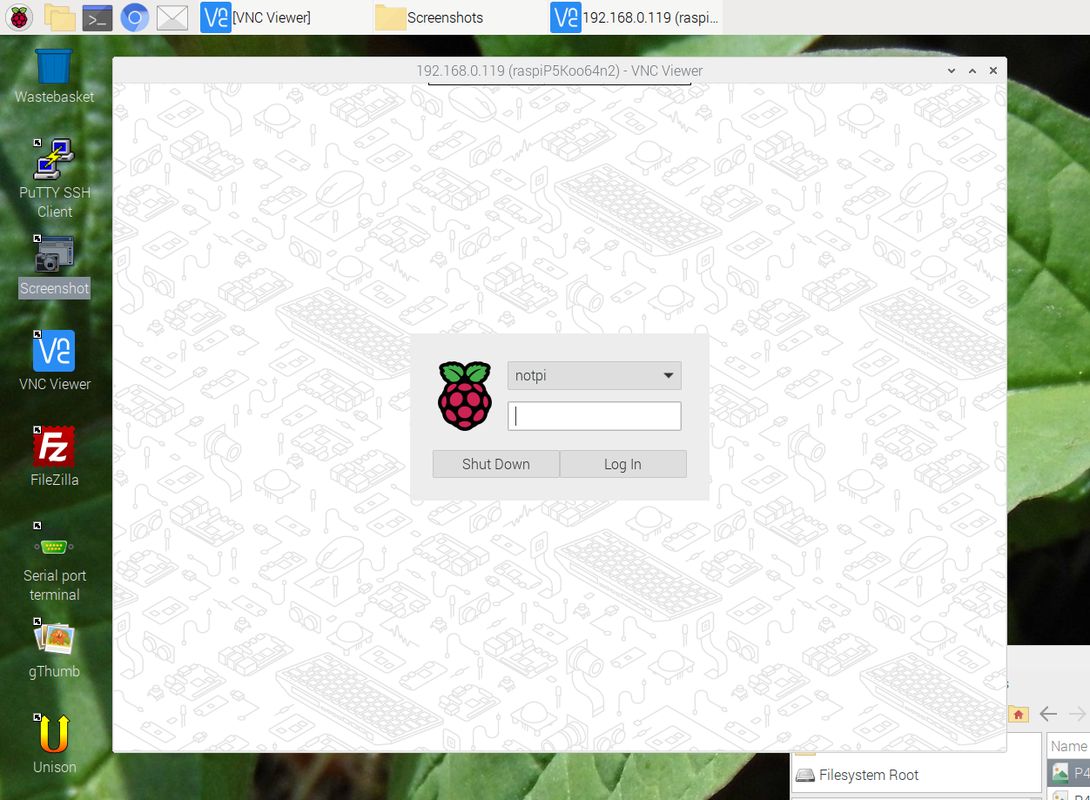

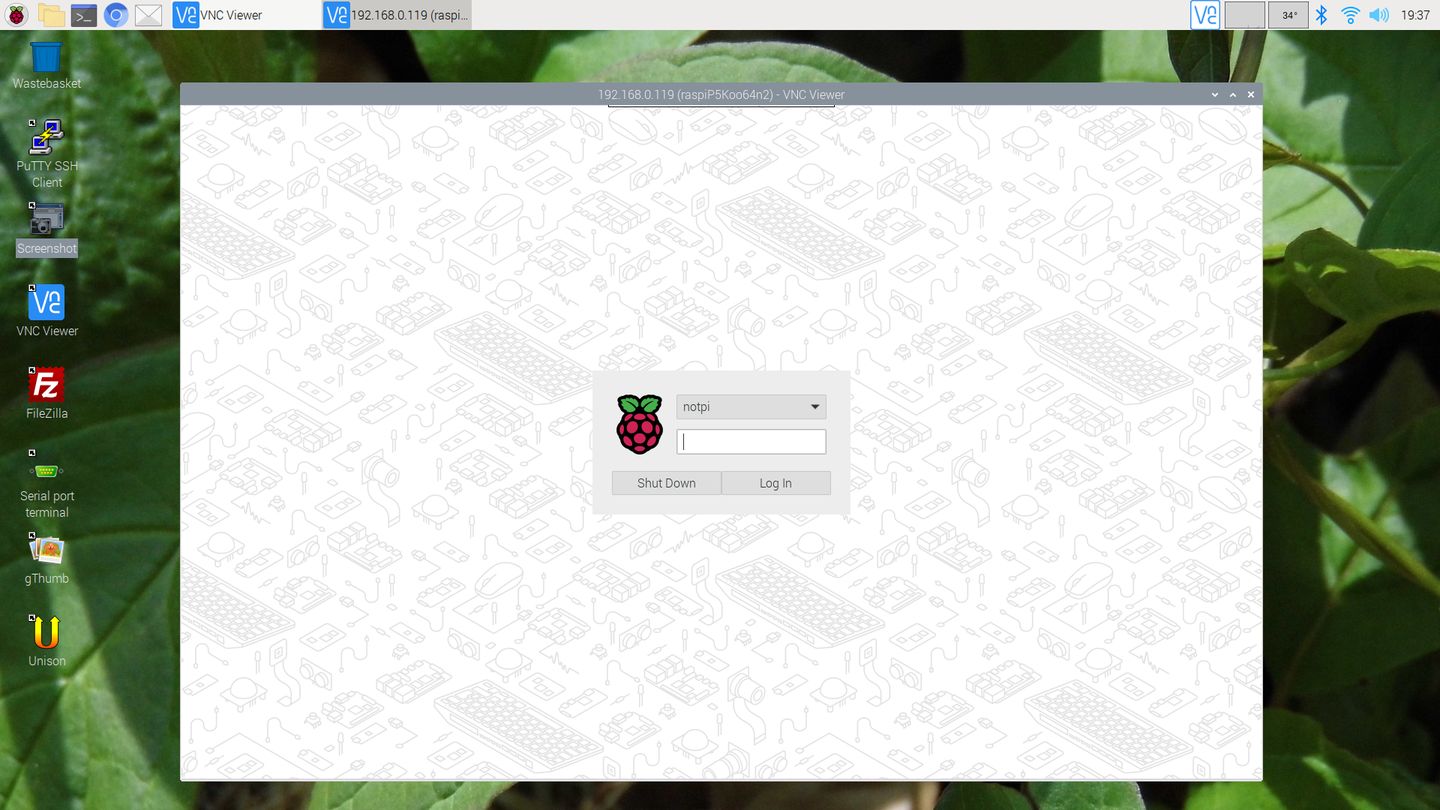

Login Screen (Display connected)

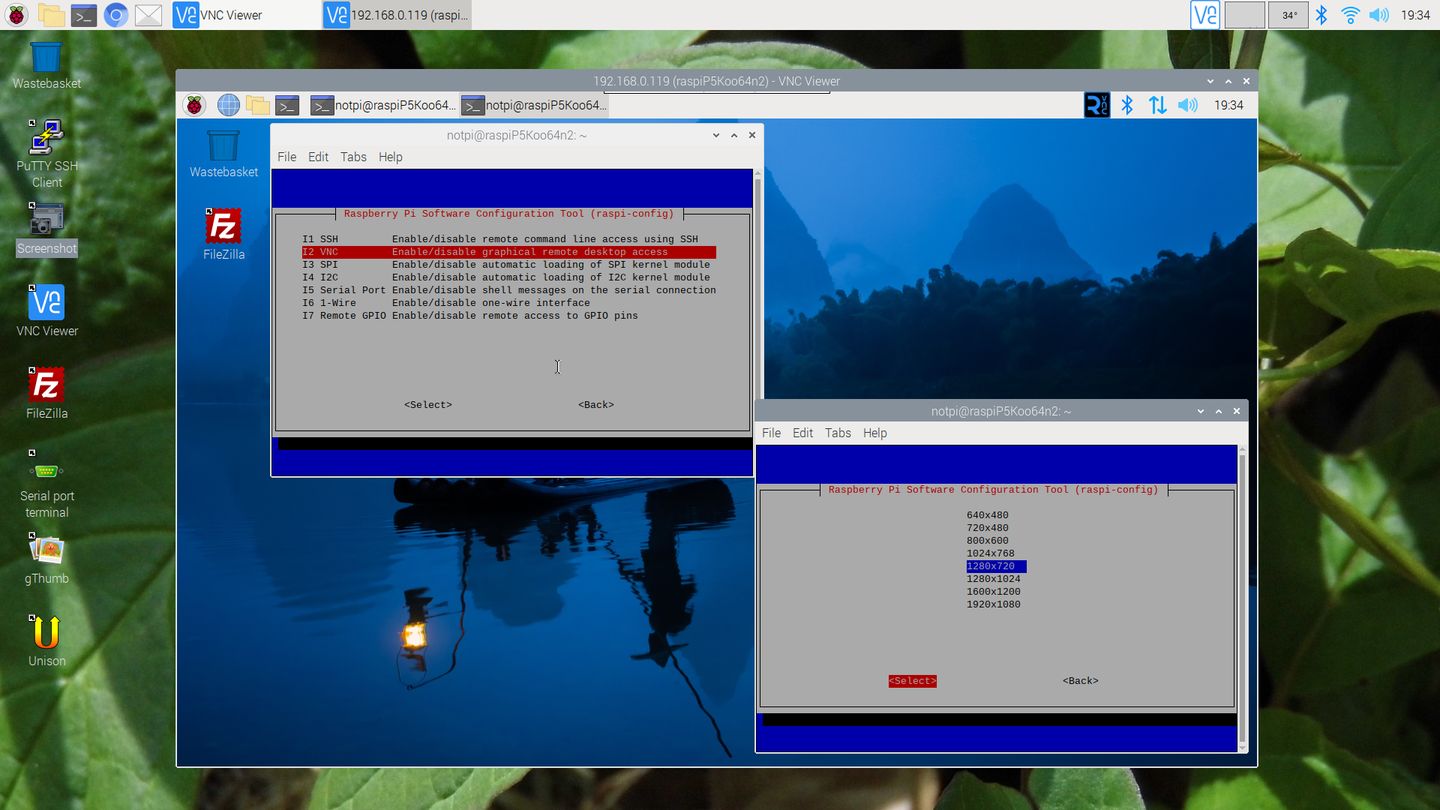

Login Screen (No Display connected - "Headless" )

Logged In - "Headless"

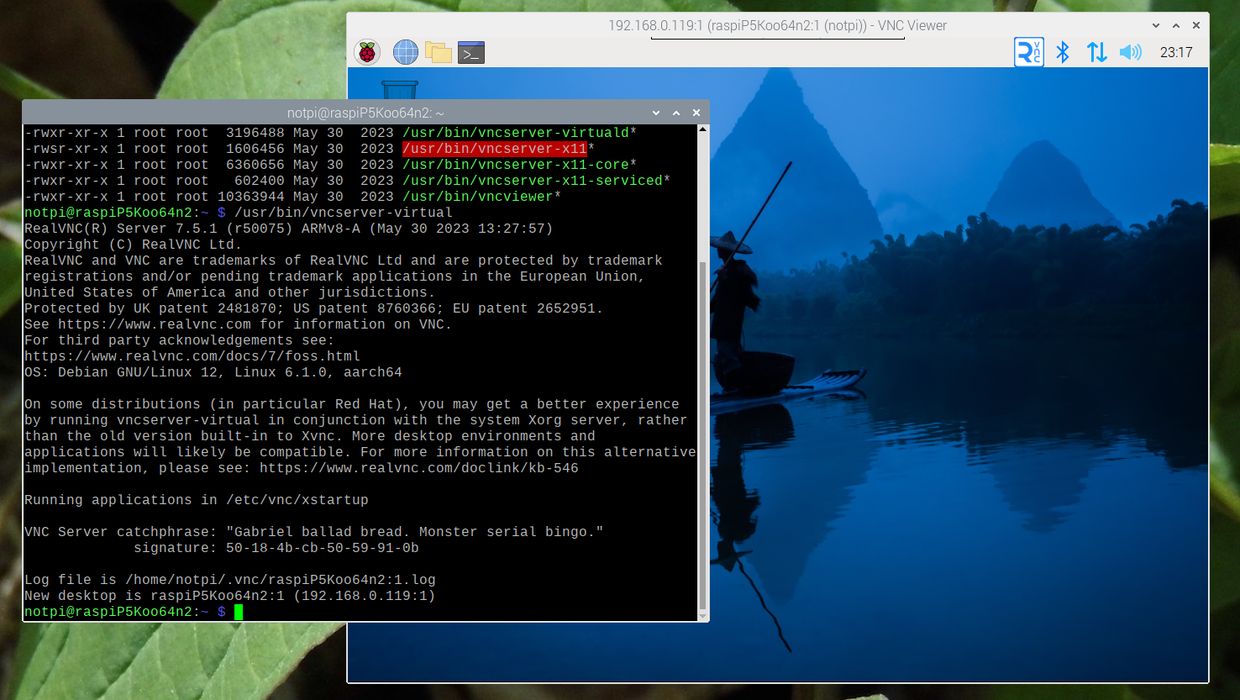

Virtual mode (started via a SSH connection)

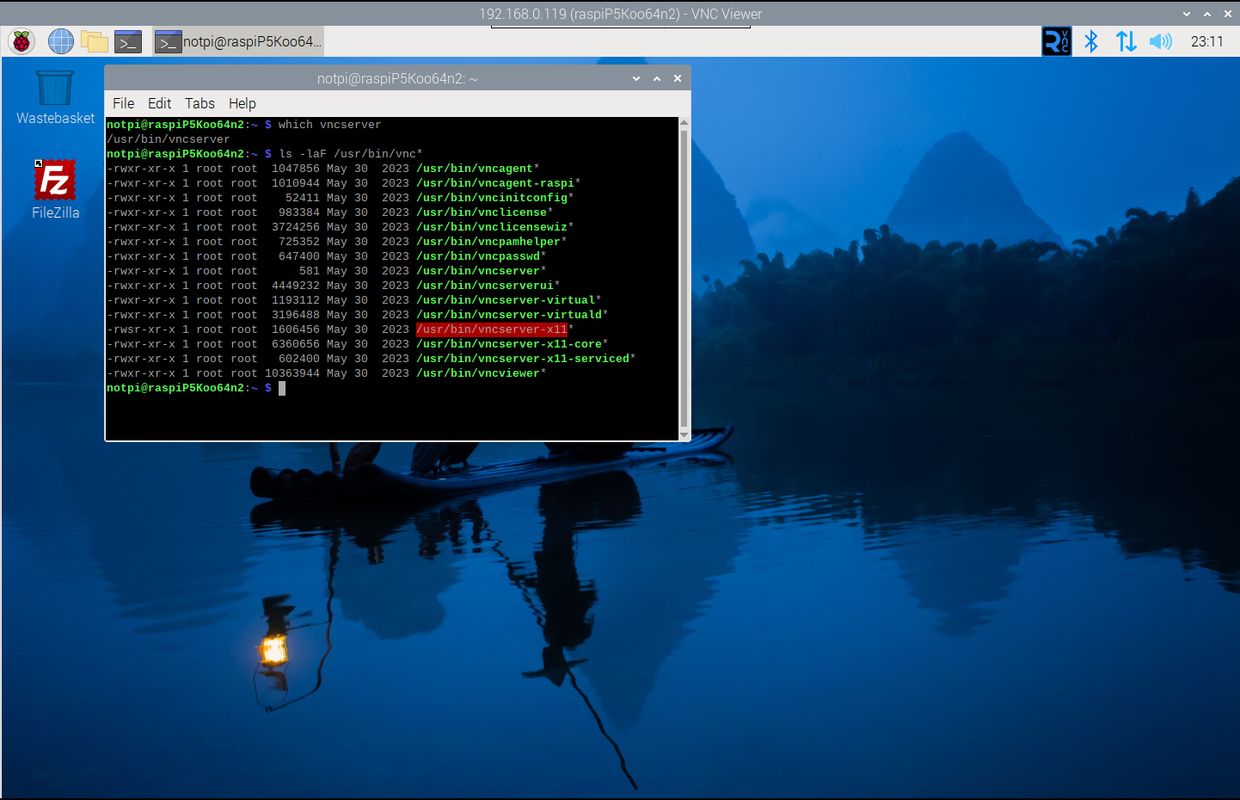

Initial Normal Connection to check virtual server name
Virtual Mode, Display Connected

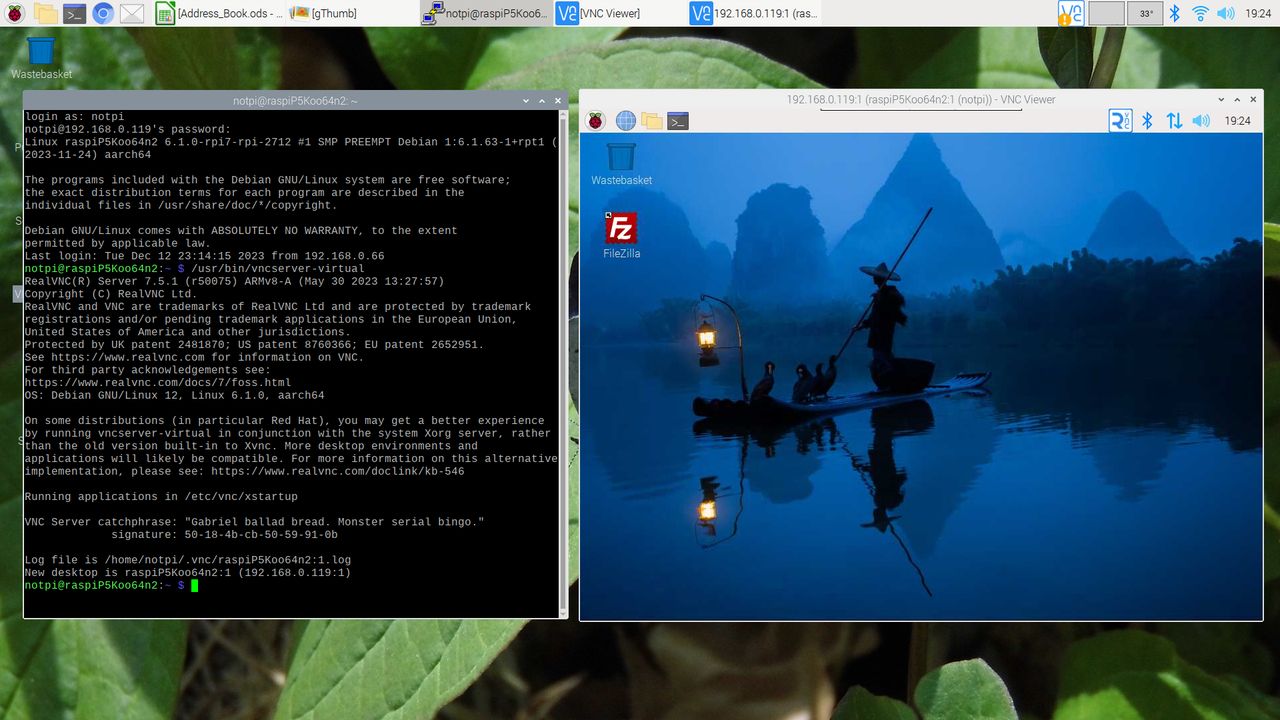

Virtual Mode, No Display Connected

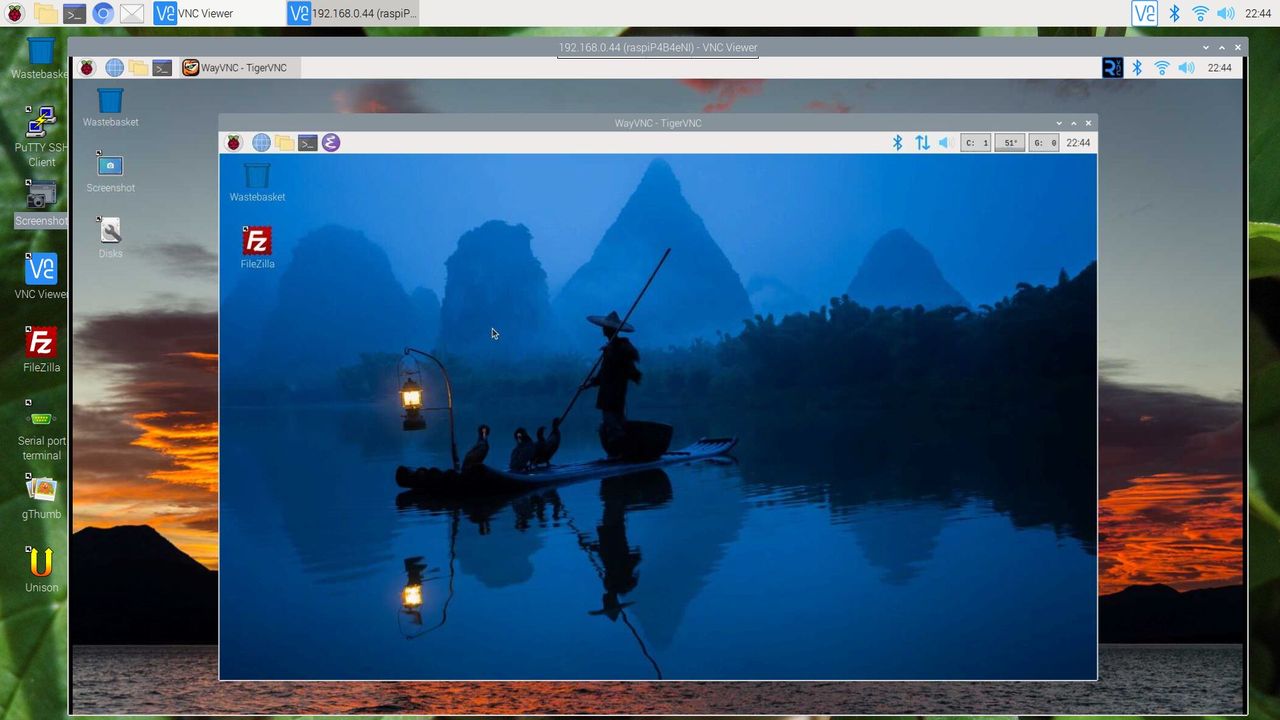

Wayland Enabled on the P5

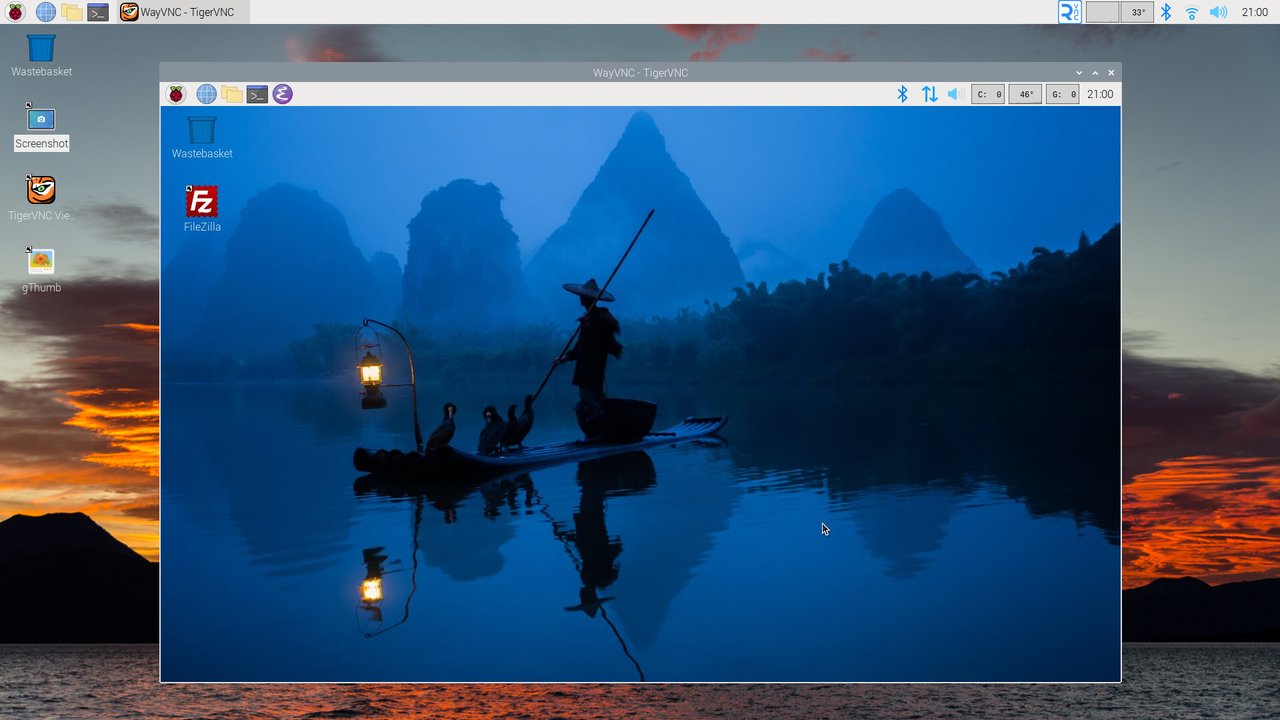

TigerVNC Viewer needed ("Bookworm" or "Bullseye" apt installed Versions, Buster version "too old/incompatible")

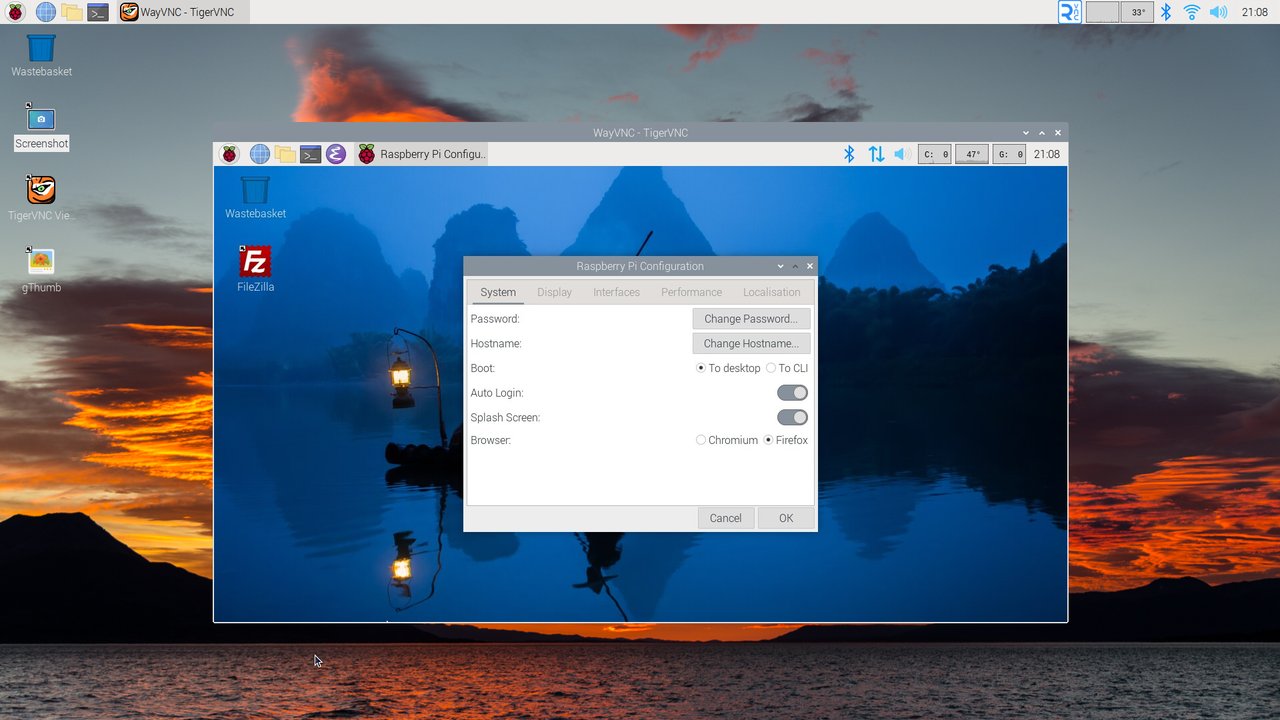

Auto-login needed for "Headless Resolution" to be activated ie. No Login Screen

However the RealVNC Viewer will still work under "Bookworm" when connecting to a Pi running "Buster", "Bullseye" or "Bookworm" w/o Wayland active.

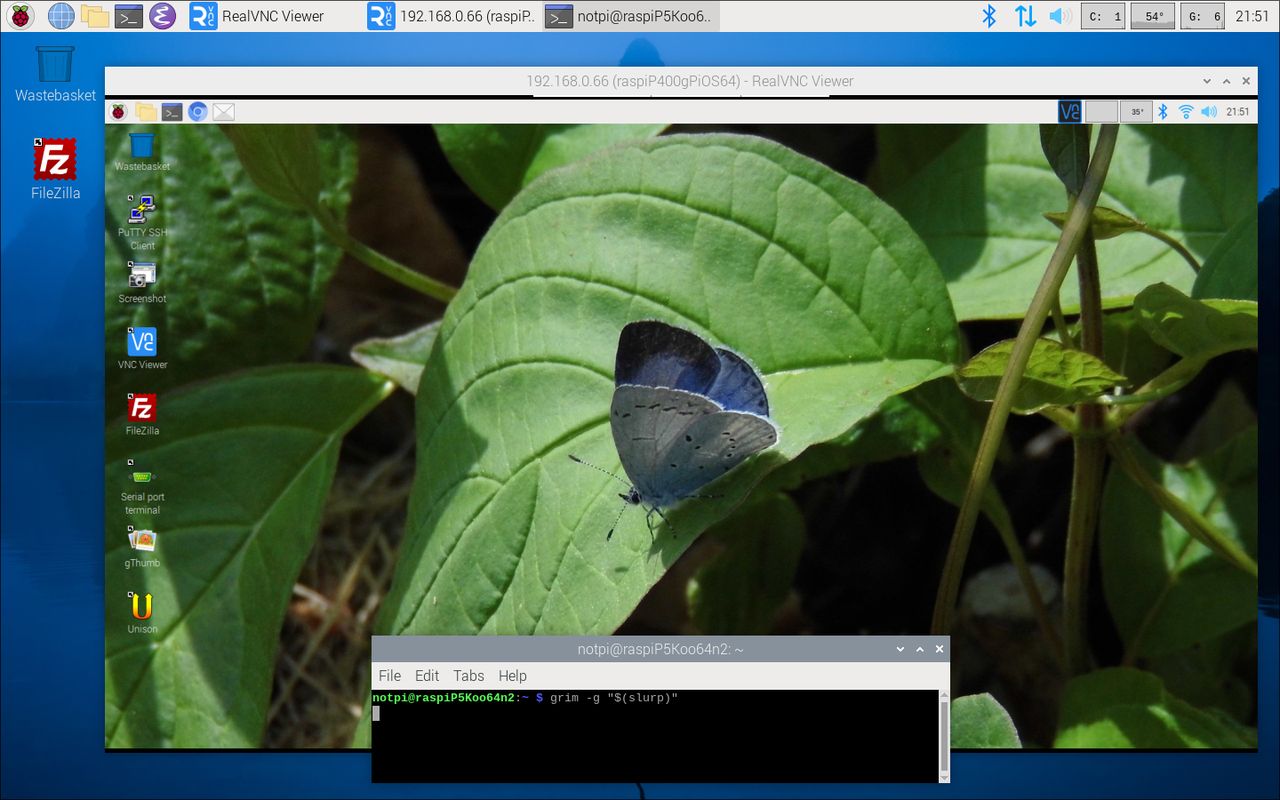

P5 Bookworm/Wayland & RealVNC Viewer to P400 Buster/X

A "Chain of three" Pi's - P400 (Buster) - P4B (Bullseye) - P5 (Bookworm)


A Second "Chain of three" Pi's - P400 (Buster) - P4B (Bookworm) - P5 (Bookworm)

This time connected to different inputs of the Bush TV used as the display. HDMI1, HDMI2 and PC(VGA) via the Raspberry Pi Micro-HDMI to VGA cable.

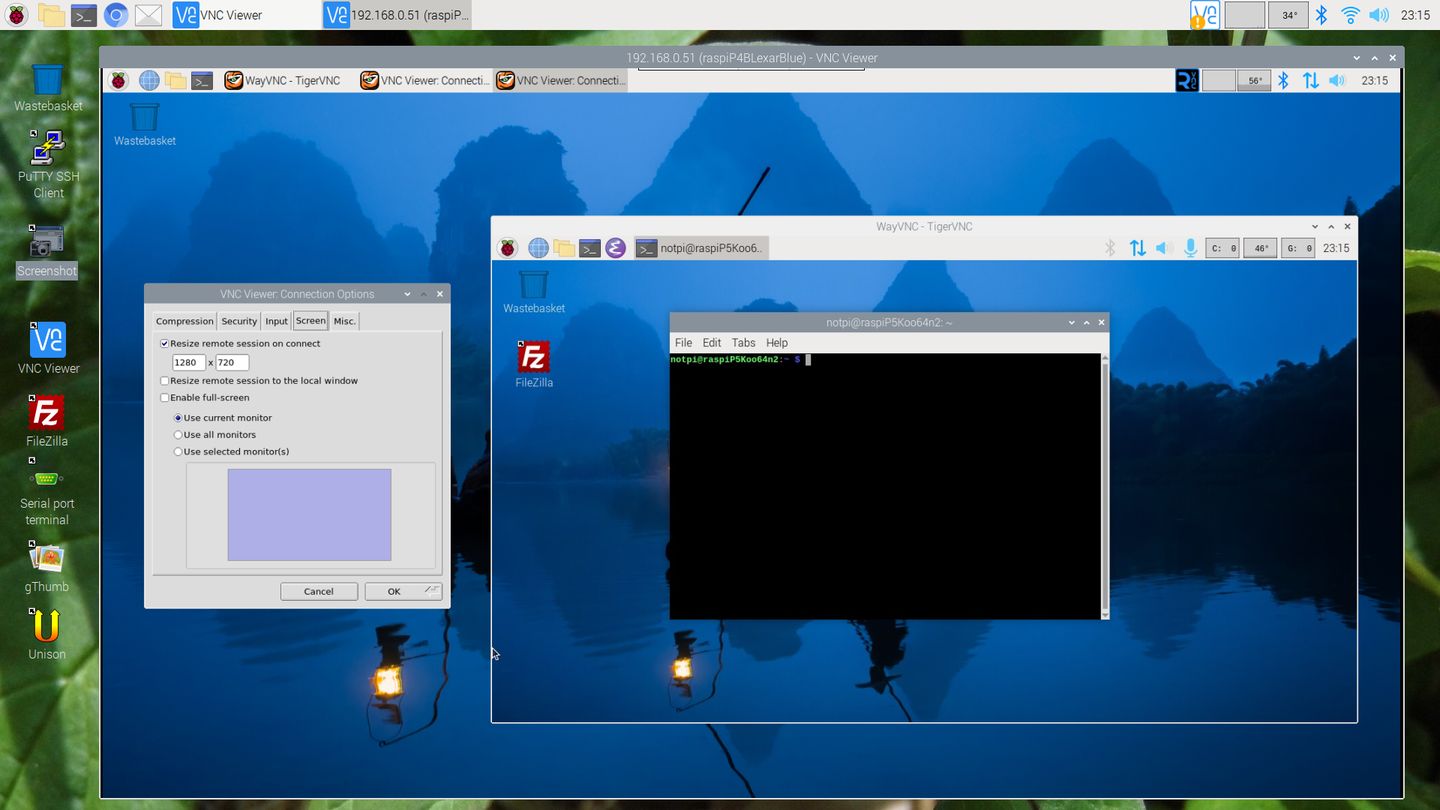

Screenshot from 2024-02-01 23-15-54s.jpg

See also this uHDMI-to-VGA page: A quick test of a micro-HDMI to VGA adapter

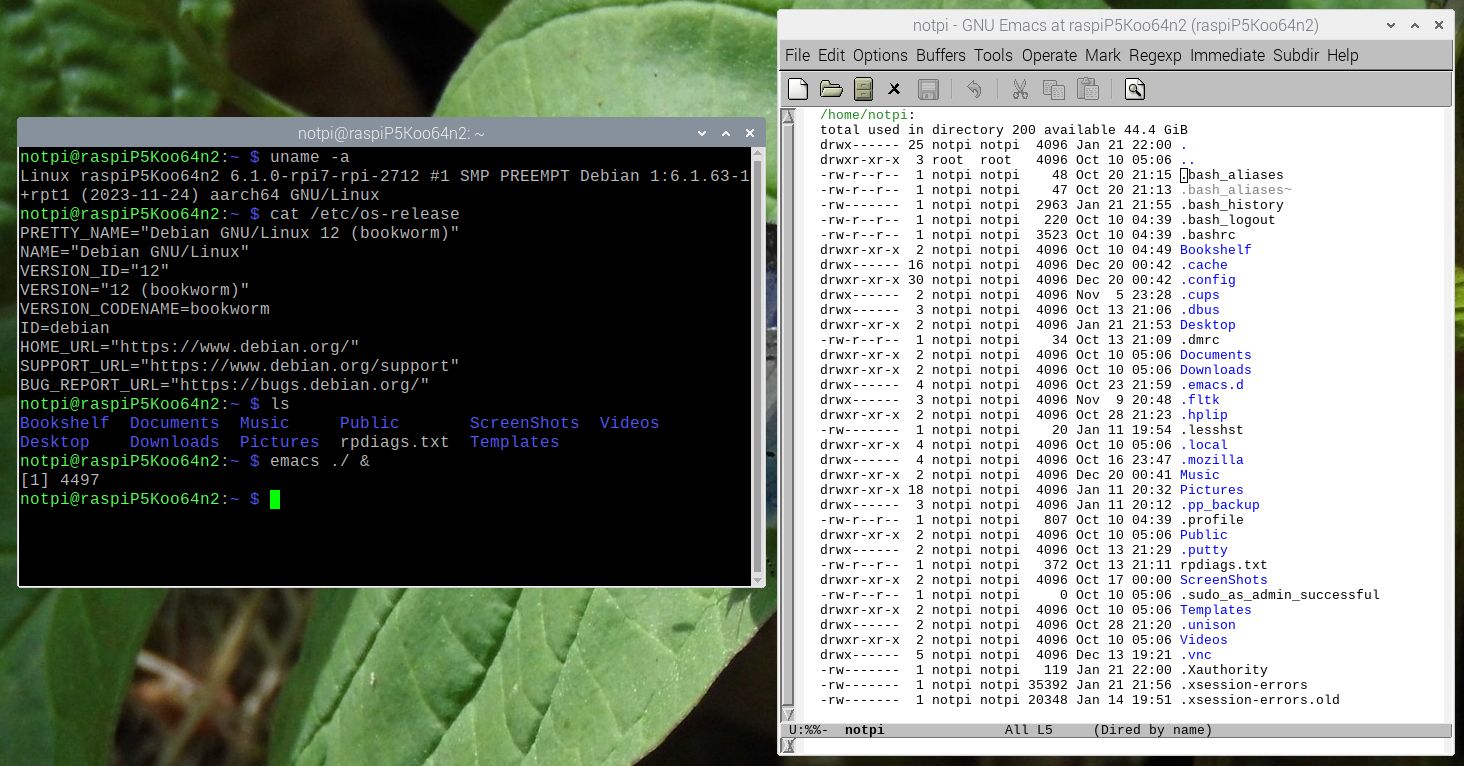

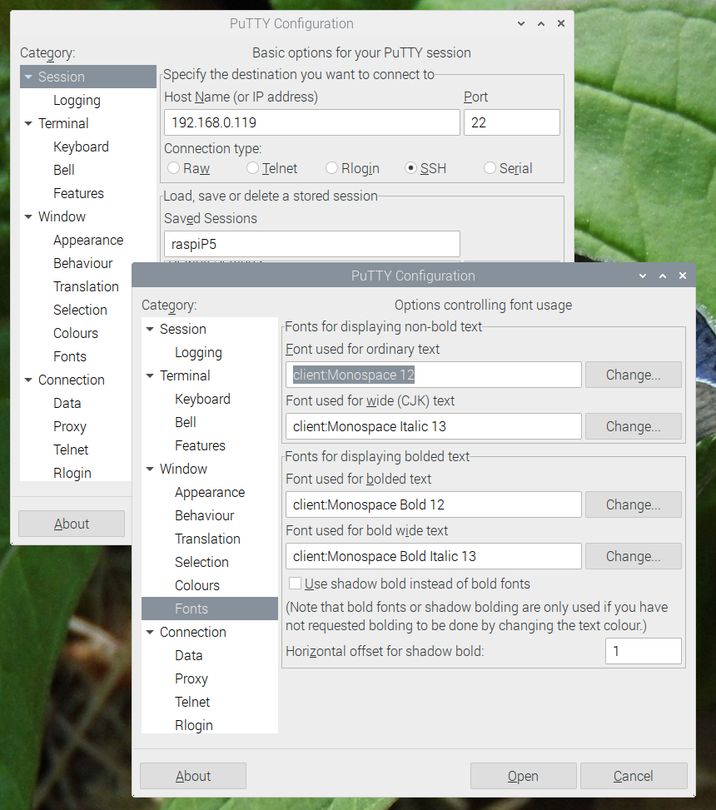

X-Forwarding via a PuTTY session





2024-02-11 21:49
