Pimoroni PHat Stack

(PCB only1)

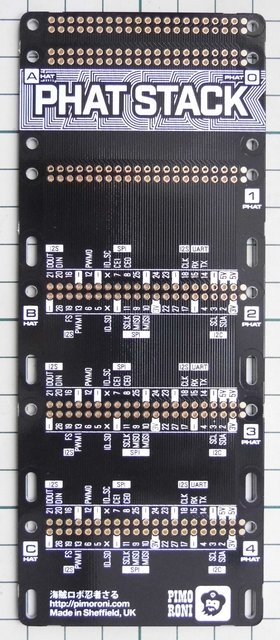

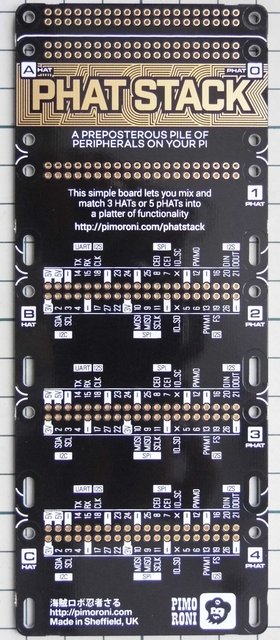

As Supplied:

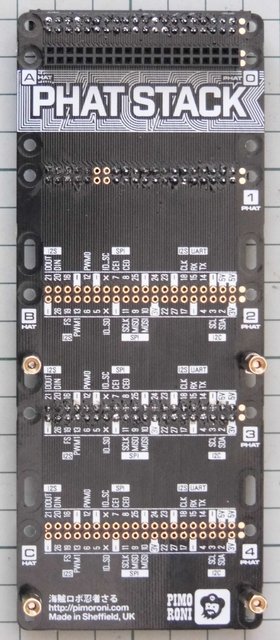

Ribbon Cable Connector, 26w "Old Pi" Connector, 10w and 40w Hat Connector added:

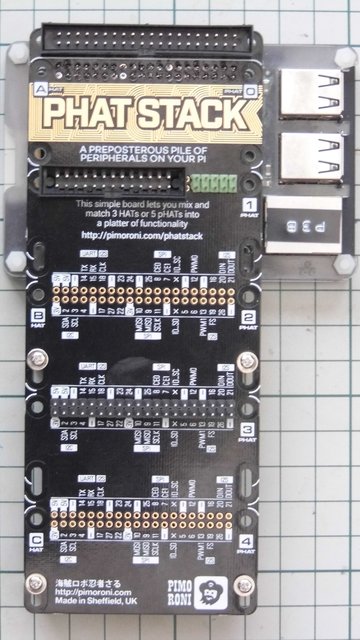

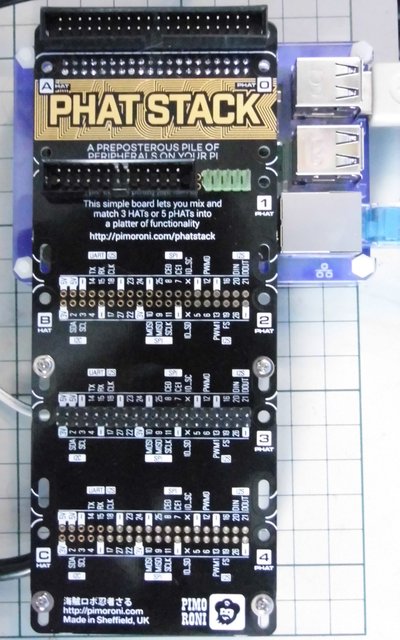

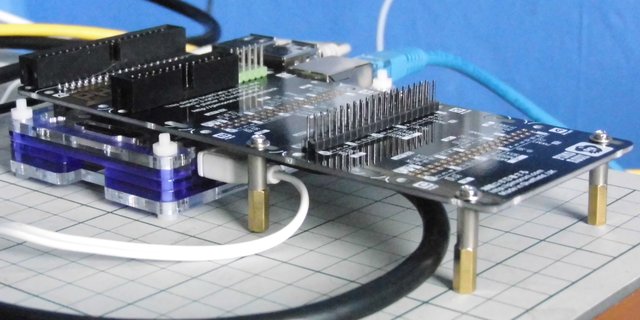

Ready for preliminary tests with a P3B+ Raspberry Pi:



  1. https://shop.pimoroni.com/products/phat-stack (1)
