Raspberry Pi Debug Probe


Contents

  1. Raspberry Pi Debug Probe
    1. What's in the box?
    2. Debug Probe Test without uSD card present and no display connected
    3. CF: Earlier (older) bootloader Diagnostics Screen Display:
    4. Test repeated with bootable uSD card present but no display connected

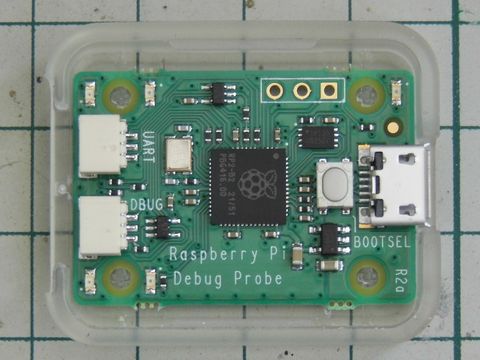

What's in the box?






Debug Probe Test without uSD card present and no display connected

(GtkTerm logfile extract)

RPi: BOOTSYS release VERSION:1f3bf863 DATE: 2023/08/01 TIME: 17:11:27
BOOTMODE: 0x06 partition 0 build-ts BUILD_TIMESTAMP=1690906287 serial 1ce9d4f5 boardrev d04170 stc 1600194
AON_RESET: 00000003 PM_RSTS 00001000
RP1_BOOT chip ID: 0x20001927
PM_RSTS: 0x00001000
part 00000000 reset_info 00000000
PMIC reset-event 00000000 rtc 00000001 alarm 00000000 enabled 0
uSD voltage 3.3V
Initialising SDRAM 'Micron' 32Gb x2 total-size: 64 Gbit 4267
DDR 4267 1 0 64 152
RP1_BOOT chip ID: 0x20001927

RP1_BOOT chip ID: 0x20001927
RP1_BOOT: fw size 25936
PCI2 init
PCI2 reset
PCIe scan 00001de4:00000001
RP1_CHIP_INFO 20001927

RPi: BOOTLOADER release VERSION:1f3bf863 DATE: 2023/08/01 TIME: 17:11:27
BOOTMODE: 0x06 partition 0 build-ts BUILD_TIMESTAMP=1690906287 serial 1ce9d4f5 boardrev d04170 stc 4532203
AON_RESET: 00000003 PM_RSTS 00001000
Boot mode: SD (01) order f4
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
EMMC
SD retry 1 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD retry 2 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SDV1
SD CMD: 0x371a0010 (55) 0x0 0x1fff0001
Failed to open device: 'sdcard' (cmd 371a0010 status 1fff0001)
Retry SD 1
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
EMMC
SD retry 1 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD retry 2 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SDV1
SD CMD: 0x371a0010 (55) 0x0 0x1fff0001
Failed to open device: 'sdcard' (cmd 371a0010 status 1fff0001)
Boot mode: USB-MSD (04) order f
XHCI-STOP
xHC0 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 11
xHC0 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
xHC0 ports 3 slots 64 intrs 4
XHCI-STOP
xHC1 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 1
xHC1 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
xHC1 ports 3 slots 64 intrs 4
USB2[2] 000206e1 connected
USB2[2] 00200603 connected enabled
USB2 root HUB port 2 init
DEV [01:00] 1.16 000000:02 class 0 VID 25a7 PID fa67
HID [01:00] 1.16 000000:02 register HID
XHCI-STOP
xHC0 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 18
XHCI-STOP
xHC1 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 0
USB MSD stopped. Timeout: 25 seconds
Boot mode: RESTART (0f) order 0
Restart 0 max -1
Boot mode: SD (01) order f4
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
EMMC
SD retry 1 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD retry 2 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SDV1
SD CMD: 0x371a0010 (55) 0x0 0x1fff0001
Failed to open device: 'sdcard' (cmd 371a0010 status 1fff0001)
Retry SD 1
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
EMMC
SD retry 1 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD retry 2 oc 0
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SDV1
SD CMD: 0x371a0010 (55) 0x0 0x1fff0001
Failed to open device: 'sdcard' (cmd 371a0010 status 1fff0001)
Boot mode: USB-MSD (04) order f
XHCI-STOP
xHC0 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 19
xHC0 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
xHC0 ports 3 slots 64 intrs 4
XHCI-STOP
xHC1 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
USBSTS 1
xHC1 ver: 272 HCS: 03000440 140000f1 07ff000a HCC: 0240fe6d
xHC1 ports 3 slots 64 intrs 4
USB2[2] 000206e1 connected
USB2[2] 00200603 connected enabled
USB2 root HUB port 2 init
DEV [01:00] 1.16 000000:02 class 0 VID 25a7 PID fa67
HID [01:00] 1.16 000000:02 register HID

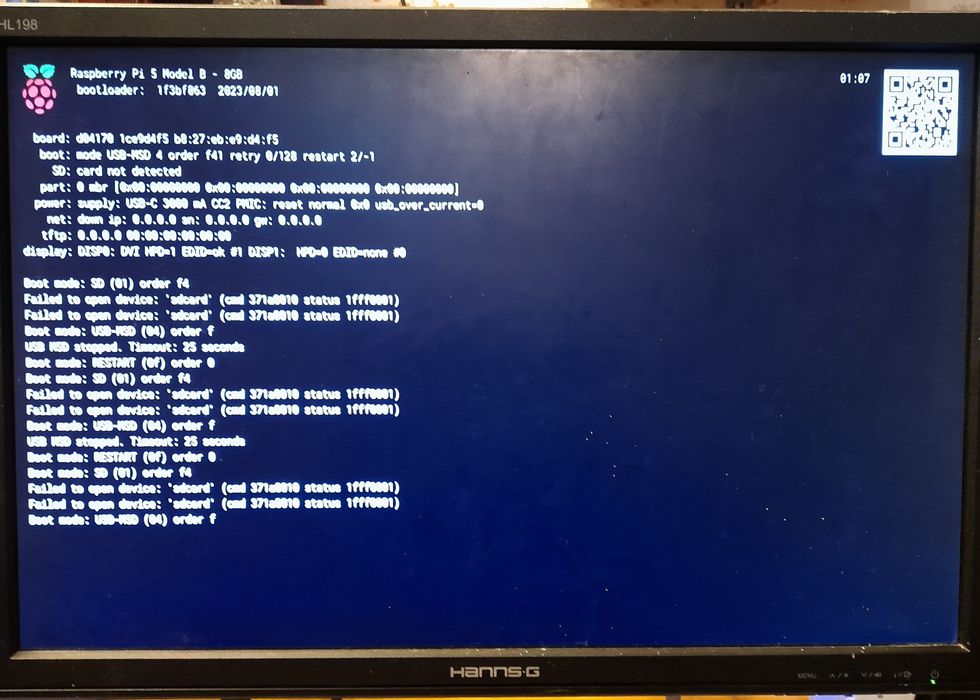

CF: Earlier (older) bootloader Diagnostics Screen Display:


Test repeated with bootable uSD card present but no display connected

NB: Some "stray" characters removed for clarity.

RPi: BOOTSYS release VERSION:1f3bf863 DATE: 2023/08/01 TIME: 17:11:27
BOOTMODE: 0x06 partition 0 build-ts BUILD_TIMESTAMP=1690906287 serial 1ce9d4f5 boardrev d04170 stc 815808
AON_RESET: 00000003 PM_RSTS 00001000
RP1_BOOT chip ID: 0x20001927
PM_RSTS: 0x00001000
part 00000000 reset_info 00000000
PMIC reset-event 00000000 rtc 00000000 alarm 00000000 enabled 0
uSD voltage 3.3V
Initialising SDRAM 'Micron' 32Gb x2 total-size: 64 Gbit 4267
DDR 4267 1 0 64 152
RP1_BOOT chip ID: 0x20001927

RP1_BOOT chip ID: 0x20001927
RP1_BOOT: fw size 25936
PCI2 init
PCI2 reset
PCIe scan 00001de4:00000001
RP1_CHIP_INFO 20001927

RPi: BOOTLOADER release VERSION:1f3bf863 DATE: 2023/08/01 TIME: 17:11:27
BOOTMODE: 0x06 partition 0 build-ts BUILD_TIMESTAMP=1690906287 serial 1ce9d4f5 boardrev d04170 stc 3741440
AON_RESET: 00000003 PM_RSTS 00001000
Boot mode: SD (01) order f4
SD HOST: 200000000 CTL0: 0x00800f02 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f02 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
OCR c0ff8000 [109]
CID: 009f54495350434300128411034c016c
CSD: 400e00325b590001cf5b7f800a400000
SD: bus-width: 4 spec: 2 SCR: 0xeeeeeefe 0xffeeefef
SD CMD: 0x333a0010 (51) 0x10000 0x1fff0206
Failed to open device: 'sdcard' (cmd 333a0010 status 1fff0206)
Retry SD 1
SD HOST: 200000000 CTL0: 0x00800000 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
SD HOST: 200000000 CTL0: 0x00800f00 BUS: 400000 Hz actual: 390625 HZ div: 512 (256) status: 0x1fff0000 delay: 276
OCR c0ff8000 [2]
CID: 009f54495350434300128411034c016c
CSD: 400e00325b590001cf5b7f800a400000
SD: bus-width: 4 spec: 2 SCR: 0x02c58083 0x00000000
SD HOST: 200000000 CTL0: 0x00800f04 BUS: 50000000 Hz actual: 50000000 HZ div: 4 (2) status: 0x1fff0000 delay: 2
MBR: 0x00002000,  524288 type: 0x0c
MBR: 0x00082000,120934400 type: 0x83
MBR: 0x00000000,       0 type: 0x00
MBR: 0x00000000,       0 type: 0x00
Trying partition: 0
type: 32 lba: 8192 'mkfs.fat' ' bootfs     ' clusters 130554 (4)
rsc 32 fat-sectors 1020 root dir cluster 2 sectors 0 entries 0
FAT32 clusters 130554
[sdcard] autoboot.txt not found
Trying partition: 0
type: 32 lba: 8192 'mkfs.fat' ' bootfs     ' clusters 130554 (4)
rsc 32 fat-sectors 1020 root dir cluster 2 sectors 0 entries 0
FAT32 clusters 130554
Read config.txt bytes     2150 hnd 0x136
[sdcard] pieeprom.upd not found
usb_max_current_enable default 0 max-current 900
Read bcm2712-rpi-5-b.dtb bytes    71862 hnd 0x5101
dt-match: compatible: raspberrypi,5-model-b match: brcm,bcm2712
dt-match: compatible: brcm,bcm2712 match: brcm,bcm2712
Selecting USB low current limit

NOTICE:  BL31: v2.6(release):v2.6-239-g2a9ede0bd
NOTICE:  BL31: Built : 14:26:57, Jun 22 2023

Debian GNU/Linux 12 raspiP5SP64GB ttyAMA10

raspiP5SP64GB login: notpi
Password:
Linux raspiP5SP64GB 6.1.32-v8_16k+ #1 SMP PREEMPT Mon Aug 14 02:15:31 BST 2023 aarch64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Fri Sep  1 07:24:25 BST 2023 on tty1
2004hnotpi@raspiP5SP64GB:~$ df
2004l

Filesystem     1K-blocks    Used Available Use% Mounted on
/dev/root       59455792 4381060  52593024   8% /
devtmpfs         3957664       0   3957664   0% /dev
tmpfs            4123744     544   4123200   1% /dev/shm
tmpfs            1649504    4288   1645216   1% /run
tmpfs               5120      48      5072   1% /run/lock
/dev/mmcblk0p1    261108   40312    220796  16% /boot
tmpfs             824736     144    824592   1% /run/user/106
tmpfs             824736     128    824608   1% /run/user/1000
2004hnotpi@raspiP5SP64GB:~$ sudo shutdown -h now
2004l
2004hnotpi@raspiP5SP64GB:~$ [   89.673591] reboot: Power down

RPi: BOOTSYS release VERSION:1f3bf863 DATE: 2023/08/01 TIME: 17:11:27
BOOTMODE: 0x06 partition 63 build-ts BUILD_TIMESTAMP=1690906287 serial 1ce9d4f5 boardrev d04170 stc 842533
AON_RESET: 00000003 PM_RSTS 00001575
RP1_BOOT chip ID: 0x20001927
Halt: wake: 1 power_off: 0
