USB 3.0 Devices

(Used/tested with a Pi4B and/or a P400 Raspberry Pi System or a Pi5 post-2023)

Contents

  1. USB 3.0 Devices
    1. Tronsmart PD 3.0 18W PSU/Charger
    2. Seagate 1Tb USB3.0 HDD #1
    3. Seagate 1Tb USB3.0 HDD #2
    4. Seagate 250Gb HDD (USB2.0)
    5. Kingston DataTraveler 100 G3 32Gb Flash Drive
    6. integral USB3.1/3.0 microSD Reader
    7. Kingston DataTraveler G4 64Gb Flash Drive
    8. Kootion Premium 64GB Flash Drive (2023)
    9. Kexin Premium 128GB Flash Drive (2024)
    10. SanDisk "UltraFlair" 64GB Flash Drive (2024)
    11. USB 3.0/2.0 3-Port "Laptop" Hub
    12. Eluteng USB3 to SATA Cable
    13. Alxum dual SD/microSD Card Reader/Writer
    14. Yottamaster USB3 "Card Reader" Hub
    15. Eluteng USB3 to SATA Cable#2
    16. Posugear 2.5" Hard Drive Enclosure
    17. Benfei USB3 to SATA Cable

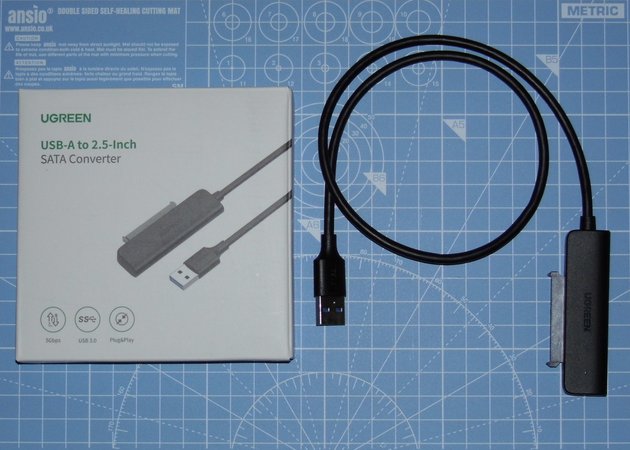

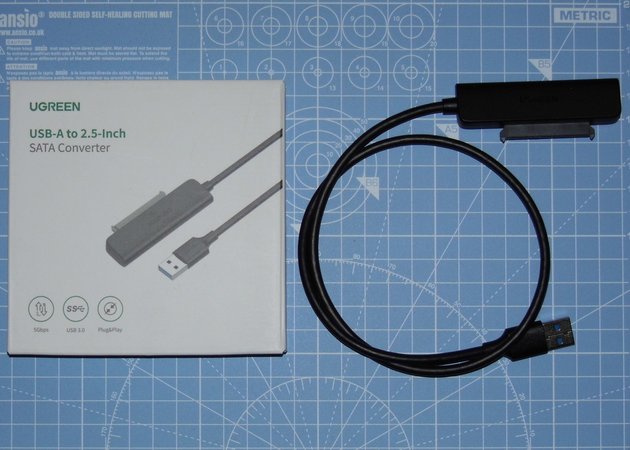

    18. UGREEN USB-A to 2.5-inch SATA Converter

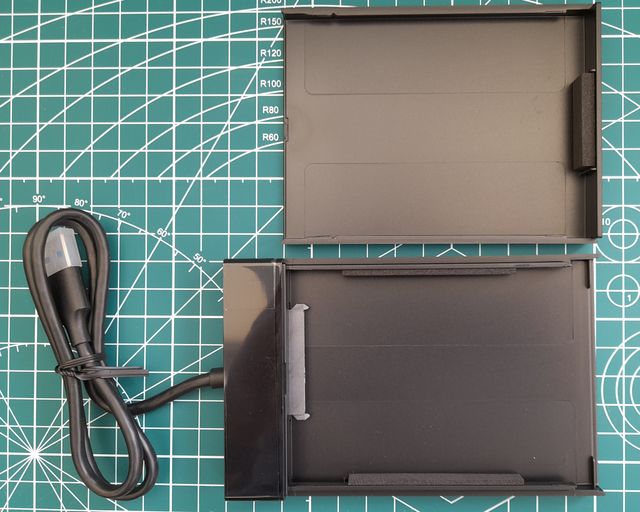

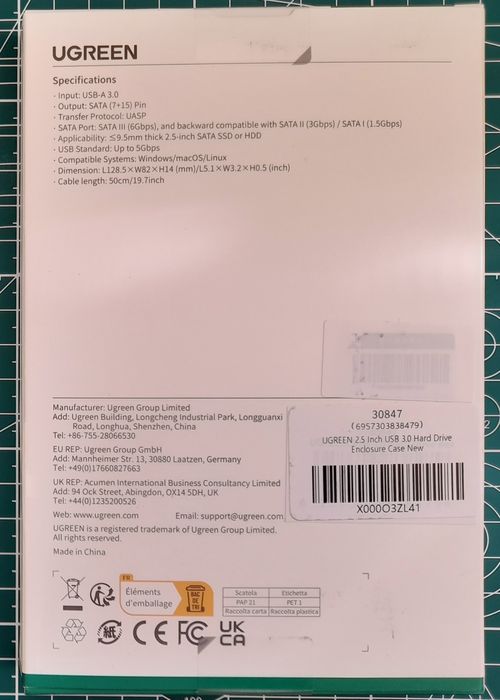

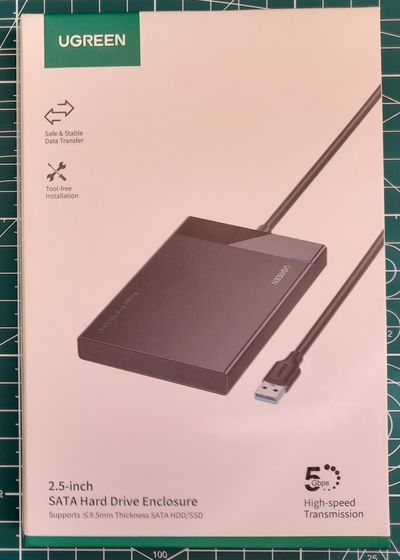

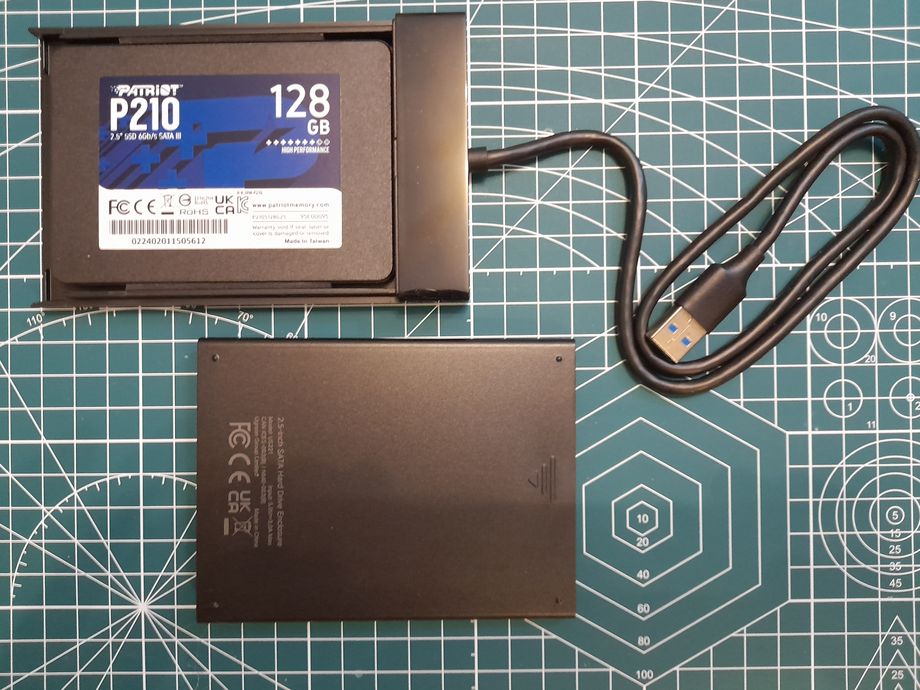

    19. UGREEN 2.5inch SATA Hard Drive Enclosure
    20. AUKEY WD-N3 HDD Enclosure, Power Bank & WiFi Router Etc. Re-visited

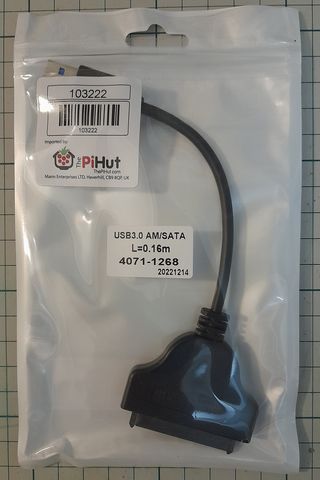

    21. The PiHut USB3.0 AM/SATA Cable

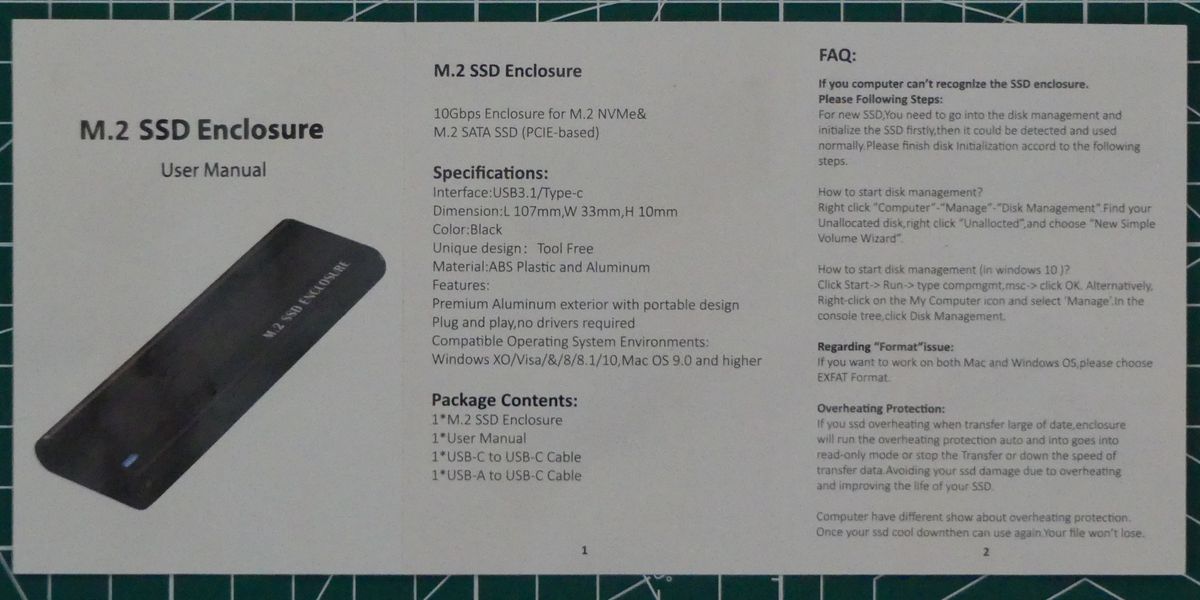

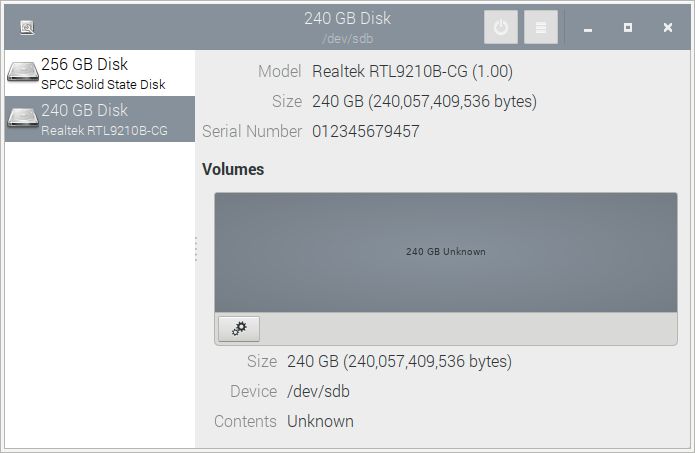

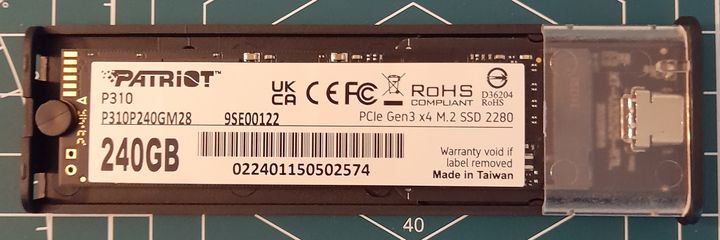

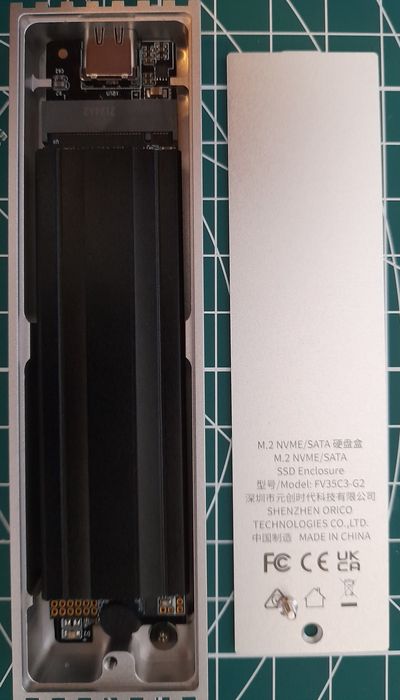

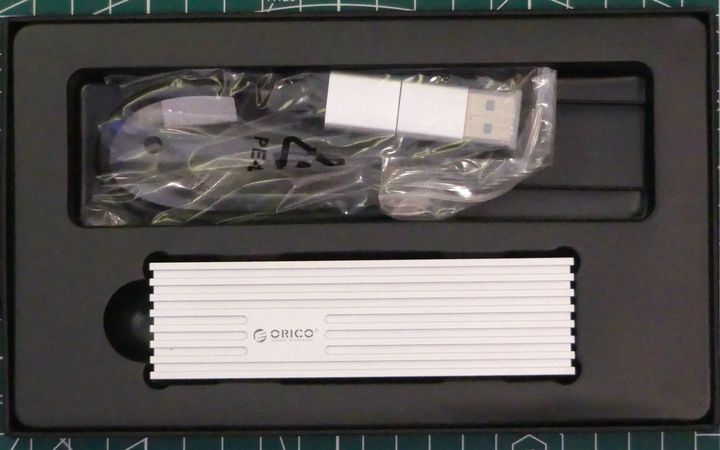

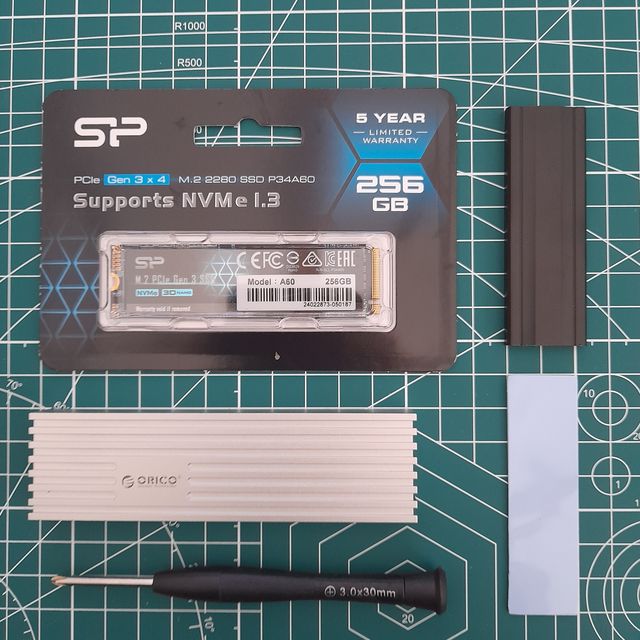

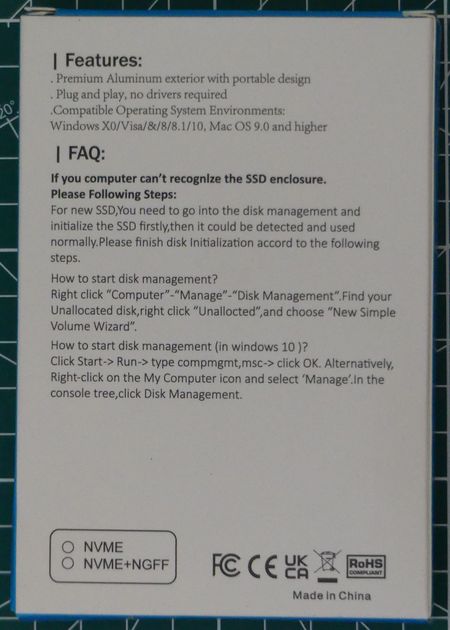

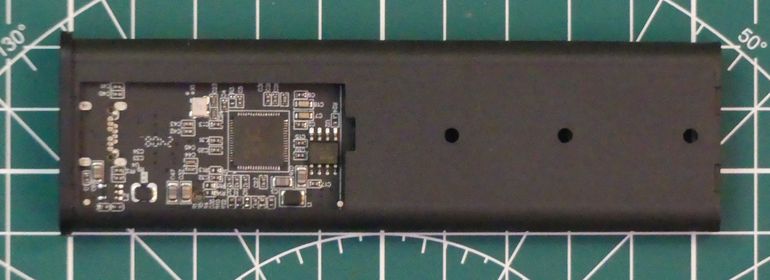

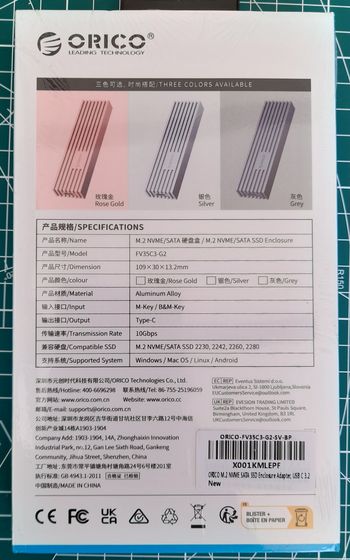

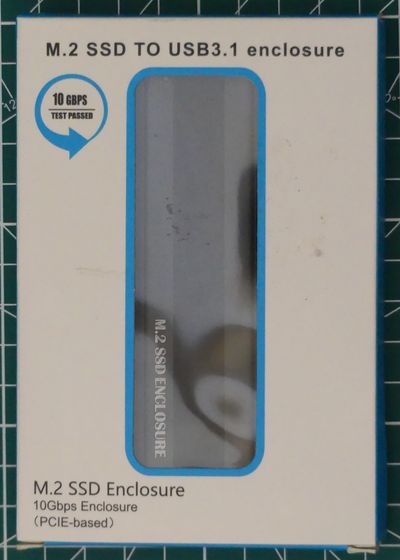

    22. Orico M.2 SSD Enclosure
    23. Generic (Budget) M.2. SSD Enclosure

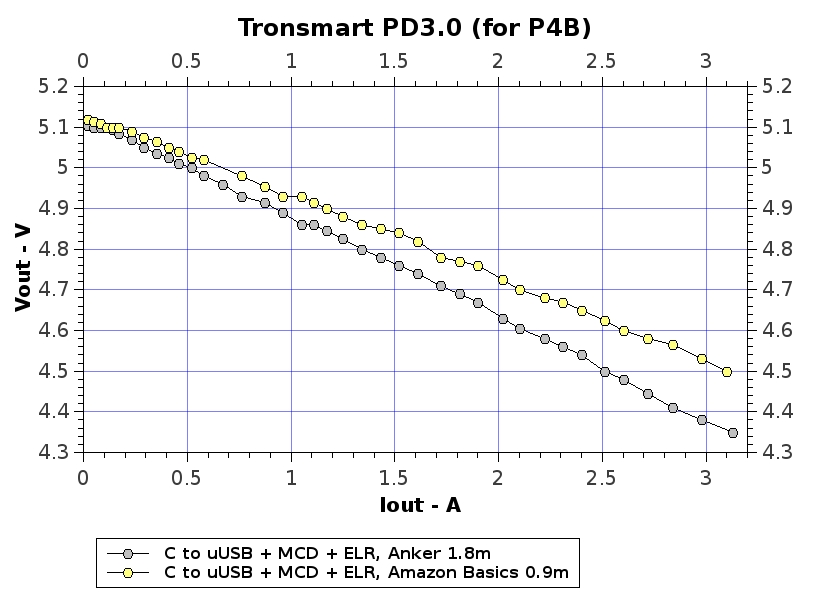

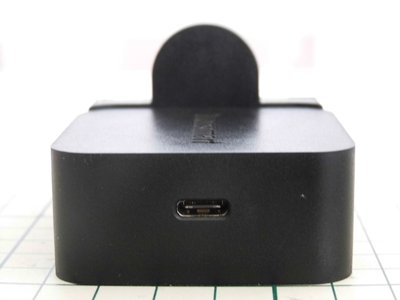

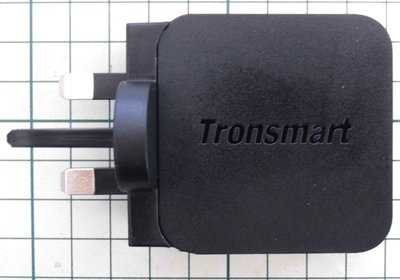

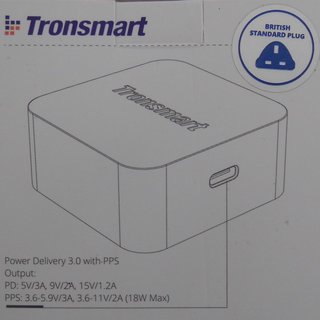

Tronsmart PD 3.0 18W PSU/Charger

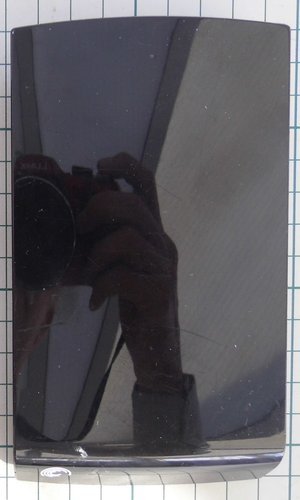

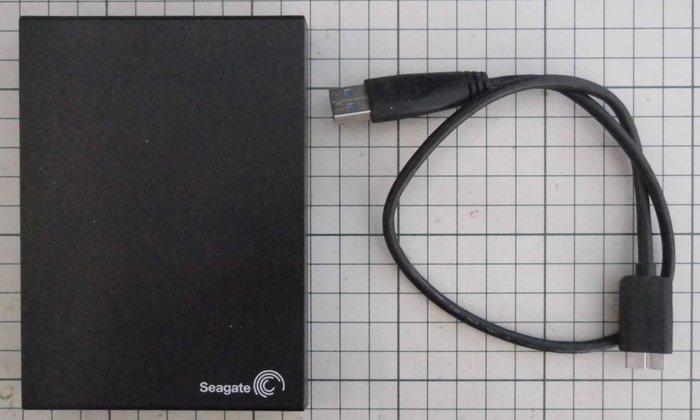

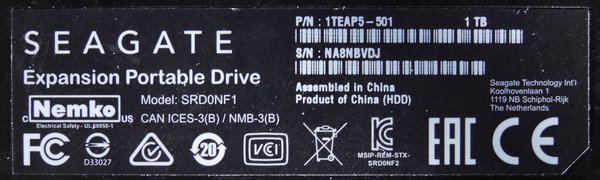

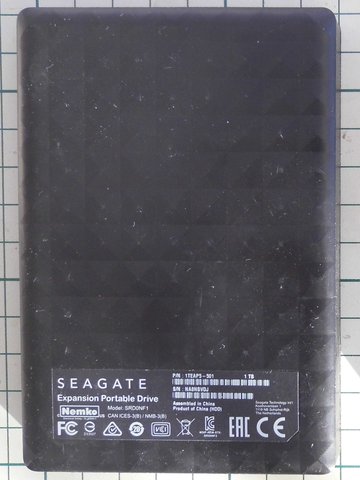

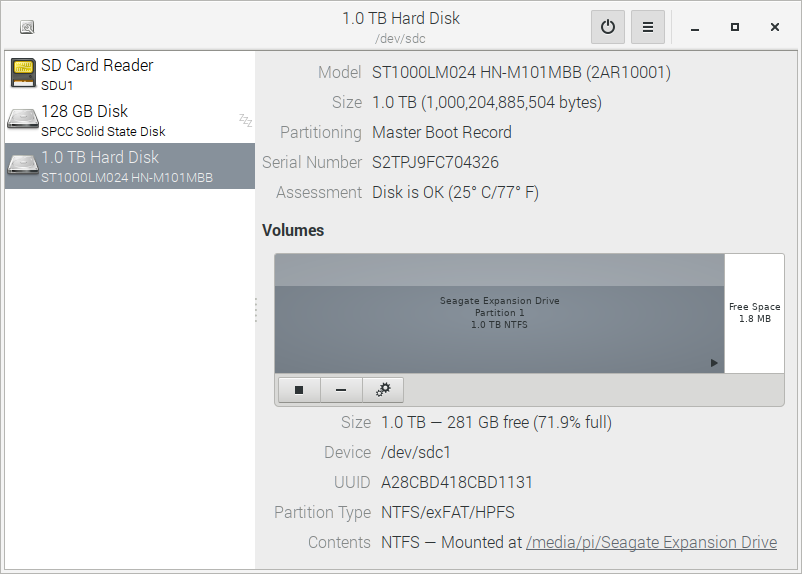

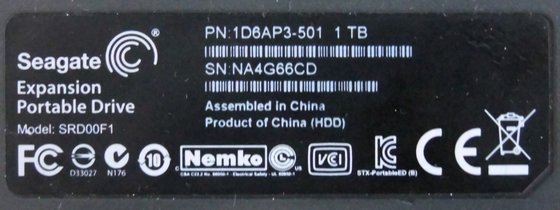

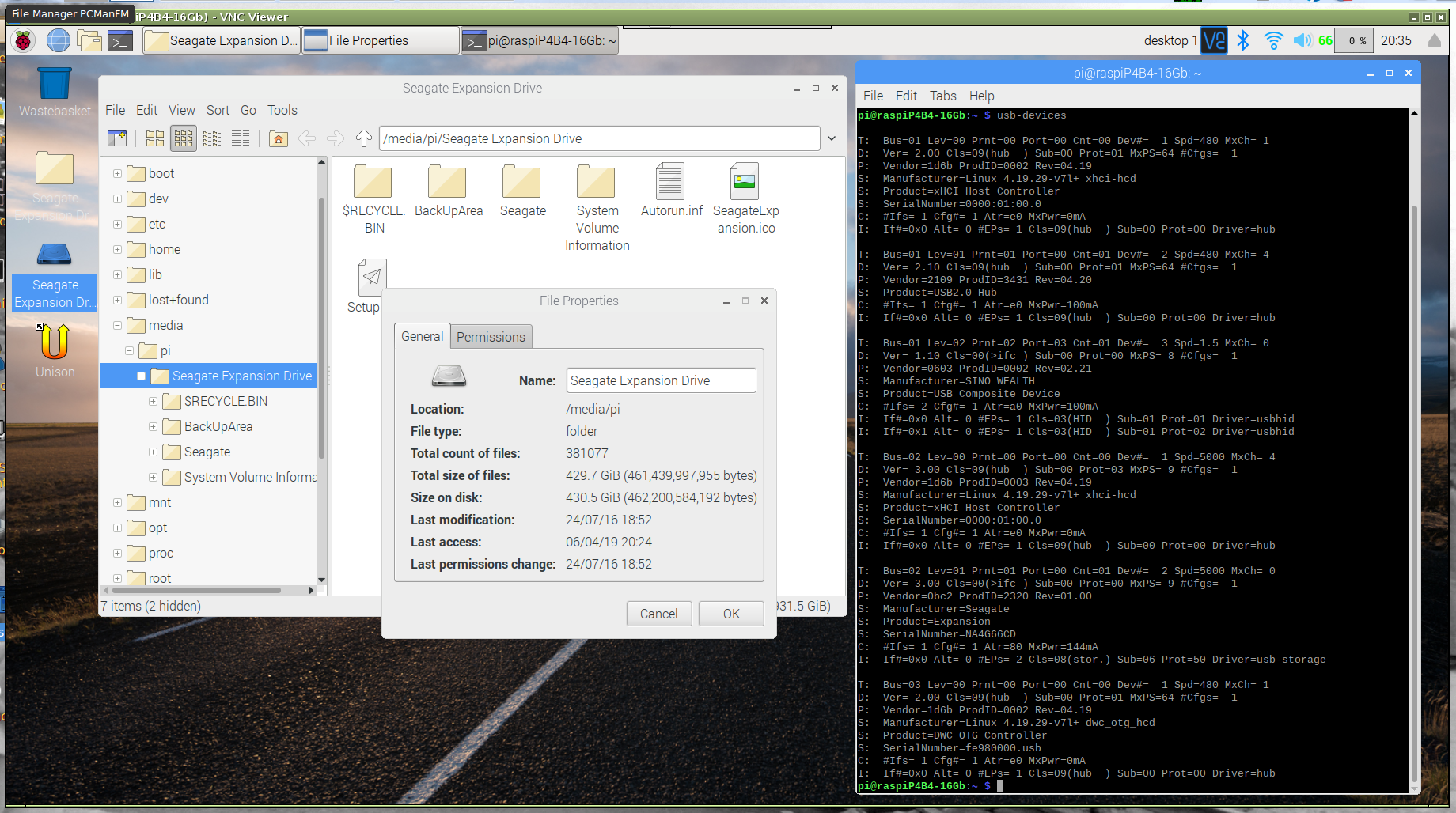

Seagate 1Tb USB3.0 HDD #1

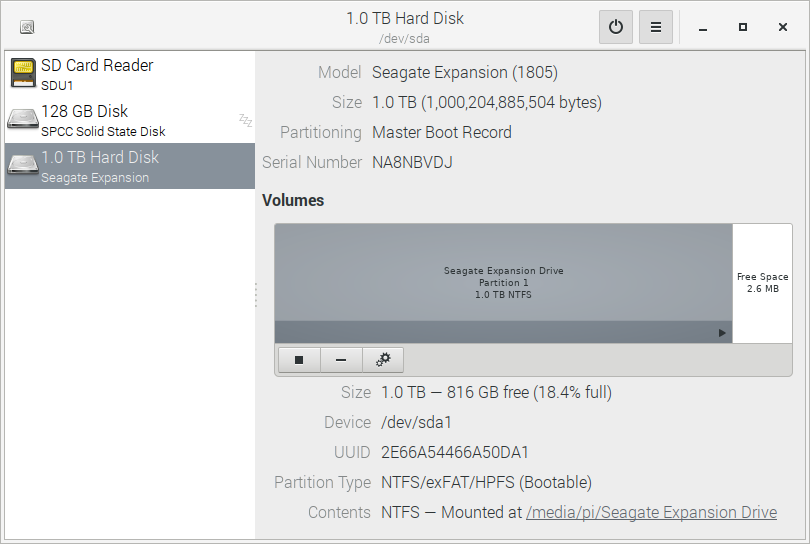

Seagate 1Tb USB3.0 HDD #2

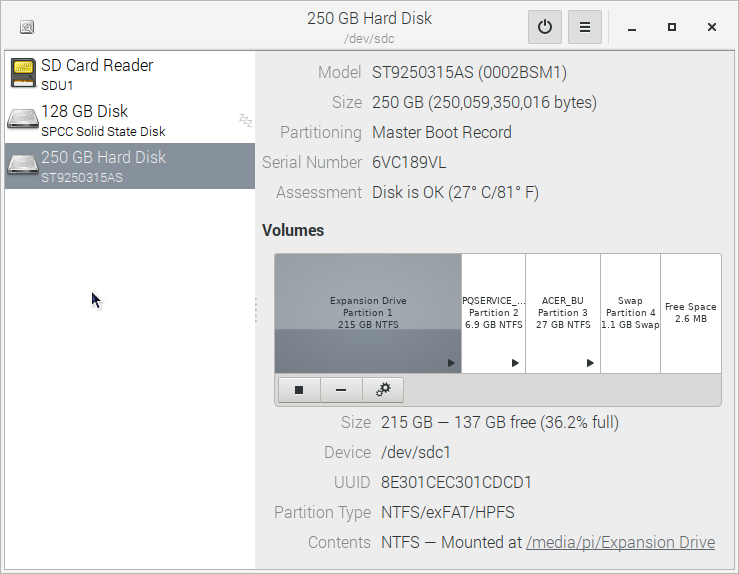

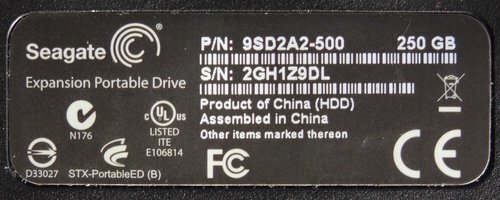

Seagate 250Gb HDD (USB2.0)




pi@raspiP4B4b-32GbP:~ $ lsusb
...
Bus 001 Device 006: ID 0bc2:2300 Seagate RSS LLC Expansion Portable
...

T:  Bus=01 Lev=02 Prnt=02 Port=02 Cnt=01 Dev#=  6 Spd=480 MxCh= 0
D:  Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=0bc2 ProdID=2300 Rev=01.30
S:  Manufacturer=Seagate
S:  Product=Portable
S:  SerialNumber=2GH1Z9DL
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=100mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage

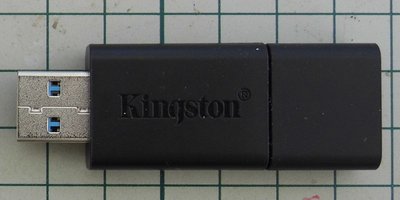

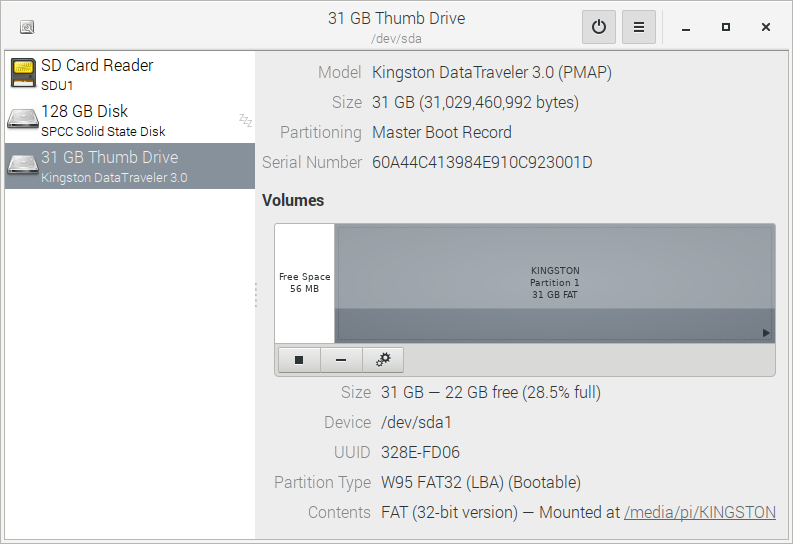

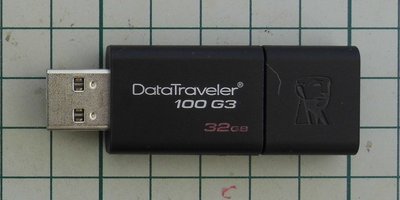

Kingston DataTraveler 100 G3 32Gb Flash Drive




pi@raspiP4B4-32Gb:~ $ lsusb
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 003: ID 0951:1666 Kingston Technology DataTraveler 100 G3/G4/SE9 G2
Bus 002 Device 002: ID 067b:2731 Prolific Technology, Inc.
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 003: ID 0603:0002 Novatek Microelectronics Corp.
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

pi@raspiP4B4-32Gb:~ $ usb-devices
...
T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=02 Dev#=  3 Spd=5000 MxCh= 0
D:  Ver= 3.20 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=0951 ProdID=1666 Rev=01.10
S:  Manufacturer=Kingston
S:  Product=DataTraveler 3.0
S:  SerialNumber=60A44C413984E910C923001D
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=504mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
...

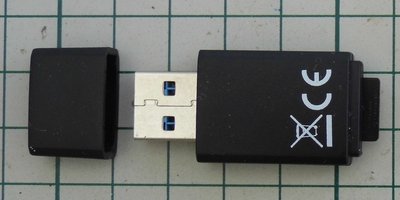

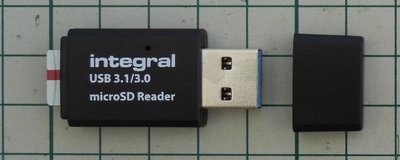

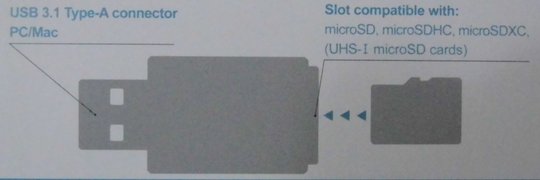

integral USB3.1/3.0 microSD Reader




pi@raspiP4B4-32Gb:~ $ lsusb
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 003: ID 0951:1666 Kingston Technology DataTraveler 100 G3/G4/SE9 G2
Bus 002 Device 002: ID 067b:2731 Prolific Technology, Inc.
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 003: ID 0603:0002 Novatek Microelectronics Corp.
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

pi@raspiP4B4-32Gb:~ $ usb-devices
...
T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=5000 MxCh= 0
D:  Ver= 3.10 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=067b ProdID=2731 Rev=01.00
S:  Manufacturer=Prolific Technology Inc.
S:  Product=USB SD Card Reader
S:  SerialNumber=ABCDEF0123456789AB
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=496mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
...

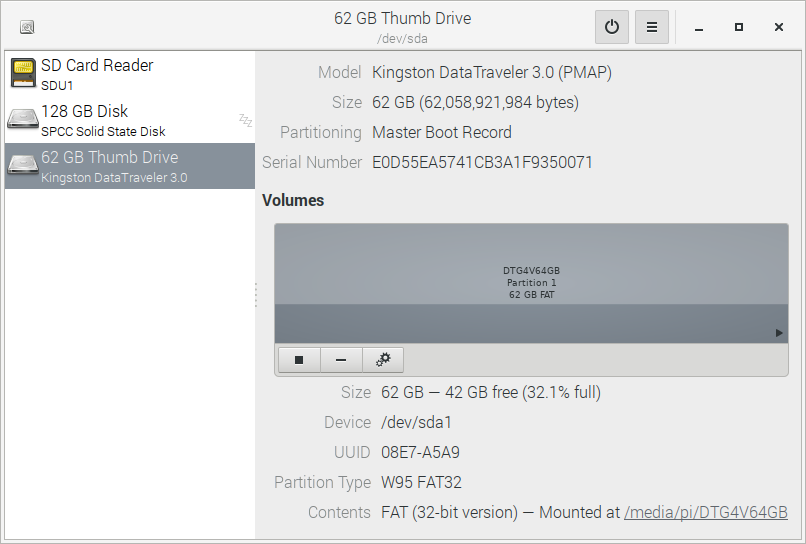

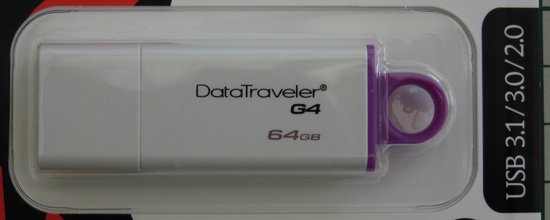

Kingston DataTraveler G4 64Gb Flash Drive



pi@raspiP4B4b-32GbP:~ $ lsusb
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 006: ID 0951:1666 Kingston Technology DataTraveler 100 G3/G4/SE9 G2
Bus 002 Device 007: ID 0951:1666 Kingston Technology DataTraveler 100 G3/G4/SE9 G2
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

pi@raspiP4B4b-32GbP:~ $ lsblk
NAME        MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sdb           8:16   1 28.9G  0 disk
└─sdb1        8:17   1 28.9G  0 part /media/pi/KINGSTON
sdc           8:32   1 57.8G  0 disk
└─sdc1        8:33   1 57.7G  0 part /media/pi/KINGSTON1
mmcblk0     179:0    0 29.1G  0 disk
├─mmcblk0p1 179:1    0  256M  0 part /boot
└─mmcblk0p2 179:2    0 28.9G  0 part /

...
T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  7 Spd=5000 MxCh= 0
D:  Ver= 3.20 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=0951 ProdID=1666 Rev=01.10
S:  Manufacturer=Kingston
S:  Product=DataTraveler 3.0
S:  SerialNumber=E0D55EA5741CB3A1F9350071
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=504mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
...

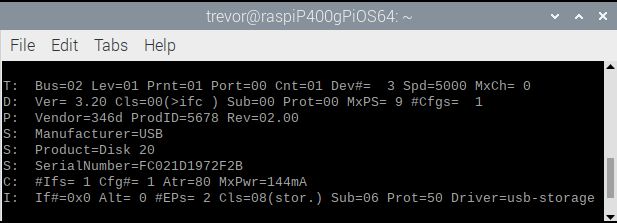

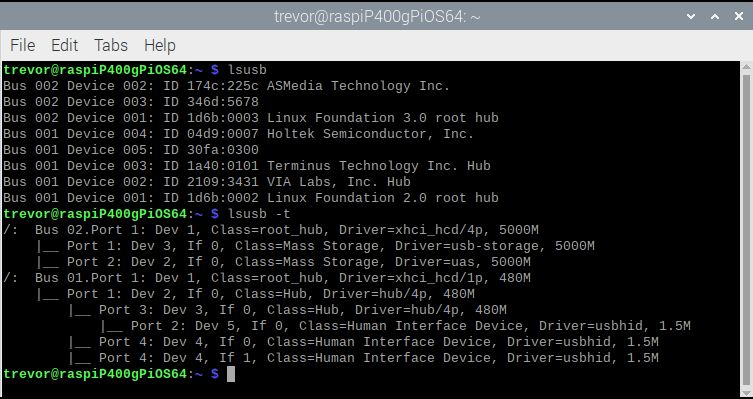

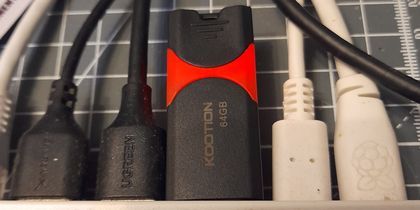

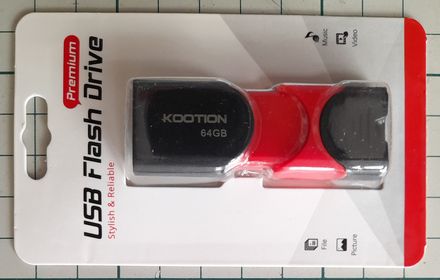

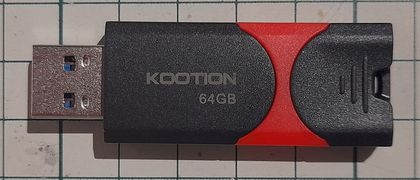

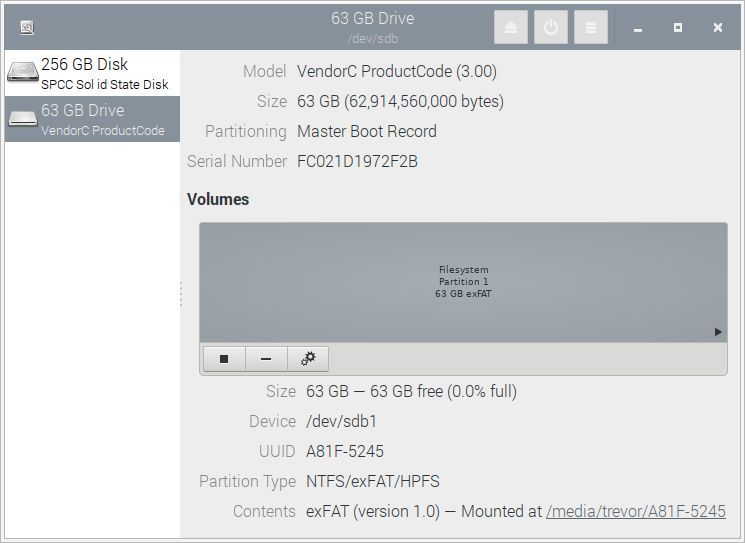

Kootion Premium 64GB Flash Drive (2023)

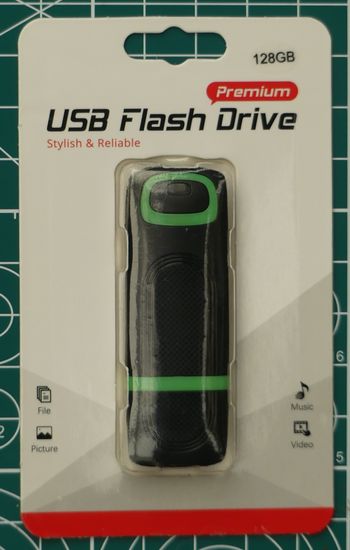

Kexin Premium 128GB Flash Drive (2024)

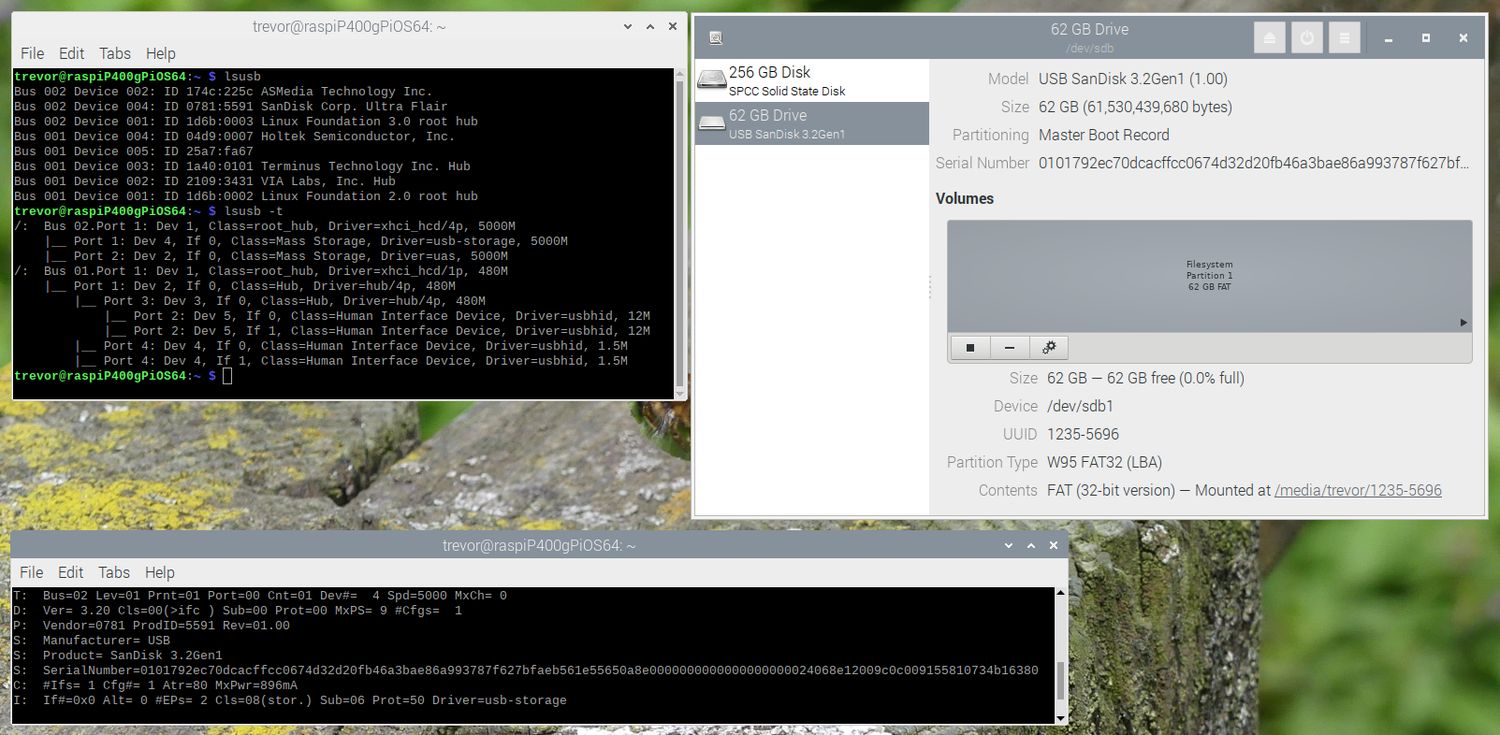

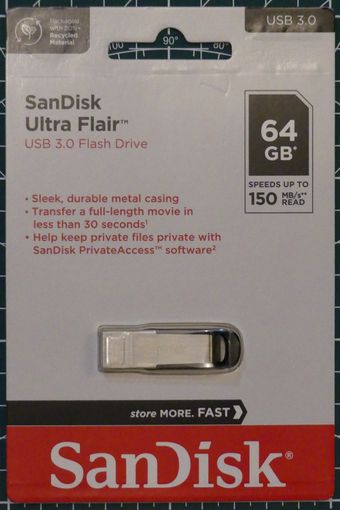

SanDisk "UltraFlair" 64GB Flash Drive (2024)

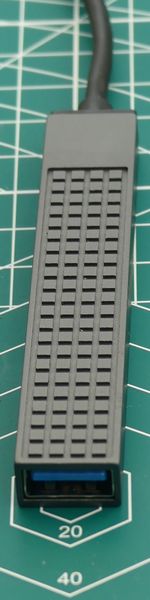

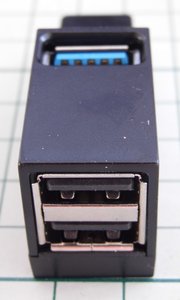

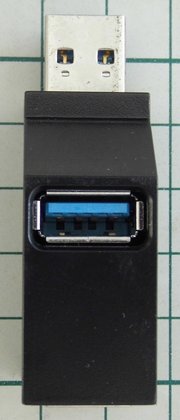

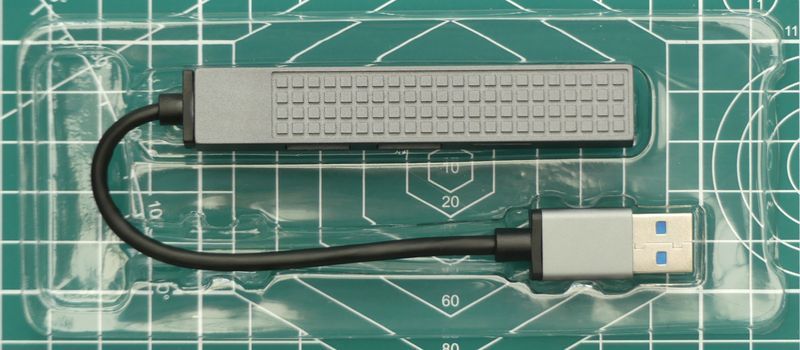

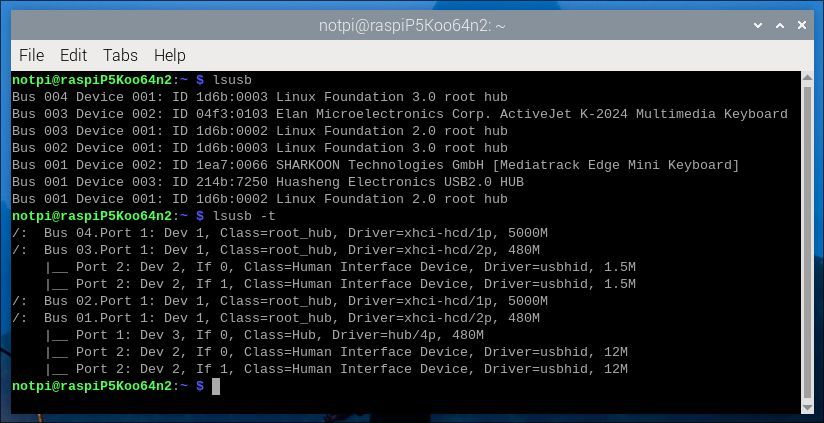

USB 3.0/2.0 3-Port "Laptop" Hub

(Similar to this USB 2.0 3-Port "Laptop" Hub)





pi@raspiP4B4b-32GbP:~ $ lsusb
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 003: ID 0951:1666 Kingston Technology DataTraveler 100 G3/G4/SE9 G2
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 011: ID 0458:003a KYE Systems Corp. (Mouse Systems) NetScroll+ Mini Traveler / Genius NetScroll 120
Bus 001 Device 009: ID 04d9:1503 Holtek Semiconductor, Inc. Keyboard
Bus 001 Device 008: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 012: ID 214b:7250
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

pi@raspiP4B4b-32GbP:~ $ lsusb -t
/:  Bus 03.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 5000M
    |__ Port 1: Dev 3, If 0, Class=Mass Storage, Driver=usb-storage, 5000M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 2: Dev 12, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 4: Dev 8, If 0, Class=Hub, Driver=hub/4p, 480M
            |__ Port 1: Dev 9, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
            |__ Port 1: Dev 9, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
            |__ Port 3: Dev 11, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M

T:  Bus=01 Lev=02 Prnt=02 Port=01 Cnt=01 Dev#= 12 Spd=480 MxCh= 4
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=214b ProdID=7250 Rev=01.00
S:  Product=USB2.0 HUB
C:  #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=100mA
I:  If#=0x0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub

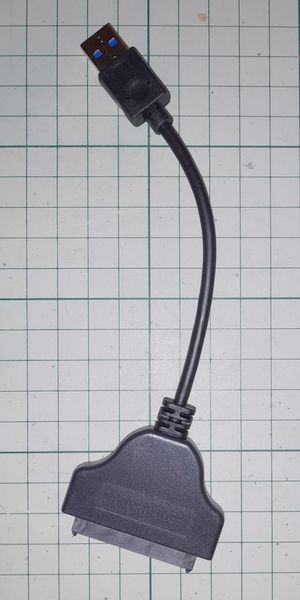

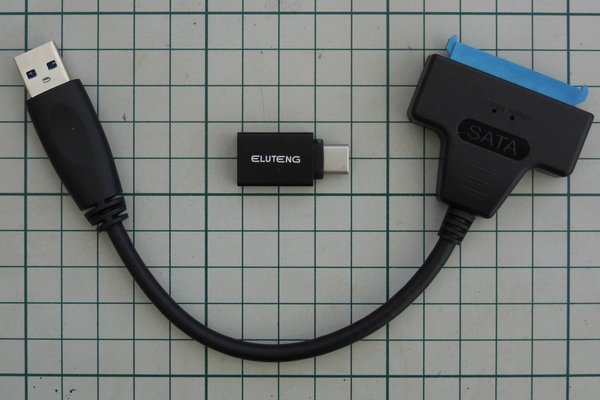

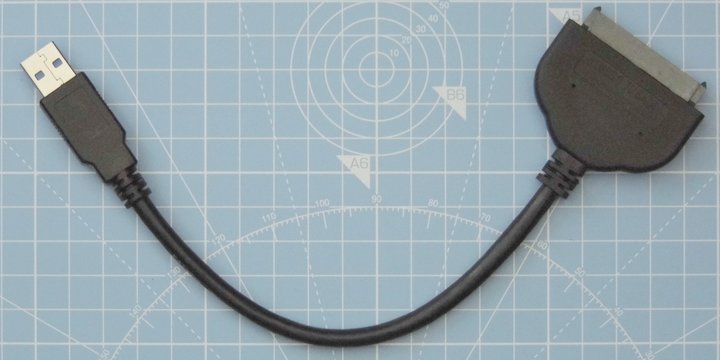

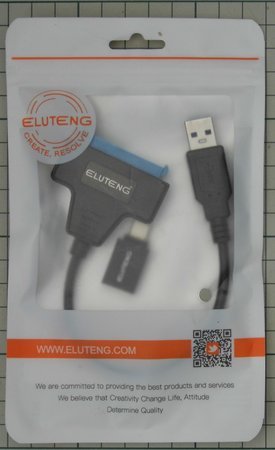

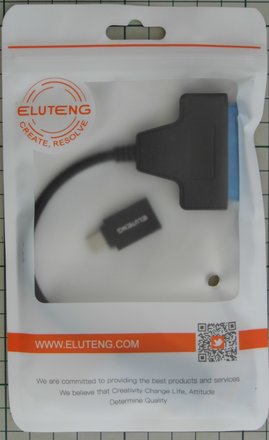

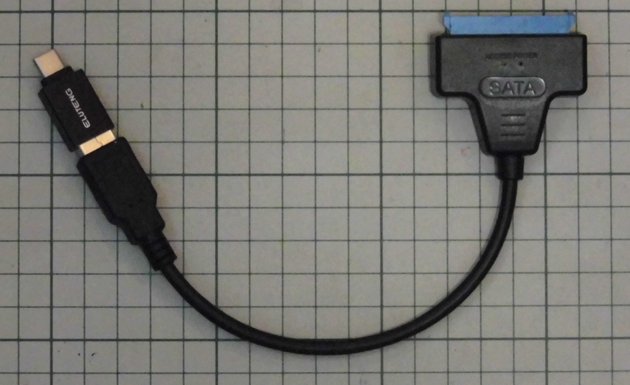

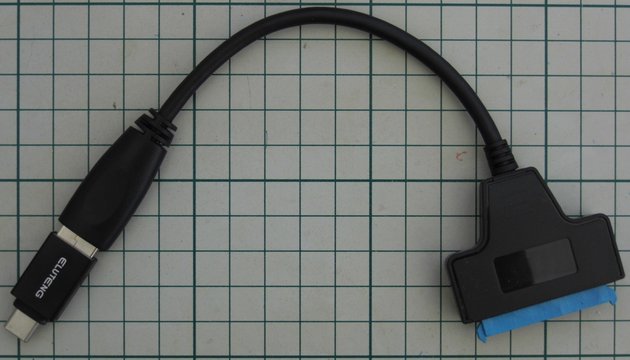

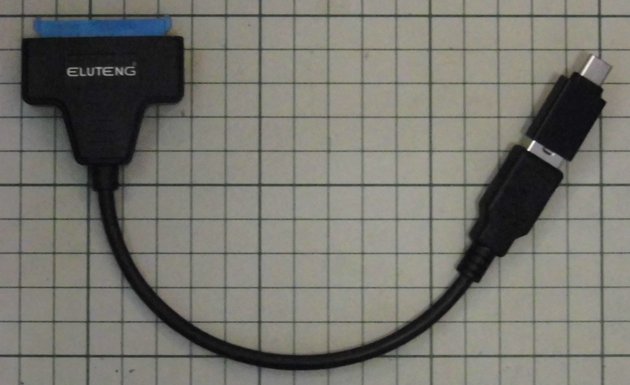

Eluteng USB3 to SATA Cable

(with USB3 'A' Socket (Female) to USB3 'C' Plug (Male) Adapter)



pi@raspiP4B4b-32GbP:~ $ lsusb
...
Bus 002 Device 003: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
...

T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=02 Dev#=  3 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=174c ProdID=55aa Rev=01.00
S:  Manufacturer=ULT-Best
S:  Product=Best USB Device
S:  SerialNumber=042003052D9A
C:  #Ifs= 1 Cfg#= 1 Atr=c0 MxPwr=0mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage

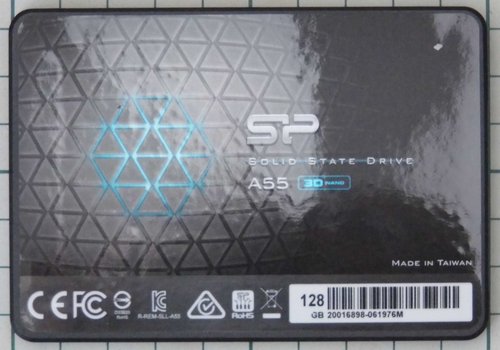

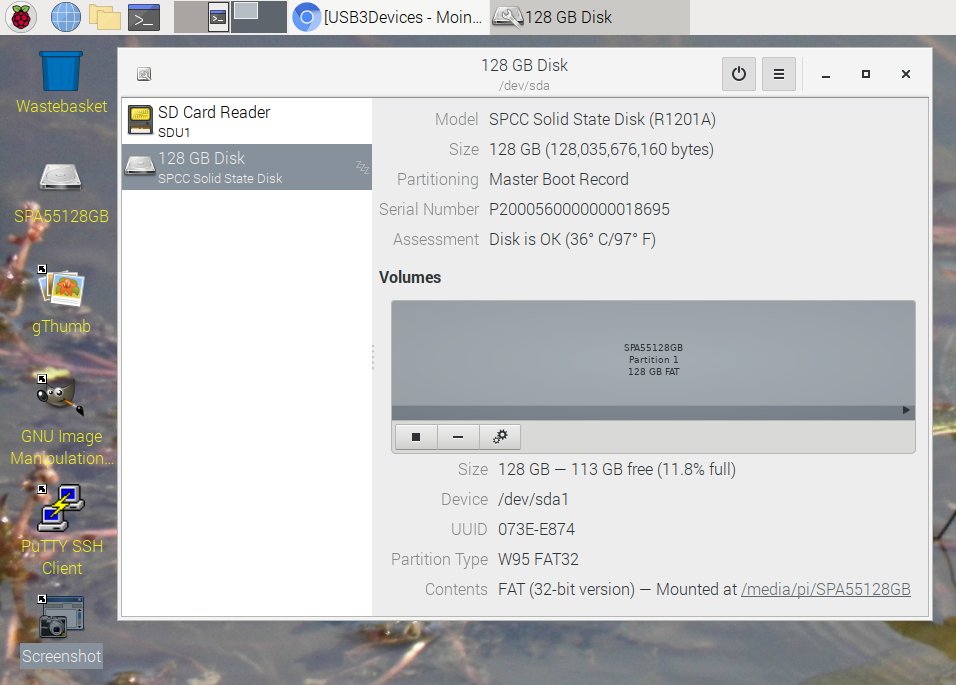

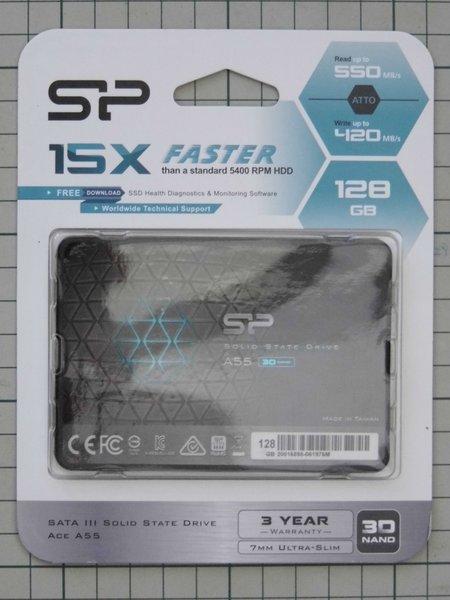

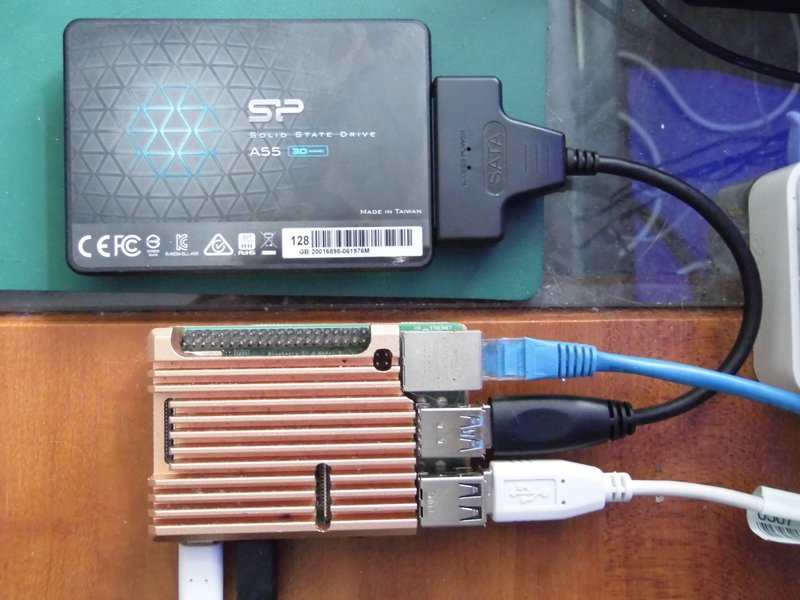

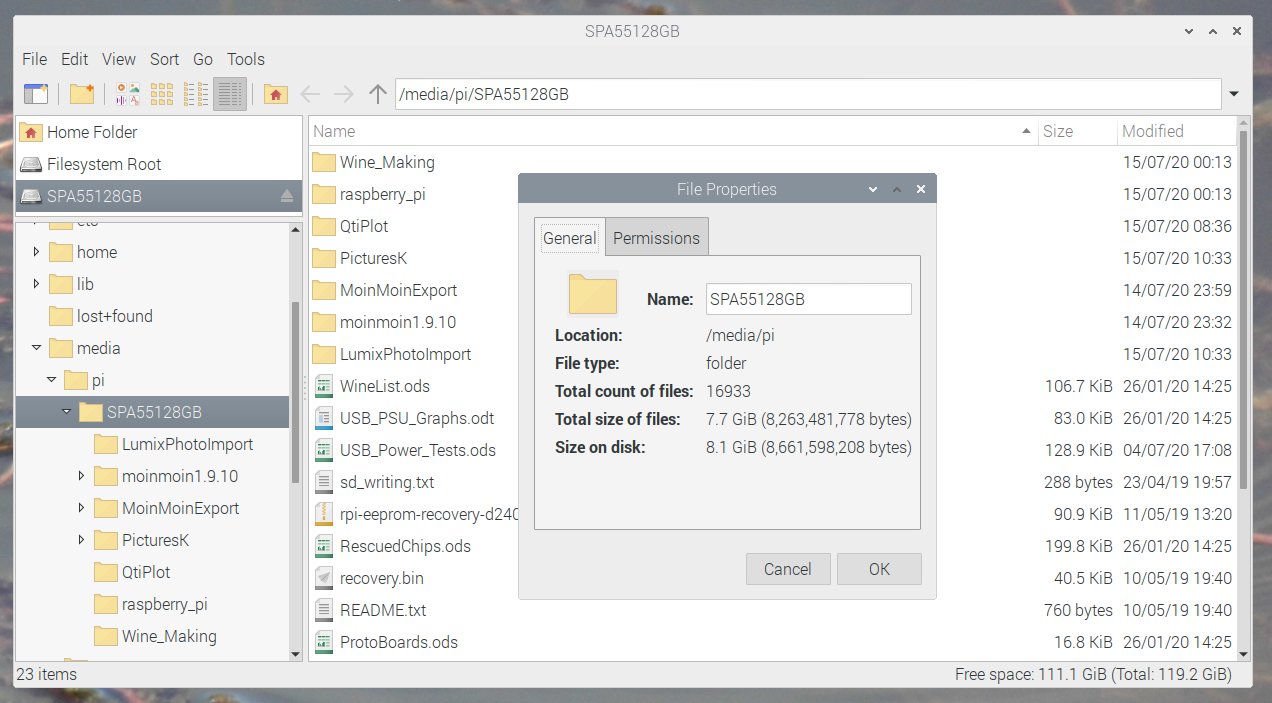

In use with an SSD

T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=01 Dev#=  2 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=174c ProdID=55aa Rev=01.00
S:  Manufacturer=ULT-Best
S:  Product=Best USB Device
S:  SerialNumber=042003052D9A
C:  #Ifs= 1 Cfg#= 1 Atr=c0 MxPwr=0mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

pi@raspiP4B4b-32GbP:~ $ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
sda           8:0    0 119.2G  0 disk
└─sda1        8:1    0 119.2G  0 part /media/pi/SPA55128GB
mmcblk0     179:0    0  29.1G  0 disk
├─mmcblk0p1 179:1    0   256M  0 part /boot
└─mmcblk0p2 179:2    0  28.9G  0 part /

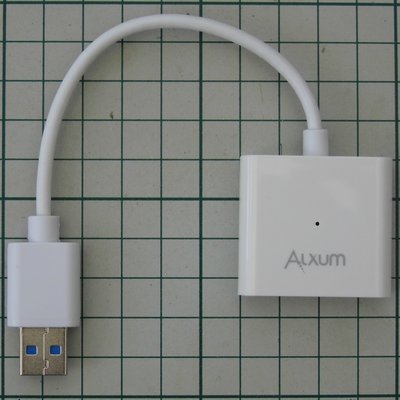

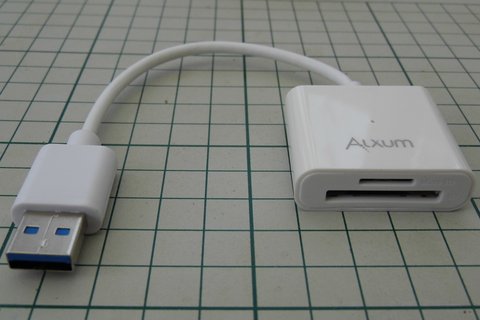

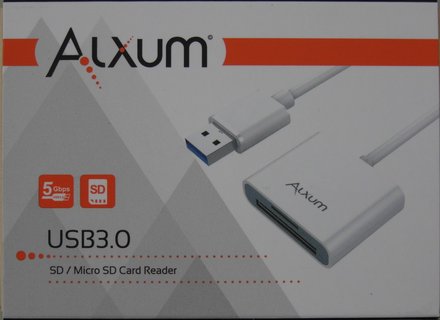

Alxum dual SD/microSD Card Reader/Writer

(SDHC and SDXC compatible)




pi@raspiP4B4b-32GbP:~ $ lsusb
...
Bus 002 Device 004: ID 0bda:0306 Realtek Semiconductor Corp.
...

T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  4 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=0bda ProdID=0306 Rev=01.18
S:  Manufacturer=Realtek
S:  Product=USB3.0 Card Reader
S:  SerialNumber=201510191731
C:  #Ifs= 1 Cfg#= 1 Atr=a0 MxPwr=800mA
I:  If#=0x0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage

pi@raspiP400gc64GB:~ $ lsusb
Bus 002 Device 002: ID 0bda:0306 Realtek Semiconductor Corp.
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 04d9:0007 Holtek Semiconductor, Inc.
Bus 001 Device 003: ID 1ea7:0064 SHARKOON Technologies GmbH
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
pi@raspiP400gc64GB:~ $ lsusb -t
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 5000M
    |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=usb-storage, 5000M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 3: Dev 3, If 0, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 4: Dev 4, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 4, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
pi@raspiP400gc64GB:~ $ lsblk
NAME        MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
mmcblk0     179:0    0 58.2G  0 disk
├─mmcblk0p1 179:1    0  256M  0 part /boot
└─mmcblk0p2 179:2    0   58G  0 part /

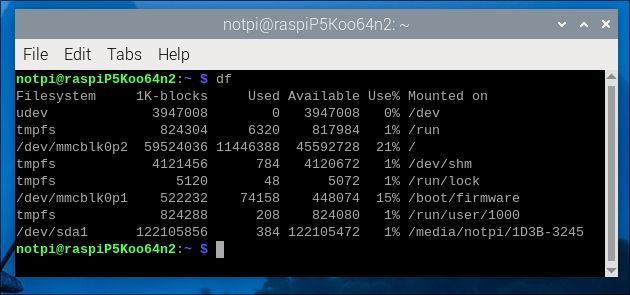

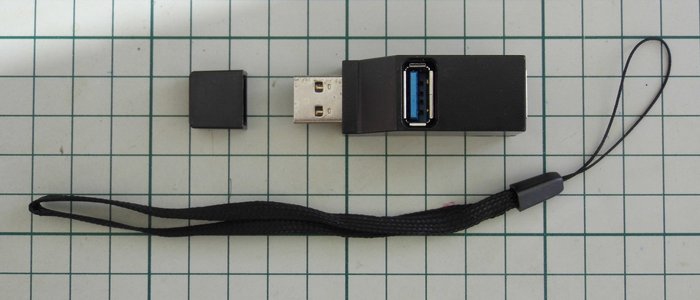

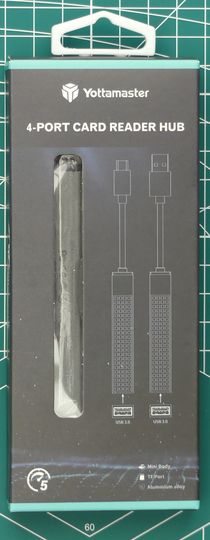

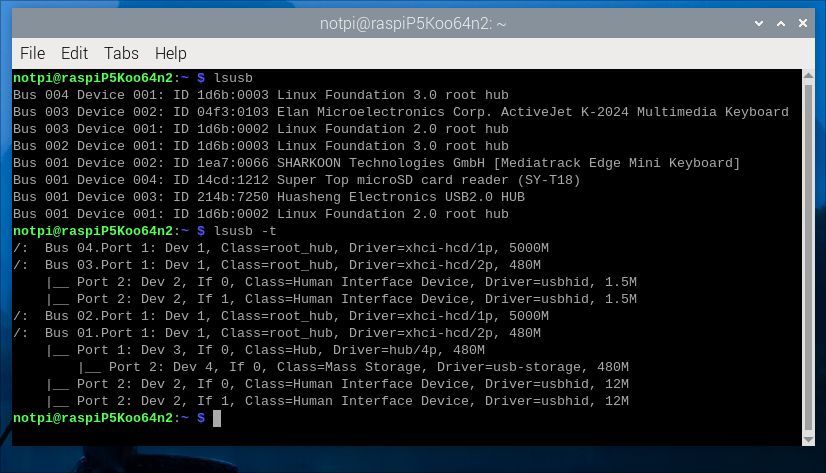

Yottamaster USB3 "Card Reader" Hub





P5 Tests

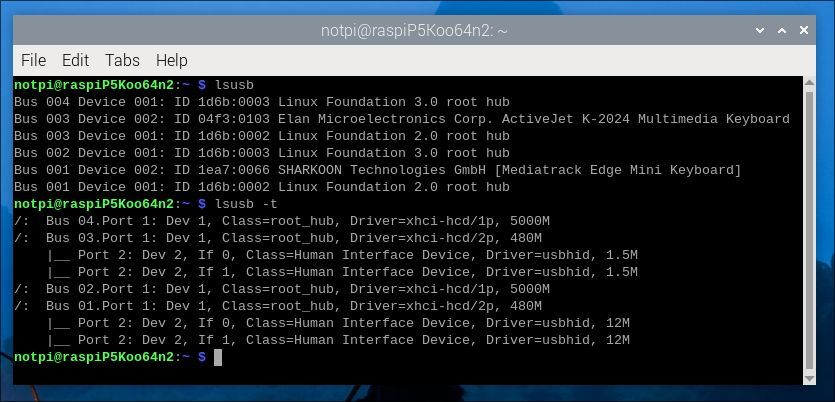

Hub not present

Hub present but usdcard slot empty

Usdcard now present:



No card present but replaced by a USB flash drive in the "end port":

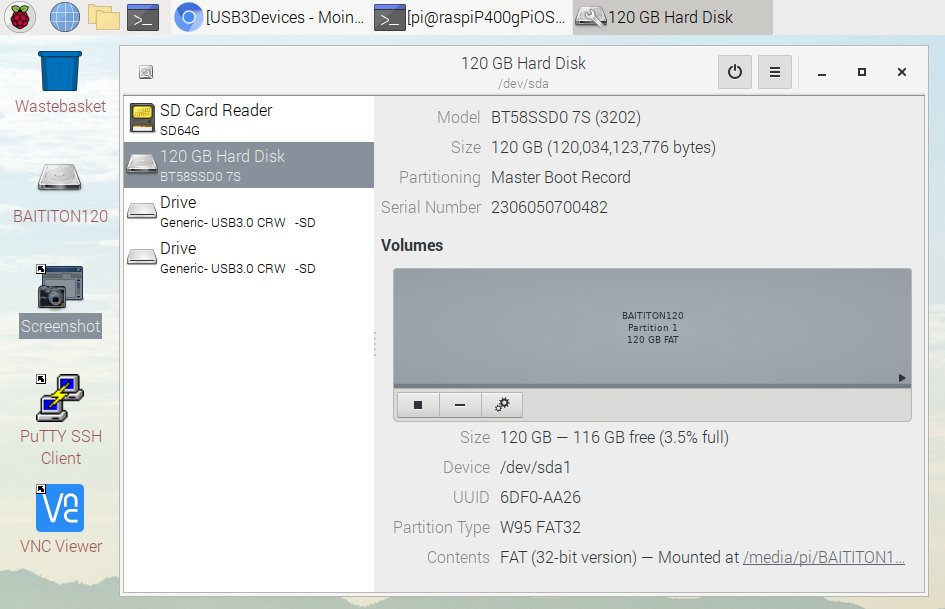

Eluteng USB3 to SATA Cable#2

(with USB3 'A' Socket (Female) to USB3 'C' Plug (Male) Adapter)



pi@raspiP400gPiOS64:~ $ lsusb
Bus 002 Device 003: ID 152d:0578 JMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge
...

In use with an SSD

T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=02 Dev#=  3 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=152d ProdID=0578 Rev=32.02
S:  Manufacturer=JMicron
S:  Product=External Disk 3.0
S:  SerialNumber=2306050700482
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=896mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

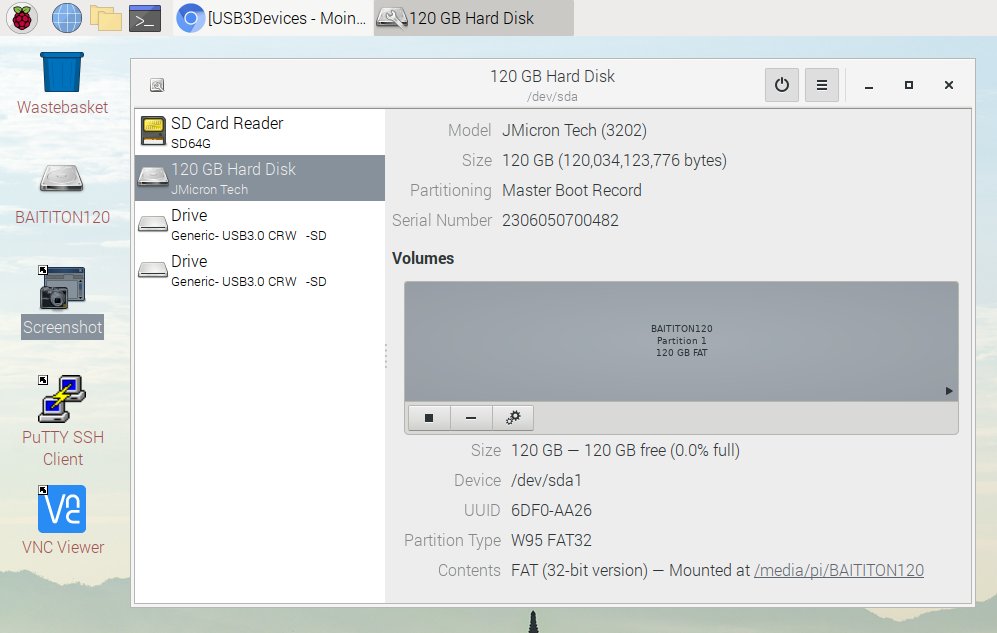

pi@raspiP400gPiOS64:/media/pi/BAITITON120/TestArea $ dd if=/dev/zero of=test.data bs=4M count=1000 status=progress
4123000832 bytes (4.1 GB, 3.8 GiB) copied, 18 s, 229 MB/s
1000+0 records in
1000+0 records out
4194304000 bytes (4.2 GB, 3.9 GiB) copied, 19.232 s, 218 MB/s
pi@raspiP400gPiOS64:/media/pi/BAITITON120/TestArea $ ls -laF
total 4096064
drwxr-xr-x 2 pi pi      32768 Sep  7 22:29 ./
drwxr-xr-x 3 pi pi      32768 Jan  1  1970 ../
-rw-r--r-- 1 pi pi 4194304000 Sep  7 22:29 test.data

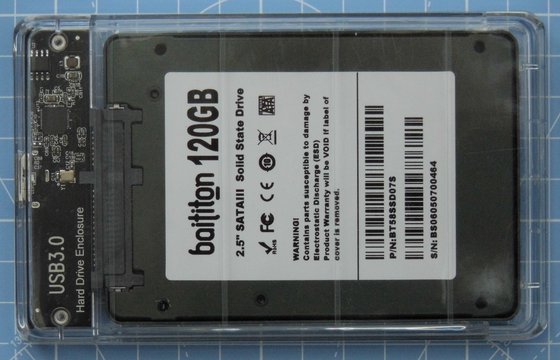

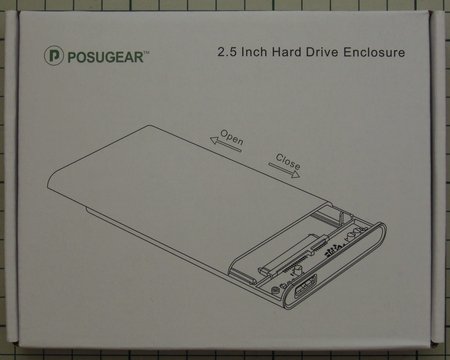

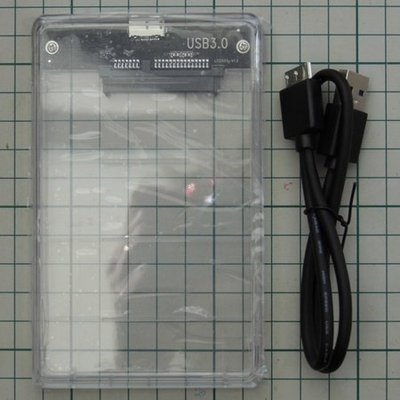

Posugear 2.5" Hard Drive Enclosure




pi@raspiP400gPiOS64:~ $ lsusb
Bus 002 Device 003: ID 152d:0578 JMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge
...

In use with the SSD shown above

T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=02 Dev#=  3 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=152d ProdID=0578 Rev=32.02
S:  Manufacturer=ZOMY
S:  Product=ZY603 USB3.0 Device
S:  SerialNumber=2306050700482
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=896mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

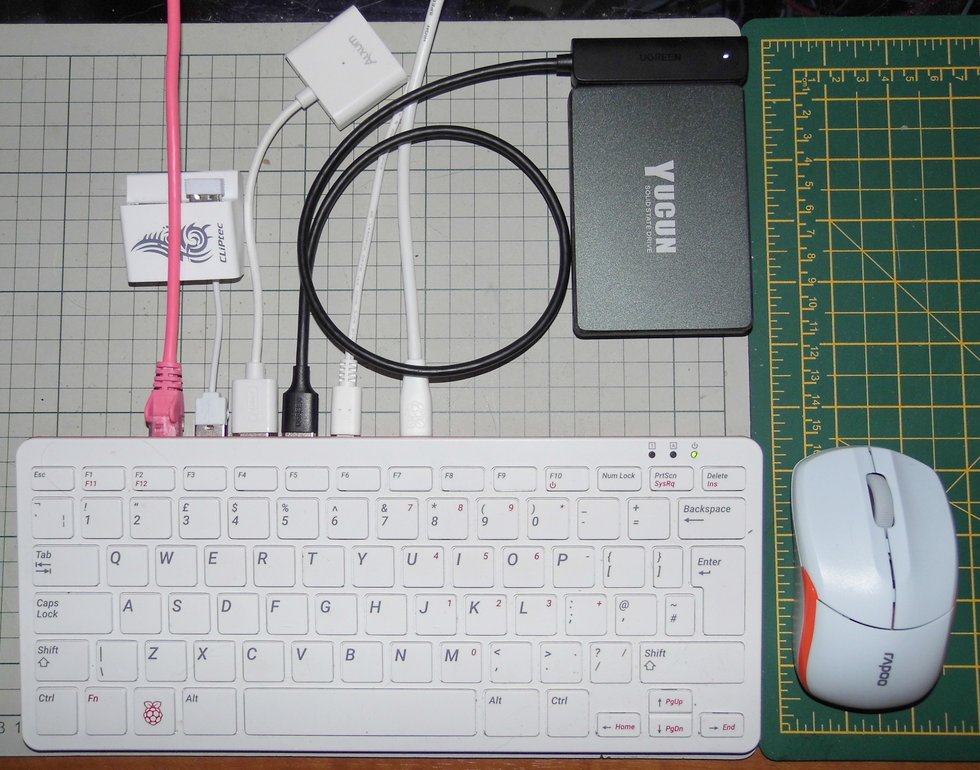

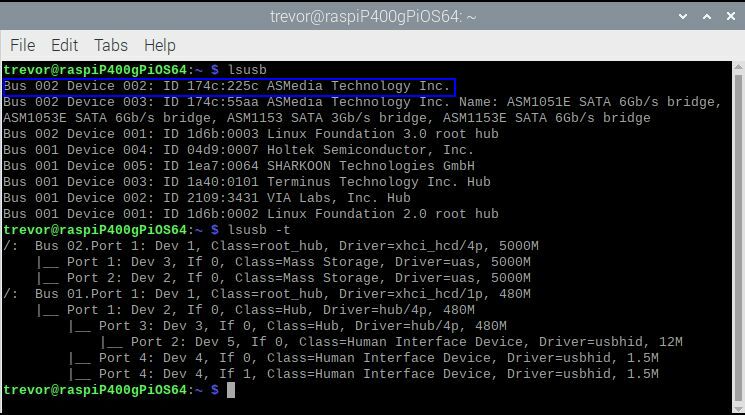

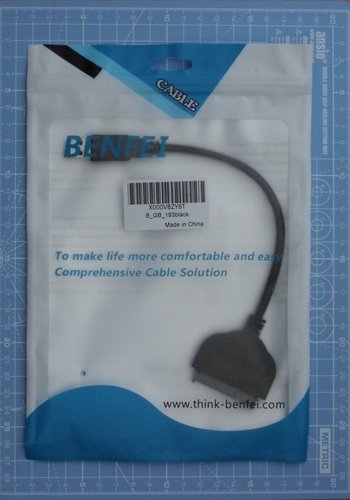

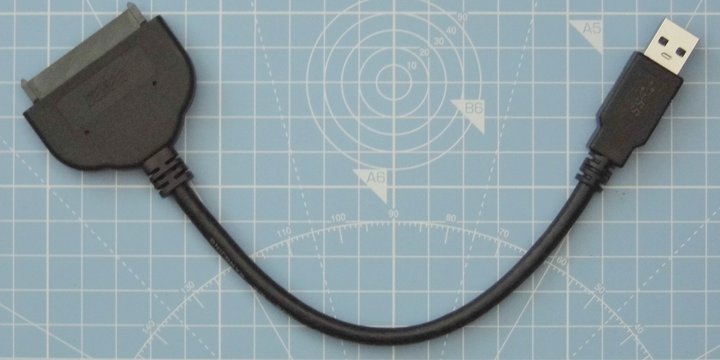

Benfei USB3 to SATA Cable




pi@raspiP400gPiOS64:~ $ lsusb
Bus 002 Device 002: ID 152d:0578 JMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge

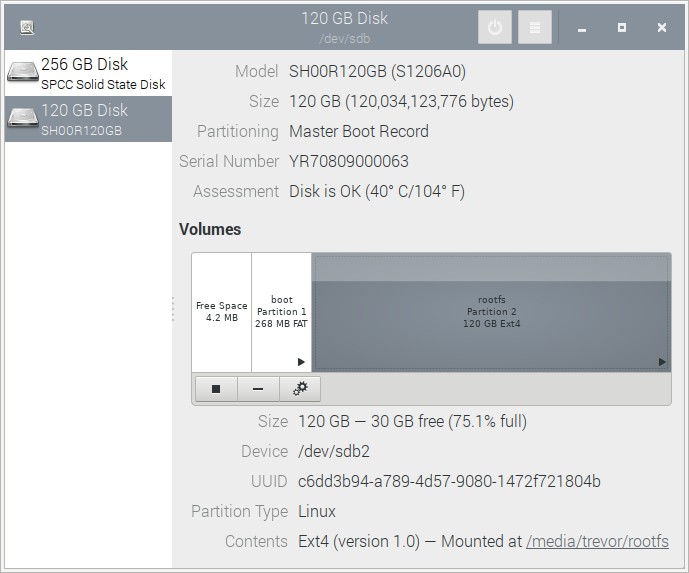

In use with a Yucun SSD

T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=152d ProdID=0578 Rev=02.09
S:  Manufacturer=JMicron
S:  Product=USB to ATA/ATAPI Bridge
S:  SerialNumber=0123456789ABCDEF
C:  #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=896mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

UGREEN USB-A to 2.5-inch SATA Converter

First Sample

Second Sample

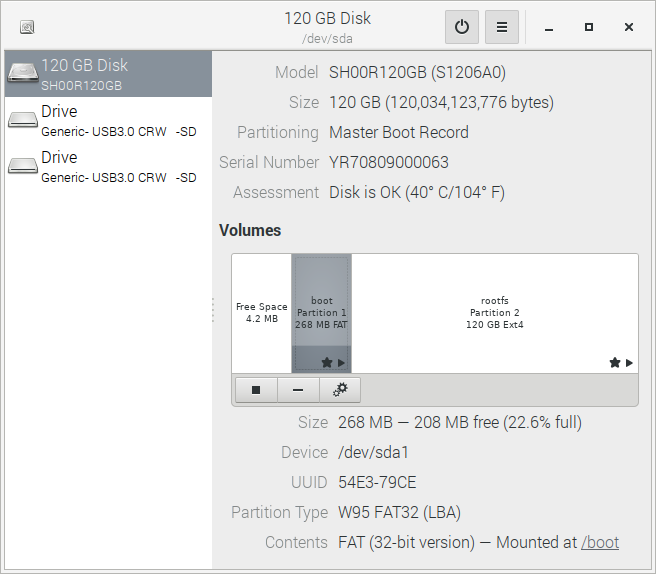

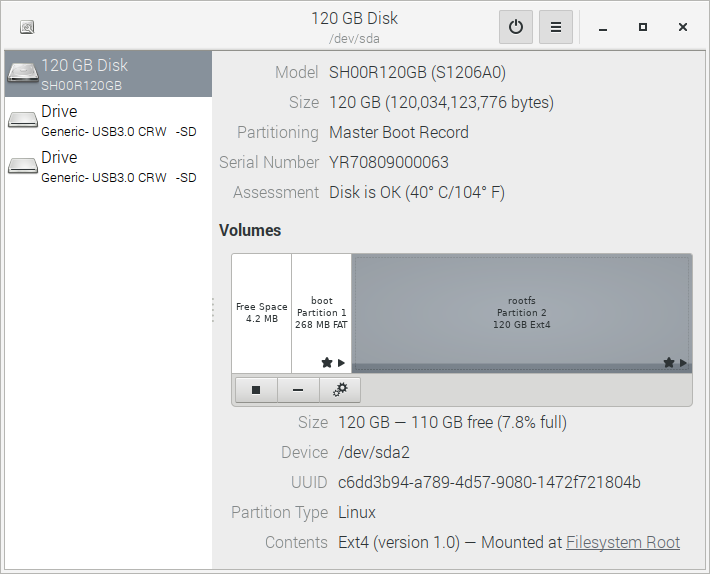

USB-booting a P400 from a cloned image on a Yucun SSD

(First Sample)

pi@raspiP400gPiOS64:~ $ lsusb
Bus 002 Device 003: ID 0bda:0306 Realtek Semiconductor Corp.
Bus 002 Device 002: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 04d9:0007 Holtek Semiconductor, Inc.
Bus 001 Device 005: ID 24ae:1100
Bus 001 Device 003: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=174c ProdID=55aa Rev=01.00
S:  Manufacturer=Ugreen
S:  Product=Ugreen Storage Device
S:  SerialNumber=022009022D18
C:  #Ifs= 1 Cfg#= 1 Atr=c0 MxPwr=0mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

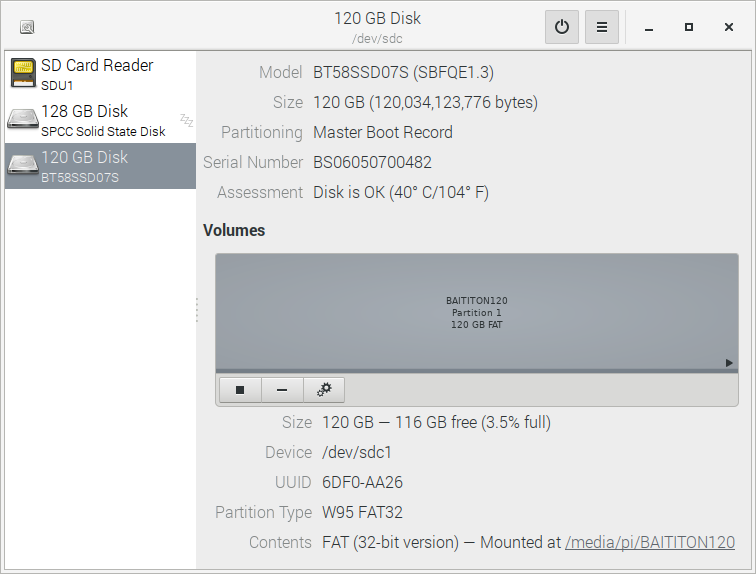

In use with the BAITITON SSD

(Second Sample, on a P4B)

pi@raspiP4B4b-32GbP:~ $ lsusb
Bus 002 Device 002: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
Bus 002 Device 004: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 005: ID 04d9:1503 Holtek Semiconductor, Inc. Keyboard
Bus 001 Device 004: ID 1ea7:0064 SHARKOON Technologies GmbH
Bus 001 Device 003: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

T:  Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  4 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=174c ProdID=55aa Rev=01.00
S:  Manufacturer=Ugreen
S:  Product=Ugreen Storage Device
S:  SerialNumber=02201013D5E5
C:  #Ifs= 1 Cfg#= 1 Atr=c0 MxPwr=0mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas

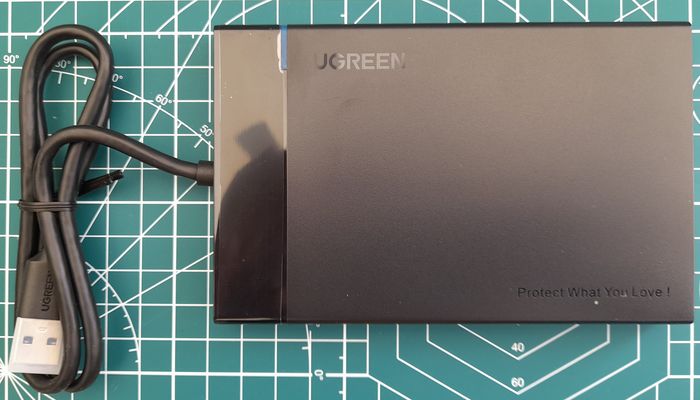

UGREEN 2.5inch SATA Hard Drive Enclosure

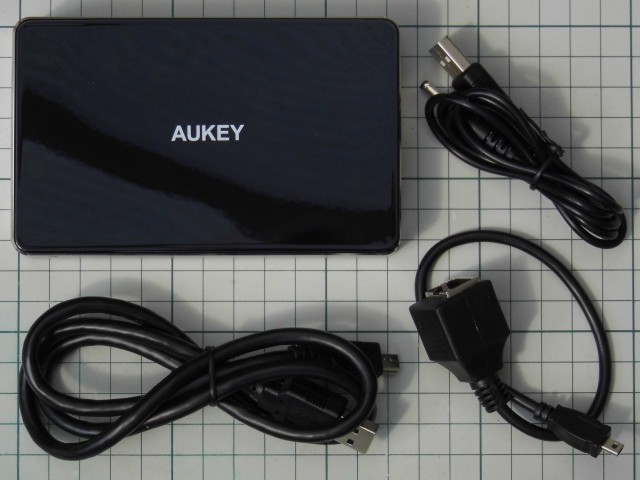

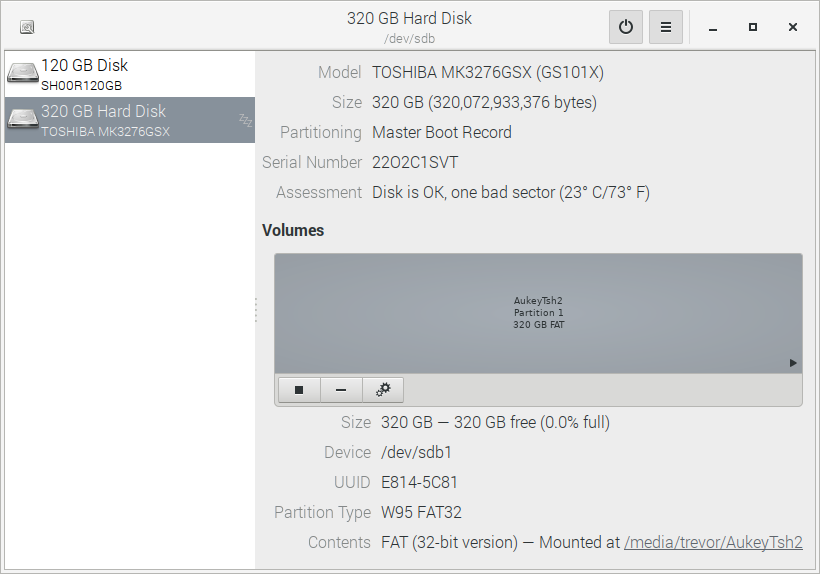

AUKEY WD-N3 HDD Enclosure, Power Bank & WiFi Router Etc. Re-visited

(Original USB2 and other tests/info. are here)


trevor@raspiP400gPiOS64:~ $ lsusb
Bus 002 Device 004: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
Bus 002 Device 002: ID 174c:55aa ASMedia Technology Inc. Name: ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 04d9:0007 Holtek Semiconductor, Inc.
Bus 001 Device 005: ID 1ea7:0064 SHARKOON Technologies GmbH
Bus 001 Device 003: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

trevor@raspiP400gPiOS64:~ $ lsusb -t
/:  Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 5000M
    |__ Port 1: Dev 2, If 0, Class=Mass Storage, Driver=uas, 5000M
    |__ Port 2: Dev 4, If 0, Class=Mass Storage, Driver=uas, 5000M
/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 3: Dev 3, If 0, Class=Hub, Driver=hub/4p, 480M
            |__ Port 2: Dev 5, If 0, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 4: Dev 4, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
        |__ Port 4: Dev 4, If 1, Class=Human Interface Device, Driver=usbhid, 1.5M

T:  Bus=02 Lev=01 Prnt=01 Port=01 Cnt=02 Dev#=  4 Spd=5000 MxCh= 0
D:  Ver= 3.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs=  1
P:  Vendor=174c ProdID=55aa Rev=01.00
S:  Manufacturer=GODO
S:  Product=WiFiDisk
S:  SerialNumber=201401000062
C:  #Ifs= 1 Cfg#= 1 Atr=c0 MxPwr=0mA
I:  If#=0x0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas


trevor@raspiP400gPiOS64:/media/trevor/AukeyTsh2 $ mkdir TestArea
trevor@raspiP400gPiOS64:/media/trevor/AukeyTsh2 $ cd TestArea/
trevor@raspiP400gPiOS64:/media/trevor/AukeyTsh2/TestArea $ dd if=/dev/zero of=test.data bs=4M count=1000 status=progress
4013948928 bytes (4.0 GB, 3.7 GiB) copied, 43 s, 93.3 MB/s
1000+0 records in
1000+0 records out
4194304000 bytes (4.2 GB, 3.9 GiB) copied, 48.7398 s, 86.1 MB/s
trevor@raspiP400gPiOS64:/media/trevor/AukeyTsh2/TestArea $ ls -laF
total 4096064
drwxr-xr-x 2 trevor trevor      32768 Jun  3 15:06 ./
drwxr-xr-x 3 trevor trevor      32768 Jan  1  1970 ../
-rw-r--r-- 1 trevor trevor 4194304000 Jun  3 15:07 test.data

trevor@raspiP400gPiOS64:~ $ df
Filesystem     1K-blocks     Used Available Use% Mounted on
/dev/root      114593388 21225364  87503912  20% /
devtmpfs         1809804        0   1809804   0% /dev
tmpfs            1942700    25872   1916828   2% /dev/shm
tmpfs            1942700     9116   1933584   1% /run
tmpfs               5120        4      5116   1% /run/lock
tmpfs            1942700        0   1942700   0% /sys/fs/cgroup
/dev/sda1         258095    30050    228045  12% /boot
tmpfs             388540       12    388528   1% /run/user/1001
/dev/sdb1      312493536  4096256 308397280   2% /media/trevor/AukeyTsh2
trevor@raspiP400gPiOS64:~ $ lsblk
NAME   MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
sda      8:0    0 111.8G  0 disk
├─sda1   8:1    0   256M  0 part /boot
└─sda2   8:2    0 111.5G  0 part /
sdb      8:16   0 298.1G  0 disk
└─sdb1   8:17   0 298.1G  0 part /media/trevor/AukeyTsh2

The PiHut USB3.0 AM/SATA Cable



Yucun 120GB SSD "re-visited"

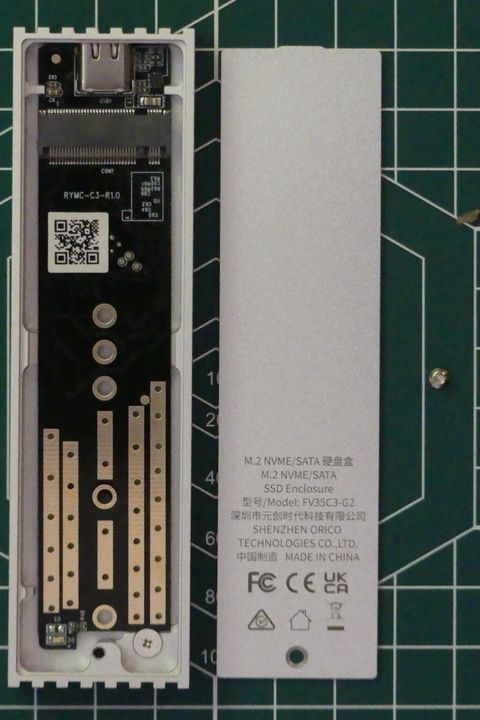

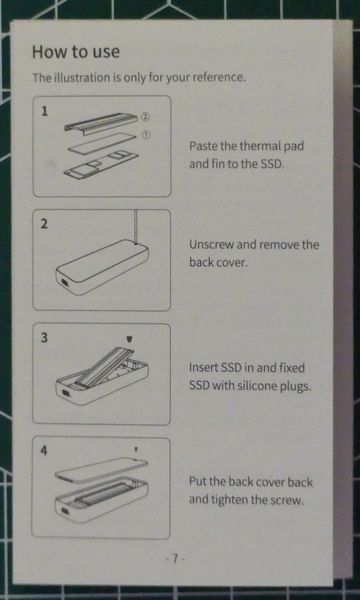

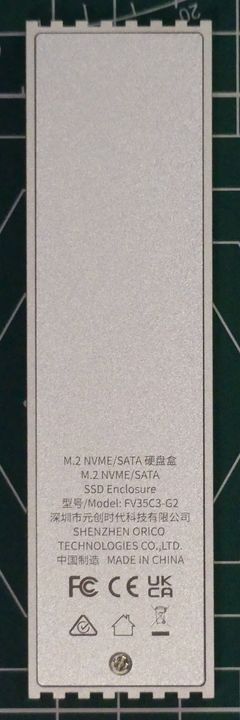

Orico M.2 SSD Enclosure

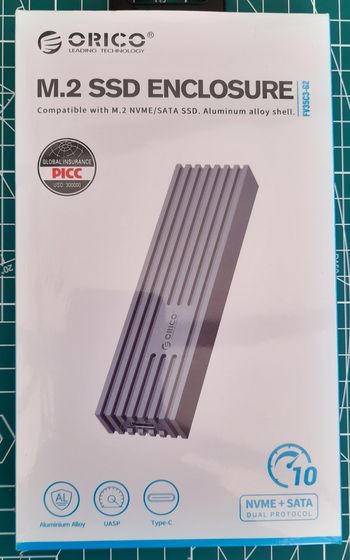

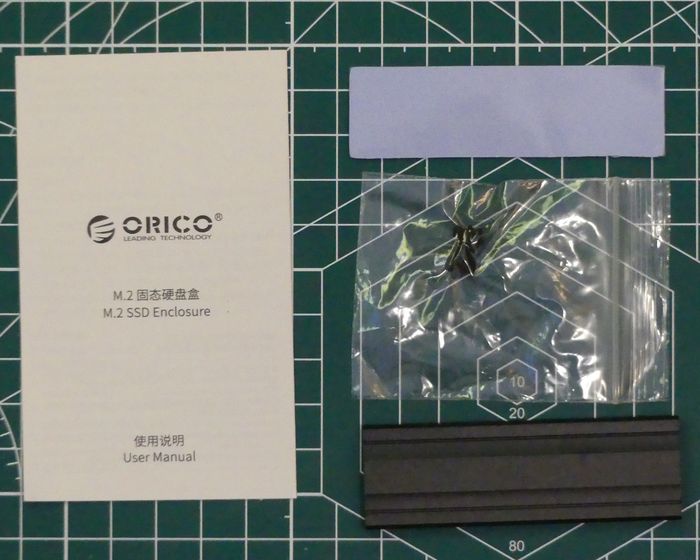

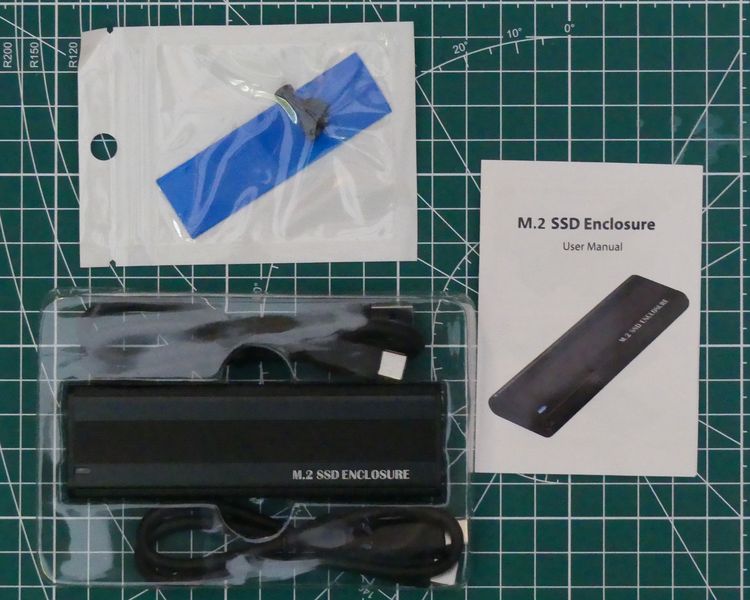

What's in the box? 1

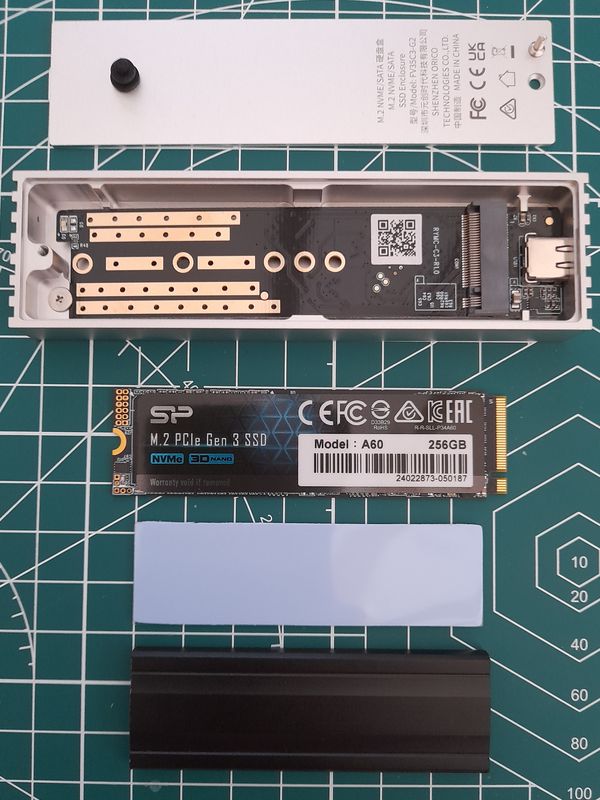

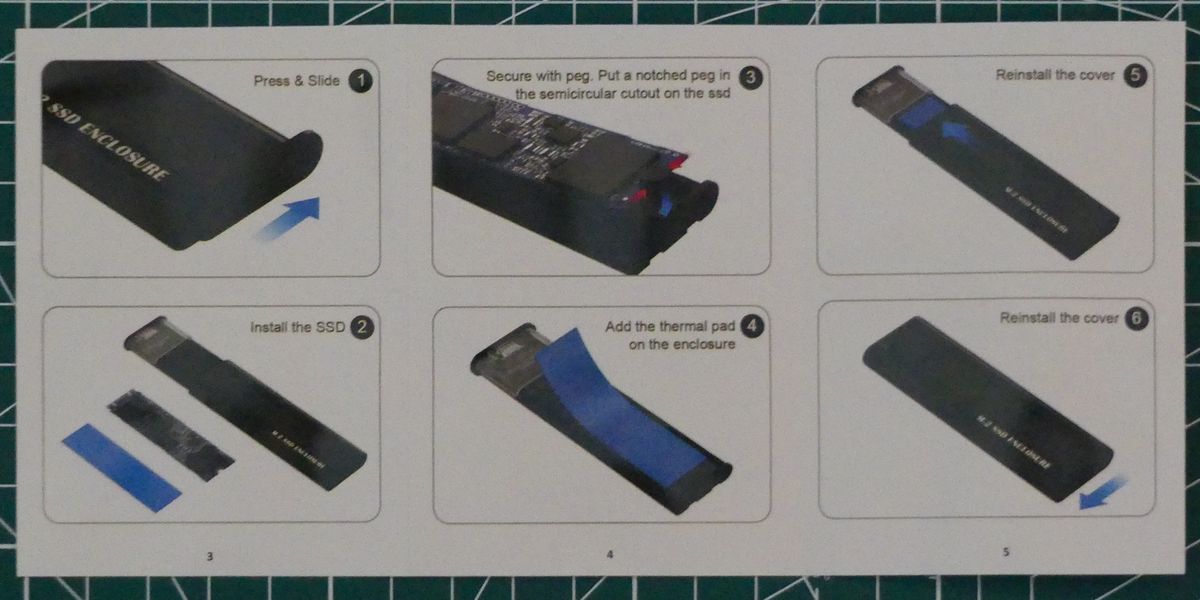

Fitting a SP 256GB 2280 NVMe Drive

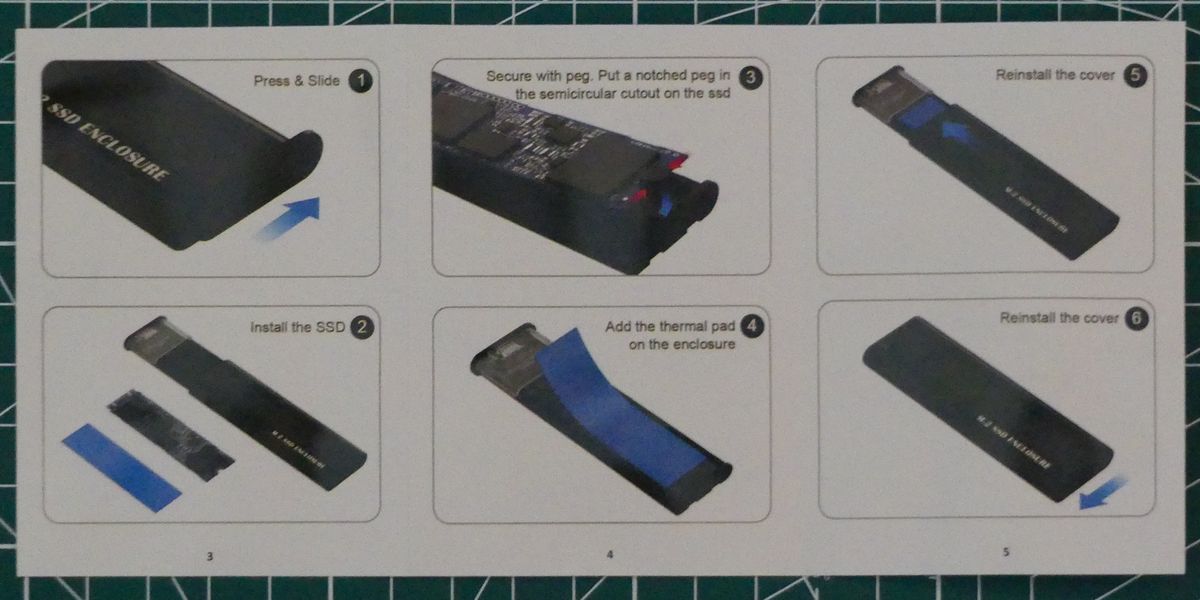

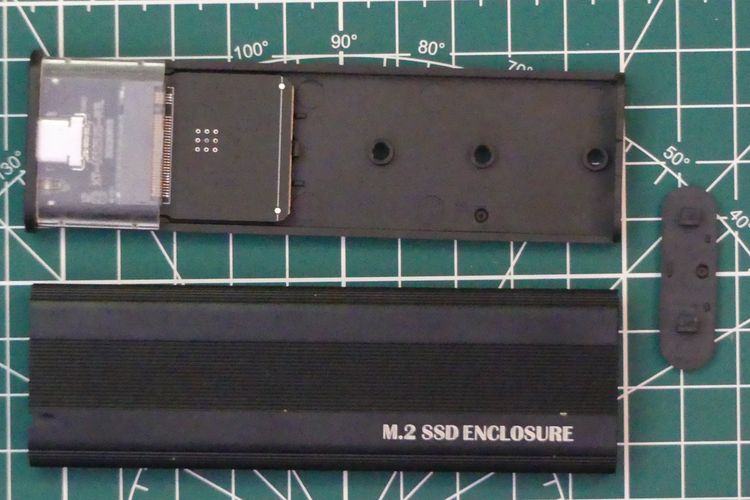

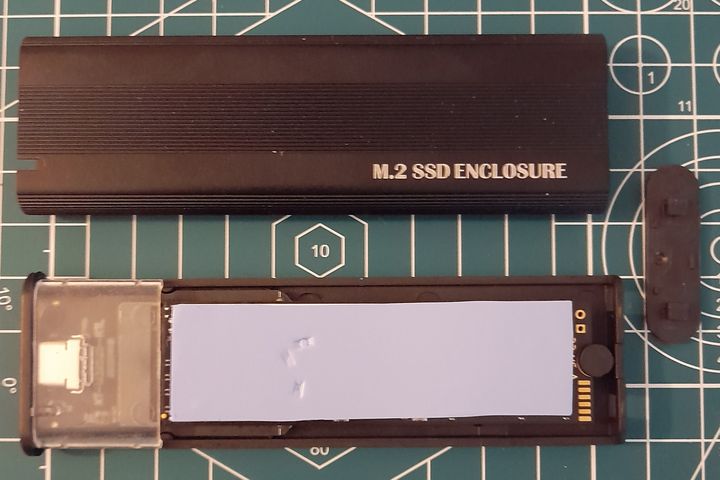

Generic (Budget) M.2. SSD Enclosure








Fitting a Patriot 240GB 2280 NVMe Drive




  1. Screwdriver not shown here, discovered later! (1)

2025-04-04 21:50
